Description

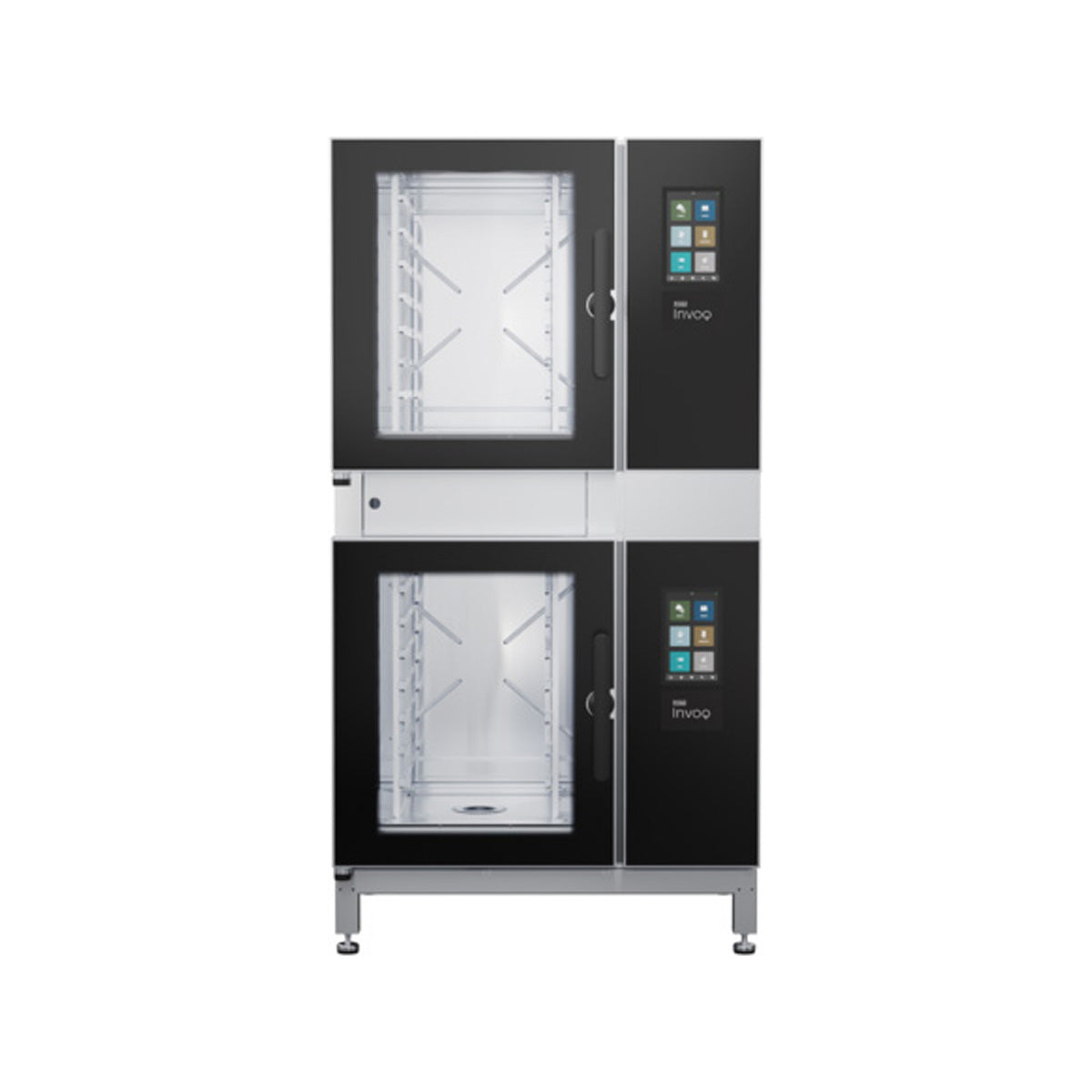

Two Invoq combi ovens stacked in one footprint, so you can roast in one and steam or bake in the other.
The Blodgett Invoq 61BLE/61BLE stacks two 6-1/1 GN ovens for restaurants, cafeterias, hotels and caterers that need more capacity without more floor space. Together they hold 14 half sheet pans or 14 hotel pans 2" deep (70 mm racks). Each oven has its own touchscreen and boilerless injection steam, cooks at 85-572°F and steams at 85-265°F. Each oven connects to its own three-phase supply (208V, 240V, 440V or 480V, chosen when you order).
Will it fit · Will it plug in
- Outside size
- 36.9" W × 39.1" D × 69.6" H stacked, with handle (35.9" deep without handle)
- Inside
- Top cavity 23" H x 20" W x 26.8" D; bottom cavity 23" H x 20" W x 26.8" D
- Power
- 2 x 10.3 kW, 3-phase, separate supply per oven; each oven 208V 31 A, 240V 28 A, 440V 18 A, 480V 17 A
- Water and drain
- 3/4" water at 15-87 psi (1-6 bar); 50 mm (2") drain
- Clearance
- 0" left and back, 1.6" right; 15.75" right side recommended for service
- Shipping weight
- 679 lb; shipping size 73.3" H x 39.4" W x 47.2" D
Blodgett does not list a minimum doorway. Measure every door and turn on the delivery path against the 36.9" width, 39.1" depth and 69.6" stacked height before ordering.
Double capacity, one footprint
Stackit puts two ovens on the floor space of one, with a maximum working height of 62.9".
Two ovens, two jobs
Each oven has its own controls, so you can steam vegetables in one while roasting or baking in the other.
Steam your way
Injection steam needs no boiler to fill or descale; CombiSpeed adds power steam in 10 levels.
Hands-off cleaning
CareCycle runs 7 tablet-based cleaning cycles in each oven, from Light to Intense, Turbo or Eco, and can be scheduled overnight.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Ships by freight carrier, about 679 lb; plan how it will be unloaded and moved inside.
- Choose voltage, door hinging, mounting (stand, legs or casters) and rack spacing when ordering; the oven is built to that configuration.
- Have a licensed electrician and plumber make the connections; each oven needs its own electrical supply, and Blodgett requires backflow protection per local code.
- Inspect the shipment for damage before signing for it.
Questions buyers ask
What electrical service does it need?
Each oven needs its own three-phase supply (60 Hz): each oven 208V 31 A, 240V 28 A, 440V 18 A, 480V 17 A. Blodgett notes that the variable-frequency drive can trip sensitive ground-fault devices, so some installations must be hard wired.
Will it fit through my door?
Blodgett does not list a minimum doorway. Measure every door and turn on the delivery path against the 36.9" width, 39.1" depth and 69.6" stacked height before ordering.
How much does it hold?
14 half sheet pans or 14 hotel pans 2" deep (70 mm racks); 12 half sheet pans or 12 hotel pans 2-1/2" deep (85 mm racks); 10 full-size sheet pans, 10 hotel pans 2-1/2" deep or 20 half sheet pans with MultiRack. Racks included: 5 top and 5 bottom.
Boiler or boilerless: which is this?
Both ovens are boilerless Combi models: steam comes from water injected onto the heating elements, so there is no boiler to descale.
Can I use different modes in each oven?
Yes. Each oven has its own touchscreen and runs on its own, so one can steam while the other roasts, bakes or holds.
How much clearance does it need?
Blodgett lists 0" on the left and back and 1.6" (40 mm) on the right, and recommends 15.75" (400 mm) of free space on the right side for service access, since service is done from that side.
What water and drain connections does it need?
A 3/4" garden-hose-thread water connection at 15-87 psi (1.5 gpm) and a 2" drain. Blodgett's water limits include maximum total hardness (TDS) of 55 ppm, chlorides 50 ppm and pH 7.0-8.0; water treatment is recommended, and the drain piping must withstand more than 160°F.
What does the warranty cover?
Blodgett's spec sheet refers to its standard warranty, with extended coverage available by purchase agreement; call us for the current terms before ordering. Blodgett offers K-12 school systems a second-year warranty on select Invoq ovens (see the K12 Warranty document on this page).
Specs
| Manufacturer | Blodgett |
|---|---|
| Model Number | Invoq 61BLE/61BLE |
| Quantity | 1 Each |
| Shipping Weight | 679 lb. |
| Width | 36.9 Inches |
| Depth | 39.1 Inches |
| Height | 69.6 Inches |
| Depth Without Handle | 35.9 Inches |
| Maximum Working Height | 62.9 Inches |
| Shipping Dimensions | 73.3" H x 39.4" W x 47.2" D |
| Net Weight | 635 lb. |
| Clearance | 0" Left0" Back1.6" Right15.75" Right Recommended for Service |
| Voltage | 208 - 480 Volts |
| Phase | 3 |
| Hertz | 60 |
| Wattage | 10.3 kW Top Oven10.3 kW Bottom Oven |
| Amps | 17 - 31 Amps |
| Amps by Supply | 208V 3-Ph: 31 A Each Oven240V 3-Ph: 28 A Each Oven440V 3-Ph: 18 A Each Oven480V 3-Ph: 17 A Each Oven |
| Electrical Connections | Separate Supply for Each Oven |
| Capacity | 14 Half Sheet Pans |
| Pan Capacity | 14 half sheet pans or 14 hotel pans 2" deep (70 mm racks)12 half sheet pans or 12 hotel pans 2-1/2" deep (85 mm racks)10 full-size sheet pans, 10 hotel pans 2-1/2" deep or 20 half sheet pans with MultiRack |
| Cavity Dimensions | Top 23" H x 20" W x 26.8" DBottom 23" H x 20" W x 26.8" D |
| Racks Included | 5 Top + 5 Bottom Heavy-Duty Stainless Steel Wire Racks |
| Maximum Food Load | 69.4 lb. Top Oven69.4 lb. Bottom Oven |
| Temperature Range | 85 - 572 Degrees F |
| Mode Ranges | Convection 85-572°F (572°F for 15 Min., Then 480°F)Steam 85-265°FCombiSense and CombiSpeed 85-480°F |
| Steam System | Injection Steam, Boilerless, Both Ovens |
| Controls | 7" Capacitive Touchscreen per Oven, Android 91,500 Recipes, Up to 15 Steps Each |
| Connectivity | USB, LAN (RJ45)Wi-Fi Module and Open Kitchen Cloud Optional |
| Cleaning | CareCycle Automatic Tablet Cleaning, 7 Cycles |
| Doors | 3-Pane GlassLeft Hinged Standard, Right Hinged on Request |
| Water Connection | 3/4", 1-6 bar (15-87 PSI) |
| Drain | 50 mm (2 Inch) |
| Water Quality | Max. TDS 55 ppmMax. Chlorides 50 ppmMax. Chlorine 0.2 ppmpH 7.0-8.0 |
| Optional Condensation Hood | Separate 120V 1-Phase Supply, 0.36 kW, 5 A |
| Protection Class | IPX5 |
| Certifications | cULus, UL EPH, ENERGY STAR, CE |
| Usage | Commercial Use Only |
