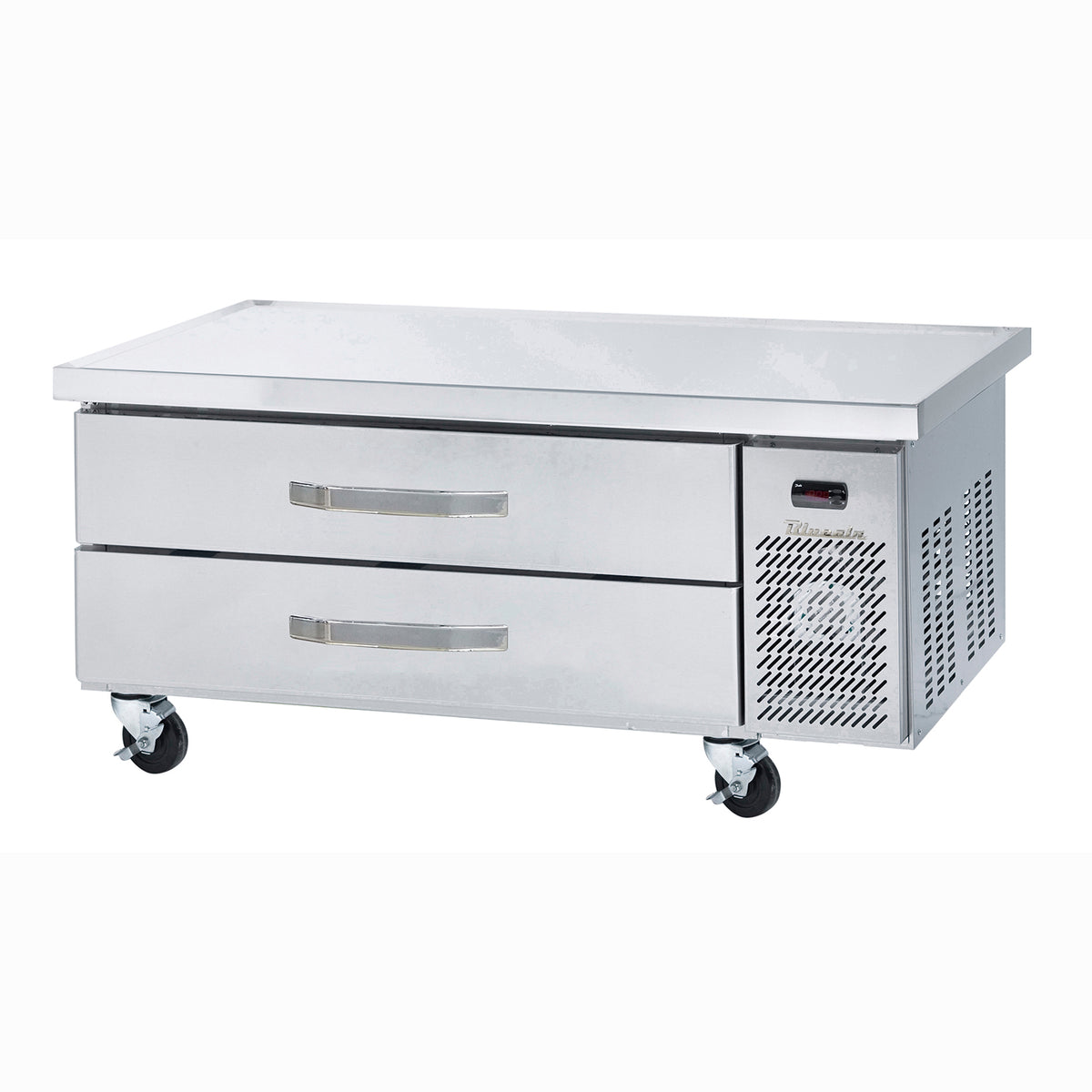

Blue Air BACB60M-HC 60" 2-Drawer Refrigerated Chef Base, 9.8 cu. ft., R-290, 115V
A 60" refrigerated chef base that puts cold product right under your griddle or charbroiler.
The Blue Air BACB60M-HC is a 60" refrigerated chef base with 2 drawers under a heavy-duty top built for countertop cooking equipment. Its R-290 system holds 33°F to 39°F, and the front-breathing, side-mounted compressor fits tight cook lines. It plugs into a standard 115V outlet with the attached cord and NEMA 5-15 plug.
Measure doorways and turns on the delivery path; the smallest outside dimension is the 25-1/2" height.
Per Blue Air's drawing, each drawer level holds 3 full-size pans. Upper and lower drawers take 4" deep 12" x 20" pans, and pan adapter bars are supplied. Pans are not included.
Stainless steel telescoping slides with stainless roller bearings carry up to 200 lbs. per drawer without deflection.
The top panel is designed to hold countertop cooking equipment. Blue Air's manual notes that "M" models have a V-shaped top.
An electrodeposition-coated evaporator and hot gas frame heating help hold temperature and limit condensation.
The side-mounted condensing unit breathes from the front and slides out for maintenance.
A grounded 115V/60Hz outlet (NEMA 5-15R). The unit draws 3 A and comes with a 9.8 ft. cord and NEMA 5-15 plug. Blue Air says not to use an extension cord or share the outlet with other appliances.
Blue Air rates the BACB60M-HC at 33°F to 39°F.
The unit measures 60" W x 31" D x 25-1/2" H (height includes the casters). Measure every doorway and turn on the way in.
Countertop cooking equipment such as griddles and charbroilers; Blue Air designed the heavy-duty top for that. Check your equipment maker's clearance rules too.
No. The drawers take 4" deep 12" x 20" pans, and pan adapter bars come with the unit.
Check the condenser fins monthly and clean them with a soft brush or vacuum, per Blue Air's manual.
Blue Air's sheet shows cULus and ETL marks and states the unit conforms to NSF/ANSI 7.
Yes. Blue Air equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Blue Air |
|---|---|
| Model Number | BACB60M-HC |
| Type | Refrigerated Chef Base |
| Shipping Weight | 254 lb. |
| Product Weight | 231 lb. |
| Width | 60 Inches |
| Depth | 31 Inches |
| Height | 25-1/2 Inches |
| Dimension Note | Height includes the casters |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 3 Amps |
| Plug Type | NEMA 5-15 |
| Cord Length | 9.8 ft. |
| Temperature Range | 33 - 39 Degrees F |
| Refrigerant | R-290 Hydrocarbon |
| Horsepower | 1/4 HP |
| Compressor Location | Side Mounted, Front Breathing, Sliding Condensing Unit |
| Capacity | 9.8 cu. ft. |
| Drawer Pans | 3 full-size pans per drawer level, 4" deep |
| Drawers | 2 Drawers |
| Exterior | Stainless Steel |
| Interior | Stainless SteelGalvanized Steel Back and Bottom |
| Insulation | Foamed-In-Place Polyurethane |
| Casters | 4" Swivel Casters, Front Brakes |
| Blue Air Options | 6" Legs |
| Certifications | cULus, ETL, NSF/ANSI 7 |
