Blue Air BLF5-LPG 21" Liquid Propane Floor Fryer, 70 lb. Oil Capacity, 5 Tube Burners, 150,000 BTU
A 70 lb. LP gas floor fryer with 5 tube burners and fast recovery.

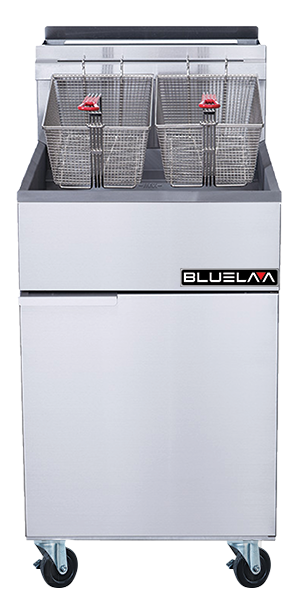

The Blue Air BLF5-LPG is a 21" liquid propane floor fryer from the Blue Lava cooking line. Its fry pot holds 70 lb. (8.3 gallons) of oil, heated by 5 cast iron tube burners at 30,000 BTU each, 150,000 BTU in all. A millivolt control holds 200°F to 400°F, and the large cold zone keeps crumbs out of the oil.
It must go under a ventilation hood; plan for 21" of width in the fryer line.
5 tube burners at 30,000 BTU each make an expanded hot zone, 150,000 BTU in all, for even heat and quick recovery.
The fry pot holds 70 lb. (8.3 gallons) of oil, with a 19.49" x 13.98" frying area.
A millivolt safety control system with a heavy-duty probe holds oil temperature from 200°F to 400°F.
An oversized cold zone and gently pitched frypot floor move crumbs and sediment to the front, so oil stays cleaner and lasts longer.
Every area of the frypot can be reached and cleaned by hand. A drain valve lets you empty the pot into a container for daily cleaning.
This BLF5-LPG is the liquid propane model, set for 10" W.C. supply pressure. The BLF5-NG is the natural gas version.
70 lb., or 8.3 gallons. Blue Air also prints the capacity on the serial plate inside the front door.
It comes with a 3/4" NPT male connector on a 1/2" pipe, so it can connect with either a 3/4" or 1/2" NPT female connector.
Yes. Blue Air's manual says the unit must be installed under a ventilation hood and must not be connected directly to an outside flue.
From noncombustible construction 0" at the sides and rear; from combustible construction 8" at the sides and 12" at the rear. Keep 16" from an open flame unless a 7" high divider is fitted.
Blue Air covers Blue Lava fryers with a 1-year parts and labor warranty and a 5-year warranty on the oil tank.
Yes. Blue Air equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Blue Air |
|---|---|
| Model Number | BLF5-LPG |
| Series | Blue Lava Cooking Equipment |
| Type | Gas Floor Fryer, Tube Type |
| Shipping Weight | 246.92 lb. |
| Product Weight | 220.46 lb. |
| Width | 21 Inches |
| Depth | 32-7/8 Inches |
| Height | 45 Inches |
| Frying Area | 19.49" x 13.98" |
| Capacity | 70 lb. Oil |
| Oil Volume | 8.3 Gallons |
| Fuel Type | Liquid Propane |
| Total BTU | 150,000 BTU/hr |
| Burners | 5 Cast Iron Tube Burners, 30,000 BTU/hr Each |
| Gas Pressure | 10" W.C. |
| Orifice Size | #52 |
| Gas Connection | 3/4" NPT Male Connector on 1/2" Pipe |
| Control Type | Millivolt Safety Control System with Heavy-Duty Probe |
| Temperature Range | 200 - 400 Degrees F |
| Frypot | Oversized Cold Zone, Pitched Frypot Floor, Fully Reachable for Cleaning |
| Clearances | Noncombustible: 0" Sides and RearCombustible: 8" Sides, 12" Rear |
| Ventilation | Must Be Installed Under a Ventilation Hood |
| Certifications | CSA, CSA Sanitation |
| Warranty | 1 Year Parts and Labor, 5 Years on Oil Tank |
