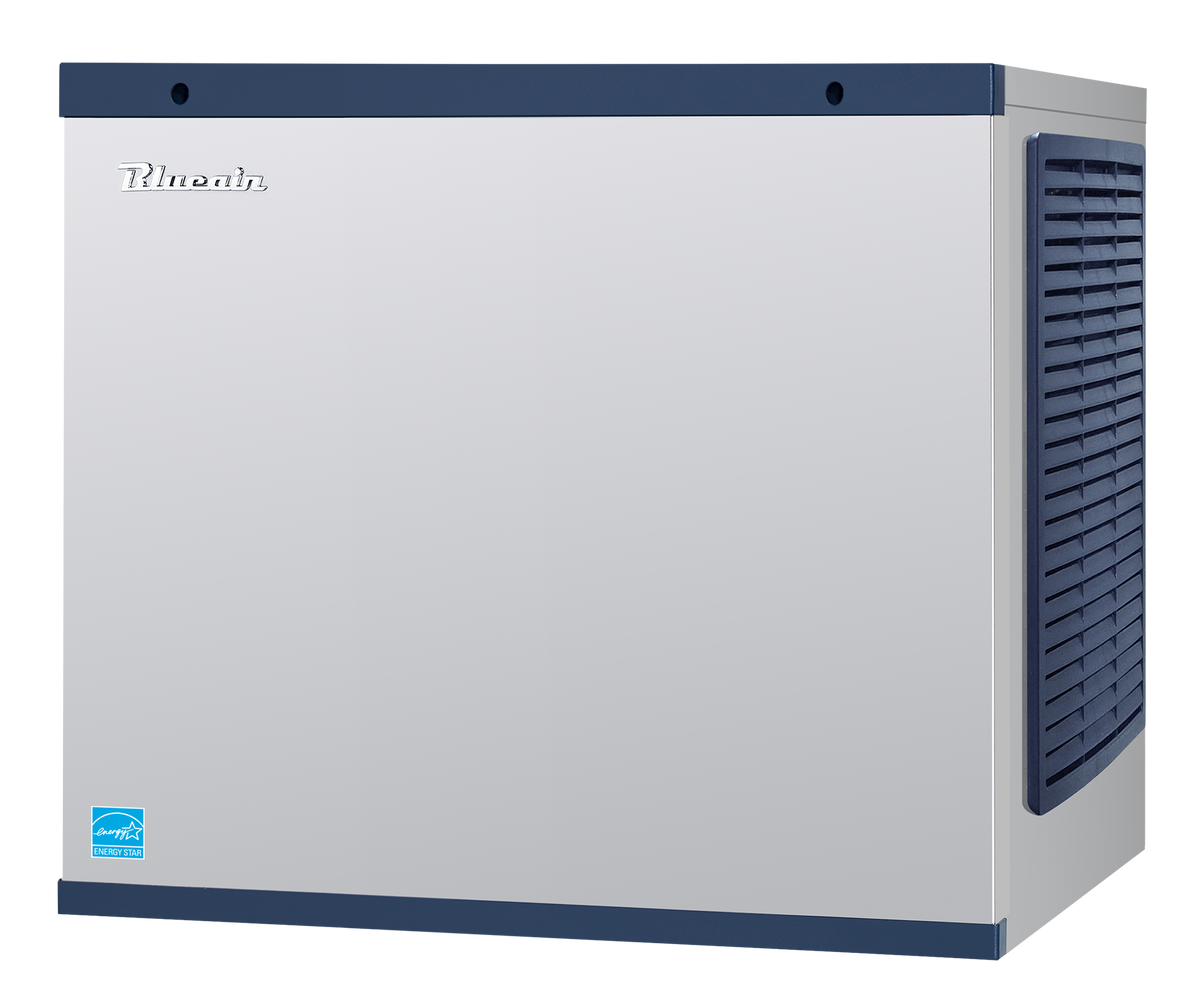

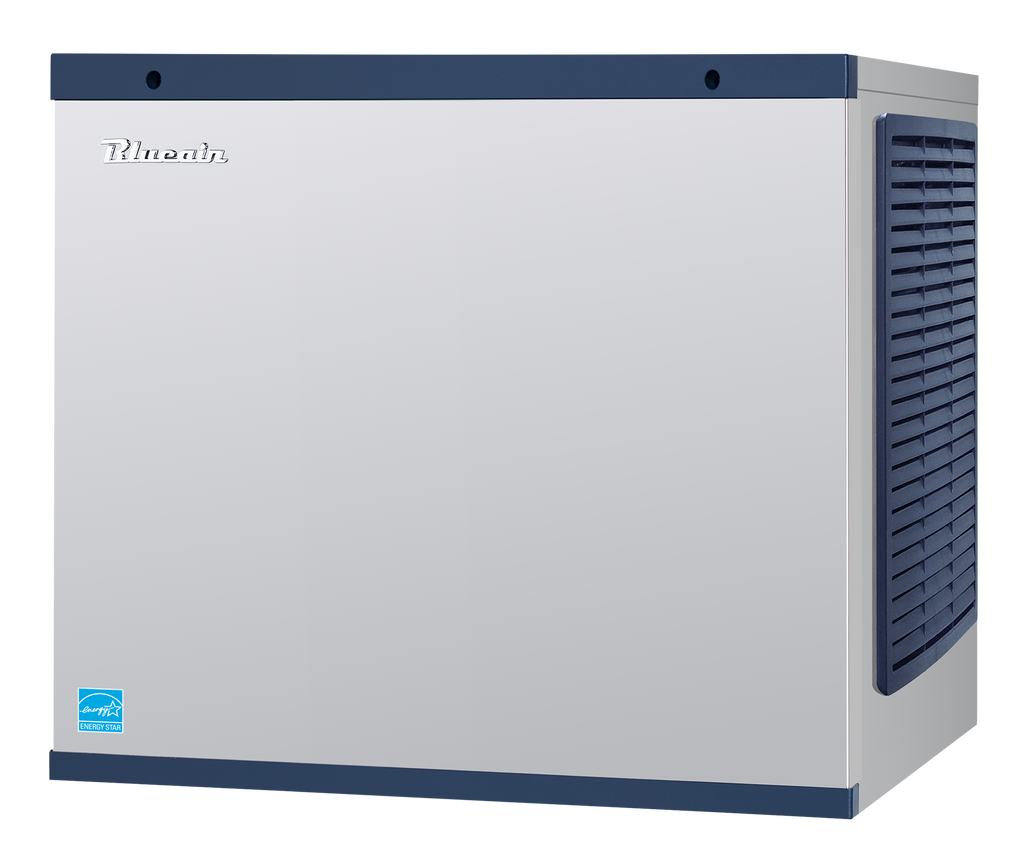

Blue Air BLMH-650A 22-1/4" Modular Half Dice Ice Machine Head, 623 lb./24 hr, Air-Cooled, R-290, 220V
Up to 623 lb. of half-dice ice a day from a 22-1/4" wide modular head.
The Blue Air BLMH-650A is a 22-1/4" wide modular ice machine head that makes up to 623 lb. of half-dice ice per 24 hours. It is air-cooled, runs on R-290 refrigerant and 220V power, and carries the ENERGY STAR mark on Blue Air's sheet. It ships without a bin, so pair it with an ice storage bin or dispenser.
Leave 8" open at the back, sides and top for airflow; do not box the head in.
Makes up to 623 lb. of ice per 24 hours at 70°F air and 50°F water, and 516 lb. at 90°F air and 70°F water.
468 half-dice cubes per cycle (36 columns x 13 rows), each 3/8" x 7/8" x 7/8", about 4.73 lb. per harvest.
Air-cooled condensing unit on natural R-290 refrigerant, using 4.6 kWh and 15 gal. of water per 100 lb. of ice at 90°F air and 70°F water.
An automatic freeze and harvest cycle, a 7-segment status and diagnostic display, and a built-in cleaning and sanitizing mode.
A bin-full sensor automatically stops ice production when the storage bin is full.
Removable panels open the service components, and the air filters at the rear lift out for cleaning.
No. It is a modular ice machine head and ships without a bin. Put it on a Blue Air ice storage bin or dispenser; ask us to confirm the fit and adapter.
Up to 623 lb. per 24 hours at 70°F air and 50°F water, and 516 lb. at 90°F air and 70°F water.
220V, 60 Hz, single phase, drawing 6.4 A. Minimum circuit ampacity is 7.4 A with a 20 A maximum HACR breaker.
A 3/8" FPT water inlet fed by at least 3/8" ID copper tubing, and a 3/4" FPT drain on at least 3/4" ID hard pipe. Water pressure 30 to 100 psig.
Half dice, 3/8" x 7/8" x 7/8", 468 cubes per cycle.
Blue Air lists its DH-R1, DH-S1 and DH-S2 water filters as optional accessories for this machine.
3 years parts and labor, 5 years on the compressor, and 5 years parts and labor on the evaporator, continental U.S. only.
Yes. Blue Air equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Blue Air |
|---|---|
| Model Number | BLMH-650A |
| Type | Modular Ice Machine Head, Half Dice |
| Shipping Weight | 136 lb. |
| Product Weight | 123 lb. |
| Width | 22-1/4 Inches |
| Depth | 24-1/2 Inches |
| Height | 21-1/8 Inches |
| Dimension Note | Width Excludes 1" for Side PanelsDepth Excludes 7/8" and Height Excludes 3/4" for the Rear Air Filter |
| Ice Production | 623 lb. per 24 Hours at 70°F Air, 50°F Water516 lb. per 24 Hours at 90°F Air, 70°F Water |
| Ice Type | Half Dice, 3/8" x 7/8" x 7/8" |
| Ice per Cycle | 4.73 lb., 468 Cubes |
| Storage | Head Only, Bin Sold Separately |
| Voltage | 220 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 6.4 Amps |
| Minimum Circuit Ampacity | 7.4 A |
| Max. HACR Breaker | 20 A |
| Condenser | Air-Cooled |
| Refrigerant | R-290 |
| Energy Use | 4.6 kWh per 100 lb. of Ice at 90°F Air, 70°F Water |
| Water Use | 15 gal. per 100 lb. of Ice |
| Water Inlet | 3/8" FPT, Minimum 3/8" ID Copper Supply Line |
| Drain | 3/4" FPT, Minimum 3/4" ID Hard Pipe |
| Ambient Temperature | 45 - 100 Degrees F |
| Water Temperature | 45 - 90 Degrees F |
| Water Pressure | 30 - 100 psig |
| Clearance | 8" at Rear, Sides and Top |
| Exterior | Stainless Steel |
| Controller | Digital, 7-Segment Display, Bin-Full Sensor, Cleaning and Sanitizing Mode |
| Water Filters | DH-R1, DH-S1, DH-S2 |
| Certifications | ENERGY STAR, cULus, ETL Sanitation |
| Warranty | 3 Years Parts and Labor, 5 Years Compressor, 5 Years Evaporator Parts and Labor |
| Warranty Area | Continental U.S. Only |
