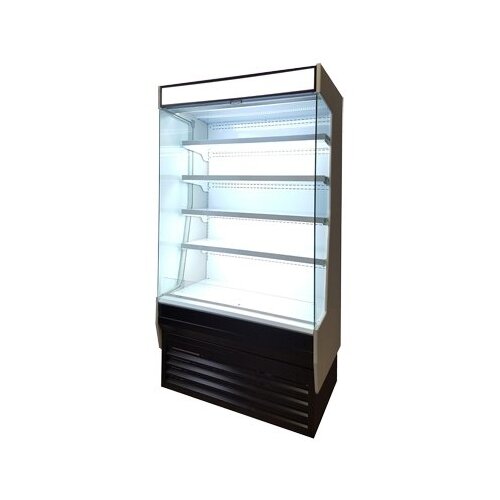

Blue Air BOD-48G 48-1/8" Open Air Display Merchandiser, Glass Side Panels, 26.8 cu. ft., 115V
A 48-1/8" open air merchandiser that puts grab-and-go drinks and food in reach at 38°F to 44°F.
The Blue Air BOD-48G is a 48-1/8" wide open display case with glass side panels for convenience stores, cafeterias and markets. It offers 26.8 cu. ft. on 4 adjustable shelves at 38°F to 44°F, with LED lighting and a standard night curtain. It runs on R-404A and needs a dedicated 20 amp, 115V outlet for the NEMA 5-20 plug.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 32-3/4" depth.
Front air intake and rear air vent circulation, with a perforated rear wall and top vents, cools the shelves evenly.
4 shelves adjust in 1" steps, and customers reach product with no doors in the way.
A standard night curtain covers the open front after hours.
A hot gas frame heating system reduces condensation and improves efficiency.
A self-contained, bottom-mounted compressor is quick to reach; clean the condenser behind the front grill every 3 months.
A dedicated, grounded 115V outlet of at least 20 amps for the NEMA 5-20 plug. It draws 16.5 A. Do not share the outlet or use an extension cord.
Indoors, in a room that stays at or below 75°F and 55% humidity, away from doorways, HVAC vents, fans and direct sun, per Blue Air's manual.
Blue Air rates it at 38°F to 44°F. A control knob under the bottom shelf moves between COOL and COLD.
Wipe the interior with warm water and baking soda and the exterior with mild soap; no chlorinated cleaners. Brush the condenser behind the front grill every 3 months.
3 years parts and labor, 5 years compressor, per the Blue Air spec sheet.
Yes. Blue Air equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Blue Air |
|---|---|
| Model Number | BOD-48G |
| Shipping Weight | 604 lb. |
| Product Weight | 560 lb. |
| Width | 48-1/8 Inches |
| Depth | 32-3/4 Inches |
| Height | 80-3/4 Inches |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 16.5 Amps |
| Plug Type | NEMA 5-20 |
| Cord | 9.8 ft. Three-Wire Cord with Molded Plug |
| Temperature Range | 38 - 44 Degrees F |
| Refrigerant | R-404A |
| Horsepower | 1 HP |
| Capacity | 26.8 cu. ft. |
| Certifications | cULus, ETL Sanitation |
| Sanitation | Conforms to NSF/ANSI Standard 7 |
| Warranty | 3 Years Parts and Labor, 5 Years Compressor |
| Side Panels | Glass Side Panels |
| Shelves | 4 Shelves, 1" Height Adjustable |
| Night Curtain | Standard |
| Cabinet | Pre-Coated Steel Interior and Exterior |
| Insulation | High-Density Foamed-in-Place Polyurethane |
| Lighting | LED Interior Lighting |
| Leveling | Four Leveling Legs |
| Circuit | Dedicated Grounded Outlet, 20 Amp Minimum |
| System | Self-Contained, Bottom-Mounted CompressorHot Gas Frame HeatingFront Air Intake, Rear Air Vent |
| Ambient Limit | Room up to 75 Degrees F and 55% Humidity |
