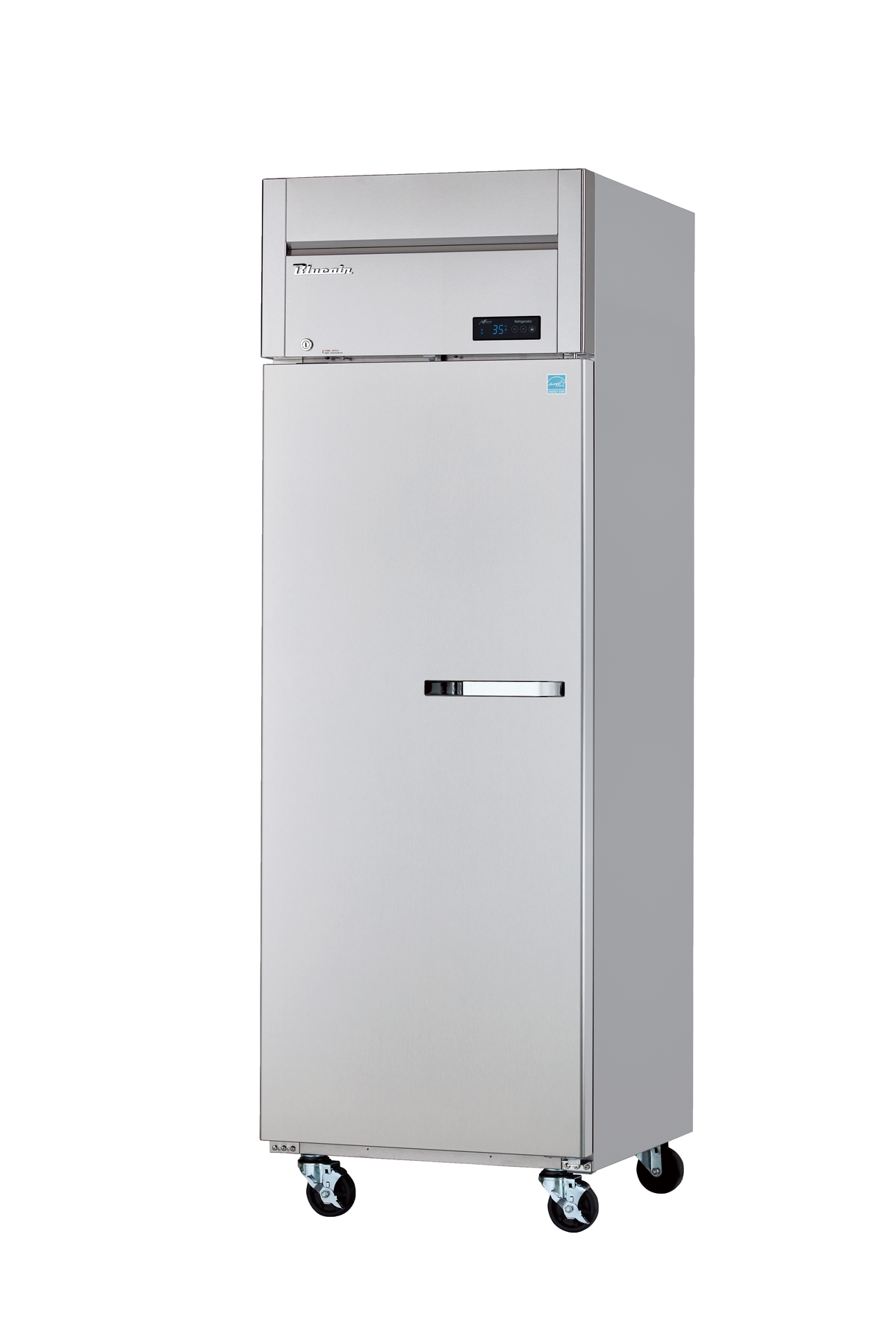

Blue Air BSR23T-L-HC 27" 1-Door Top Mount Reach-In Refrigerator, 23 cu. ft., R-290, 115V
A 27" 1-door reach-in refrigerator for cold storage in a busy kitchen.
The Blue Air BSR23T-L-HC is a 27" 1-door top mount reach-in refrigerator with 23 cu. ft. of storage. Its self-contained R-290 system holds 33°F to 39°F with a top-mounted compressor. It plugs into a standard 115V outlet with the attached cord and NEMA 5-15P plug.
Measure doorways and turns on the delivery path; the smallest outside dimension is the 26-3/4" width.
A self-diagnostic digital control and display show cabinet temperature; the controls include manual defrost.
Epoxy-coated wire shelves adjust in height, four per section.
Doors self-close at 90° or less, hold open at 110°, have pressure relief valves for easy opening, and lock as standard.
LED lighting and a door-open alarm help staff find product fast and keep doors shut.
Stainless steel interior and exterior with galvanized back and bottom and HFC-free cyclopentane insulation.
A grounded 115V/60Hz outlet (NEMA 5-15R). The unit draws 3 A and comes with a 9.8 ft. cord and NEMA 5-15P plug. Blue Air says not to use an extension cord or share the outlet with other appliances.
Blue Air rates the BSR23T-L-HC at 33°F to 39°F.
The unit measures 26-3/4" W x 30-7/8" D x 77-5/8" H (add 1-1/2" to the depth for door handles and 2-1/8" for rear mechanical components and 5" to the height for casters). Measure every doorway and turn on the way in.
Unplug the unit, remove the top grille and brush or vacuum the coil. Blue Air recommends doing this every month; dirty-coil failures are not covered by warranty.
Blue Air's sheet shows a 5-year parts and labor warranty and a 7-year compressor warranty, continental U.S. only.
Blue Air lists the -L version as its own model with its own drawing. If the door hinge side matters in your space, ask us to confirm it before you order.
Blue Air's sheet shows ETL Sanitation and cETLus listing marks and the ENERGY STAR mark.
Yes. Blue Air equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Blue Air |
|---|---|
| Model Number | BSR23T-L-HC |
| Type | Top Mount Reach-In Refrigerator |
| Shipping Weight | 271 lb. |
| Product Weight | 240 lb. |
| Width | 26-3/4 Inches |
| Depth | 30-7/8 Inches |
| Height | 77-5/8 Inches |
| Depth Note | Does not include 1-1/2" for door handles and 2-1/8" for rear mechanical components |
| Height Note | Does not include 5" for casters |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 3 Amps |
| Plug Type | NEMA 5-15P |
| Cord Length | 9.8 ft. |
| Temperature Range | 33 - 39 Degrees F |
| Refrigerant | R-290 Hydrocarbon |
| Horsepower | 1/4+ HP |
| Compressor Location | Top Mounted |
| Capacity | 23 cu. ft. |
| Doors | 1 Solid Door, Self-Closing |
| Shelves | 4 Epoxy-Coated Wire Shelves, Adjustable |
| Exterior | Stainless Steel |
| Interior | Stainless SteelGalvanized Steel Back and Bottom |
| Insulation | HFC-Free Cyclopentane |
| Casters | 4" Swivel Casters, Front Brakes |
| Blue Air Options | 2" Stem Casters 8020-21-HDP8020-21-HDP-TLB with Brake |
| Certifications | ENERGY STAR, cETLus, ETL Sanitation |
| Warranty | 5 Year Parts and Labor, 7 Year Compressor |
| Warranty Area | Continental U.S. Only |
