Description

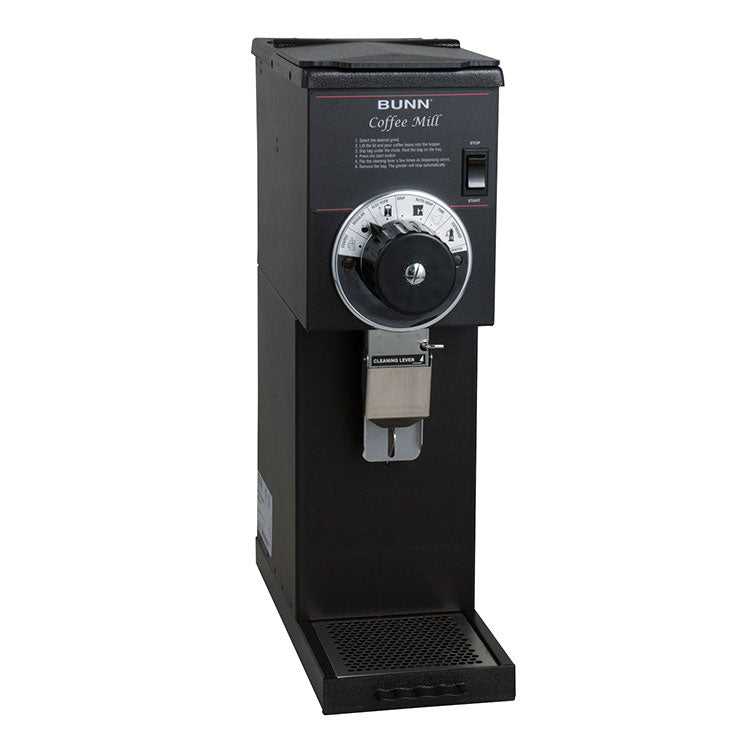

The BUNN 22104.0000 is a commercial coffee grinder for grinding coffee beans for a beverage station. Compare the exact model configuration with your serving format and available installation space.
How the 22104.0000 fits your beverage station
The bag-presence switch prevents operation without a receiving bag and stops grinding when the bag is removed. This layout suits a retail whole-bean station with a separate bag-filling workflow.
Key features
- Model: 22104.0000
- Equipment format: Commercial Coffee Grinder
- Voltage: 120V
- Wattage: 1320W
- Plug: NEMA 5-15P
- No. of Hoppers: (1) hopper
- Operation: automatic operation
Installation and equipment selection
The unit measures 7.3 in. wide, 16.0 in. deep and 22.8 in. high. Allow additional working space for filling, connections and service access.
The manufacturer lists 120V / 1320W. Match the supply circuit to this exact model before installation.
Select grind settings for the brewing method and verify the receiving-container clearance. A grinder intended for batch-brew funnels should not be assumed to dose directly into an espresso portafilter.

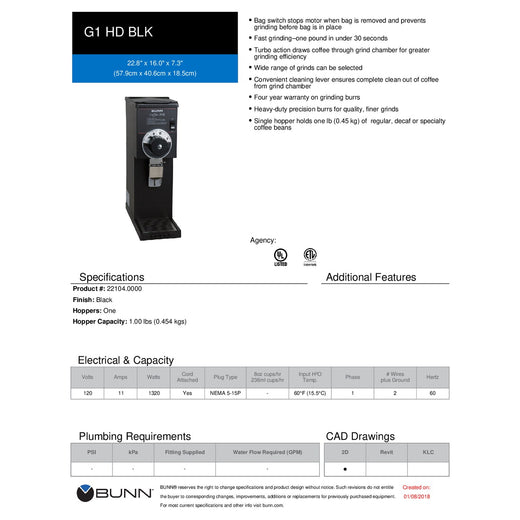

Technical specifications
| Manufacturer model | 22104.0000 |
|---|---|
| Width | 7.3 in. |
| Height | 22.8 in. |
| Depth | 16.0 in. |
| Electrical Configuration | 120V / 1320W |
| Voltage | 120V |
| Wattage | 1320W |
| Plug | NEMA 5-15P |
| No. of Hoppers | (1) hopper |
| Operation | automatic operation |
Frequently asked question
How should this grinder be matched to a brewer?
Check the receiving-container clearance, grind range and dosing method against your brewing recipe. Confirm any electronic brewer interface before combining equipment.
Explore Coffee, Espresso & Tea Equipment or contact Atlantic for help matching this model to your beverage station.
