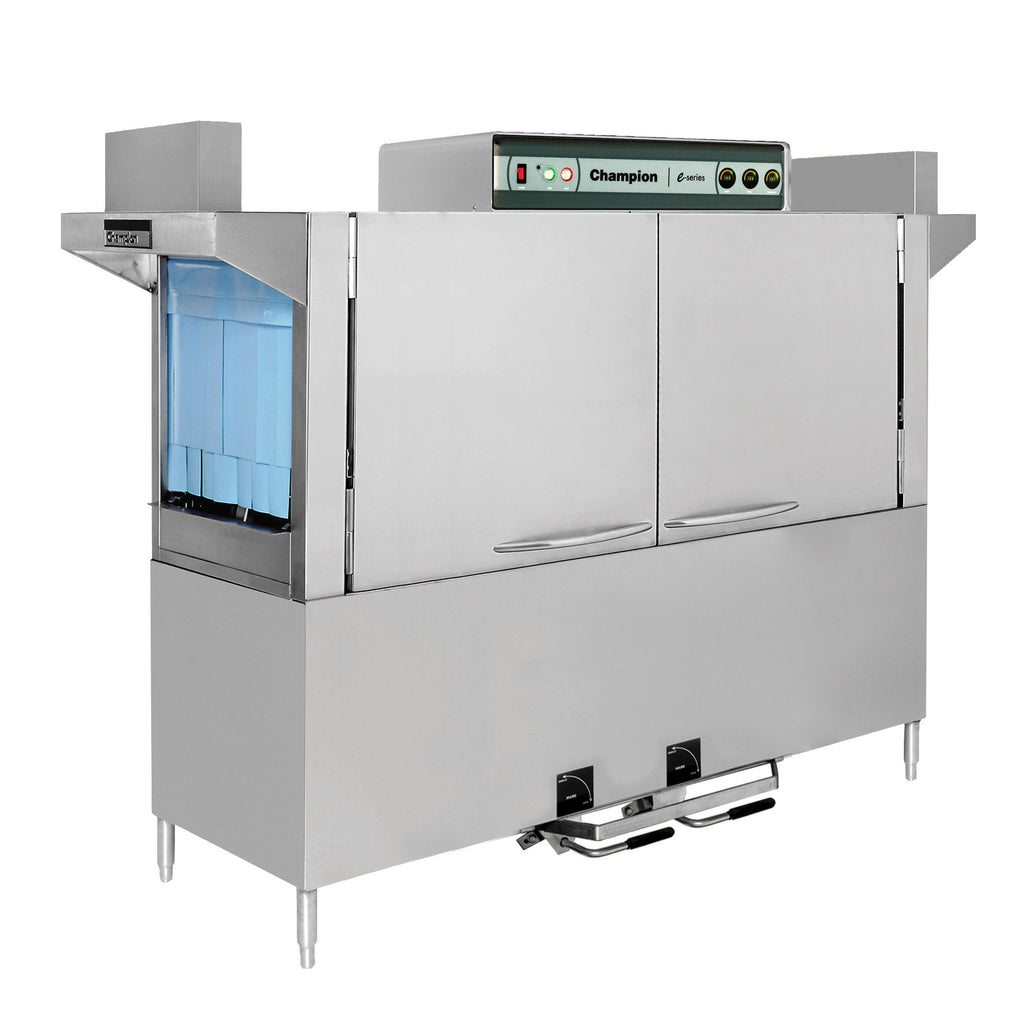

Champion 100 PRO 100" 2-Tank Rack Conveyor Dishwasher with Prewash, High Temp, 348 Racks/Hr, Booster Optional
A 2-tank high-temp rack conveyor that washes 348 racks an hour on 0.28 gallons per rack.
The Champion 100 PRO is a 100" 2-tank rack conveyor with a 36" heavy-duty prewash ahead of a 64" wash and power rinse section for hotels, hospitals, schools and busy restaurants. Champion rates it at 348 racks per hour (NSF), up to 6,960 dishes per hour, using 0.28 gallons per rack and 100 gallons per hour at most. Order it with a built-in 12 kW (40°F rise) or 21 kW (70°F rise) booster to run on a 110°F hot water line, or without a booster on a 180°F supply. It runs on 3-phase power and is built in left-to-right or right-to-left versions.
Measure doorways and turns on the delivery path: the narrowest side is the 26-11/16" depth, and the crate is about 116" long.
NSF-rated at 348 racks per hour with a 9.6 ft/min conveyor. Pot and pan mode slows it to 4.6 ft/min, one rack at a time.
Water use is 0.28 gallons per rack and 100 gallons per hour at most. The energy sentinel shuts the pumps off when the machine sits idle.
Order the built-in booster for a 70°F rise (21 kW) or a 40°F rise (12 kW); the 70°F booster can be field converted to 40°F. Without a booster, supply 180°F water.
A powered 36" prewash with its own 17 gallon tank and 2 HP pump knocks off heavy soil before the wash tank.
The touchscreen shows condition alerts and cleaning steps in several languages, with on-board diagnostics and an automated delime function.
Single-piece hood, scrap screen and stainless upper and lower wash arm manifolds. Insulated doors open a full 180°.
High temperature. It sanitizes with hot water. Order the built-in booster to run on 110°F water, or supply 180°F water without one.
Only if your hot water is below 180°F. Champion offers a built-in 21 kW booster (70°F rise, field convertible to 40°F) or a 12 kW booster (40°F rise). Tell us which one you need when you order.
Champion's sheet calls for 150 CFM at the load end and 400 CFM at the unload end at 1/4" static pressure, with a 3-7/8" x 15-7/8" fabricated duct. Plan this with your mechanical contractor.
3-phase power. With the 21 kW booster on one connection the rated amps are: 208V 3-ph: call factory; 240V 3-ph: 136 A, 175 A min. circuit; 480V 3-ph: 68 A, 90 A min. circuit; 575V 3-ph: 55 A, 70 A min. circuit. Without a booster: 208V 3-ph: 98 A, 125 A min. circuit; 240V 3-ph: 85 A, 110 A min. circuit; 480V 3-ph: 42 A, 60 A min. circuit; 575V 3-ph: 33 A, 45 A min. circuit.
Champion asks for water hardness under 3.5 grains per gallon. A Kinetico water softening system is offered as an accessory.
It is built as left-to-right or right-to-left. Choose the direction that matches your dish tables before you order; the drawings show both.
Champion lists a 1 year parts and labor warranty. Register the machine with Champion after installation.
Yes. Champion equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Champion |
|---|---|
| Model Number | 100 PRO |
| Series | PRO Series Rack Conveyor |
| Type | High Temperature 2-Tank Rack Conveyor with Heavy Duty Prewash |
| Shipping Weight | 1,300 lb. |
| Width | 104 Inches |
| Depth | 26-11/16 Inches |
| Height | 65-1/4 Inches |
| Machine Length | 100" Machine36" Prewash + 64" Wash and Power Rinse104" Overall with 2" Table Connections |
| Crated Length | 116 Inches |
| Load Height | 34 Inches |
| Vertical Clearance | 20" ClearAccommodates 18" x 26" Sheet Pans |
| Door Clearance | 27 Inches in Front |
| Capacity | 348 Racks per Hour |
| Dishes per Hour | Up to 6,960 |
| Conveyor Speed | 9.6 ft/minPot and Pan Mode 4.6 ft/min, One Rack at a Time |
| Tank Capacity | 17 Gal. Prewash + 17 Gal. Wash + 17 Gal. Power Rinse Tanks |
| Rack Complement | 1 Peg and 1 Flat 20" x 20" Rack |
| Water per Rack | 0.28 Gallons |
| Water per Hour | 100 Gallons Maximum |
| Hot Water Connection | 3/4" NPT110°F at 25 psi Flowing with Booster180°F at 20 psi Flowing without BoosterInitial Fill 51 Gal. |
| Drain Connection | 1-1/4" NPT15 gal/min Maximum Flow |
| Water Hardness | Less than 3.5 Grains per Gallon |
| Temperature | High Temperature |
| Tank Heat | 15 kW ElectricPower Rinse 10 kW Electric |
| Booster | Optional Built-In 21 kW 70°F Rise, Field Convertible to 40°FOptional 12 kW 40°F Rise |
| Horsepower | 2 HP prewash, 2 HP wash and 2 HP power rinse pumps; 1/6 HP drive |
| Exhaust | Load End 150 CFMUnload End 400 CFMat 1/4" Static Pressure |
| Duct Size | 3-7/8" x 15-7/8" Outside Dimensions |
| Voltage | 208, 240, 480 or 575 Volts |
| Phase | 3 |
| Hertz | 60 Hz |
| Connection | Single Point StandardField Convertible to Two Point |
| Rated Amps, Single Point with 21 kW Booster | 208V 3-ph: call factory240V 3-ph: 136 A, 175 A min. circuit480V 3-ph: 68 A, 90 A min. circuit575V 3-ph: 55 A, 70 A min. circuit |
| Rated Amps, Single Point with 12 kW Booster | 208V 3-ph: 132 A, 175 A min. circuit240V 3-ph: 114 A, 150 A min. circuit480V 3-ph: 57 A, 80 A min. circuit575V 3-ph: 45 A, 60 A min. circuit |
| Rated Amps, No Booster | 208V 3-ph: 98 A, 125 A min. circuit240V 3-ph: 85 A, 110 A min. circuit480V 3-ph: 42 A, 60 A min. circuit575V 3-ph: 33 A, 45 A min. circuit |
| Rated Amps, 21 kW Booster Circuit Only | 208V 3-ph: 59 A, 80 A min. circuit240V 3-ph: 51 A, 70 A min. circuit480V 3-ph: 26 A, 35 A min. circuit575V 3-ph: 22 A, 30 A min. circuit |
| Rated Amps, 12 kW Booster Circuit Only | 208V 3-ph: 34 A, 45 A min. circuit240V 3-ph: 29 A, 40 A min. circuit480V 3-ph: 15 A, 20 A min. circuit575V 3-ph: 12 A, 15 A min. circuit |
| Construction | All Stainless Steel Heavy Gauge incl. Base, Legs and FeetFront and Side Enclosure Panels |
| Controls | Touchscreen DisplayOn-Board DiagnosticsAutomated DelimeAuto FillAuto DrainProgrammable Dwell |
| Direction of Operation | Left to Right or Right to Left |
| Champion Options | 33" Electric Blower DryerDirect Link or Direct Link Plus+ Connectivity |
| Champion Accessories | Table Limit Switch, Whisker or Button StyleVent Cowl with 7" StacksFlanged FeetWater Hammer KitDrain Water Tempering KitChemical Pump KitWater PRVKinetico Water SoftenerPeg, Flat and Sheet Pan Racks |
| Champion Tables and Add-Ons | Splash Shields24" or 30" Cantilever SideloaderPRO-90B Corner Loader and UnloaderRCT 64 or RCT 84 Roller TableRear Enclosure PanelsLime Shield Booster Delime |
| Certifications | cULus, NSF, ENERGY STAR |
| Warranty | 1 Year Parts and Labor |
