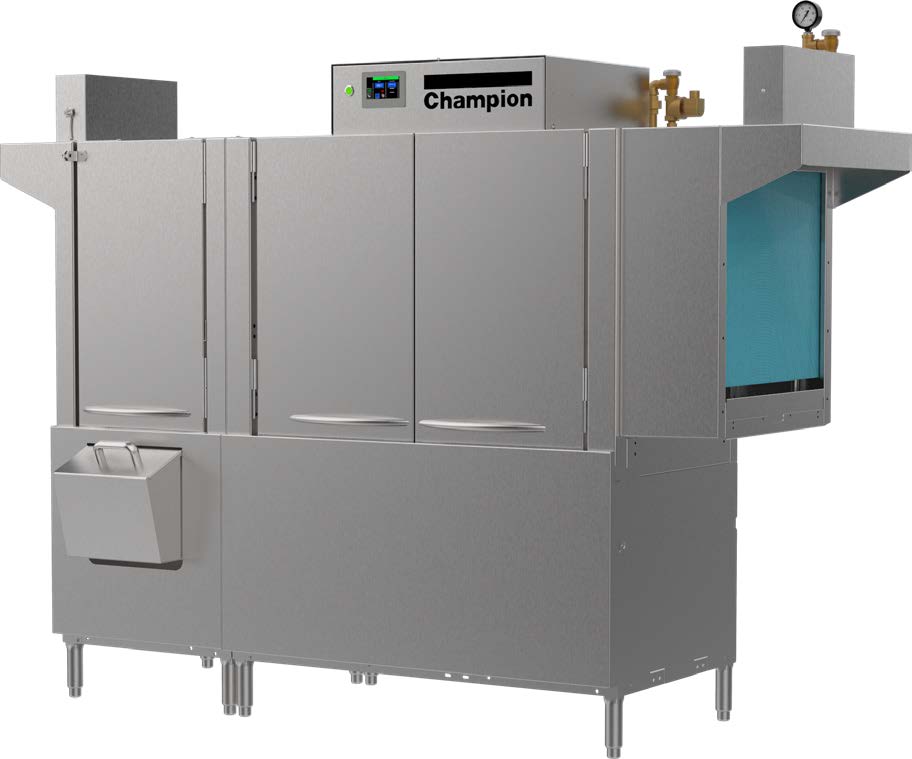

Champion 76 PRO High Temp Rack Conveyor Dishwasher, 255 Racks/Hr, Electric
A high temperature conveyor that washes up to 255 racks an hour on 0.39 gallons per rack.
The Champion 76 PRO is a high temperature rack conveyor dishwasher with a 54" single tank and a 22" prewash. Champion rates it at 255 racks per hour (NSF) at a conveyor speed of 7.1 ft/min, using 0.39 gallons per rack and 100 gallons per hour at most. It can run with an optional built-in 12 kW (40°F rise) or 21 kW (70°F rise) booster, or from a 180°F hot water supply without one. This page lists the electric tank heat version.
Plan the run: the machine ships 92" long and weighs 1,000 lb. crated. Leave room for the load and unload tables.
NSF rated capacity at 7.1 ft/min. Pot and pan mode slows the conveyor to 5.4 ft/min, one rack at a time, with programmable machine dwell in the wash zone.
Energy Sentinel shuts the pumps off when no racks are in the machine; maximum use is 100 gallons per hour.
Order it with no booster on a 180°F supply, or with a built-in booster: it ships set for a 70°F rise (21 kW) and can be field converted to a 40°F rise (12 kW).
A 22" prewash with a 9 gal tank and its own 2 HP pump ahead of the 17 gal wash tank.
Advanced touchscreen with condition alerts, multi-lingual cleaning and operation guidance, on-board diagnostics and an automated delime function.
Single-piece hood, single-piece scrap screen, single-piece stainless upper and lower wash arm manifolds, automatic drain valve and insulated doors that open 180°.
Yes, it is high temperature. With 110°F supply water you need the built-in booster (21 kW for a 70°F rise, field convertible to 12 kW for 40°F). With a 180°F supply you can order it without a booster.
Three-phase power at 208, 240, 480 or 575V. With the 21 kW booster on a single connection it draws 116 A at 208V, 101 A at 240V, 50 A at 480V or 42 A at 575V. It ships as a single-point connection and a qualified electrician can convert it to two-point.
Yes. Champion specifies vent connections of 150 CFM at the load end and 400 CFM at the unload end at 1/4" static pressure, with a fabricated duct of 3-7/8" x 15-7/8".
Yes. Champion's spec sheet for the 76 PRO shows ENERGY STAR certified, along with cULus and NSF.
Champion lists water hardness of less than 3.5 grains per gallon. A Kinetico water softening system is an accessory.
Champion builds it left to right or right to left. Tell us the direction your dish room needs before you order.
Champion lists a 1 year parts and labor warranty.
Yes. Champion equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Champion |
|---|---|
| Model Number | 76 PRO |
| Series | PRO Series Rack Conveyor |
| Machine Type | Single Tank High Temperature Rack Conveyor |
| Tank Heat | Electric |
| Direction of Operation | Left to right or right to left |
| Shipping Weight | 1,000 lb. |
| Width | 92 Inches |
| Width Note | Shipping Length; 80" Between Table Flanges |
| Depth | 26-11/16 Inches |
| Height | 65-1/4 Inches |
| Height Note | To Top of Vent Stacks; Machine Body 58-1/4" |
| Load Height | 34 Inches |
| Vertical Clearance | 20" Clear, Accepts 18" x 26" Sheet Pans |
| Door Clearance | 20" in Front |
| Capacity | 255 Racks per Hour |
| Conveyor Speed | 7.1 ft/minPot/Pan Mode 5.4 ft/min |
| Tank Capacity | Wash 17 galPrewash 9 gal |
| Initial Fill | 26 gal |
| Rack Complement | 1 Peg Rack and 1 Flat Rack, 20" x 20" |
| Water Consumption | 0.39 gal per Rack100 gal per Hour Max. |
| Hot Water Connection | 1/2" NPT; 110°F Min. at 25 PSI Flowing with Booster; 180°F at 20 PSI Flowing without Booster |
| Drain | 1-1/4" NPT; 15 gal/min Max. Flow |
| Water Hardness | Less than 3.5 Grains per Gallon |
| Exhaust | Load End 150 CFMUnload End 400 CFMat 1/4" Static Pressure |
| Duct Size | 3-7/8" x 15-7/8" Outside |
| Tank Heater | 15 kW Electric |
| Booster | Optional Built-In: 21 kW 70°F Rise or 12 kW 40°F RiseShips at 70°F, Field Convertible to 40°F |
| Pump Motors | Prewash 2 HPWash 2 HPDrive 1/6 HP |
| Voltage | 208, 240, 480 or 575 Volts |
| Phase | 3 |
| Hertz | 60 Hz |
| Amps | 116 Amps at 208V |
| Amps Note | Single Point with 21 kW Booster; Other Ratings Below |
| 21 kW Booster, Single Point | 208V 3-Ph: 116 A Rated, 150 A Min. Circuit240V 3-Ph: 101 A Rated, 150 A Min. Circuit480V 3-Ph: 50 A Rated, 70 A Min. Circuit575V 3-Ph: 42 A Rated, 60 A Min. Circuit |
| 12 kW Booster, Single Point | 208V 3-Ph: 91 A Rated, 125 A Min. Circuit240V 3-Ph: 79 A Rated, 100 A Min. Circuit480V 3-Ph: 39 A Rated, 50 A Min. Circuit575V 3-Ph: 33 A Rated, 45 A Min. Circuit |
| No Booster | 208V 3-Ph: 58 A Rated, 80 A Min. Circuit240V 3-Ph: 50 A Rated, 70 A Min. Circuit480V 3-Ph: 25 A Rated, 35 A Min. Circuit575V 3-Ph: 21 A Rated, 30 A Min. Circuit |
| 21 kW Booster Only, Two Point | 208V 3-Ph: 59 A Rated, 80 A Min. Circuit240V 3-Ph: 51 A Rated, 70 A Min. Circuit480V 3-Ph: 26 A Rated, 35 A Min. Circuit575V 3-Ph: 22 A Rated, 30 A Min. Circuit |
| Connection | Ships Single Point; Field Convertible to Two Point |
| Exterior | Stainless Steel, Heavy Gauge, Including Base, Legs and FeetFront and Side Enclosure Panels |
| Controls | Advanced Touchscreen DisplayOn-Board DiagnosticsAutomated DelimeVent Fan Control |
| Champion Options | Two-Point Electrical Connection33" Electric Blower DryerBuilt-In Booster 40°F or 70°F RiseDirect Link and Direct Link Plus+ Connectivity |
| Champion Accessories | Chemical Pump Kit, Detergent and Rinse AidDrain Water Tempering KitTable Limit SwitchVent CowlWater Hammer KitWater PRVKinetico Water Softener |
| Racks and Tables | Peg, Flat and Sheet Pan RacksPRO-90B Corner Loader and UnloaderRCT 64 or RCT 84 Roller TablesCantilever SideloaderSplash Shields |
| Certifications | cULus, NSF, ENERGY STAR |
| Warranty | 1 Year Parts and Labor |
