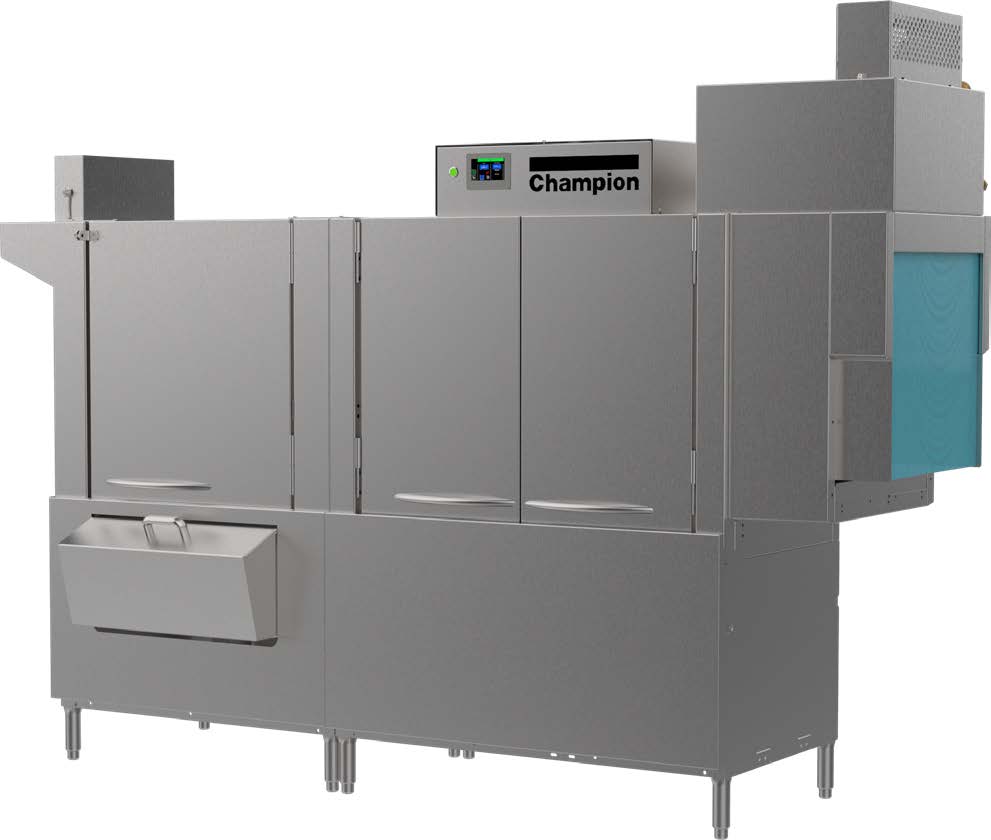

Champion 90 PRO-HD-HR High Temp Rack Conveyor Dishwasher, Heat Recovery, 255 Racks/Hr, Electric
A high temperature conveyor that washes up to 255 racks an hour and reuses exhaust heat to warm the incoming water.
The Champion 90 PRO-HD-HR is a high temperature rack conveyor dishwasher with a 54" single tank and a 36" heavy-duty prewash. Champion rates it at 255 racks per hour (NSF) at a conveyor speed of 7.1 ft/min, using 0.39 gallons per rack and 100 gallons per hour at most. Its exhaust air heat recovery unit uses waste heat from the machine to preheat the incoming water, and a built-in 21 kW booster brings the final rinse up to temperature. This page lists the electric tank heat version.
Plan the run: the machine ships 103-1/2" long and weighs 1,075 lb. crated. Leave room for the load and unload tables.
NSF rated capacity at 7.1 ft/min. Pot and pan mode slows the conveyor to 5.4 ft/min, one rack at a time, with programmable machine dwell in the wash zone.
Energy Sentinel shuts the pumps off when no racks are in the machine; maximum use is 100 gallons per hour.
The heat recovery unit reuses waste energy from the machine exhaust to preheat the incoming water. Champion lists 200 CFM at the unload end for this model.
A 36" heavy-duty prewash with a 17 gal tank and its own 2 HP pump ahead of the 17 gal wash tank.
Advanced touchscreen with condition alerts, multi-lingual cleaning and operation guidance, on-board diagnostics and an automated delime function.
Single-piece hood, single-piece scrap screen, single-piece stainless upper and lower wash arm manifolds, automatic drain valve and insulated doors that open 180°.
Yes, it is high temperature. A built-in 21 kW booster for a 70°F rise is standard on this heat recovery model, fed with 110°F water.
Three-phase power at 208, 240, 480 or 575V. With the 21 kW booster on a single connection it draws 116 A at 208V, 101 A at 240V, 50 A at 480V or 42 A at 575V. It ships as a single-point connection and a qualified electrician can convert it to two-point.
Yes. Champion specifies vent connections of 150 CFM at the load end and 200 CFM at the unload end at 1/4" static pressure, with a fabricated duct of 3-7/8" x 15-7/8". Do not let freezing air be drawn down into the heat recovery coil when the building vent fan is off.
Champion lists water hardness of less than 3.5 grains per gallon. A Kinetico water softening system is an accessory.
Champion builds it left to right or right to left. Tell us the direction your dish room needs before you order.
Champion lists a 1 year parts and labor warranty.
Yes. Champion equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Champion |
|---|---|
| Model Number | 90 PRO-HD-HR |
| Series | PRO Series Rack Conveyor |
| Machine Type | Single Tank High Temperature Rack Conveyor with Heat Recovery |
| Tank Heat | Electric |
| Direction of Operation | Left to right or right to left |
| Shipping Weight | 1,075 lb. |
| Width | 103-1/2 Inches |
| Width Note | Shipping Length; 94" Between Table Flanges |
| Depth | 26-11/16 Inches |
| Height | 77-1/8 Inches |
| Height Note | To Top of Heat Recovery Unit; Machine Body 58-1/4" |
| Load Height | 34 Inches |
| Vertical Clearance | 20" Clear, Accepts 18" x 26" Sheet Pans |
| Door Clearance | 27" in Front |
| Capacity | 255 Racks per Hour |
| Conveyor Speed | 7.1 ft/minPot/Pan Mode 5.4 ft/min |
| Tank Capacity | Wash 17 galPrewash 17 gal |
| Initial Fill | 34 gal |
| Rack Complement | 1 Peg Rack and 1 Flat Rack, 20" x 20" |
| Water Consumption | 0.39 gal per Rack100 gal per Hour Max. |
| Hot Water Connection | 1/2" NPT; 110°F Min. at 25 PSI Flowing with Booster |
| Cold Water Connection | 1/2" NPT; 55°F Min. at 30 PSI Flowing |
| Drain | 1-1/4" NPT; 15 gal/min Max. Flow |
| Water Hardness | Less than 3.5 Grains per Gallon |
| Exhaust | Load End 150 CFMUnload End 200 CFMat 1/4" Static Pressure |
| Duct Size | 3-7/8" x 15-7/8" Outside |
| Tank Heater | 15 kW Electric |
| Booster | Built-In 21 kW, 70°F Rise |
| Pump Motors | Prewash 2 HPWash 2 HPDrive 1/6 HP |
| Voltage | 208, 240, 480 or 575 Volts |
| Phase | 3 |
| Hertz | 60 Hz |
| Amps | 116 Amps at 208V |
| Amps Note | Single Point with 21 kW Booster; Other Ratings Below |
| 21 kW Booster, Single Point | 208V 3-Ph: 116 A Rated, 150 A Min. Circuit240V 3-Ph: 101 A Rated, 150 A Min. Circuit480V 3-Ph: 50 A Rated, 70 A Min. Circuit575V 3-Ph: 42 A Rated, 60 A Min. Circuit |
| Machine Only, Two Point | 208V 3-Ph: 58 A Rated, 80 A Min. Circuit240V 3-Ph: 50 A Rated, 70 A Min. Circuit480V 3-Ph: 25 A Rated, 35 A Min. Circuit575V 3-Ph: 21 A Rated, 30 A Min. Circuit |
| 21 kW Booster Only, Two Point | 208V 3-Ph: 59 A Rated, 80 A Min. Circuit240V 3-Ph: 51 A Rated, 70 A Min. Circuit480V 3-Ph: 26 A Rated, 35 A Min. Circuit575V 3-Ph: 22 A Rated, 30 A Min. Circuit |
| Connection | Ships Single Point; Field Convertible to Two Point |
| Exterior | Stainless Steel, Heavy Gauge, Including Base, Legs and FeetFront and Side Enclosure Panels |
| Controls | Advanced Touchscreen DisplayOn-Board DiagnosticsAutomated DelimeVent Fan Control |
| Champion Options | Two-Point Electrical Connection33" Electric Blower DryerDirect Link and Direct Link Plus+ Connectivity |
| Champion Accessories | Chemical Pump Kit, Detergent and Rinse AidDrain Water Tempering KitTable Limit SwitchVent CowlWater Hammer KitWater PRVKinetico Water Softener |
| Racks and Tables | Peg, Flat and Sheet Pan RacksPRO-90B Corner Loader and UnloaderRCT 64 or RCT 84 Roller TablesCantilever SideloaderSplash Shields |
| Certifications | cULus, NSF |
| Warranty | 1 Year Parts and Labor |
