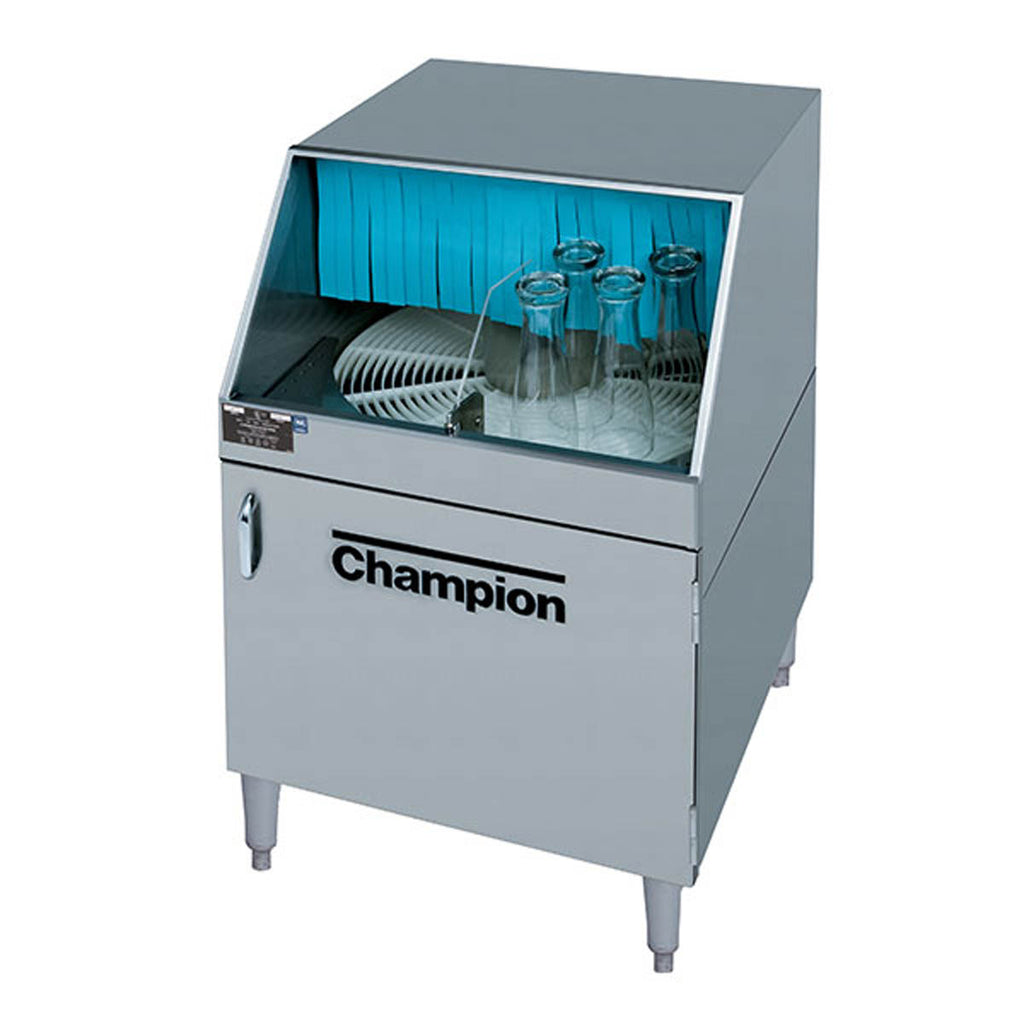

Champion CG 24" Rotary Undercounter Glasswasher, Low Temp Chemical Sanitizing, 1,200 Glasses/Hr, 208-220V 1-Phase
A 24" wide rotary glasswasher that cleans up to 1,200 bar glasses an hour behind the bar.
The Champion CG is a fully automatic rotary glasswasher for bars, lounges and restaurants. Glasses ride a clockwise polypropylene conveyor through upper and lower wash and rinse arms, with a cool final rinse so they are ready to use right away. Champion rates it at 1,200 2-1/2" glasses per hour, and it fits glasses up to 12" tall. It plugs into a 208-220V, 15 amp single-phase circuit with the 6 ft. cord and NEMA 6-15P plug.
The cabinet is 23-7/8" wide; measure the space under or behind the bar, and allow for the 6 ft. cord to reach a 6-15R outlet.
A multi-speed (low, medium, high) direct-drive conveyor with anti-jam protection moves up to 1,200 2-1/2" glasses an hour.
The machine has 12" of clearance, so taller stemware fits.
Champion says the CG uses 38% less water. AI water quality monitoring refreshes the wash water during operation without stopping.
Sensors stop the conveyor without contact to help protect delicate glassware.
Automatic fill, clean and drain, EZ-Clip wash and rinse arms that lift out, and a self-flushing rinse chamber.
Detergent, rinse aid and sanitizer pumps are built in, with room to store three 1-gallon containers.
Low temp. It sanitizes with chemicals from its built-in sanitizer pump and gives a cool final rinse, so glasses are ready right away.
A 208-220V, 60 Hz, single-phase, 15 amp outlet. The CG comes with a 6 ft. cord and NEMA 6-15P plug.
Champion lists 12" of clearance through the machine.
About 1.6 gallons per minute of cold water while running, a 3 gallon hot water initial fill, and about 10 gallons per hour of hot water at most.
Champion asks for water hardness of 3 grains per US gallon or less.
Champion lists a 1 year parts and labor warranty.
Yes. Champion equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Champion |
|---|---|
| Model Number | CG |
| Series | Rotary Series Glasswasher |
| Type | Rotary Glasswasher, Low Temperature Chemical Sanitizing |
| Shipping Weight | 176 lb. |
| Product Weight | 156 lb. |
| Width | 23-7/8 Inches |
| Depth | 24-1/2 Inches |
| Height | 39 Inches |
| Height Note | Adjustable Foot Height 1-1/4" |
| Crated Size | 27" W x 27-1/2" D x 46-1/2" H |
| Glass Clearance | 12 Inches Through Machine |
| Capacity | 1,200 Glasses per Hour |
| Glass Size Rated | 2-1/2" Glasses |
| Conveyor | Polypropylene, ClockwiseMulti-Speed Low, Medium, High |
| Cold Water Use | Approx. 1.6 gal/min |
| Hot Water Use | Initial Fill 3 Gal.Max. Approx. 10 gal/hr |
| Inlet Water Temperature | Hot 140-160°FCold 75°F |
| Water Connections | Hot and Cold 1/2" IPSFlow Pressure 25-95 psi |
| Drain Connection | 1-1/2" Tailpiece |
| Water Hardness | 3 Grains per US Gallon or Less |
| Temperature | Low Temperature, Chemical Sanitizing |
| Tank Heat | 3 kW Electric |
| Voltage | 208-220 Volts |
| Phase | 1 |
| Hertz | 60 Hz |
| Amps | 15 Amps |
| Plug Type | NEMA 6-15P |
| Cord Length | 6 ft. |
| Construction | Double Wall CabinetIntegrated Tank and Wash Chamber |
| Controls | 2" LCD DisplaySmart Controls with Onboard DiagnosticsSolid-State SensorsSmart LED Lights |
| Chemical Pumps | Detergent, Rinse Aid and SanitizerStores Three 1-Gallon Containers |
| Champion Options | Drain Tray and Waste Collector DFWCQuick Disconnect Package incl. CastersCasters, Set of 4Bar Mat 23-5/8" x 17"Integrated Chemical Monitoring, Factory Installed |
| Certifications | NSF, cULus |
| Warranty | 1 Year Parts and Labor |
