Champion DH-6000-VHR Ventless Heat Recovery Door-Type Dishwasher, High Temp, Built-In Booster, 40 Racks/Hr
A high-temp door machine that recovers its own heat and runs on a cold water line.

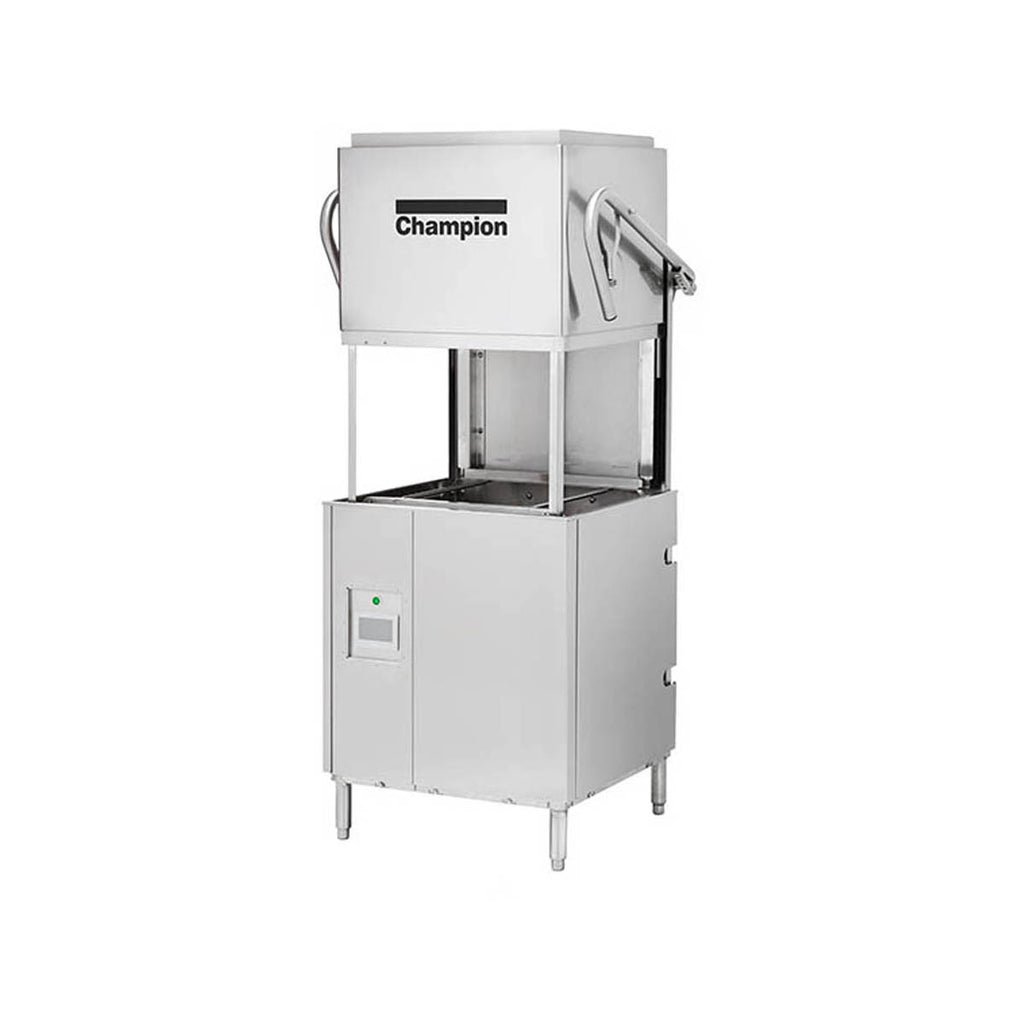

The Champion DH-6000-VHR is a high-temperature hood-type door machine with ventless heat recovery and condensate removal. It feeds from a cold water line, heats its own 180°F final rinse with the built-in 7.5 kW booster, and Champion rates it at 40 racks per hour using 0.73 gallons per rack. NSF dual rating covers it as both a dish machine and a pot and pan machine.
Plan ceiling and hood height for the 72" side-view height, and leave 24" in front for service. A corner install needs tables that meet at 31" x 31".
Heat recovery with condensate removal lets it run on a 3/4" cold water line at 50°F to 75°F. A door interlock keeps the hood closed during the cycle to limit condensation entering the dish room.
Rinse Sentry extends the wash until the booster reaches sanitizing temperature, then rinses at 180°F.
Pick 1, 2, 4 or 6 minute wash cycles. The 1 minute cycle is dishwasher mode; 2, 4 and 6 minutes are pot and pan mode, with totals of 90, 150, 270 and 390 seconds.
The touchscreen shows condition alerts and multi-lingual cleaning and operating guidance, with on-board service diagnostics and a cycle counter.
Convert from three phase to single phase power on site, and set the feed for front load, corner or pass-through.
Programmable sleep mode powers down the heaters after a set period, and the delime function alerts at intervals you set for your water.
Champion lists the DH-6000-VHR as ventless, with heat recovery and condensate removal built in. Local codes differ, so confirm with your inspector before you plan the room.
No. A 7.5 kW electric booster is built in, and Rinse Sentry holds the cycle until the final rinse reaches 180°F.
A 3/4" NPT cold water line at 50°F to 75°F with 45 PSI dynamic incoming pressure. A water PRV is standard on machines with a booster.
With the standard single-point connection: 208-240/60/1 at 72-81 A on a 100 A circuit, 208-240/60/3 at 48-50 A on a 60 A circuit, or 480/60/3 at 21 A on a 30 A circuit.
The machine and booster get separate circuits. At 208-240V single phase the machine draws 36-39 A on a 50 A circuit and the booster 36-42 A on a 50 A circuit; the spec table lists three phase and 480V.
Yes. Choose corner or straight-through on this page; Champion also makes the feed field convertible for front load, corner and pass-through.
Champion asks for water hardness below 3.5 grains per gallon. If your water is harder, plan a water softener or treatment before the machine goes in.
Yes. Champion equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Champion |
|---|---|
| Model Number | DH-6000-VHR |
| Series | DH6000 |
| Machine Type | Ventless Heat Recovery Hood-Type Door Machine, High Temperature |
| Shipping Weight | 450 lb. |
| Width | 34 Inches |
| Depth | 24-3/4 Inches |
| Height | 70 Inches |
| Height Note | Front view height; side view tops out at 72" |
| Door Opening Height | 17-3/16 Inches |
| Corner Opening | 24-15/16 Inches |
| Service Clearance | 24 Inches |
| Capacity | 40 Racks per Hour |
| Water per Rack | 0.73 Gallons |
| Water per Hour | 39 Gallons Maximum |
| Wash Tank | 10 Gallons |
| Wash Cycles | 1, 2, 4 and 6 MinutesTotals 90, 150, 270 and 390 Seconds |
| Wash Temperature | 150°F |
| Final Rinse Temperature | 180°F |
| Tank Heat | 5.2 kW Electric |
| Booster | 7.5 kW Electric, Built-In |
| Voltage | 208-240 or 480 Volts |
| Hertz | 60 Hz |
| Phase | 1 or 3 |
| Amps, Machine and Booster | 208-240/60/1: 72-81 A, 100 A circuit208-240/60/3: 48-50 A, 60 A circuit480/60/3: 21 A, 30 A circuit |
| Amps, Machine Only | 208-240/60/1: 36-39 A, 50 A circuit208-240/60/3: 26-27 A, 30 A circuit480/60/3: 10 A, 15 A circuit |
| Amps, Booster Only | 208-240/60/1: 36-42 A, 50 A circuit208-240/60/3: 21-24 A, 30 A circuit480/60/3: 11 A, 15 A circuit |
| Wash Pump | 2 HP |
| Water Inlet | 3/4" NPT cold water, 50-75°F |
| Water Pressure | 45 PSI Dynamic Incoming18 PSI Final Rinse |
| Drain | 1" NPT Gravity, 15 GPM Maximum Flow |
| Water Hardness | Less than 3.5 Grains per Gallon |
| Drain Water Tempering | Optional; 1/2" Cold Water Line with Customer Cut-Off Valve |
| Controls | Touchscreen with On-Board Diagnostics, Rinse Sentry, Auto Start, Cycle Counter, Automated Delime, Sleep Mode |
| Drain Valve | Automatic, Gear Driven Full Port Ball Valve, Stainless and Brass |
| Signals | Vent Fan, Detergent and Rinse Aid Signals Provided |
| Field Conversion | Three Phase to Single PhaseFront Load, Corner or Pass-Through |
| Champion Options | Built-In Detergent and Rinse Aid PumpsDrain Water Tempering Kit, MountedPeg and Flat RacksCorner Operation Splash Baffle |
| More Champion Options | Water Hammer Kit, UnmountedPumped DrainDual Point Electrical ConnectionHose Install KitDirect Link and Plus+ Connectivity |
| Certifications | cULus, NSF, ENERGY STAR |
| NSF Rating | Dual Rated: Stationary Rack Dish Machine and Pot and Pan Machine |
| Warranty | 1 Year Parts and Labor |
