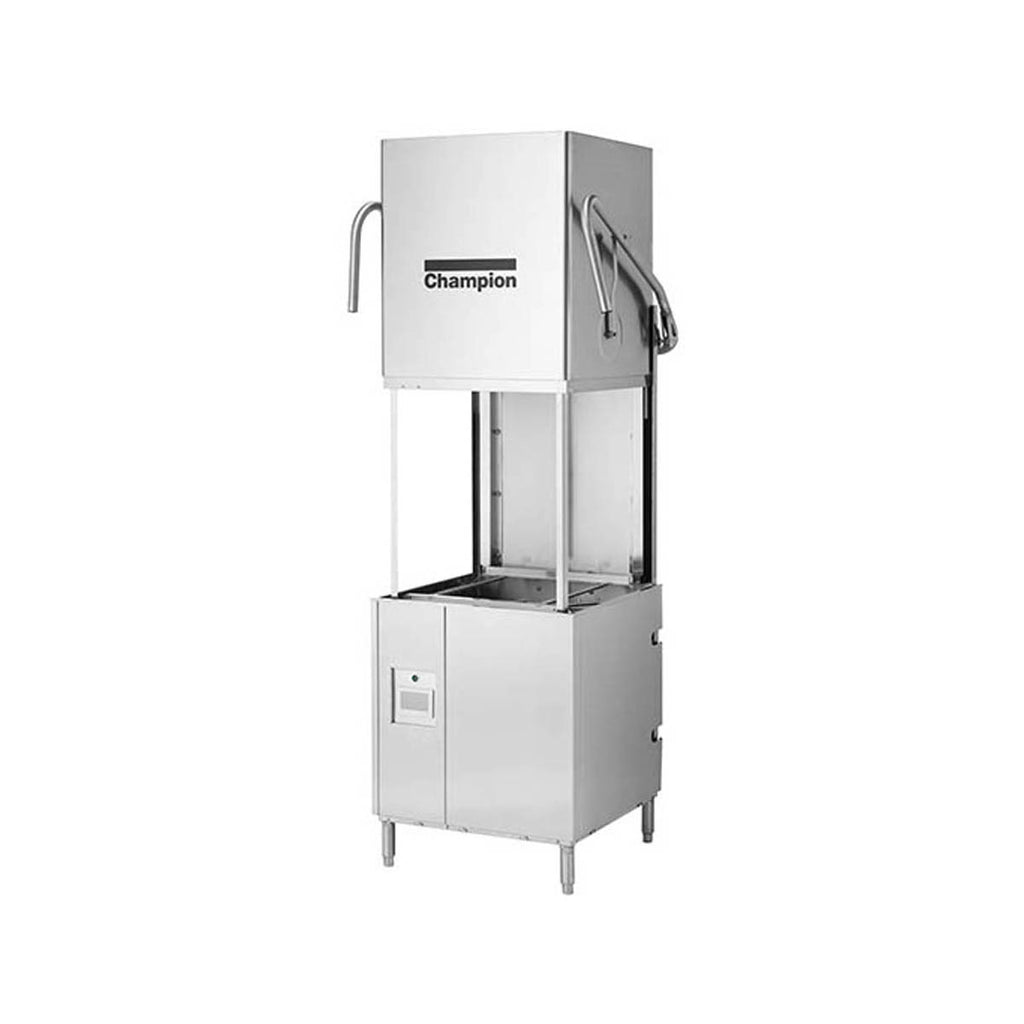

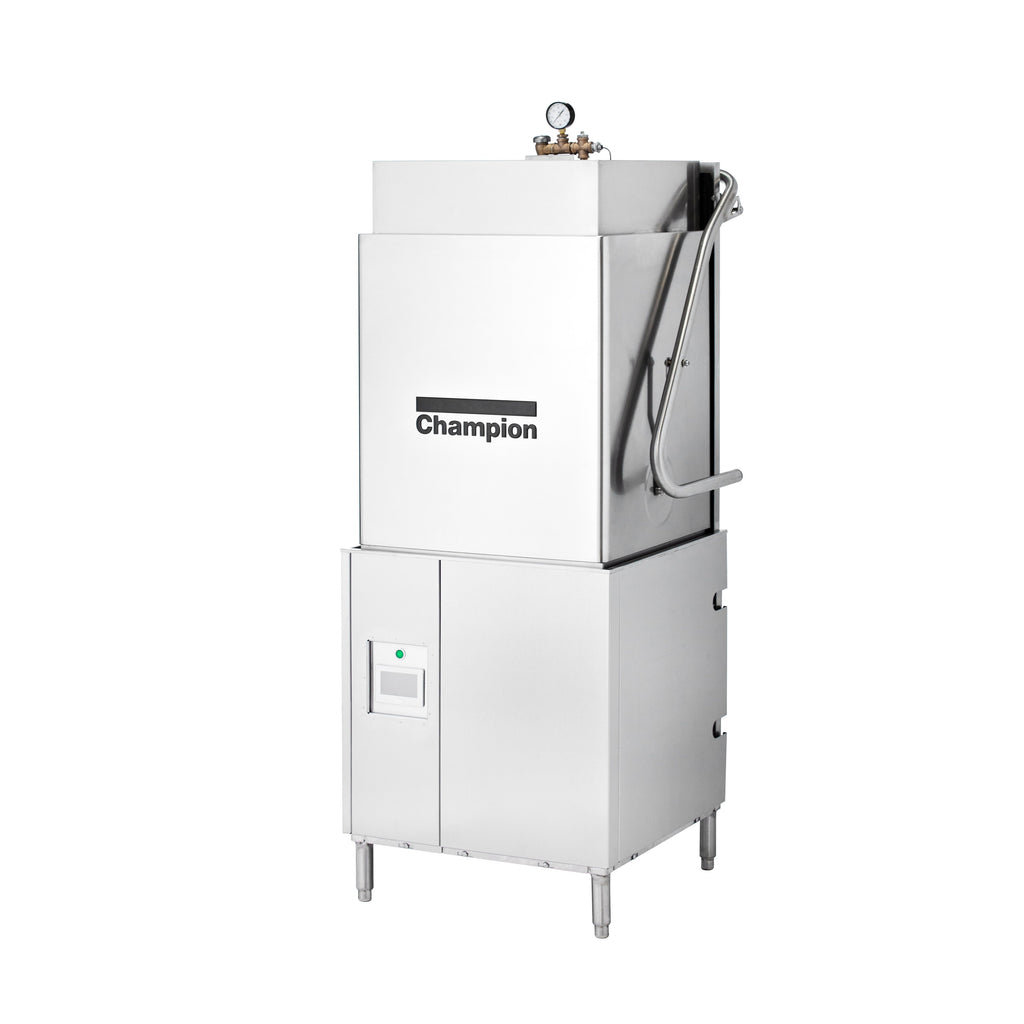

Champion DH-6000T Tall Hood Door-Type Dishwasher, High Temp, 60 Racks/Hr, 0.73 Gal/Rack, Booster Optional
A tall-hood, high-temp door machine that washes up to 60 racks an hour, sheet pans included.
The Champion DH-6000T is a high-temperature extended hood door machine with 27" of hood clearance for sheet pans, stock pots and tall wares. Champion rates it at 60 racks per hour using 0.73 gallons per rack, and NSF dual rating covers it as both a dish machine and a pot and pan machine. Choose it with or without the built-in booster heater on this page.
Plan ceiling and hood height for the 88" side-view height, and leave 24" in front for service. A corner install needs tables that meet at 31" x 31".
The extended hood takes sheet pans, stock pots and tall wares that a standard door machine cannot.
Order it with the built-in booster configured for a 180°F rinse and a mounted PRV, or without a booster when your building supplies the rinse heat.
Pick 1, 2, 4 or 6 minute wash cycles. The 1 minute cycle is dishwasher mode; 2, 4 and 6 minutes are pot and pan mode, with totals of 60, 120, 240 and 360 seconds.
The touchscreen shows condition alerts and multi-lingual cleaning and operating guidance, with on-board service diagnostics and a cycle counter.
Convert from three phase to single phase power on site, and set the feed for front load, corner or pass-through.
Programmable sleep mode powers down the heaters after a set period, and the delime function alerts at intervals you set for your water.
Champion rates the final rinse at 180°F. Choose the built-in booster option and it heats the rinse for you from 110°F to 140°F supply water, with a mounted PRV. Without it, your building must supply the rinse heat.
This model is not the ventless version; Champion sells the DH6000T-VHR for ventless heat recovery. It provides a vent fan signal, so check hood and vent rules with your local code official.
With the booster: 208-240/60/1 at 72-81 A on a 100 A circuit, 208-240/60/3 at 48-50 A on 60 A, or 480/60/3 at 21 A on 30 A. Without the booster: 36-39 A, 26-27 A or 10 A.
Yes. Choose corner or straight-through on this page; Champion also makes the feed field convertible for front load, corner and pass-through.
Champion asks for water hardness below 3.5 grains per gallon. If your water is harder, plan a water softener or treatment before the machine goes in.
Champion covers it with a 1 year parts and labor warranty.
Yes. Champion equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Champion |
|---|---|
| Model Number | DH-6000T |
| Series | DH6000 |
| Machine Type | Extended Hood-Type Door Machine, High Temperature |
| Shipping Weight | 450 lb. |
| Width | 34 Inches |
| Depth | 24-3/4 Inches |
| Height | 75-1/8 Inches |
| Height Note | Front view height; side view tops out at 88" |
| Door Opening Height | 26-1/4 Inches |
| Corner Opening | 24-15/16 Inches |
| Service Clearance | 24 Inches |
| Capacity | 60 Racks per Hour |
| Water per Rack | 0.73 Gallons |
| Water per Hour | 39 Gallons Maximum |
| Wash Tank | 10 Gallons |
| Wash Cycles | 1, 2, 4 and 6 MinutesTotals 60, 120, 240 and 360 Seconds |
| Wash Temperature | 150°F |
| Final Rinse Temperature | 180°F |
| Tank Heat | 5.2 kW Electric |
| Booster | 7.5 kW Electric, Built-In Booster Optional |
| Voltage | 208-240 or 480 Volts |
| Hertz | 60 Hz |
| Phase | 1 or 3 |
| Amps with Booster | 208-240/60/1: 72-81 A, 100 A circuit208-240/60/3: 48-50 A, 60 A circuit480/60/3: 21 A, 30 A circuit |
| Amps, Machine Only | 208-240/60/1: 36-39 A, 50 A circuit208-240/60/3: 26-27 A, 30 A circuit480/60/3: 10 A, 15 A circuit |
| Amps, Booster Only | 208-240/60/1: 36-42 A, 50 A circuit208-240/60/3: 21-24 A, 30 A circuit480/60/3: 11 A, 15 A circuit |
| Wash Pump | 2 HP |
| Water Inlet | 3/4" NPT hot water, 110-140°F |
| Water Pressure | 45 PSI Dynamic Incoming18 PSI Final Rinse |
| Drain | 1" NPT Gravity, 15 GPM Maximum Flow |
| Water Hardness | Less than 3.5 Grains per Gallon |
| Drain Water Tempering | Optional; 1/2" Cold Water Line with Customer Cut-Off Valve |
| Controls | Touchscreen with On-Board Diagnostics, Rinse Sentry, Auto Start, Cycle Counter, Automated Delime, Sleep Mode |
| Drain Valve | Automatic, Gear Driven Full Port Ball Valve, Stainless and Brass |
| Signals | Vent Fan, Detergent and Rinse Aid Signals Provided |
| Field Conversion | Three Phase to Single PhaseFront Load, Corner or Pass-Through |
| Champion Options | Built-In Detergent and Rinse Aid PumpsDrain Water Tempering Kit, MountedVentless Heat Recovery and Condensate RemovalBuilt-In Booster for 180°F RinsePeg, Flat and Sheet Pan RacksCorner Operation Splash Baffle |
| More Champion Options | Water Hammer Kit, UnmountedPumped DrainDual Point Electrical ConnectionDoor InterlockHose Install KitDirect Link and Plus+ Connectivity |
| Certifications | cULus, NSF, ENERGY STAR |
| NSF Rating | Dual Rated: Stationary Rack Dish Machine and Pot and Pan Machine |
| Warranty | 1 Year Parts and Labor |
