Champion DL-2000 Low Temp Door-Type Dishwasher, Chemical Sanitizing, 40 Racks/Hr, 1.01 Gal/Rack, 115V
A low-temperature door machine that sanitizes with chemicals and runs on a 115V, 20 amp circuit.

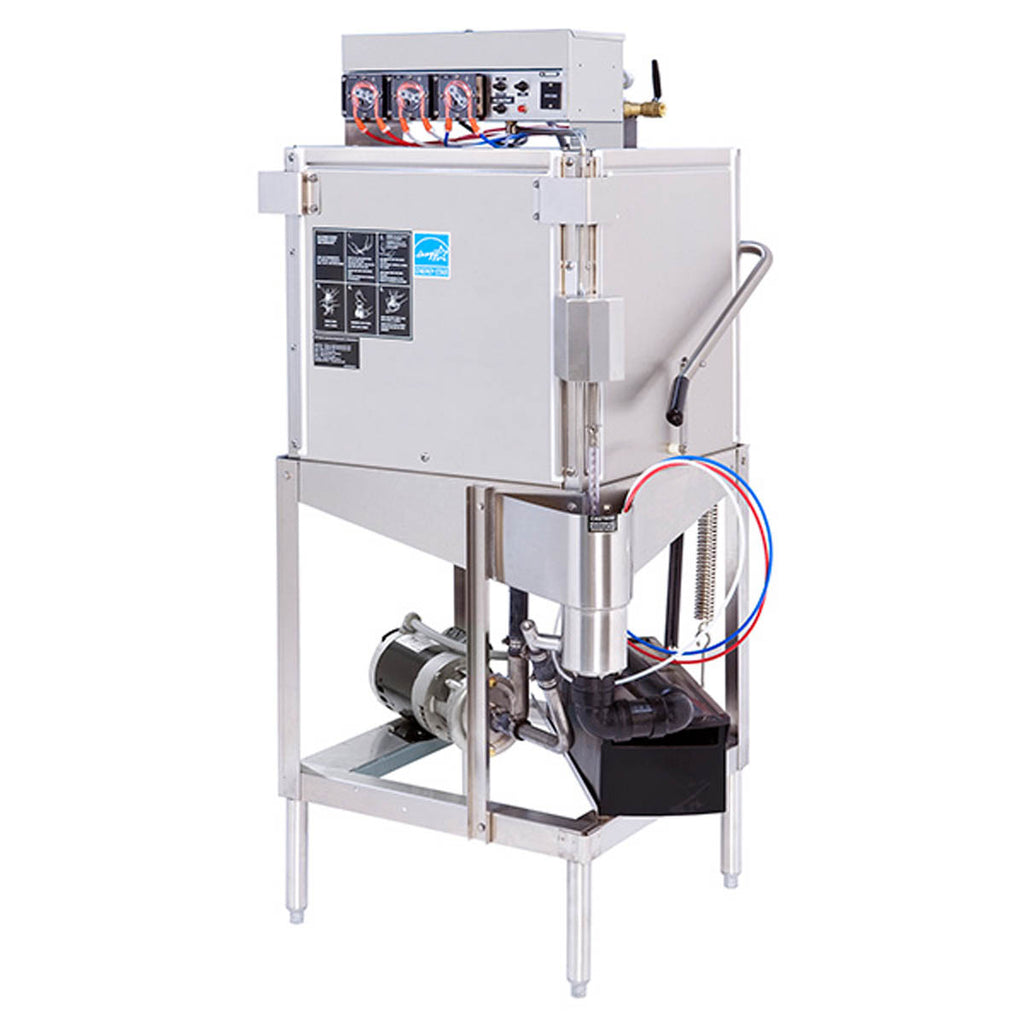

The Champion DL-2000 is a low-temperature, chemical sanitizing door-type dishwasher built entirely of stainless steel. It needs no booster or tank heater: it washes, rinses and sanitizes standard 19-3/4" x 19-3/4" racks in a 90 second cycle, up to 40 racks or 160 covers an hour. Built-in chemical pumps and a deliming system are mounted with the controls on top.
Leave room for the door to rise to 80-1/2" and at least 5" behind the machine, as the top view shows.
Low-temperature chemical sanitizing meets the sanitation standards without a booster or tank heater, so it runs on 120°F to 140°F hot water.
A 45 second wash, 30 second rinse and 15 second dwell give up to 40 racks or 160 covers an hour.
Top-mounted controls include built-in chemical pumps and a deliming system for dealing with scale.
The machine converts from corner to straight-through operation and back.
An integrated scrap tray keeps food soil out of the drain, and an air gap fill system protects the water supply.
Upper and lower stainless steel wash arms with reinforced end caps clean each rack.
No. The DL-2000 sanitizes with chemicals, so Champion builds it without a booster or tank heater. It needs 120°F hot water, 140°F recommended.
A 115V circuit with a 20 amp breaker. The machine draws 16 amps.
Champion rates it at 40 racks, or 160 covers, per hour (NSF rated), with a 90 second cycle.
1.01 gallons per rack and up to 40.4 gallons per hour.
Yes. It converts from corner to straight and from straight to corner.
Champion asks for water hardness below 3.5 grains per gallon. If your water is harder, plan a water softener or treatment before the machine goes in.
Champion covers it with a 1 year parts and labor warranty.
Yes. Champion equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Champion |
|---|---|
| Model Number | DL-2000 |
| Machine Type | Low Temperature Door Machine, Chemical Sanitizing |
| Shipping Weight | 262 lb. |
| Country of Origin | Made in America |
| Width | 25-3/4 Inches |
| Depth | 25-3/4 Inches |
| Height | 59 Inches |
| Height with Door Open | 80-1/2 Inches |
| Door Opening Height | 20-1/2 Inches |
| Table Height | 34 to 35 Inches Adjustable |
| Capacity | 40 Racks per Hour |
| Covers per Hour | 160 |
| Rack Size | 19-3/4" x 19-3/4" |
| Pump Capacity | 52 Gallons, 197 LPM |
| Water per Rack | 1.01 Gallons |
| Water per Hour | 40.4 Gallons Maximum |
| Cycle Time | 90 SecondsWash 45, Rinse 30, Dwell 15 |
| Water Temperature | 120°F Required140°F Recommended |
| Voltage | 115 Volts |
| Amps | 16 Amps |
| Breaker | 20 Amp Required |
| Motor | 1 HP |
| Water Inlet | 1/2" |
| Drain | 2" I.P.S., 10.58 GPM Maximum Flow |
| Water Hardness | Less than 3.5 Grains per Gallon |
| Exterior | Stainless Steel |
| Wash Arms | Upper and Lower Stainless Steel, Reinforced End Caps |
| Controls | Top MountedBuilt-In Chemical Pumps and Deliming SystemAuto Start/Stop |
| Fill | Air Gap Fill System |
| Scrap Tray | Integrated |
| Champion Options | Sanitizer AlarmVent Fan Control |
| Certifications | cULus, cETLus |
| Standards | Meets ETL, UL and CUL Sanitation and Construction Standards |
| Warranty | 1 Year Parts and Labor |
