Champion UH130B Undercounter Dishwasher, High Temp with Built-In Booster, 25 Racks/Hr, 208-240V 1 or 3 Phase
A high-temp undercounter dishwasher with its own booster, sized for bars, cafes and small kitchens.

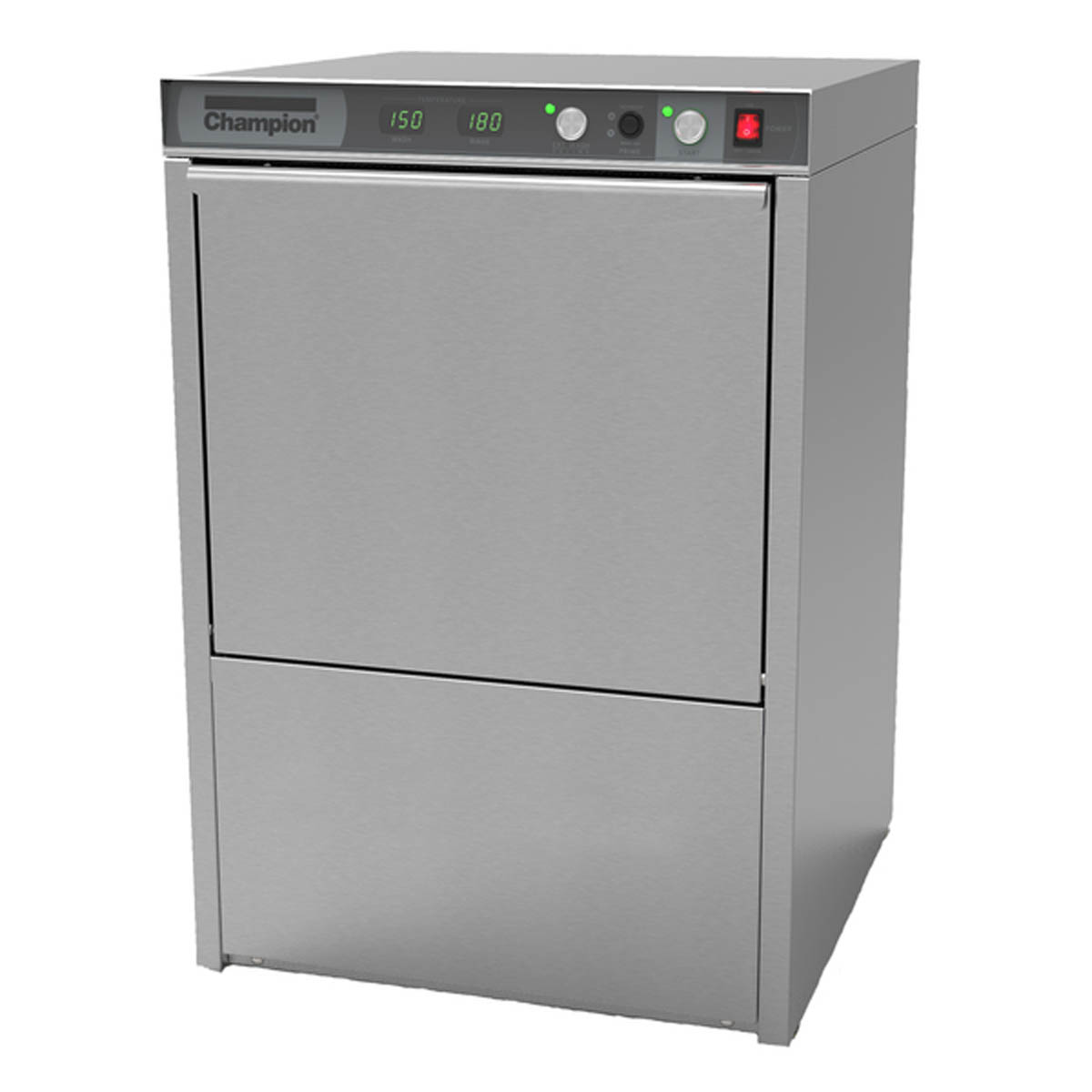

The Champion UH130B is a 24" wide high-temperature undercounter dishwasher with a built-in electric booster for a 180°F final rinse. It runs a 142 second cycle for up to 25 racks an hour, and Wash Refresh drains the water between cycles so heavily soiled loads get fresh wash water. The 316 stainless steel tank, pumped drain and detergent and rinse aid pumps are standard.
Check the opening under your counter is at least 24" wide and 33-3/4" high, and leave room in front for the 40-1/2" open-door depth.
The standard 6 kW booster gives a 70°F rise, and Rinse Sentry extends the cycle to ensure a 180°F final rinse.
The machine drains its wash water for the next cycle, so heavily soiled items are washed with new water.
Convert in the field between 208 and 240 volt and from single to three phase.
A soft start protects glasses and dishes from chipping and breaking.
A 316 stainless steel tank resists corrosion, inside quiet double-wall construction.
Detergent and rinse aid pumps with a prime switch, delime button, automatic tank fill and digital temperature monitoring.
No. A 6 kW booster is built in for a 70°F rise from 110°F supply water. This page also offers a 9 kW booster with a 100°F rise.
Champion's 2021 UH130B sheet lists the 9 kW high speed booster at 45 A on a 60 A circuit at 208V single phase, 50 A at 240V, and 29 A or 33 A on 35 A or 40 A circuits at 208V or 240V three phase.
With the standard 6 kW booster: 208-240/60/1 at 32-36 A on a 40 A circuit, or 208-240/60/3 at 22-24 A on a 30 A circuit. Three phase is a factory prewired option or a field conversion.
Champion says a vent hood is not recommended, because the unit does not produce excessive steam. Always follow your local building code.
Champion rates it at 25 racks per hour with a 142 second cycle and 140°F incoming water, using 1.83 gallons per rack.
Champion asks for water hardness below 3.5 grains per gallon. If your water is harder, plan a water softener or treatment before the machine goes in.
Champion covers it with a 1 year parts and labor warranty.
Yes. Champion equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Champion |
|---|---|
| Model Number | UH130B |
| Machine Type | Undercounter Dishwasher, High Temperature, Built-In Booster |
| Width | 24 Inches |
| Depth | 25 Inches |
| Height | 33-3/4 Inches |
| Depth with Door Open | 40-1/2 Inches |
| Door Clearance | 15-3/4 Inches |
| Capacity | 25 Racks per Hour |
| Racks per Hour Note | At 140°F incoming water, excluding 30 second NSF load/unload time |
| Cycle Time | 142 SecondsWash 90, Rinse 25, Drain/Fill 27 |
| Water per Rack | 1.83 Gallons |
| Water per Hour | 36.6 Gallons Maximum |
| Racks Included | 1 Dish and 1 Open, 20" x 20" |
| Wash Temperature | 150°F |
| Final Rinse Temperature | 180°F |
| Tank Heat | 2.0 kW Electric |
| Booster | 6 kW Built-In, 70°F Rise Standard9 kW High Speed, 100°F Rise Optional |
| Voltage | 208-240 Volts |
| Hertz | 60 Hz |
| Phase | 1 or 3 |
| Amps, 6 kW Booster | 208-240/60/1: 32-36 A, 40 A Circuit208-240/60/3: 22-24 A, 30 A Circuit |
| Amps, 9 kW Booster | 208/60/1: 45 A, 60 A240/60/1: 50 A, 60 A208/60/3: 29 A, 35 A240/60/3: 33 A, 40 A |
| Wiring | 3 Wire plus Ground Single Phase4 Wire plus Ground Three Phase |
| Wash Pump | 1 HP |
| Water Inlet | 1/2" Hot Water Supply, 110°F Minimum3/4" Garden Hose Connection25-95 PSI |
| Drain | Pumped, 5/8" I.D. Hose, 6 ft.15 GPM Max3 ft. Max Drain Height |
| Water Hardness | Less than 3.5 Grains per Gallon |
| Exterior | Stainless Steel Top and Side Panels |
| Tank | 316 Stainless Steel |
| Standard Features | Wash RefreshStemSure Soft StartRinse SentryDoor Safety SwitchLow-Water Tank Heat ProtectionDetergent and Rinse Aid PumpsDelime Button |
| Champion Options | Peg and Flat Racks17" Stainless Stand8" Leg Stand3 Phase Connection, Prewired1" Roller KitPower Cord KitDrain Water Tempering KitChemical Alarm Kit |
| Certifications | NSF, cETLus |
| Warranty | 1 Year Parts and Labor |
