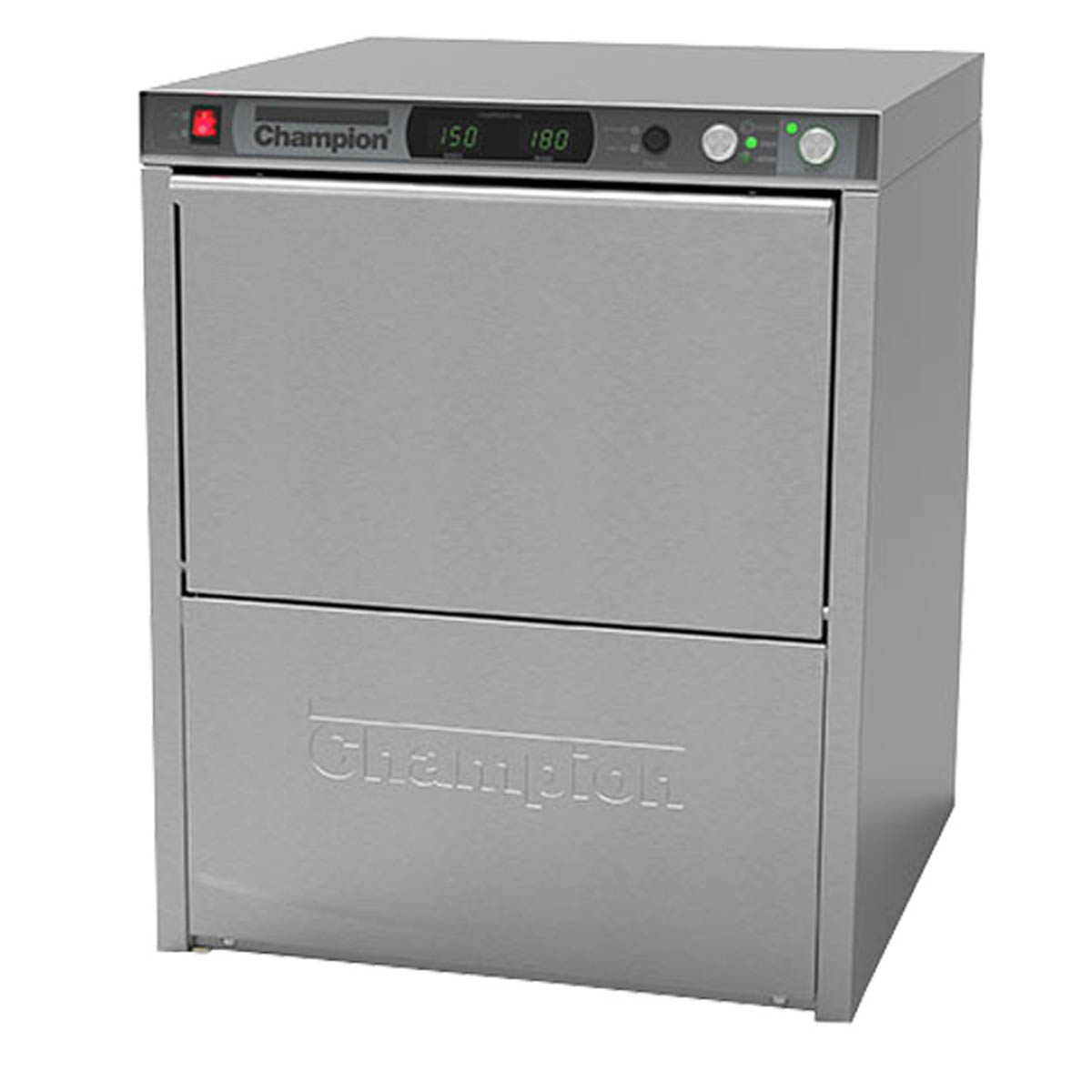

Champion UH330ADA ADA Height Undercounter Dishwasher, Heat Recovery, High Temp with Booster, Up to 30 Racks/Hr
A 29-7/8" tall high-temp dishwasher that fits under a 34" ADA counter and runs on cold water.
The Champion UH330ADA is a space-saving 29-7/8" tall undercounter dishwasher with 12" internal clearance, built to fit under the thickest countertops while meeting a 34" ADA counter height. Heat recovery lets it run on a 1/2" cold water supply only, and the insulated 4.3 kW booster with Rinse Sentry ensures a 180°F final rinse. Three cycle times give 30, 18 or 13 racks an hour.
Measure under the counter: the machine needs 24" of width and 29-7/8" of height, plus 3" behind it.
Cold water feed only. Champion rates it up to 50% more energy efficient, with quicker drying, less condensation and lower operating costs.
At 29-7/8" tall it fits under the thickest countertops while allowing for 34" ADA requirements; a 4.5" stand converts it to standard counter height.
Select 120, 200 or 277 second cycles for 30, 18 or 13 racks per hour as soil load requires.
A 4.3 kW insulated booster with Rinse Sentry ensures a 180°F final rinse for sanitized wares.
A soft start protects glasses and dishes from chipping and breaking.
A 1 HP corrosion resistant pump, 316 stainless steel tank and interchangeable stainless steel upper and lower wash and rinse arms.
No. It runs on a 1/2" cold water supply only, 55°F to 80°F at 25 PSI minimum, and heats its own 180°F rinse with the built-in booster.
208-240/60/1 at 32-36 A on a 40 A circuit, or 208-240/60/3 at 22-24 A on a 30 A circuit. Wiring is 3 wire plus ground single phase or 4 wire plus ground three phase. Choose 208V or 240V, single or three phase, on this page.
Champion rates it at 30, 18 and 13 racks per hour for the 120, 200 and 277 second cycles. Champion lists water use of 0.65 and 0.54 gallons per rack.
Champion says a vent hood is not recommended, because the unit does not produce excessive steam. Always follow your local building code.
Yes. Champion's spec sheet lists the UH330 ADA as ENERGY STAR qualified.
Champion asks for water hardness below 3.5 grains per gallon. If your water is harder, plan a water softener or treatment before the machine goes in.
Champion covers it with a 1 year parts and labor warranty.
Yes. Champion equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Champion |
|---|---|
| Model Number | UH330ADA |
| Machine Type | Undercounter Dishwasher, High Temperature, Heat Recovery, ADA Height |
| Shipping Weight | 215 lb. |
| Crated Volume | 15 cu. ft. |
| Width | 24 Inches |
| Depth | 26-3/4 Inches |
| Height | 29-7/8 Inches |
| Depth with Door Open | 39-1/2 Inches |
| Door Clearance | 12-1/8 Inches |
| Wall Clearance | 3 Inches from Machine Back to Wall |
| Internal Clearance | 12 Inches |
| Capacity | Up to 30 Racks per Hour |
| Racks per Hour by Cycle | 30/18/13 Racks per Hour |
| Cycle Times | 120/200/277 SecondsWash 45/120/197, Rinse 13, Heat Recovery/Condense 62 |
| Water per Rack | 0.65/0.54 Gallons |
| Water per Hour | 15.6/12.9 Gallons Maximum |
| Racks Included | 1 Peg and 1 Flat, 20" x 20" |
| Wash Temperature | 150°F |
| Final Rinse Temperature | 180°F |
| Tank Heat | 2.0 kW Electric |
| Booster | 4.3 kW Built-In, Insulated |
| Voltage | 208-240 Volts |
| Hertz | 60 Hz |
| Phase | 1 or 3 |
| Amps by Service | 208-240/60/1: 32-36 A, 40 A Circuit208-240/60/3: 22-24 A, 30 A Circuit |
| Wiring | 3 Wire plus Ground Single Phase4 Wire plus Ground Three Phase |
| Wash Pump | 1 HP Corrosion Resistant |
| Water Inlet | 1/2" Cold Water Supply, 55-80°F, 25 PSI Minimum3/4" Garden Hose Connector |
| Drain | Pumped, 5/8" I.D. Hose, 6 ft.15 GPM Max3 ft. Max Drain Height |
| Water Hardness | Less than 3.5 Grains per Gallon |
| Exterior | Stainless Steel Construction, Top and Side Panels |
| Tank | 316 Stainless Steel |
| Standard Features | Heat RecoveryDry AssistStemSureRinse SentryDigital Temperature DisplayDetergent and Rinse-Aid PumpsService DiagnosticsPumped Drain |
| Champion Options | Peg and Flat Racks17" Stainless Stand4.5" Stand for Standard Counter Height8" Leg Stand3 Phase Connection, Prewired1" Roller KitsDrain Water Tempering KitPower Cord KitChemical Alarm KitDoor Interlock Switch |
| Certifications | NSF, cETLus, ENERGY STAR |
| Warranty | 1 Year Parts and Labor |
