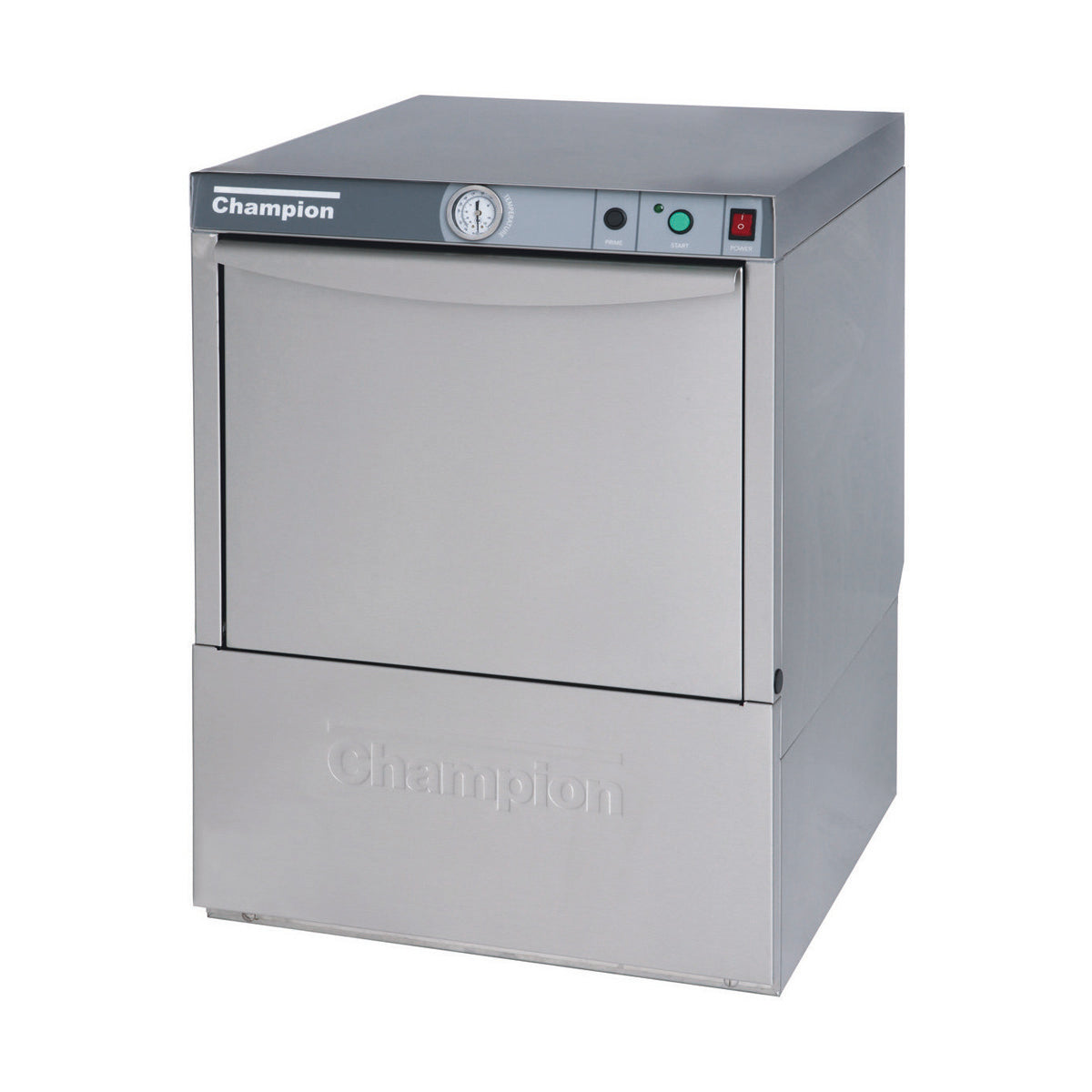

Champion UL-130 Low Temp Undercounter Dishwasher, Chemical Sanitizing, 25 Racks/Hr, 115V Plug-In
A low-temp undercounter dishwasher that plugs into a 115V outlet and sanitizes with chemicals.
The Champion UL-130 is a 24" wide low-temperature undercounter dishwasher with built-in detergent, rinse aid and sanitizer dispensing pumps. It runs on 120°F hot water (140°F recommended), draws 12 amps at 115V through the supplied 4 ft. plug-in cord, and washes up to 25 racks an hour. Wash Refresh drains the water for the next cycle, so heavily soiled items get new wash water.
Check the opening under your counter is at least 24" wide and 33-3/4" high, with a 115V outlet within reach of the 4 ft. cord.
Built-in detergent, rinse aid and sanitizer pumps let it sanitize on 120°F to 140°F hot water, with no booster.
A 115V, 12 amp machine on a 15 amp fuse with a 4 ft. plug-in cord supplied.
The machine drains its wash water for the next cycle, so heavily soiled items are always sanitized with new wash water.
A soft start protects glasses and dishes from chipping and breaking.
A 316 stainless steel tank with upper and lower interchangeable wash and rinse spray arms and a 1 HP wash pump.
A door safety switch, low-water tank heat protection and a pumped drain are standard.
No. The UL-130 is a low-temperature machine that sanitizes with chemicals from its built-in sanitizer pump. It needs 120°F minimum hot water, 140°F recommended.
115V, 60 Hz, single phase. It draws 12 amps, is fused at 15 amps, and comes with a 4 ft. plug-in cord.
Champion rates it at 25 racks per hour with a 142 second cycle, using 1.6 gallons per rack and up to 32 gallons per hour.
Champion says a vent hood is not recommended, because the unit does not produce excessive steam. Always follow your local building code.
It has built-in detergent, rinse aid and sanitizer dispensing pumps. Use chemicals approved for low-temperature sanitizing machines.
Champion asks for water hardness below 3.5 grains per gallon. If your water is harder, plan a water softener or treatment before the machine goes in.
Champion covers it with a 1 year parts and labor warranty.
Yes. Champion equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Champion |
|---|---|
| Model Number | UL-130 |
| Machine Type | Undercounter Dishwasher, Low Temperature, Chemical Sanitizing |
| Shipping Weight | 173 lb. |
| Product Weight | 153 lb. |
| Width | 24 Inches |
| Depth | 25 Inches |
| Height | 33-3/4 Inches |
| Crated Size | 25" W x 25-1/2" D x 39-1/2" H |
| Depth with Door Open | 40-1/2 Inches |
| Door Clearance | 15-3/4 Inches |
| Capacity | 25 Racks per Hour |
| Cycle Time | 142 SecondsWash 90, Rinse 25, Drain/Fill 27 |
| Water per Rack | 1.6 Gallons |
| Water per Hour | 32 Gallons Maximum |
| Racks Included | 1 Dish and 1 Open, 20" x 20" |
| Wash and Rinse Temperature | 120°F Minimum140°F Recommended |
| Tank Heat | 0.75 kW Electric |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 12 Amps |
| Fuse | 15 Amp |
| Cord | 4 ft. Plug-In Cord Supplied |
| Wash Pump | 1 HP |
| Water Inlet | 6 ft. 1/2" I.D. Fill Hose, 3/4" Garden Hose Connector120°F Minimum25-95 PSI |
| Drain | Pumped, 5/8" I.D. Hose, 6 ft.15 GPM Max3 ft. Max Drain Height |
| Water Hardness | Less than 3.5 Grains per Gallon |
| Exterior | Stainless Steel Construction, Top and Side Panels |
| Tank | 316 Stainless Steel |
| Standard Features | Wash RefreshStemSureDoor Safety SwitchLow-Water Tank Heat ProtectionDetergent, Rinse-Aid and Sanitizer PumpsTop Mounted ControlsPumped Drain |
| Champion Options | Peg and Flat Racks17" Stainless Stand8" Leg Stand1" Roller KitsChemical Alarm Kit |
| Certifications | NSF, cETLus |
| Warranty | 1 Year Parts and Labor |
