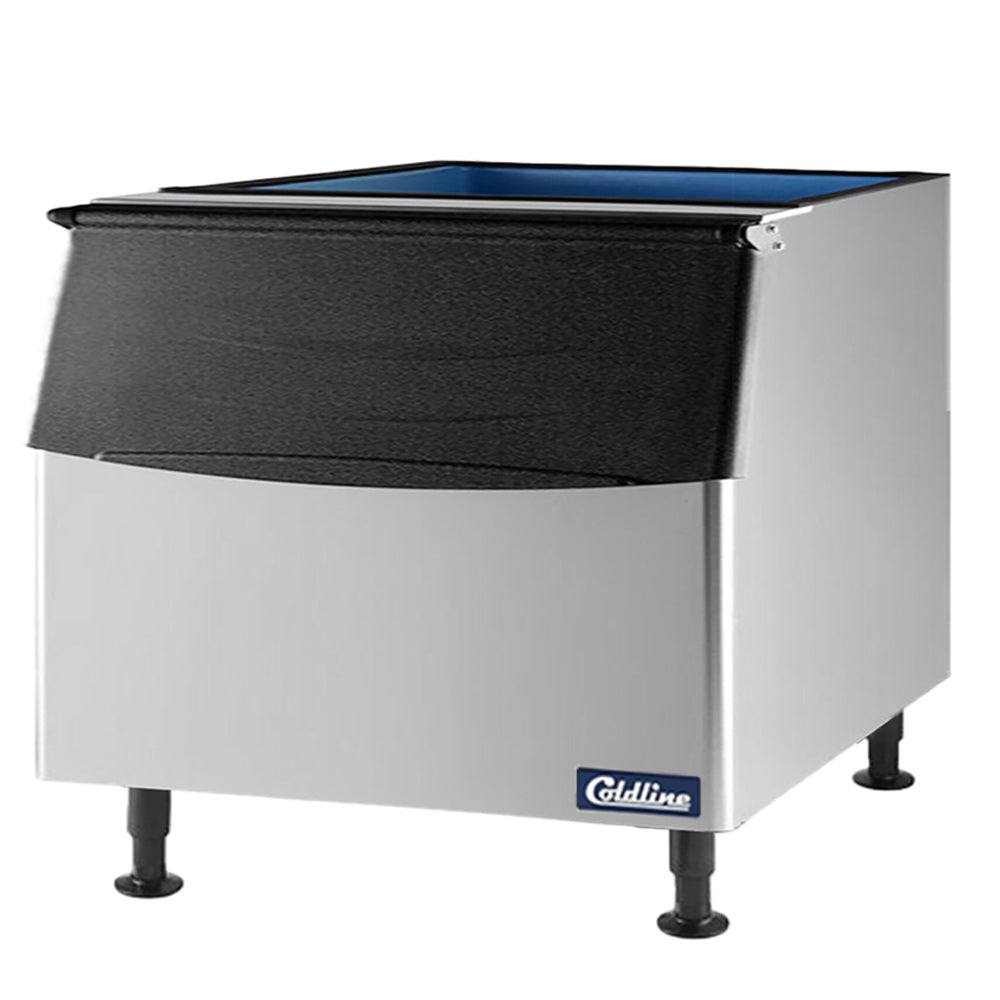

Coldline B1000 48" Ice Storage Bin, 1000 lb. Capacity, Stainless Steel, Fits (2) ICE400T-HA Heads, Bin Only
A 1000 lb. stainless steel ice bin that sits under two Coldline modular ice machine heads.
The Coldline B1000 stores up to 1000 lb. of ice for restaurants, bars, hotels and grocery stores that run a modular ice machine. Coldline lists it for two Coldline ICE400T-HA modular ice machine heads. It is 48.3" wide, with a stainless steel exterior, a polyethylene interior that is easy to clean, foamed-in-place polyurethane insulation and a spring-loaded door. It stands on adjustable leveling feet and comes with an ice scoop, a water hose and a drain hose. The ice machine is sold separately.
Add the height of the ice machine head to 49" and check the clearance above the installation spot. Measure doorways on the delivery path; the bin is 37.2" at its narrowest.
Holds up to 1000 lb. of ice under the head, so ice is ready at peak service.
Foamed-in-place polyurethane insulation and a sanitary polyethylene interior.
The door opens easily for scooping and closes to keep the ice insulated.
Adjustable leveling feet, a rear drain hole, and an ice scoop, water hose and drain hose in the box.
No. The B1000 is the storage bin only. Coldline lists it for two Coldline ICE400T-HA modular ice machine heads, which mount on top of the bin.
Up to 1000 lb. of ice. Size the bin to your peak service: the head refills it as you use ice.
The spec sheet lists no electrical connection for the bin. It has a rear drain hole, and a drain hose and water hose are included. Plan a floor drain or drain line near the installation spot.
The bin is 48.3" wide, 37.2" deep and 49" tall on adjustable feet, before the ice machine head is added on top. With the door raised it needs 52.6" of depth (Coldline drawing). Add the height of the head you choose and check the clearance under any shelves or ceiling.
USR Brands links its Coldline ice machine warranty to this bin. That document names the ICE, NU and EIC ice machine series and does not list storage bins, so call us at (201) 467-8222 to confirm the bin warranty before ordering.
The USR Brands warranty linked to this product states that USR cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | B1000 |
| Quantity | 1/Each |
| Shipping Weight | 219 lb. |
| Net Weight | 168 lb. |
| Width | 48.3 Inches |
| Depth | 37.2 Inches |
| Height | 49 Inches |
| Leg Height | 6.3 Inches |
| Depth with Door Open | 52.6 Inches |
| Packaging Dimensions | 51" W x 41" D x 52" H |
| Capacity | 1000 lb. Ice Storage |
| Compatible Ice Machines | (2) Coldline ICE400T-HA |
| Exterior | Stainless SteelPlastic Molding |
| Interior | Polyethylene |
| Insulation | Foamed-in-Place Polyurethane |
| Door | Spring-Loaded |
| Drain | Rear Drain Hole |
| Feet | Adjustable Leveling Feet |
| Accessories Included | Ice ScooperWater HoseDrain Hose |
| Usage | CommercialIce Storage |
