Coldline C19R 29" Narrow Depth Solid Door Reach-In Refrigerator, 15.6 cu. ft., 33 to 41°F, Stainless Steel, 115V
A 29" reach-in refrigerator only 25.4" deep, for aisles where a standard 32" deep unit sticks out too far.
The Coldline C19R is a narrow-depth reach-in refrigerator for restaurants, delis, bakeries and cafes with tight aisles. At 25.4" deep it holds 15.6 cu. ft. at 33°F to 41°F on 3 adjustable epoxy-coated wire shelves, with a digital controller and automatic defrost. The self-closing door stays open at 90° while you load and locks with the included keys. It plugs into a 115V NEMA 5-15P outlet on a dedicated 15 A circuit and rolls on 4 casters, 2 with brakes.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 25.4" depth.
25.4" deep and 29" wide, with 52.3" of depth needed for the open door.
A digital controller holds 33°F to 41°F, and the 1/3 HP R290 system defrosts automatically.
Three 23.4" x 19.4" epoxy-coated wire shelves, each rated for 90 lb.

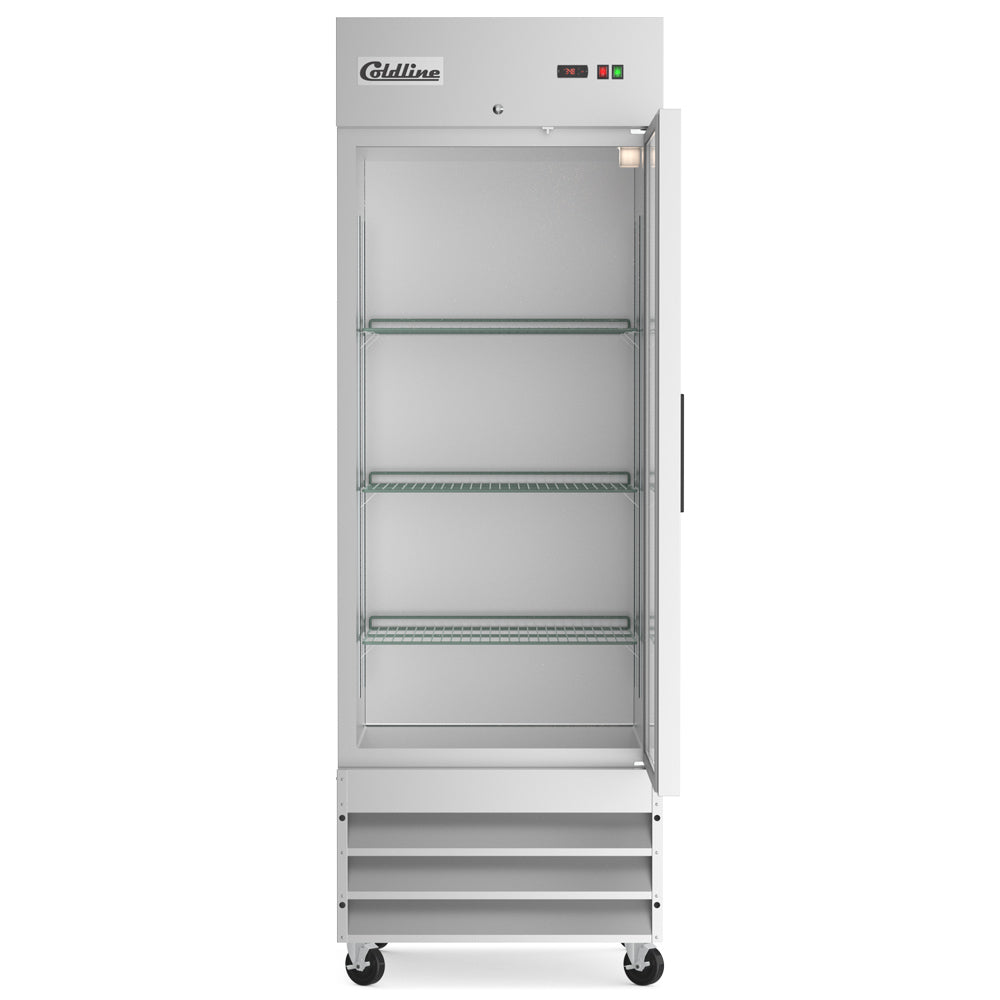

The self-closing door holds open at 90° for loading and locks with the included keys.
A grounded 115V outlet for its NEMA 5-15P plug. It draws 1.37 A, and USR Brands requires a dedicated 15 A circuit installed by a licensed electrician. The manual says to give it its own outlet and not to use an extension cord.
The refrigerator is 29" wide, 25.4" deep and 81.5" tall, and ships in a 30.3" × 27.5" × 85.5" carton. Measure every doorway and turn on the delivery path; the smallest outside dimension is the 25.4" depth. Do not tilt it more than 45° while moving it.
Plan 52.3" of depth for the door to open (Coldline drawing). The manual asks for 4" of clearance at the back and an indoor, well-ventilated spot away from heat and moisture. Coldline rates it for rooms up to 90°F.
If it was just transported, let it stand upright for at least 24 hours before plugging it in, as the manual says. Then let it reach temperature (33°F to 41°F) before loading product. After unplugging it, wait at least 10 minutes before plugging it back in.
USR Brands covers Coldline C-Series units for 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor). It is valid in the contiguous US; food truck and farm installs are parts only, and residential use is not covered.
USR Brands, which backs the Coldline warranty, states that it cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Clean the condenser coil at least once a month with a brush or clean cloth; the removable installation board gives access to it. Keep the area around the unit ventilated and free of dust.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | C19R |
| Quantity | 1/Each |
| Shipping Weight | 231 lb. |
| Net Weight | 202 lb. |
| Width | 29 Inches |
| Depth | 25.4 Inches |
| Height | 81.5 Inches |
| Depth with Door Open | 52.3 Inches |
| Interior Dimensions | 24.4" W x 20.4" D x 59.5" H |
| Packaging Dimensions | 30.3" W x 27.5" D x 85.5" H |
| Voltage | 115 Volts |
| Amps | 1.37 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 96 Inches |
| Circuit | Dedicated 15 Amp, Installed by a Licensed Electrician |
| Capacity | 15.6 cu. ft. |
| Temperature Range | 33 - 41 Degrees F |
| Max. Ambient Temperature | 90 Degrees F |
| Horsepower | 1/3 HP |
| Refrigerant | R290 |
| Defrost | Automatic |
| Controls | Digital |
| Compressor Location | Bottom Mount |
| Number of Doors | 1 |
| Doors | SolidSelf-Closing90° Stay-Open |
| Door Lock | Locks and Keys Included |
| Handle | Recessed |
| Exterior | 430 Stainless SteelAluminum Back |
| Interior | 430 Stainless Steel |
| Insulation | Foamed-in-Place Polyurethane |
| Shelves | 3 Adjustable23.4" W x 19.4" DEpoxy Coated Wire |
| Shelf Load Capacity | 90 lb. |
| Interior Lighting | Yes |
| Casters | 42 with Brakes, 2 without |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
| Depth Style | Narrow |
