Coldline SPN-29 29" 1-Door Narrow Depth Refrigerated Sandwich Prep Table, 24" Deep, (8) Pans and Cutting Board, 115V
A 29" sandwich prep table that is only 24" deep, for prep lines with little floor space.
The Coldline SPN-29 is a narrow depth sandwich and salad prep table for delis, cafes, food counters and tight kitchens. At 24" deep it holds (8) 1/6 size clear pans in a refrigerated rail, has a 9.4" deep cutting board at a 36.7" working height, and stores refills in a 5 cu. ft. base behind 1 self-closing door at 33°F to 41°F. Pans and cutting board come with it, and it plugs into a 115V NEMA 5-15P outlet on a dedicated 15 A circuit.
Measure every doorway and turn on the delivery path; the cabinet is 24" deep.
24" deep cabinet for narrow lines and counters.

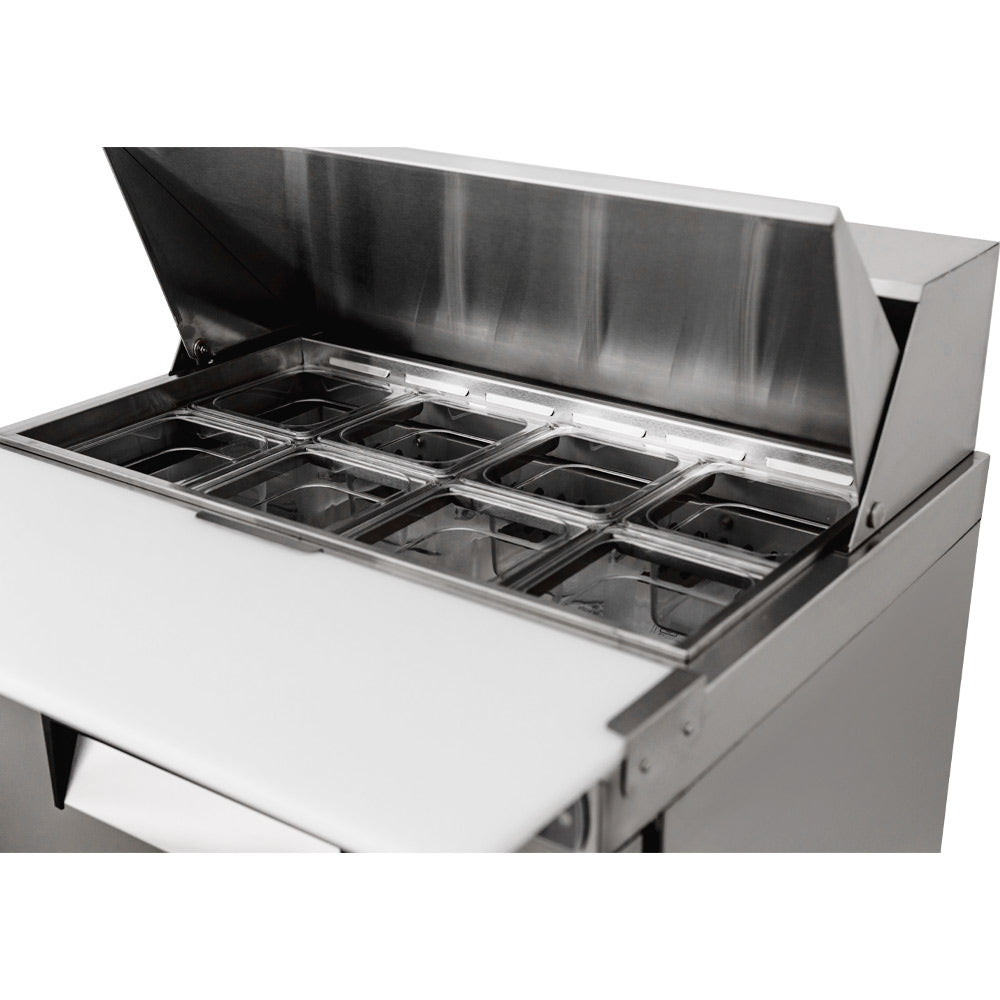

(8) 1/6 size clear pans under a lid, included.

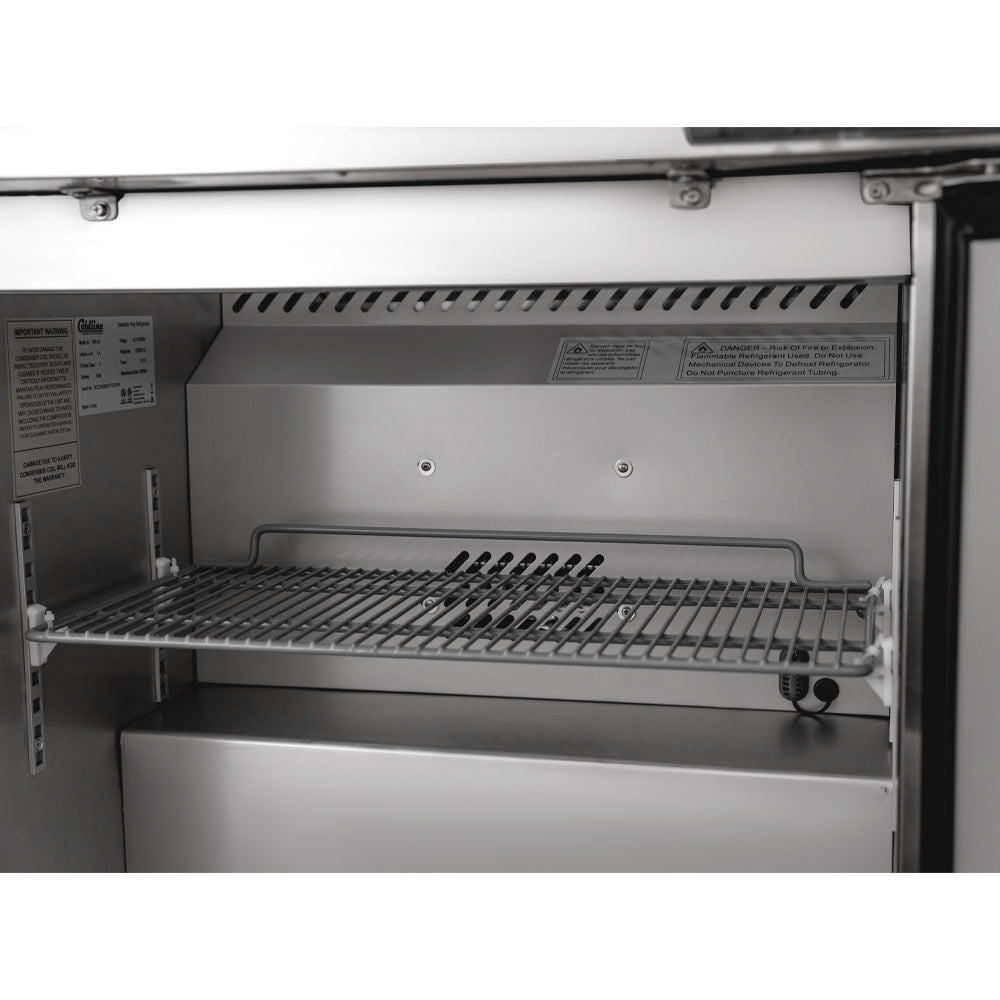

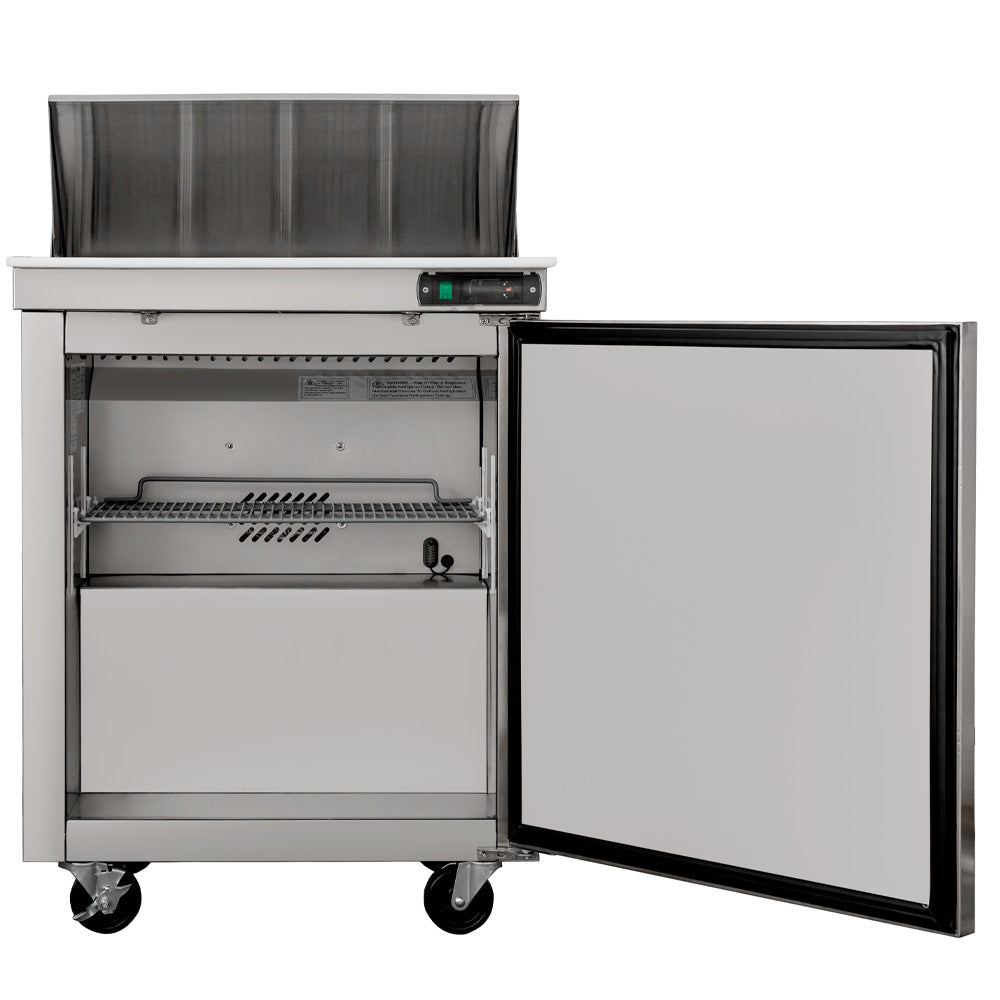

5 cu. ft. with adjustable epoxy-coated shelving and self-closing door.
Electronic controller with automatic defrost and R290 refrigerant.
The cabinet is 24" deep, 29" wide and 43.3" high (Coldline sheet), for narrow prep lines. Measure every doorway and turn on the delivery path first.
It runs on 115V, 60 Hz, single phase and draws 3.6 A through a NEMA 5-15P plug on a 96" cord. Coldline requires a dedicated 15 A circuit installed by a licensed electrician.
Yes. The Coldline sheet lists cutting boards and clear pans as features; the rail takes (8) 1/6 size pans and the board measures 29" L x 9.4" D x 0.5" H.
The sheet rates it for rooms up to 104°F. Keep the condenser area clear and clean so it can breathe.
USR Brands' Coldline refrigeration warranty lists the SP-Series: 1 year parts and labor from delivery, plus 5 years on the hermetic compressor (the replacement part only, not labor), in the contiguous US. Food truck and farm installs are parts only, and residential use is not covered.
The Coldline refrigeration warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Coldline (USR Brands) |
|---|---|
| Model Number | SPN-29 |
| Quantity | 1/Each |
| Shipping Weight | 185 lb. |
| Net Weight | 150 lb. |
| Width | 29 Inches |
| Depth | 24 Inches |
| Height | 43.3 Inches |
| Working Height | 36.7 Inches |
| Interior Dimensions | 24" L x 18.6" D x 29.1" H |
| Cutting Board Dimensions | 29" L x 9.4" D x 0.5" H |
| Packaging Dimensions | 30.9" L x 29" D x 49" H |
| Voltage | 115 Volts |
| Amps | 3.6 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 96 Inches |
| Circuit | Dedicated 15 Amp, Installed by a Licensed Electrician |
| Capacity | (8) Pans5 cu. ft. Base |
| Pans | (8) 1/6 Size, Clear, Included |
| Top Type | Standard |
| Temperature Range | 33 - 41 Degrees F |
| Refrigerant | R290 (Hydrocarbon) |
| Horsepower | 1/4 HP |
| Defrost | Automatic |
| Controls | Digital |
| Max. Ambient Temperature | 104 Degrees F |
| Doors | 1 Self-ClosingStay-Open FeatureRecessed Handle |
| Shelves | (1) 23" L x 10.82" D, Adjustable Epoxy Coated Steel |
| Interior Light | None |
| Exterior | Stainless Steel |
| Interior | Stainless Steel |
| Insulation | Foamed-in-Place Polyurethane |

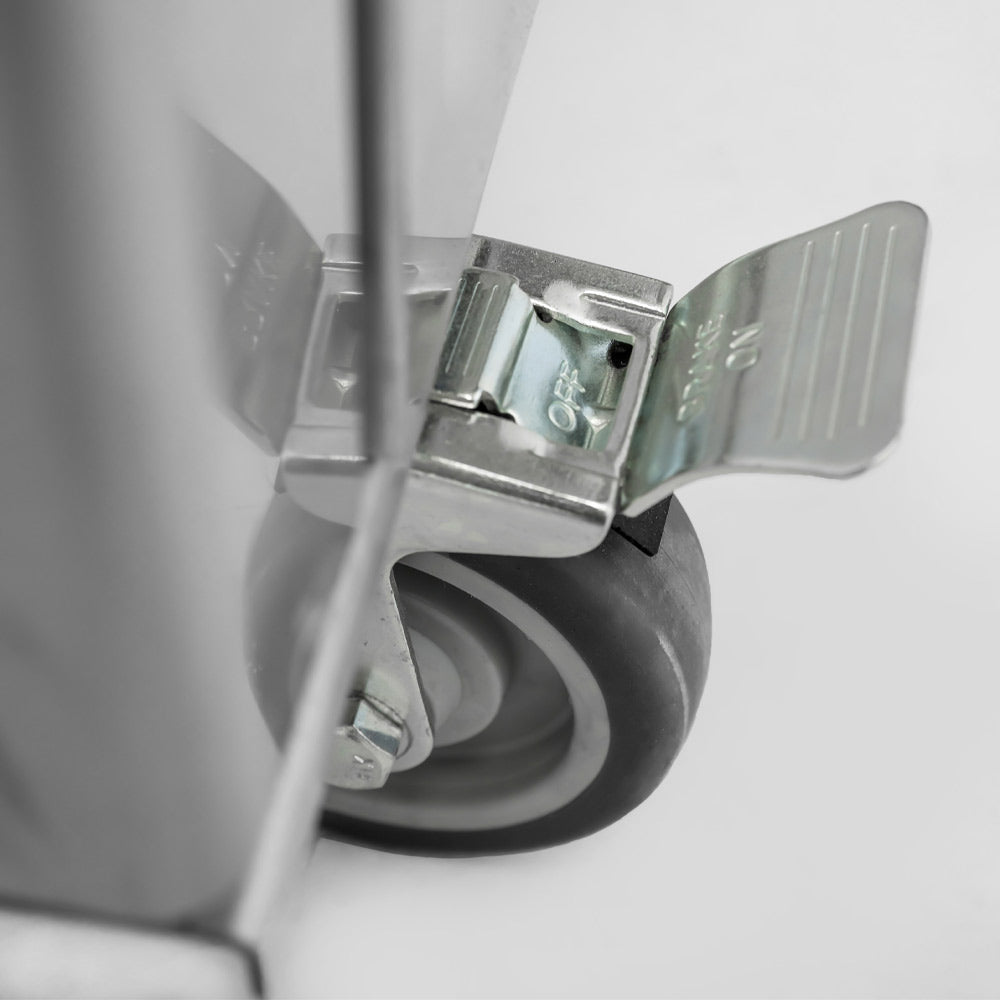

| Casters | (4) Preinstalled Heavy-Duty2 with Brakes, 2 without |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor5 Year Compressor |
