Description

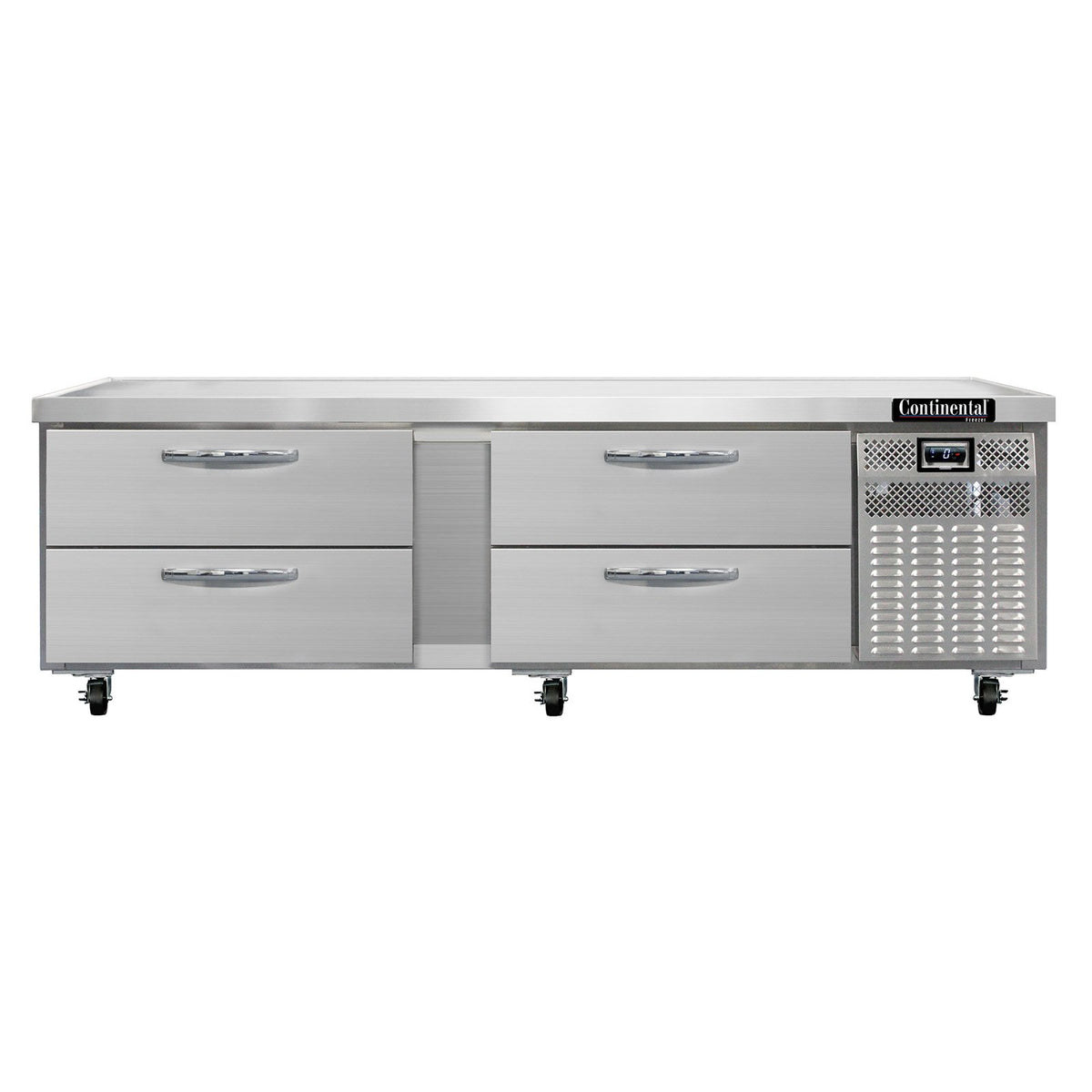

Continental Refrigerator D84GFN Refrigerated Chef Base
The Continental Refrigerator D84GFN is a refrigerated chef base. Keep refrigerated ingredients in a drawer base beneath compatible cooking equipment. Match the supported equipment footprint, top configuration and drawer layout to the cooking line. This configuration provides 84 in. overall width, 20.0 cu. ft. of published storage capacity, 4 drawers.
Match the refrigeration airflow path to the installation site. Keep service access available for condenser cleaning, and use the manufacturer drawing to establish the installation opening and utility connections.
Check the allowable top load, supported equipment footprint and heat exposure before placing cooking equipment on the base. Confirm the drawer pan arrangement and top edge against the factory drawing; pans and optional heat shields must be specified separately when required.
Model configuration and practical use
- Width: 84 in.
- Depth: 35.3125 in.
- Height: 26.375 in.
- Capacity (cu. ft.): 20.0 cu. ft.
- Number of Drawers: 4
- Exterior Finish: all stainless steel exterior
- Standard Electrical Supply: 115/60/1 V/Hz/phase
Technical specifications
| Manufacturer | Continental Refrigerator |
|---|---|
| Model / ordering code | D84GFN |
| Width | 84 in. |
| Depth | 35.3125 in. |
| Height | 26.375 in. |
| Base Type | freezer |
| Size | 2 section |
| Refrigeration | self-contained, side mounted |
| Exterior Finish | all stainless steel exterior |
| Top Finish | stainless steel top |
| Top Style | marine edge |
| Pan Capacity | (8) 12" x 20" x 6" |
| Capacity (cu. ft.) | 20.0 cu. ft. |
| Number of Drawers | 4 |
| Standard Electrical Supply | 115/60/1 V/Hz/phase |
| Amps | 7.3 A |
Installation and purchasing considerations
Check the delivery route and closed-cabinet footprint, then allow room for doors or drawers to open and for staff to load food. Confirm the exact factory drawing, electrical data plate, support package and ventilation requirements before connection.
Frequently asked questions
How should I choose this configuration?
Choose the D84GFN by matching its footprint, storage format and access arrangement to your operation. Check the listed materials and utility requirements, and specify optional finishes, hinges, pans or support packages on the order.
Does a shared family document describe every option included?
Use the exact ordering code to identify the selected configuration. A family document can list alternative finishes, doors, electrical supplies and accessories; those alternatives are not automatically included.
