Description

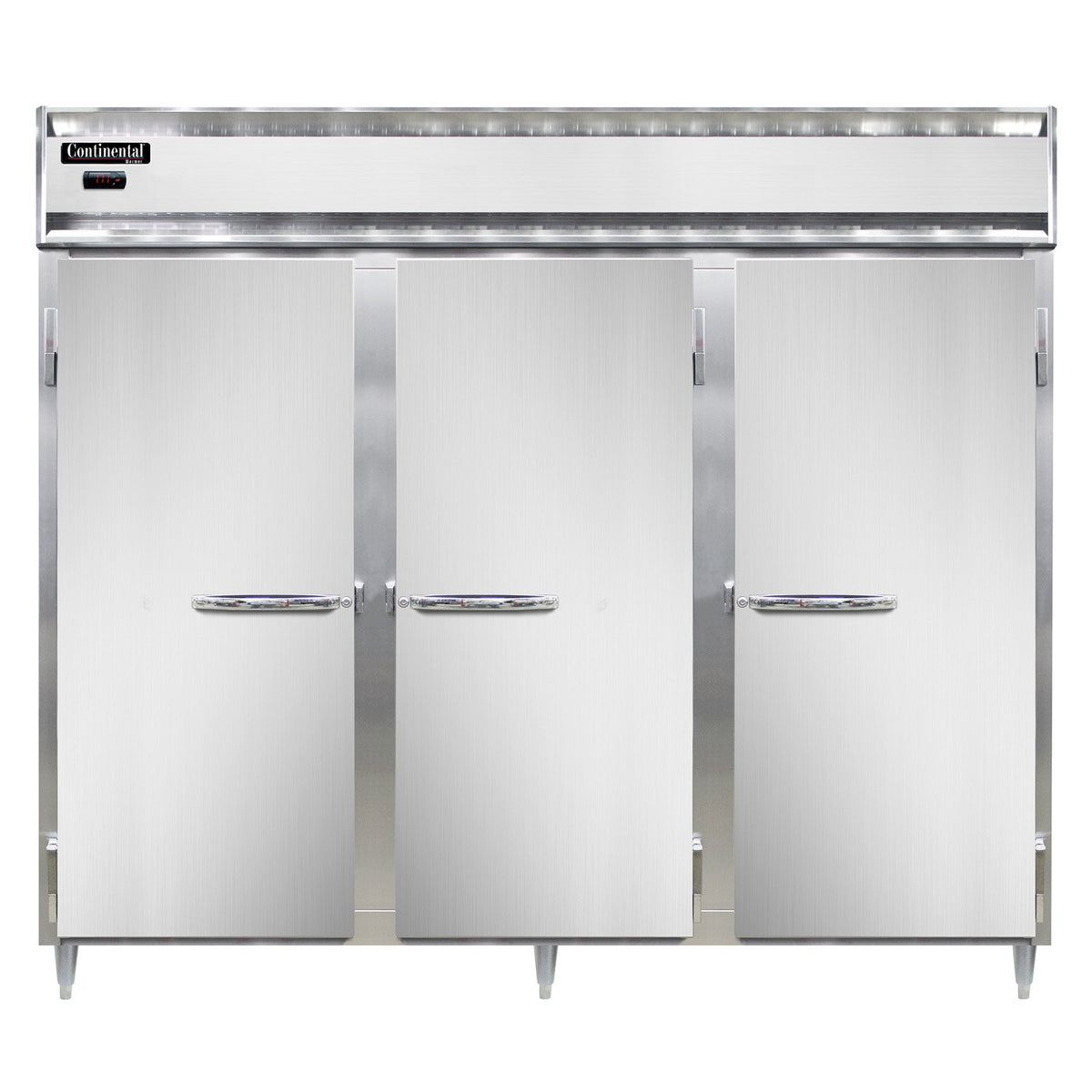

Continental Refrigerator DL3WE-SS-PT Pass-Thru Heated Holding Cabinet
The Continental Refrigerator DL3WE-SS-PT is a pass-thru heated holding cabinet. Hold prepared foods between cooking and service. Match the cabinet access arrangement, shelving and electrical configuration to the meal production station. This configuration provides 85.5 in. overall width, 75 cu. ft. of published storage capacity, 6 doors.
Use this cabinet for food that has already been prepared. Confirm heater voltage and phase, tray arrangement and operating settings against the ordered configuration. Electrical options listed for a family are not automatically supplied with every model.
Model configuration and practical use
- Width: 85.5 in.
- Depth: 38.75 in.
- Height: 83.25 in.
- Capacity (cu. ft.): 75 cu. ft.
- Access Arrangement: pass-thru
- Door Type: solid door(s)
- Number of Doors: 6
- Exterior Finish: stainless steel
- Interior Finish: stainless steel
Technical specifications
| Manufacturer | Continental Refrigerator |
|---|---|
| Model / ordering code | DL3WE-SS-PT |
| Width | 85.5 in. |
| Depth | 38.75 in. |
| Height | 83.25 in. |
| Load Type | pass-thru |
| Cabinet Size | full height |
| Sections | 3 section |
| Door Type | solid door(s) |
| Door Style | full door(s) |
| Number of Doors | 6 |
| Insulation | insulated |
| Number of Shelves | 9 |
| Exterior Finish | stainless steel |
| Interior Finish | stainless steel |
| Interior configuration | shelves |
| Thermometer | exterior digital |
| Heater System Type | bottom mounted |
| Hinge Location | left / right |
| Control Type | digital control |
| Cabinet Width Type | extra wide |
| Wattage | 3000 watts |
| Capacity (cu. ft.) | 75 cu. ft. |
| Standard Electrical Supply | 208-230/60/1 V/Hz/phase |
| Amps | 13.9 A |
| Access Arrangement | pass-thru |
Installation and purchasing considerations
Check the delivery route and closed-cabinet footprint, then allow room for doors or drawers to open and for staff to load food. Confirm the exact factory drawing, electrical data plate, support package and ventilation requirements before connection.
Frequently asked questions
How should I choose this configuration?
Choose the DL3WE-SS-PT by matching its footprint, storage format and access arrangement to your operation. Check the listed materials and utility requirements, and specify optional finishes, hinges, pans or support packages on the order.
Does a shared family document describe every option included?
Use the exact ordering code to identify the selected configuration. A family document can list alternative finishes, doors, electrical supplies and accessories; those alternatives are not automatically included.
