Description

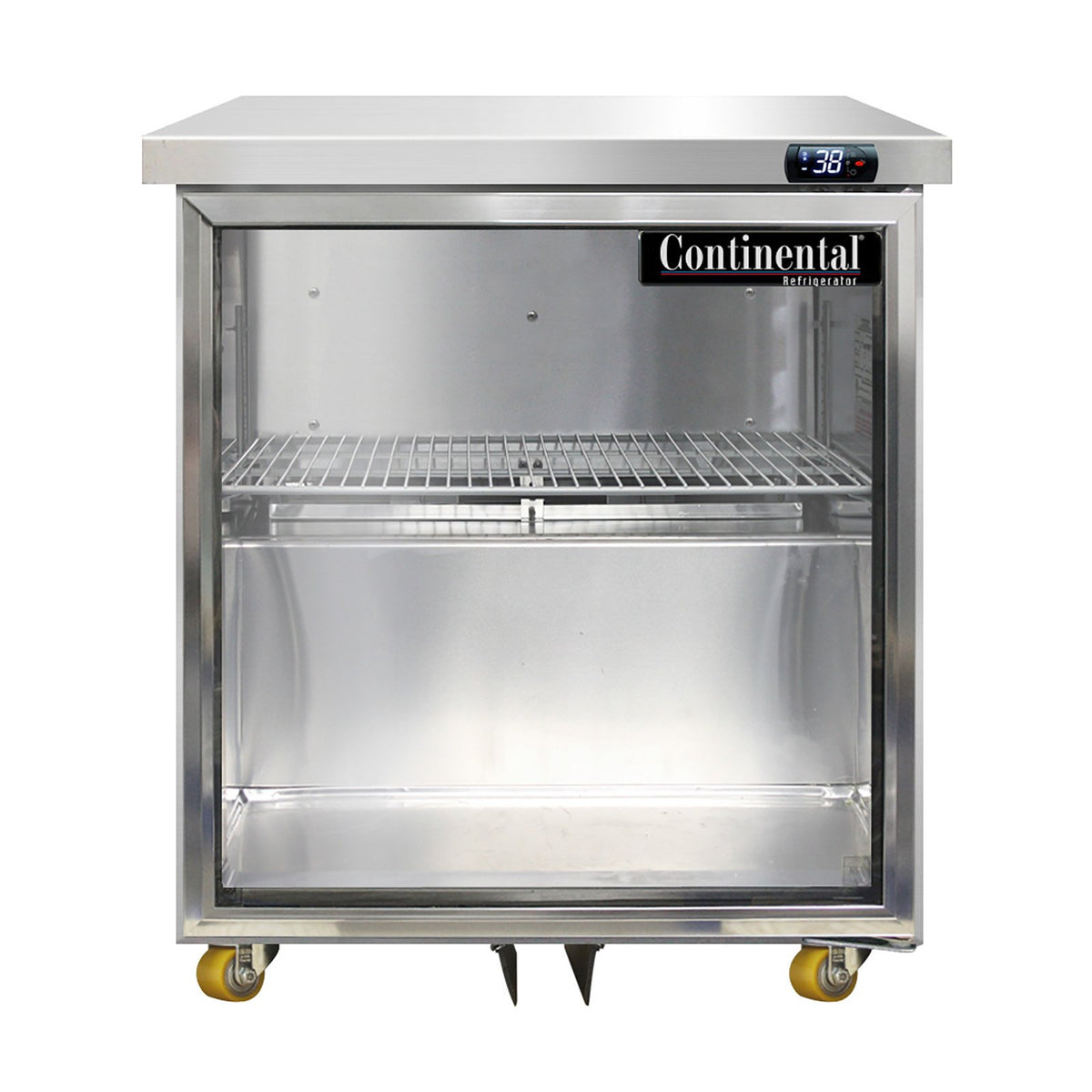

Continental Refrigerator SW27NGD-U Undercounter Glass Door Refrigerator
The Continental Refrigerator SW27NGD-U is an undercounter glass door refrigerator. Place enclosed refrigerated storage beneath a counter or next to a preparation station. Match the access arrangement and height to the workstation and containers in use. This configuration provides 27.5 in. overall width, 7.4 cu. ft. of published storage capacity, 1 doors.
Match the refrigeration airflow path to the installation site. Keep service access available for condenser cleaning, and use the manufacturer drawing to establish the installation opening and utility connections.
Model configuration and practical use
- Width: 27.5 in.
- Depth: 31.4375 in.
- Height: 31.8125 in.
- Capacity (cu. ft.): 7.4 cu. ft.
- Door Type: glass door
- Number of Doors: 1
- Exterior Finish: stainless steel front, top & sides
- Compressor Style: front breathing
- Standard Electrical Supply: 115/60/1 V/Hz/phase
Technical specifications
| Manufacturer | Continental Refrigerator |
|---|---|
| Model / ordering code | SW27NGD-U |
| Width | 27.5 in. |
| Depth | 31.4375 in. |
| Height | 31.8125 in. |
| Size | 1 section |
| Access Type | doors |
| Door Type | glass door |
| Refrigeration | self-contained, rear mounted |
| Compressor Style | front breathing |
| Special Features | led lighting |
| Exterior Finish | stainless steel front, top & sides |
| Capacity (cu. ft.) | 7.4 cu. ft. |
| Number of Doors | 1 |
| Number of Shelves | 1 |
| Standard Electrical Supply | 115/60/1 V/Hz/phase |
| Amps | 2.5 A |
Installation and purchasing considerations
Check the delivery route and closed-cabinet footprint, then allow room for doors or drawers to open and for staff to load food. Confirm the exact factory drawing, electrical data plate, support package and ventilation requirements before connection.
Frequently asked questions
How should I choose this configuration?
Choose the SW27NGD-U by matching its footprint, storage format and access arrangement to your operation. Check the listed materials and utility requirements, and specify optional finishes, hinges, pans or support packages on the order.
Does a shared family document describe every option included?
Use the exact ordering code to identify the selected configuration. A family document can list alternative finishes, doors, electrical supplies and accessories; those alternatives are not automatically included.
