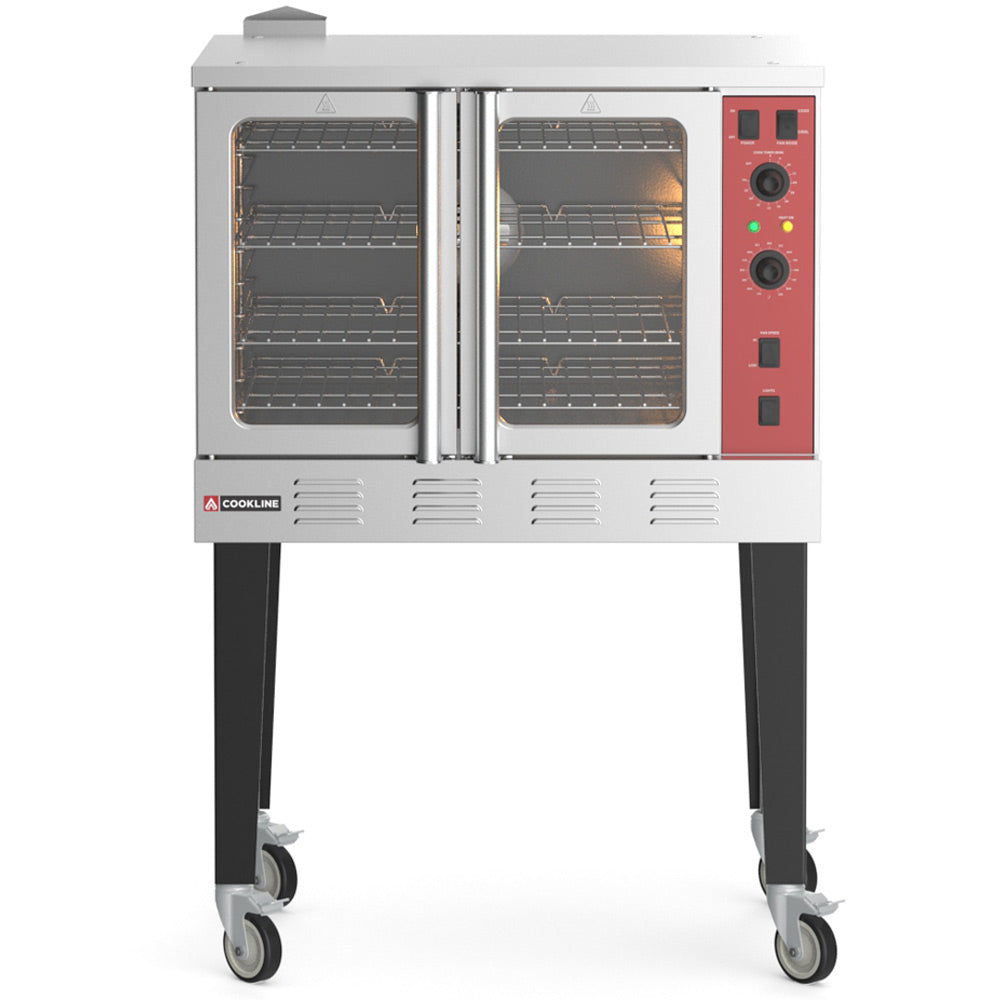

Cookline CC100-SGL 38" Single Deck Full Size Gas Convection Oven, 54,000 BTU, Natural Gas, 4 Racks, 120V Fan
A full size gas convection oven that bakes and roasts on 4 racks with 54,000 BTU behind two glass doors.
The Cookline CC100-SGL is a single deck, full size gas convection oven for restaurants, bakeries, cafeterias and caterers. Three in-shot burners put out 54,000 BTU, and a 1/2 HP dual-speed fan moves heat across 4 chrome racks from 167°F to 563°F. It ships for natural gas with a 3/4" rear inlet and plugs into a standard 120V outlet for the fan and controls.
Measure every doorway and turn on the delivery path before you order; the oven body ships in a 46" × 42" × 42" carton.
Three direct-fired in-shot burners at 18,000 BTU each heat a full size cavity.

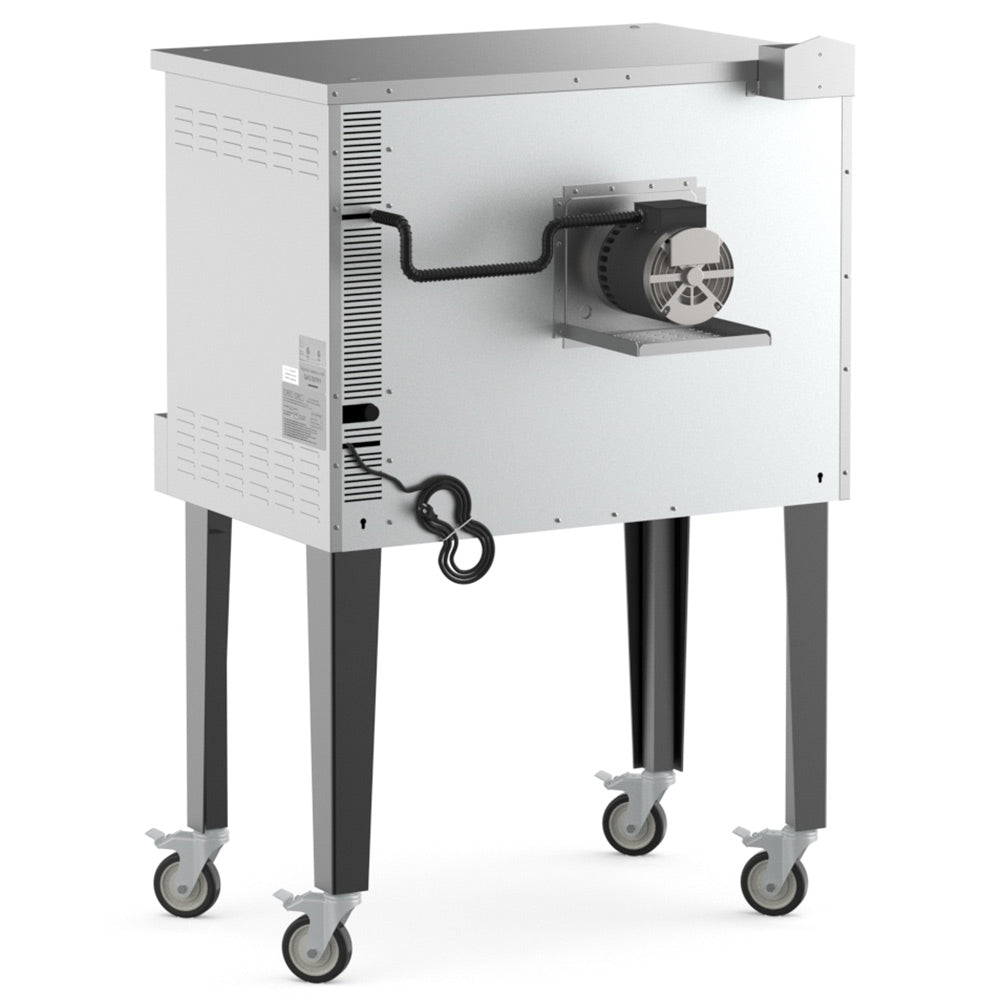

A 1/2 HP fan with dual-speed control circulates heat across 4 racks and 13 positions.
Manual thermostat from 167°F to 563°F, a 60-minute timer with bell and a cool-down function.
Automatic ignition, and a door micro switch shuts the oven off when a door opens.
It ships for natural gas, with a 3/4" NPT gas inlet at the rear. Its total input is 54,000 BTU/H from 3 burners. The manual allows a maximum line pressure of 1/2 PSI (14" W.C.); higher pressure needs a step-down regulator ahead of the oven.
USR Brands lists an LP conversion kit as included. The manual says a qualified gas technician must do the conversion: replace the burner orifices with the kit and change the gas control valve.
Yes. The fan motor, lights and controls run on 120V, 9.3 A through a NEMA 5-15P plug on a 72" cord.
The oven is 38.15" wide, 43.3" deep and 60" high on its 4 legs. The manual calls for 6" of clearance from all sides and other equipment, non-combustible surfaces only, and an exhaust hood with at least 4 ft between the top of the oven and the filters.
Yes. USR Brands says the full size cavity fits full size sheet pans. The interior is 29" W x 25" D x 24" H with 4 chrome racks and 13 rack positions.
Yes. Cookline offers double stacking with a stacking bracket and a stacking chimney assembly, per the manual.
USR Brands covers Cookline gas cooking equipment for 1 year parts and labor from delivery, in the contiguous US. Gas connections must be made by a qualified installer, glass is not covered, and food truck or farm installs are parts only.
The Cookline warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Cookline (USR Brands) |
|---|---|
| Model Number | CC100 |
| Quantity | 1/Each |
| Shipping Weight | 606 lb. |
| Net Weight | 408 lb. |
| Width | 38.15 Inches |
| Depth | 43.3 Inches |
| Height | 60 Inches |
| Interior Dimensions | 29" W x 25" D x 24" H |
| Packaging Dimensions | 46" L x 42" D x 42" H |
| Clearance | 6" from All Sides and Other EquipmentNon-Combustible Surfaces Only |
| Gas Type | Natural Gas |
| Total BTU | 54,000 BTU/H |
| Burners | 3 In-Shot18,000 BTU/H Each |
| Gas Inlet | 3/4" NPT Rear |
| Max. Gas Inlet Pressure | 1/2 PSI (14" W.C.) |
| LP Conversion | Kit Included (Technician Installed) |
| Voltage | 120 Volts |
| Amps | 9.3 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 72 Inches |
| Fan Motor | 1/2 HPDual-Speed |
| Capacity | Full Size4 Racks |
| Temperature Range | 167 - 563 Degrees F |
| Controls | Manual60-Minute Timer with BellCool-Down Function |
| Ignition | Automatic |
| Racks | 4 Chrome Plated13 PositionsRemovable Rack Guides |
| Doors | 2Dual-Pane Thermal Glass WindowsDoor Micro Switch Shut-Off |
| Interior Light | Yes |
| Exterior | Stainless Steel Front and Sides |
| Interior | Porcelainized |
| Legs | 4 |
| Caster Height | 5 Inches |
| Stacking | Double Stacking Option (Stacking Bracket and Chimney) |
| Certifications | ETL US & CanadaETL Sanitation |
| Warranty | 1 Year Parts & Labor |
