Cookline CC80-LP-DBL 39" Deep Depth Double Deck Full Size Gas Convection Oven, Liquid Propane, 120,000 BTU, 6 Racks, 120V
Two stacked deep depth gas convection ovens that bake and roast on 6 racks with 120,000 BTU.
The Cookline CC80-LP-DBL stacks two deep depth, full size gas convection ovens for bakeries, restaurants, cafeterias and caterers. Stainless steel tube burners put out 120,000 BTU, and each oven runs from 100°F to 560°F with a 60-minute timer and a cool-down function. It ships with an LP conversion kit (natural gas is standard) and plugs into a 120V outlet for the fan and controls.
Measure every doorway and turn on the delivery path before you order; the oven is 39" wide and 31.5" deep without the fan housing.
Four 30,000 BTU stainless steel tube burners.
25 7/8" deep inside, with 3 racks and 11 rack positions per oven.

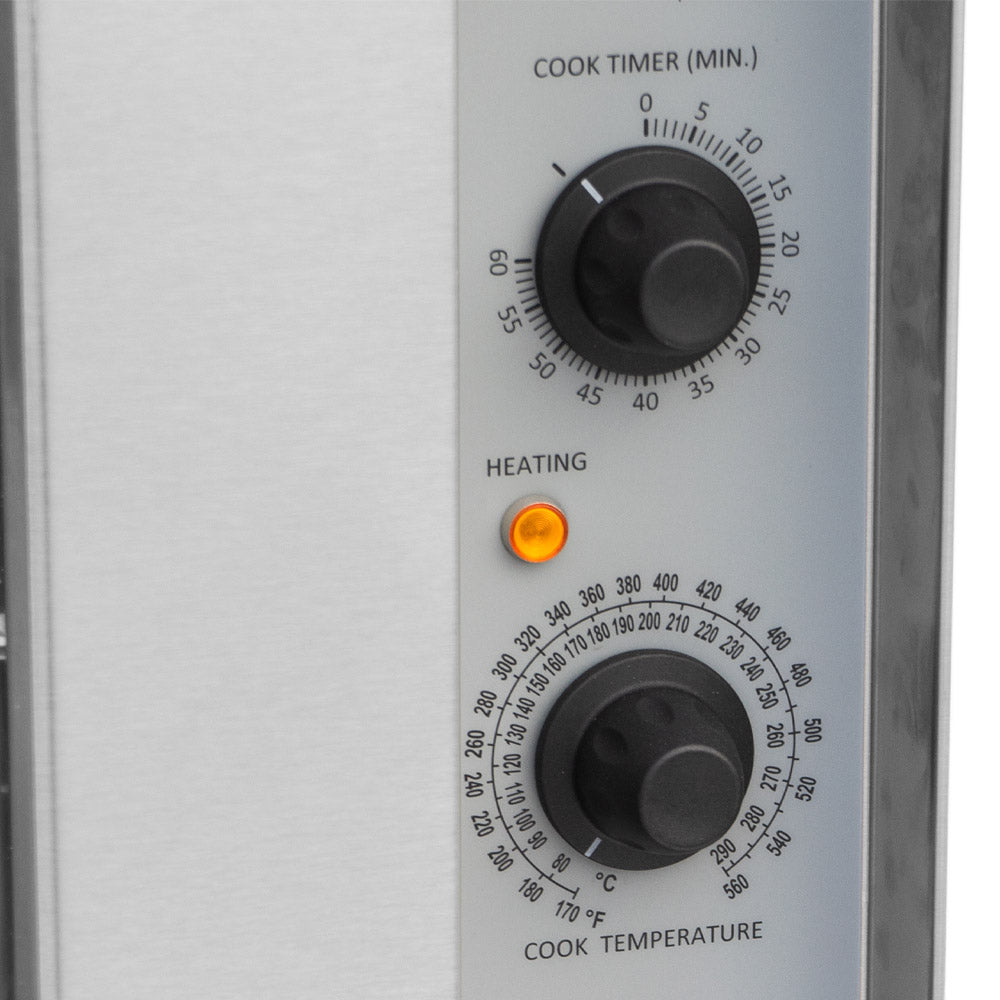

Manual thermostat from 100°F to 560°F, a 60-minute timer with bell and a cool-down function.
Automatic ignition, and a door micro switch shuts the oven off when a door opens.
The Cookline CC80 spec sheet says natural gas is standard and an LP conversion kit is included. It does not say whether this LP unit is converted before shipping, so plan on a qualified gas technician to convert (if needed) and connect it, and call us to confirm before you order.
A 3/4" NPT gas connection. Total input is 120,000 BTU/H from 4 tube burners at 30,000 BTU each. The kit for propane is included. The Cookline warranty requires gas connections by a qualified installer.
Yes. The fans, light and controls run on 120V, 60 Hz, 9.3 A through a NEMA 5-15P plug on a 72" cord, per the spec sheet.

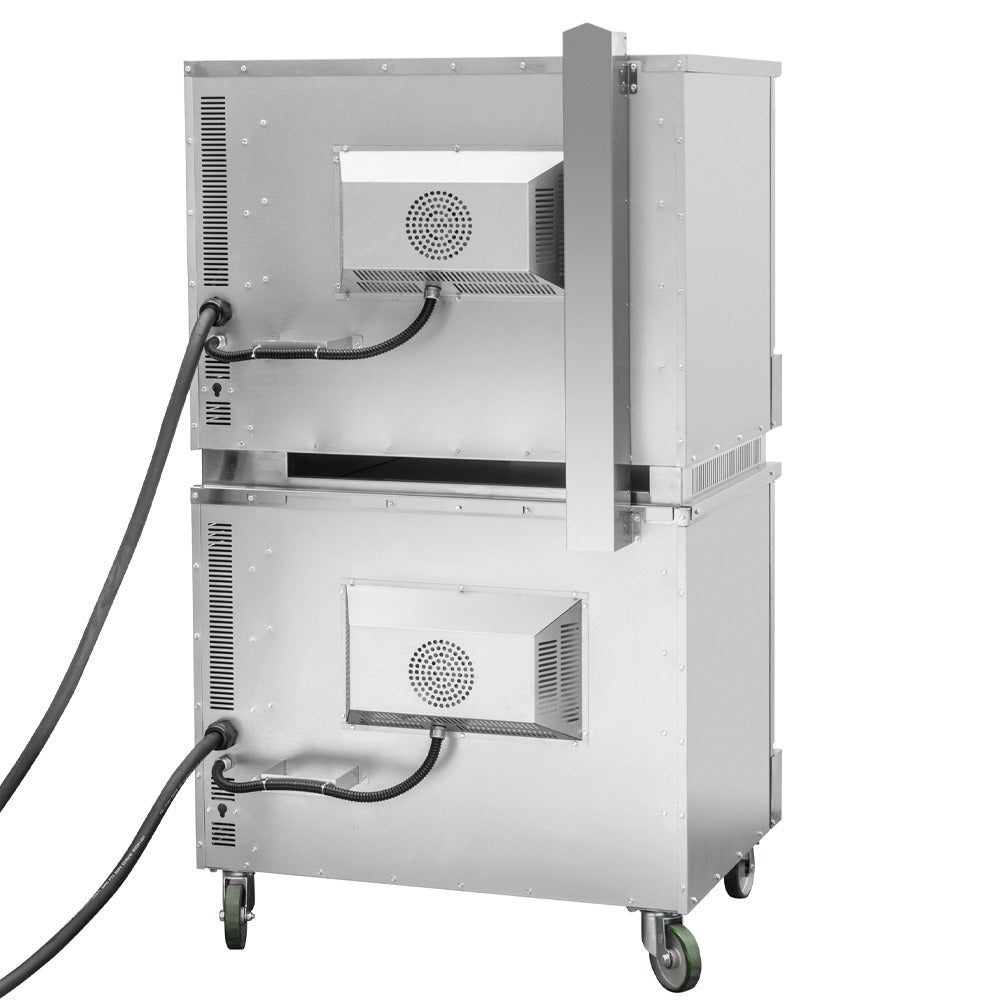

It is 39" wide, 39.5" deep and 71" high stacked on 6" casters. The body is 31.5" deep without the rear fan housing. The spec sheet lists no installation clearances, so ask us or your installer for the clearances and ventilation your local code requires.

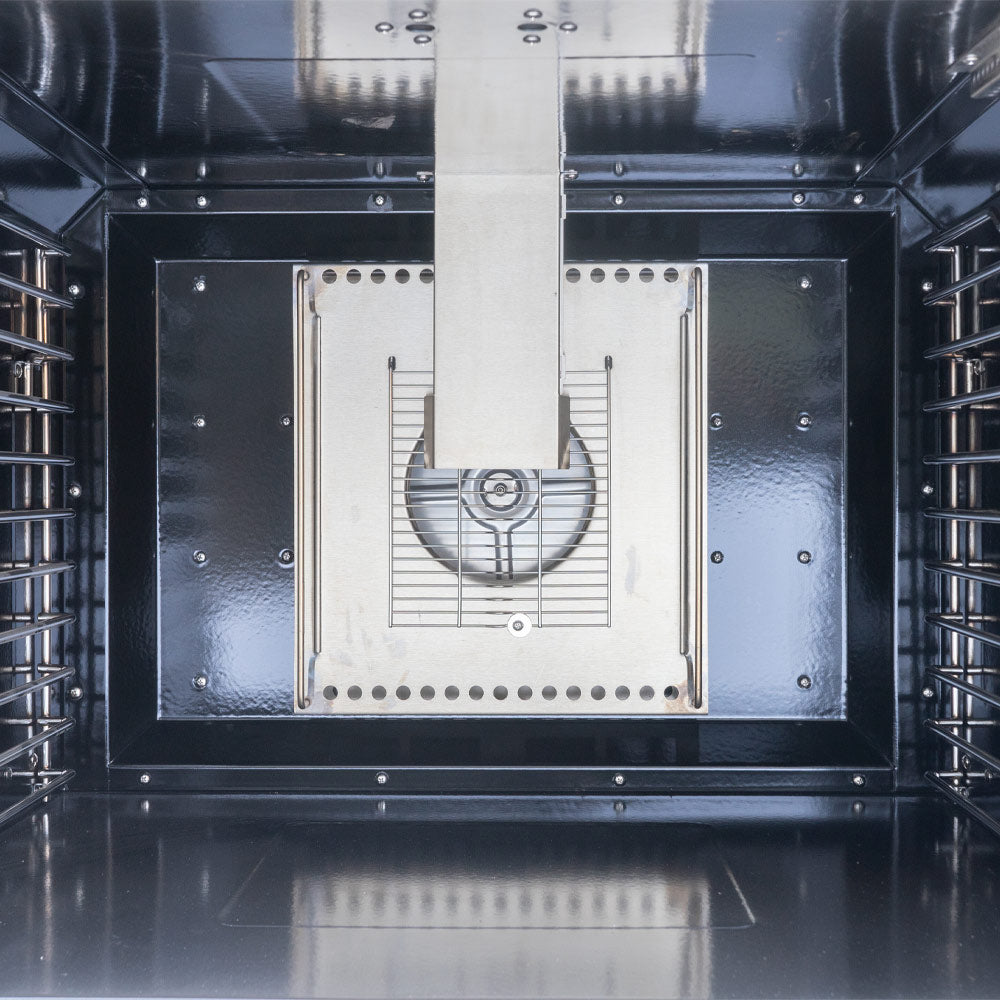

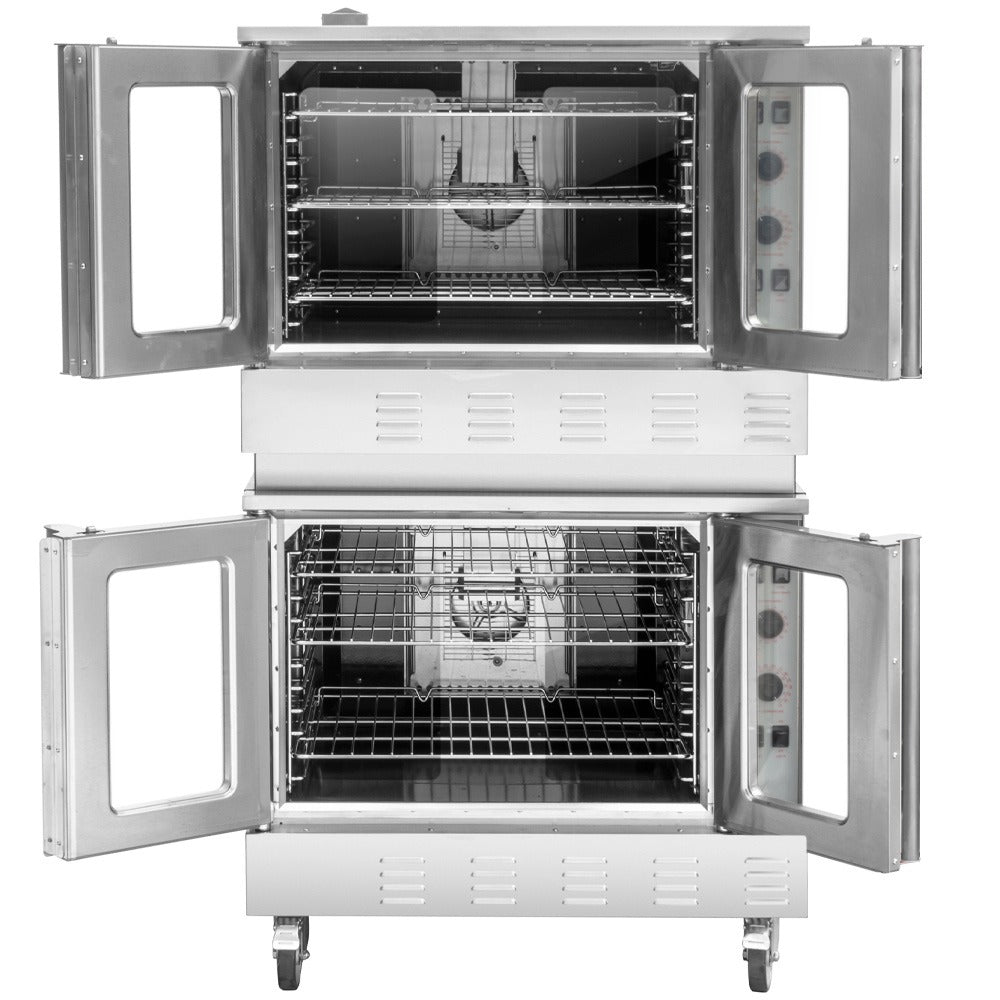

The cavity is 25 7/8" deep, 29" wide and 20" high in each oven, with 3 chrome racks and 11 rack positions, per the spec sheet.
USR Brands covers Cookline gas cooking equipment for 1 year parts and labor from delivery, in the contiguous US. Gas connections must be made by a qualified installer, glass is not covered, and food truck or farm installs are parts only.
The Cookline warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Cookline (USR Brands) |
|---|---|
| Model Number | CC80-DBL |
| Quantity | 1/Each (2 Stacked Ovens) |
| Shipping Weight | 948 lb. |
| Net Weight | 805 lb. |
| Width | 39 Inches |
| Depth | 39.5 Inches |
| Height | 71 Inches |
| Body Depth | 31.5 Inches (Without Rear Fan Housing) |
| Interior Dimensions | 29" W x 25 7/8" D x 20" H (Each Oven) |
| Packaging Dimensions | 44" L x 42" D x 77" H |
| Gas Type | Natural Gas StandardLP Conversion Kit Included |
| Total BTU | 120,000 BTU/H |
| Burners | 4 Stainless Steel Tube Burners30,000 BTU/H Each |
| Gas Inlet | 3/4" NPT |
| Voltage | 120 Volts |
| Amps | 9.3 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 72 Inches |
| Fan Motor | 1/6 HP |
| Capacity | 2 Full Size Ovens6 Racks |
| Temperature Range | 100 - 560 Degrees F |
| Oven Interior Style | Deep Depth |
| Controls | Manual60-Minute Electric Timer with BellCool-Down Function |
| Ignition | Automatic |
| Racks | 3 per Oven (6 Total)11 Positions |
| Doors | 4 (2 per Oven)Dual-Pane Thermal Glass WindowsDoor Micro Switch Shut-Off |
| Interior Light | Yes |
| Exterior | Stainless Steel Front and Doors |
| Interior | Porcelainized |
| Caster Height | 6 Inches |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
