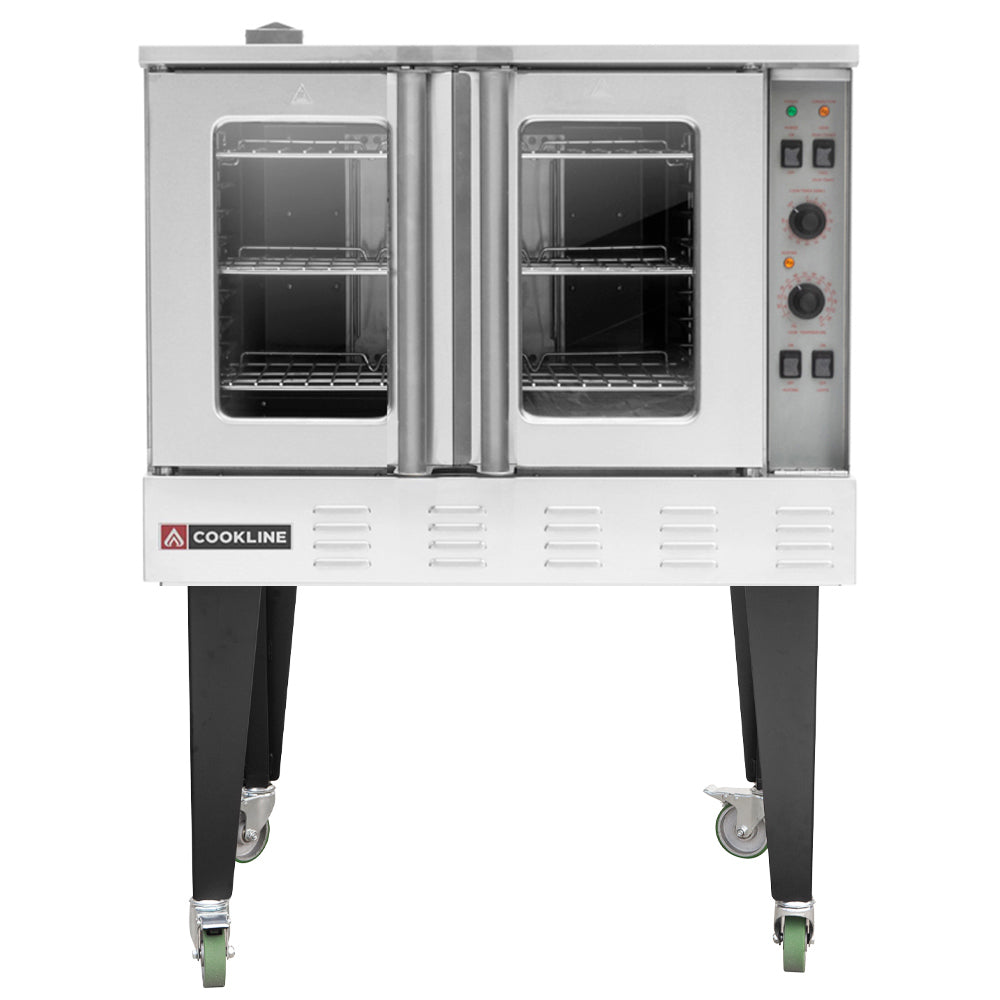

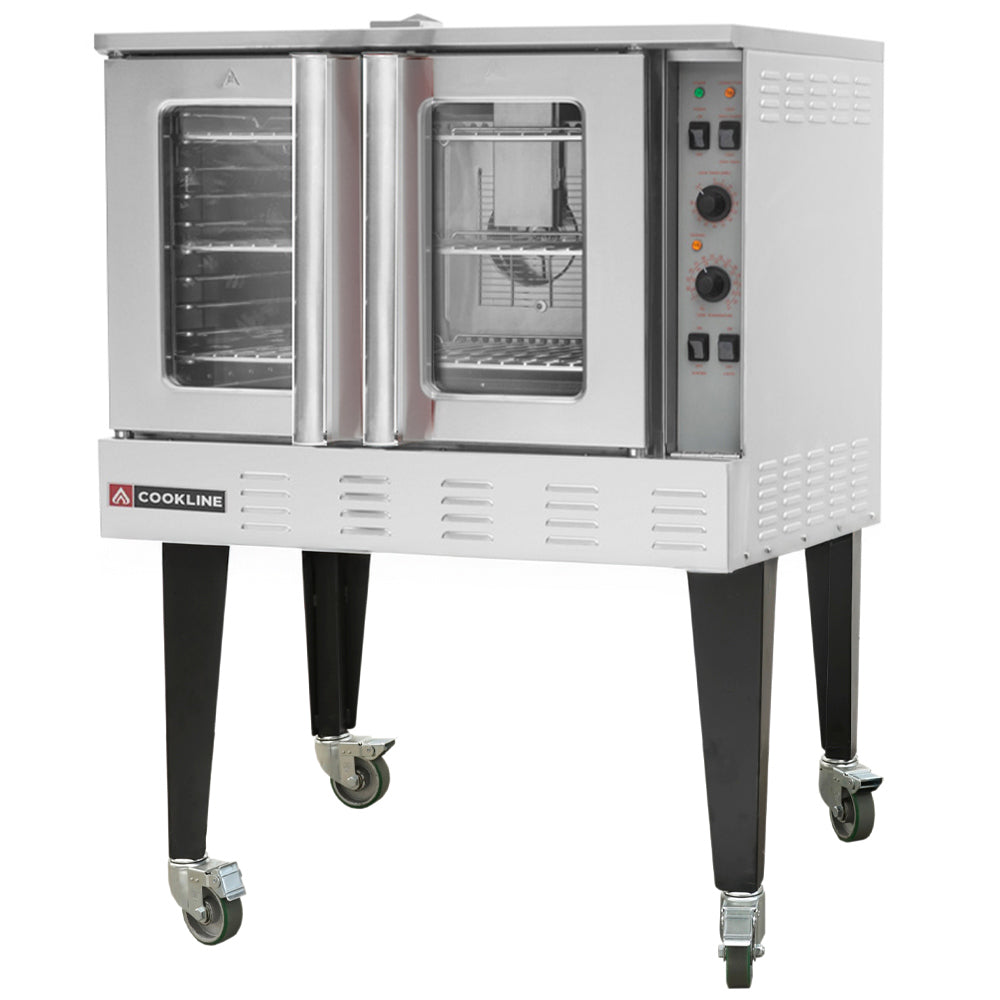

Cookline CC80-NG-SGL 39" Deep Depth Single Deck Full Size Gas Convection Oven, Natural Gas, 60,000 BTU, 3 Racks, 120V
A deep depth full size gas convection oven that bakes and roasts on 3 racks with 60,000 BTU.
The Cookline CC80-NG-SGL is a deep depth, full size gas convection oven for bakeries, restaurants, cafeterias and caterers. Stainless steel tube burners put out 60,000 BTU, and it runs from 100°F to 560°F with a 60-minute timer and a cool-down function. It runs on natural gas with a 3/4" inlet, includes an LP conversion kit, and plugs into a 120V outlet for the fan and controls.
Measure every doorway and turn on the delivery path before you order; the oven is 39" wide and 31.5" deep without the fan housing.
Two 30,000 BTU stainless steel tube burners.
25 7/8" deep inside, with 3 racks and 11 rack positions.

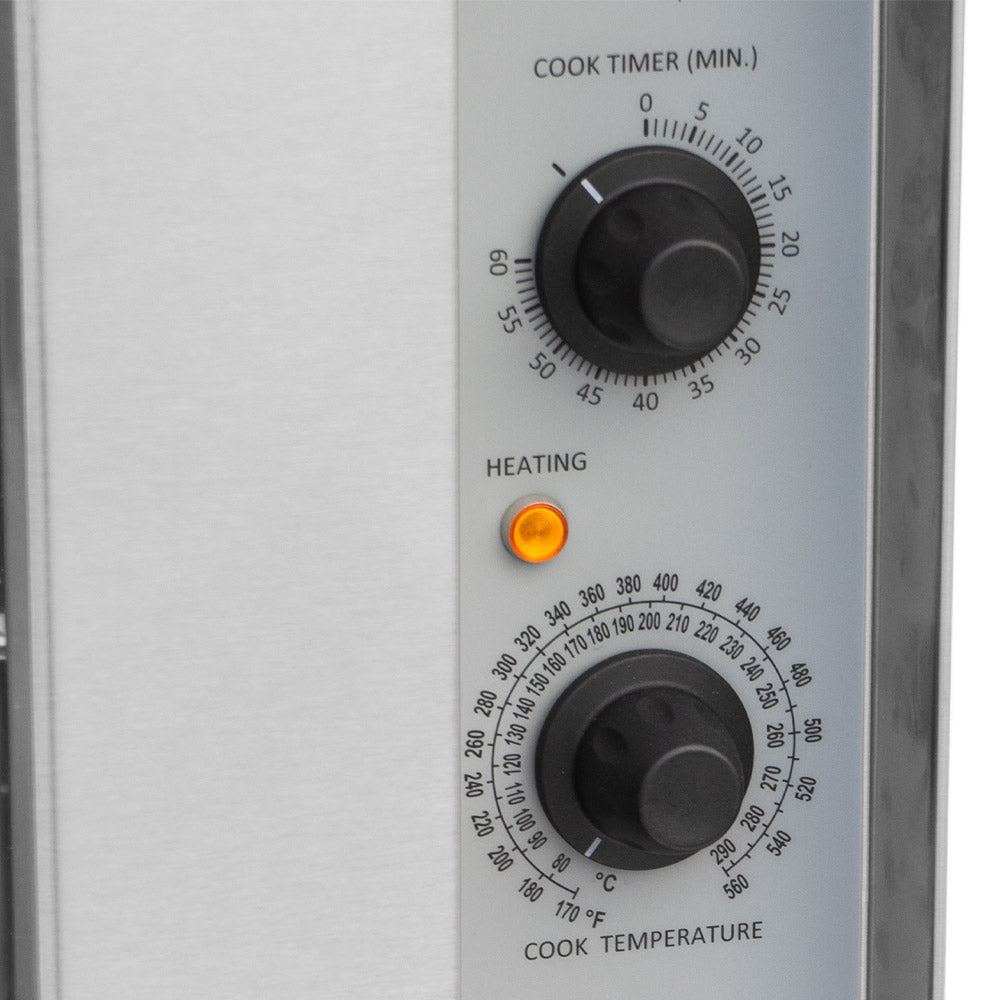

Manual thermostat from 100°F to 560°F, a 60-minute timer with bell and a cool-down function.
Automatic ignition, and a door micro switch shuts the oven off when a door opens.
A 3/4" NPT gas connection. Total input is 60,000 BTU/H from 2 tube burners at 30,000 BTU each. It is set up for natural gas; an LP conversion kit is included if you switch to propane later. The Cookline warranty requires gas connections by a qualified installer.
Yes. The fan, light and controls run on 120V, 60 Hz, 9.3 A through a NEMA 5-15P plug on a 72" cord, per the spec sheet.
It is 39" wide, 39.5" deep and 56" high on 24" legs with casters. The body is 31.5" deep without the rear fan housing. The spec sheet lists no installation clearances, so ask us or your installer for the clearances and ventilation your local code requires.

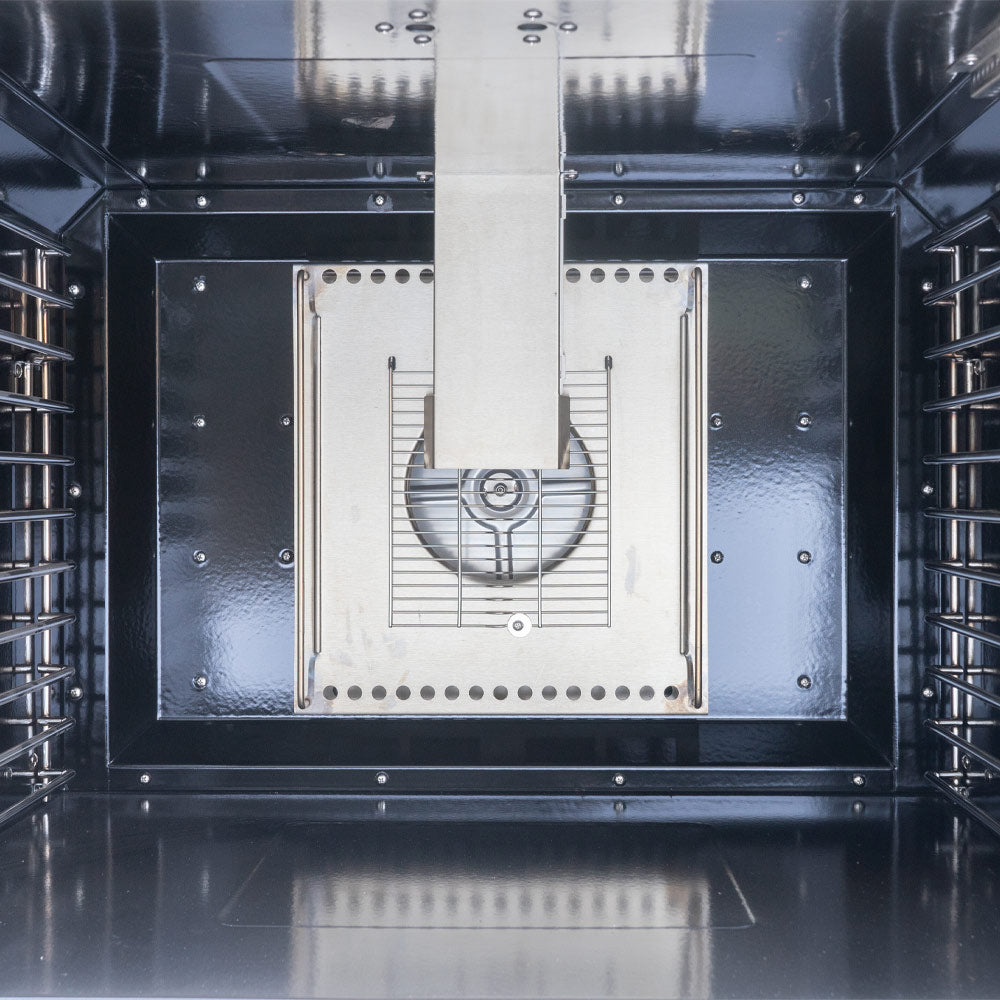

The cavity is 25 7/8" deep, 29" wide and 20" high, with 3 chrome racks and 11 rack positions, per the spec sheet.
USR Brands covers Cookline gas cooking equipment for 1 year parts and labor from delivery, in the contiguous US. Gas connections must be made by a qualified installer, glass is not covered, and food truck or farm installs are parts only.
The Cookline warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Cookline (USR Brands) |
|---|---|
| Model Number | CC80-SGL |
| Quantity | 1/Each |
| Shipping Weight | 488 lb. |
| Net Weight | 411 lb. |
| Width | 39 Inches |
| Depth | 39.5 Inches |
| Height | 56 Inches |
| Body Depth | 31.5 Inches (Without Rear Fan Housing) |
| Interior Dimensions | 29" W x 25 7/8" D x 20" H |
| Packaging Dimensions | 46 1/2" L x 42" D x 41 3/8" H |
| Gas Type | Natural Gas StandardLP Conversion Kit Included |
| Total BTU | 60,000 BTU/H |
| Burners | 2 Stainless Steel Tube Burners30,000 BTU/H Each |
| Gas Inlet | 3/4" NPT |
| Voltage | 120 Volts |
| Amps | 9.3 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 72 Inches |
| Fan Motor | 1/6 HP |
| Capacity | Full Size3 Racks |
| Temperature Range | 100 - 560 Degrees F |
| Oven Interior Style | Deep Depth |
| Controls | Manual60-Minute Electric Timer with BellCool-Down Function |
| Ignition | Automatic |
| Racks | 3 Heavy-Duty Chrome Plated11 Positions |
| Doors | 2Dual-Pane Thermal Glass WindowsDoor Micro Switch Shut-Off |
| Interior Light | Yes |
| Exterior | Stainless Steel Front and Doors |
| Interior | Porcelainized |
| Legs | 424" Including Casters |
| Caster Height | 5 Inches |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
