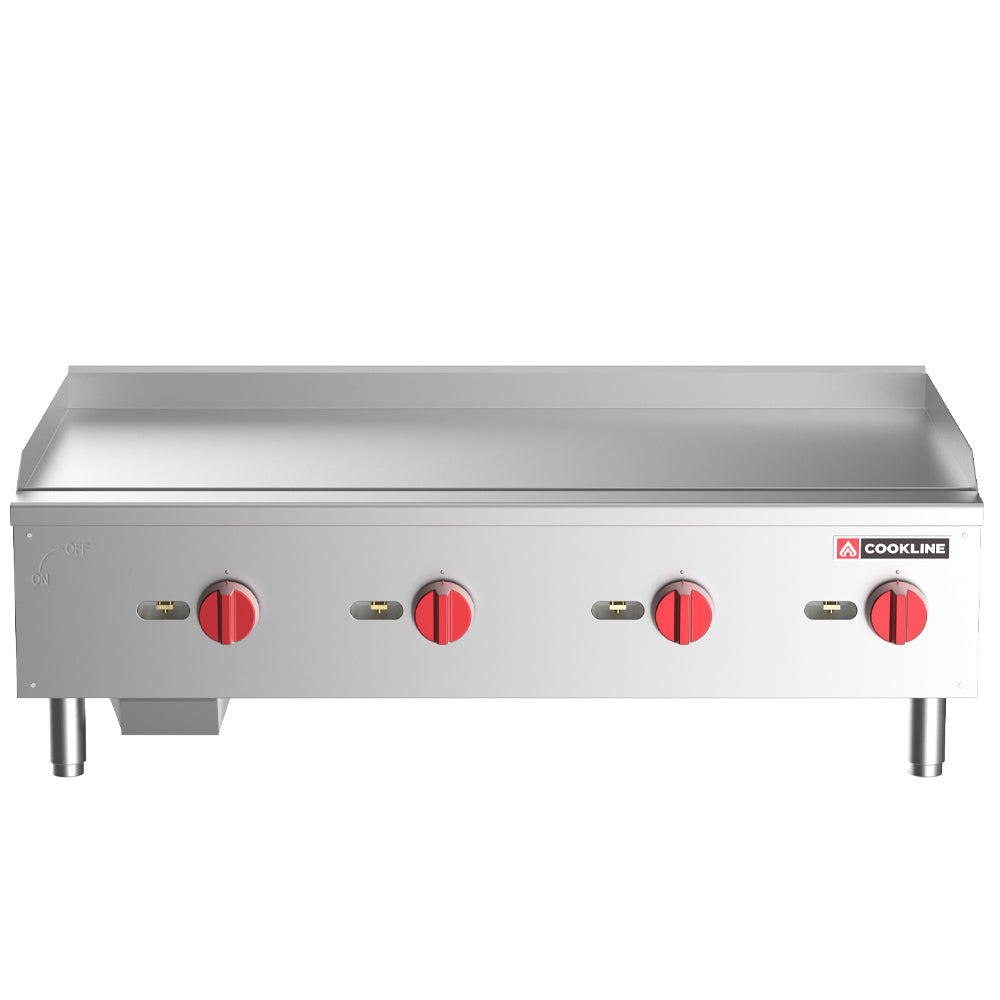

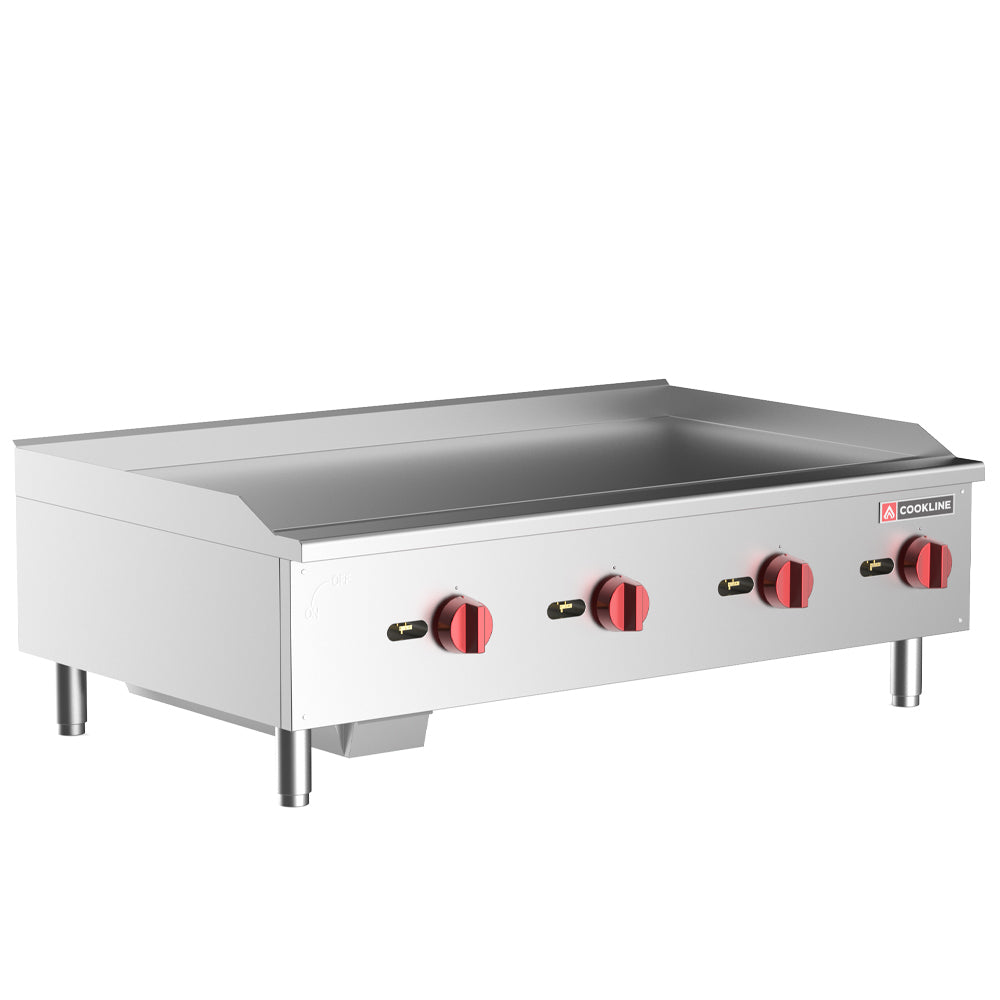

Cookline CGG-48T-HD 48" Gas Countertop Griddle, Thermostatic Controls, 4 Burners, 120,000 BTU, 1" Plate, Natural Gas with LP Kit
A 48" thermostatic gas griddle with a 1" plate that holds a set temperature through a busy rush.
The Cookline CGG-48T-HD is a heavy-duty 48" flat top griddle for restaurants, diners and breakfast spots that want steady temperatures. Four steel U-shape burners at 30,000 BTU each (120,000 BTU) heat a 47.8" W x 22.45" D cooking surface on a 1" polished plate, with thermostats from 200°F to 500°F. It ships for natural gas with an LP conversion kit and a gas regulator.
Measure your counter or stand and the hood space before you order.
Four 30,000 BTU U-shape burners under the plate.
A thick polished plate that recovers heat fast after loading.
Set each zone from 200°F to 500°F.
A front grease channel drains into a stainless steel oil collector.
It is listed for natural gas, and the spec sheet says an LP conversion kit is included for conversion in the field. Have a qualified gas technician do the conversion.
A 3/4" NPT rear gas connection; a gas regulator ships with the griddle. Total input is 120,000 BTU/H. The Cookline warranty requires the gas connection to be made by a qualified installer.
Each burner has a thermostat, adjustable from 200°F to 500°F in 50°F steps, so you can run hot and cooler zones side by side.
The spec sheet lists no electrical connection; the burners light from standing pilots.

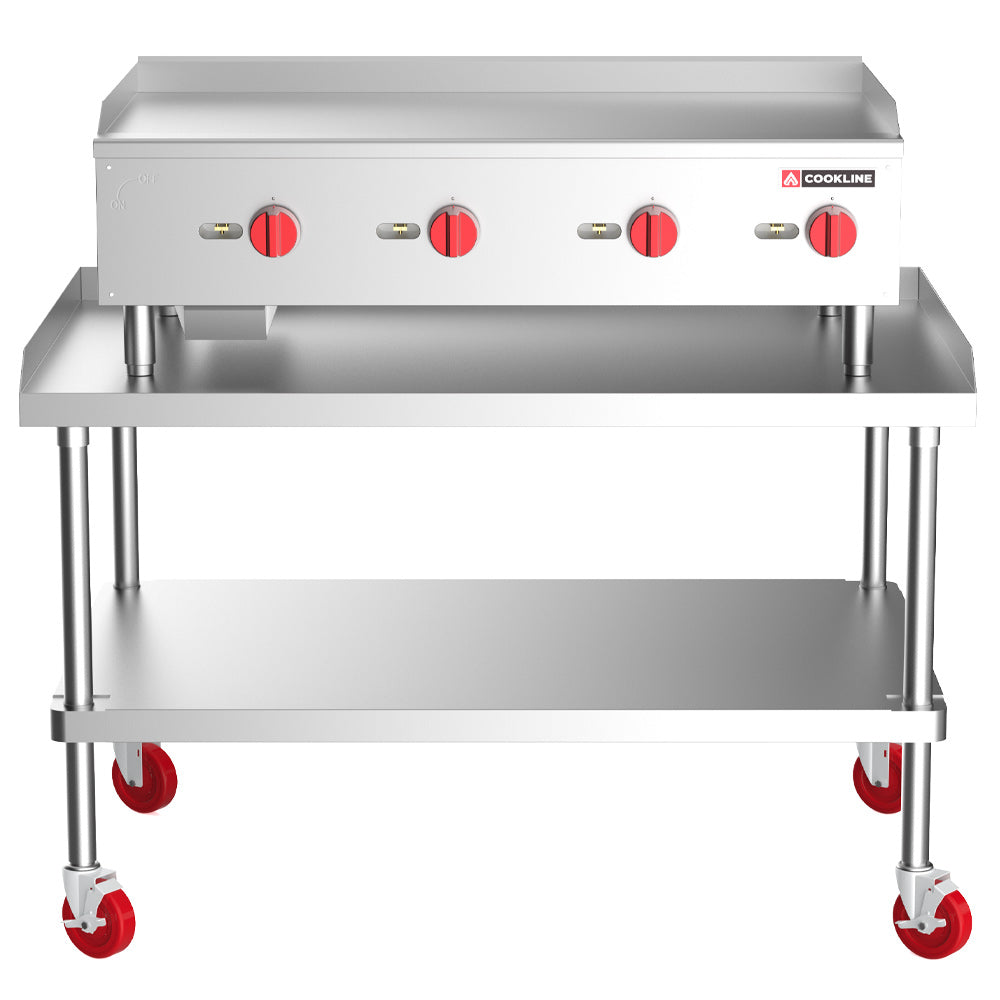

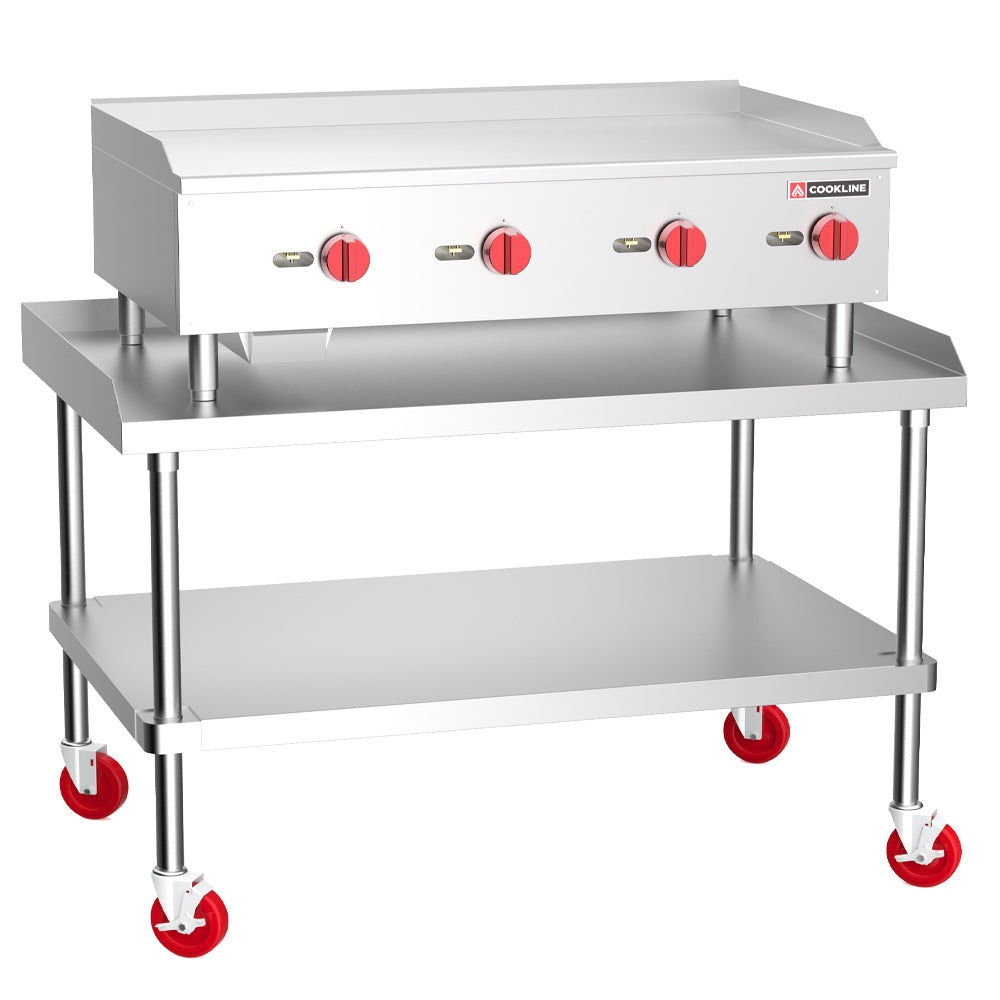

The spec sheet does not list a stand; some photos show the griddle on a separate equipment stand. Call us if you need one sized for it.
The spec sheet does not list clearances. Install it on a non-combustible surface under a hood per your local gas and fire codes, and ask us or your installer before ordering if space is tight.
USR Brands covers Cookline gas cooking equipment for 1 year parts and labor from delivery, in the contiguous US. Gas connections must be made by a qualified installer, and food truck or farm installs are parts only.
The Cookline warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Cookline (USR Brands) |
|---|---|
| Model Number | CGG-48T-HD |
| Quantity | 1/Each |
| Shipping Weight | 411 lb. |
| Net Weight | 334 lb. |
| Width | 48 Inches |
| Depth | 30 Inches |
| Height | 16.2 Inches |
| Body Depth | 27.7 Inches |
| Back Splash Height | 5 Inches |
| Leg Height | 4 Inches |
| Packaging Dimensions | 52.8" L x 35" D x 20.5" H |
| Gas Type | Natural GasLP Conversion Kit Included |
| Total BTU | 120,000 BTU/H |
| Burners | 4 Steel U-Shape30,000 BTU/H Each |
| Gas Inlet | 3/4" NPT Rear |
| Gas Regulator | Included |
| Capacity | 47.8" W x 22.45" D Cooking Surface |
| Cooking Surface | 47.8" W x 22.45" DStainless Steel |
| Griddle Plate Thickness | 1 Inch |
| Temperature Range | 200 - 500 Degrees F |
| Controls | Thermostatic50°F Increments |
| Pilots | Standing |
| Grease Collection | Front Grease ChannelStainless Steel Oil Collector |
| Splash Guard | Stainless Steel, 3 Sides |
| Exterior | Stainless Steel Front and Sides |
| Frame | Welded |
| Legs | 4 Adjustable Heavy-Duty |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
