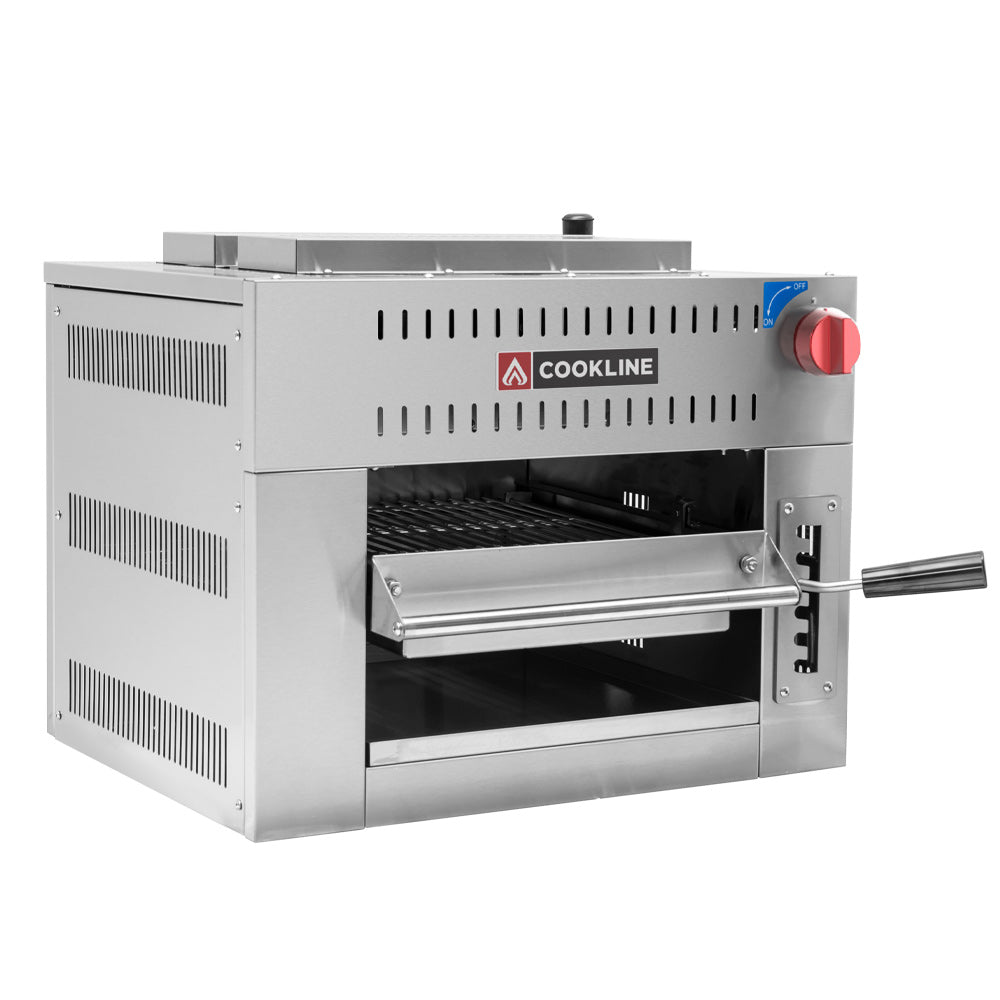

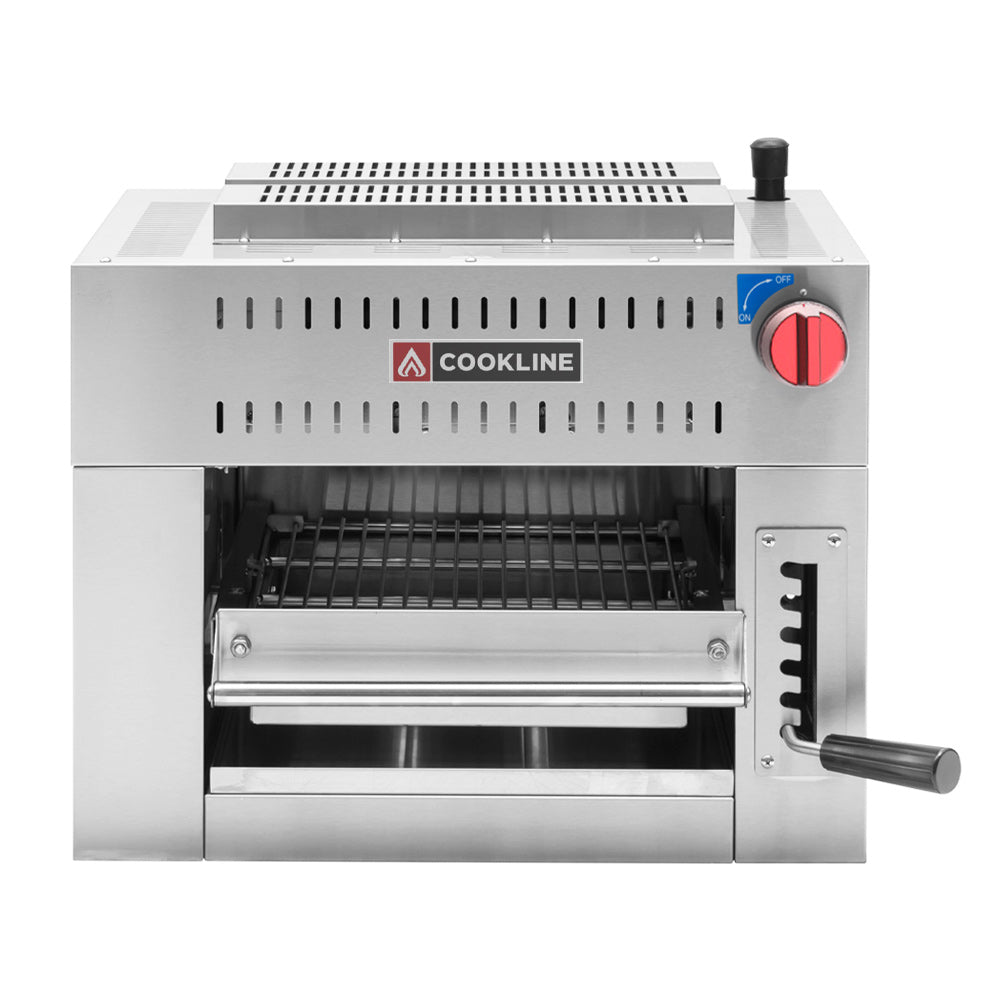

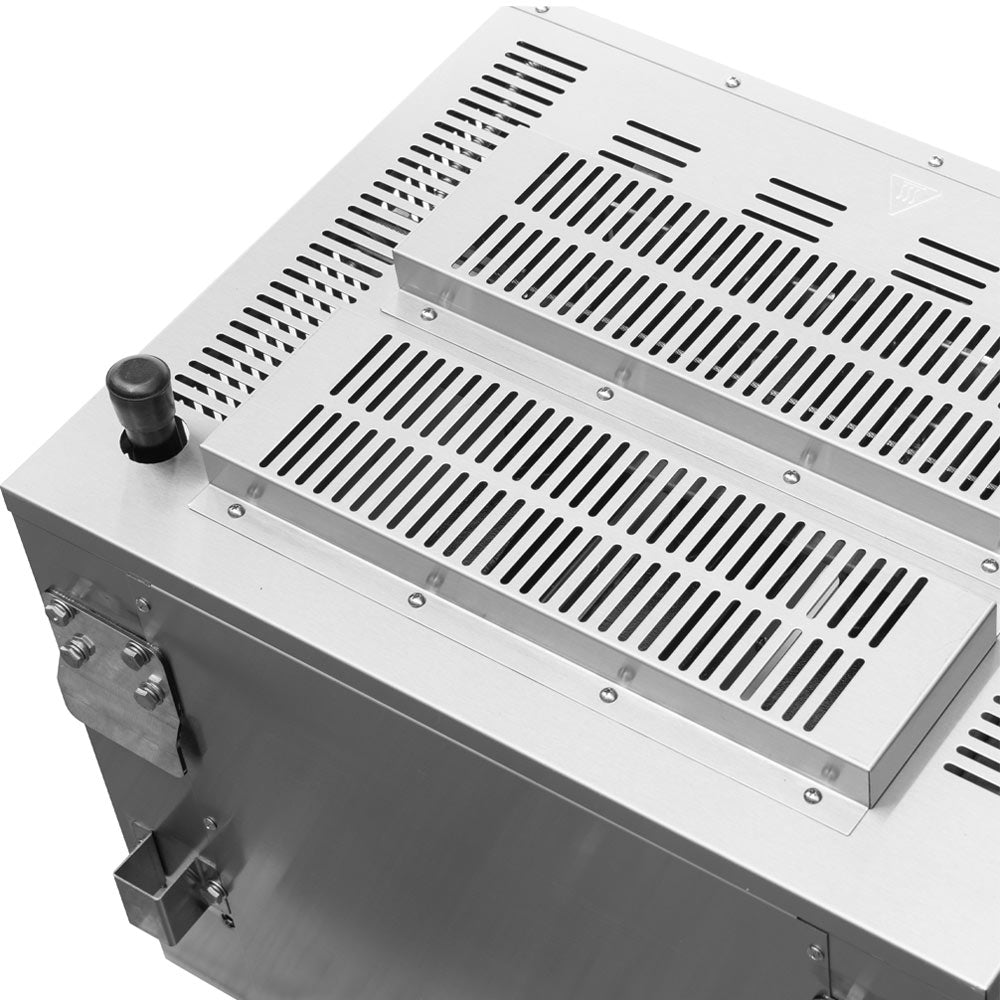

Cookline CSM-24-RM 24" Infrared Salamander Broiler / Cheese Melter with 24" Range Mounting Kit, 24,000 BTU, Natural Gas
A 24" infrared salamander for melting, browning and finishing plates above a range.
The Cookline CSM-24-RM is a gas infrared salamander broiler and cheese melter for restaurants, steakhouses and diners that finish dishes to order. Its 24,000 BTU infrared burner heats instantly, a standby pilot keeps it ready, and the rack rides on a spring-balanced lift. It comes with a 24" range mounting kit to sit on a range backsplash. It runs on natural gas through a 3/4" rear connection.
Check the wall or range backsplash can carry its weight before mounting.
24,000 BTU gas infrared burner, no preheat needed.

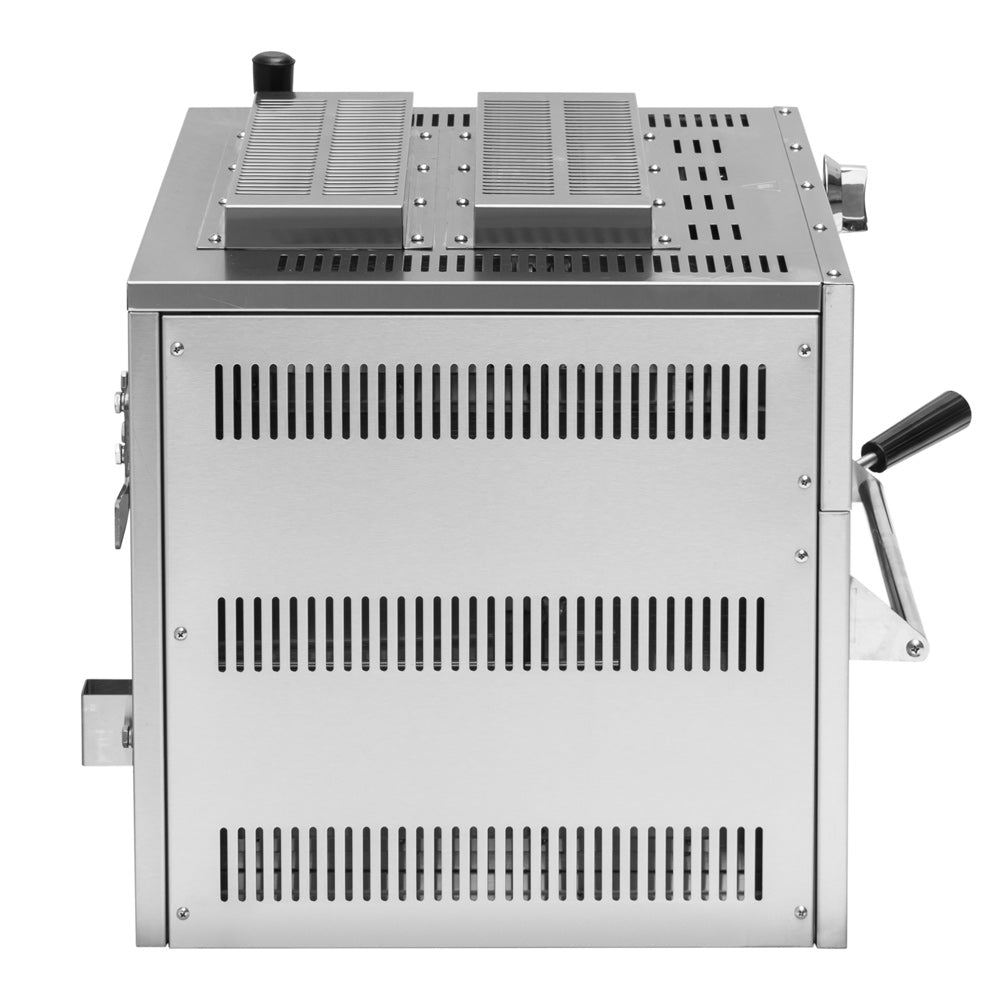

Spring-balanced lift sets the rack height with one hand.
Lights quickly for service; manual controls.
Oil collector at the bottom and a stainless front and sides.

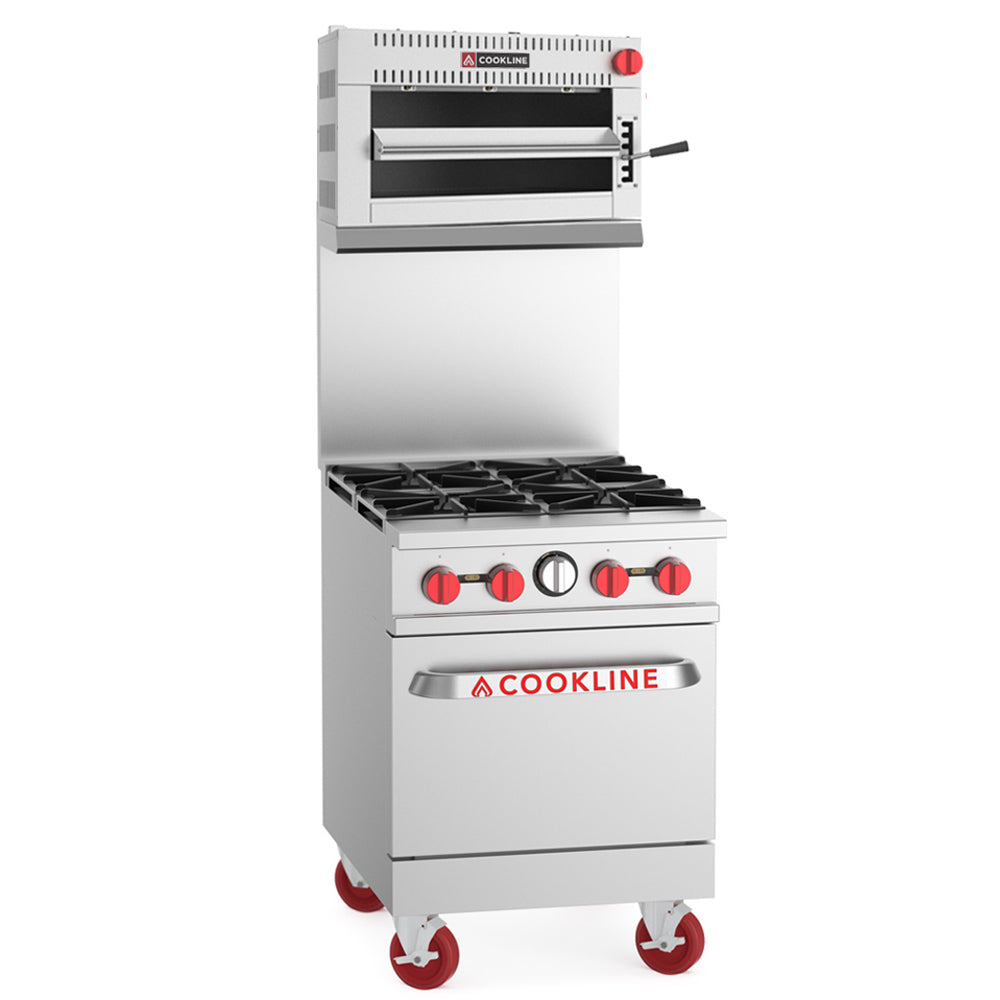

It comes with a 24" range mounting kit so it sits above a 24" range on its backsplash. The spec sheet does not list the kit parts; call us if you need to check it against your range.
Natural gas through a 3/4" NPT rear connection, 24,000 BTU/H. Fit a shut-off valve upstream and have a qualified installer make the connection.
The spec sheet lists easy conversion from natural gas to propane, but no conversion kit is listed as included. Have a qualified technician do it and call us for the parts.
No. The infrared burner heats up instantly, and the standby pilot makes it quick to light. Raise or lower the rack to brown, melt or finish food.
Pull out the oil tray and rack daily and wipe them with a damp cloth and mild soap. Do not use a water hose on it.
USR Brands covers Cookline gas and electric cooking equipment for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, residential use is not covered; gas connections must be made by a qualified installer.
The Cookline warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Cookline (USR Brands) |
|---|---|
| Model Number | CSM-24-RM |
| Quantity | 1/Each |
| Shipping Weight | 112 lb. |
| Net Weight | 80 lb. |
| Width | 24 Inches |
| Depth | 18.98 Inches |
| Height | 19.33 Inches |
| Packaging Dimensions | 27" L x 26" D x 28" H |
| Gas Type | Natural Gas |
| Total BTU | 24,000 BTU/H |
| Gas Inlet | 3/4" NPT Rear |
| Burner | Gas Infrared |
| Capacity | 1 Rack24" Wide |
| Rack | 1 Chrome-Coated Wire GridSpring-Balanced Lift, Adjustable Positions |
| Controls | ManualStandby Pilot |
| Oil Collector | Yes, at the Bottom |
| Installation Type | Range Mounted |
| Mounting Kit | 24" Range Mounting Kit |
| Construction | Stainless Steel Front and SidesWelded Frame |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
