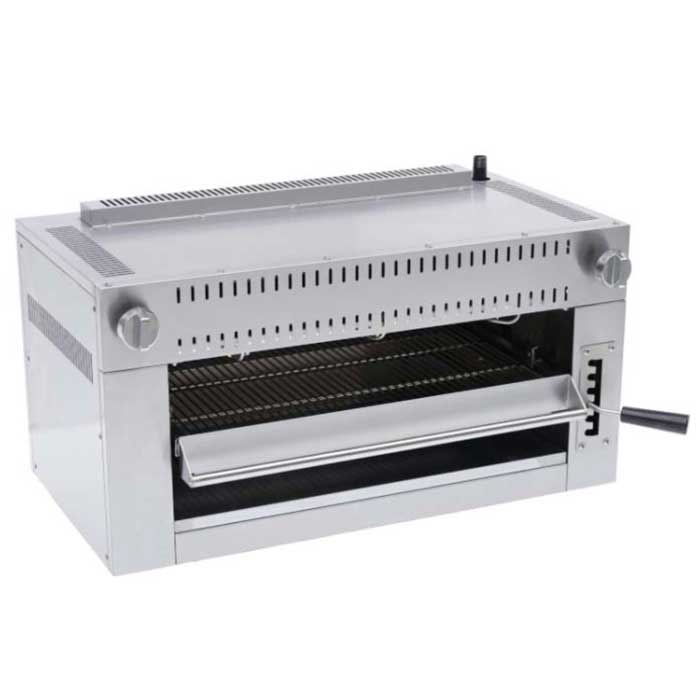

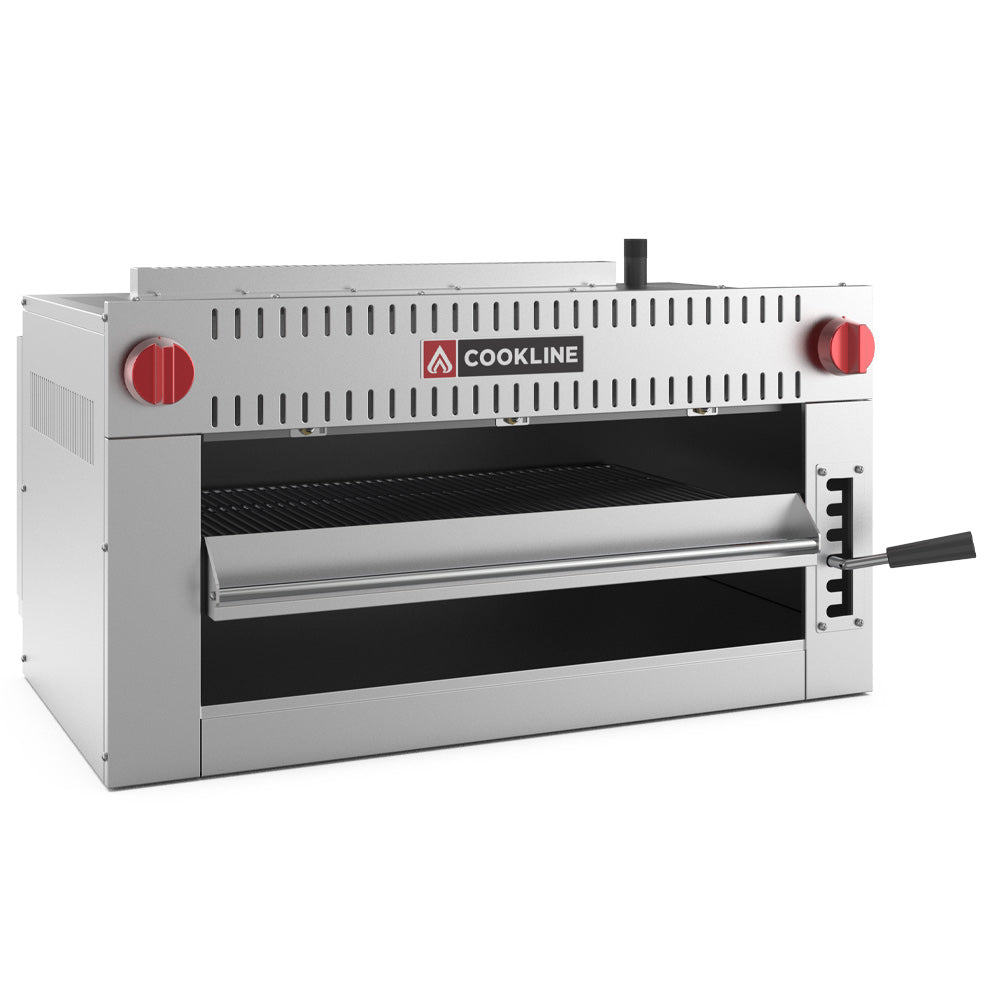

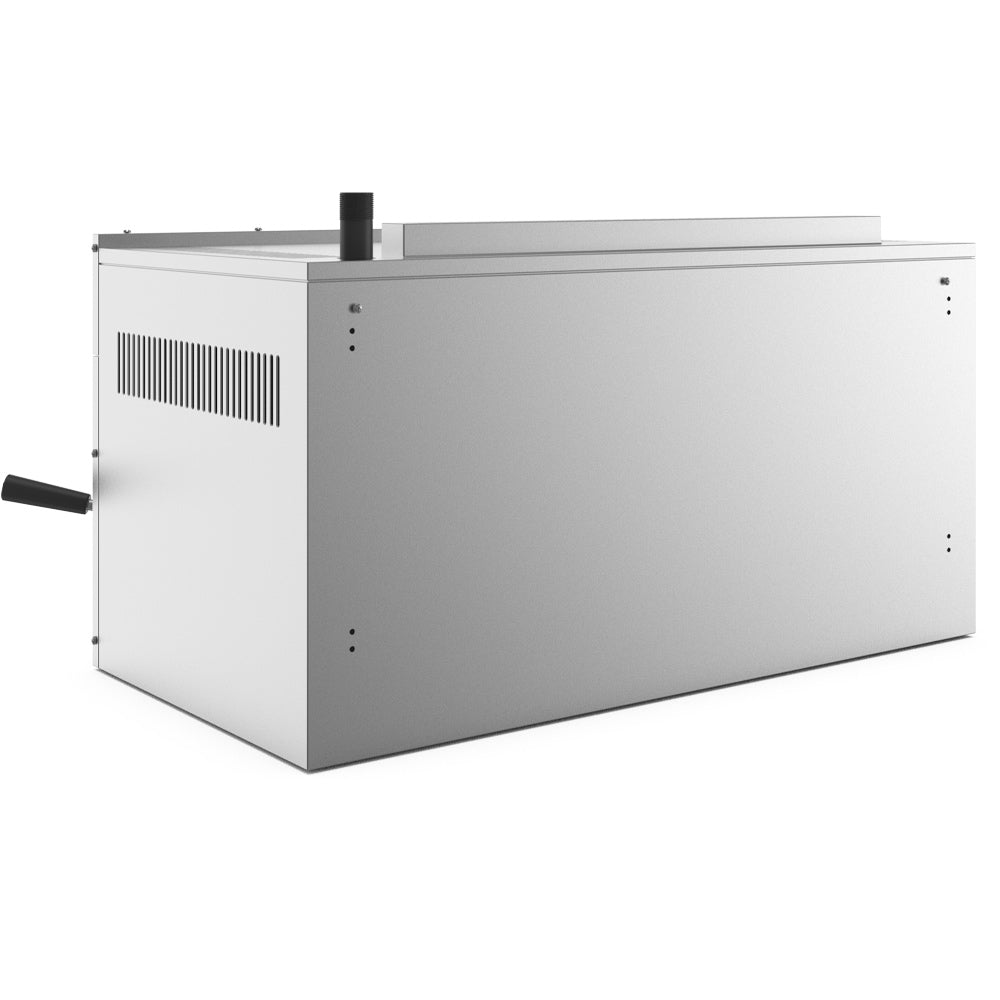

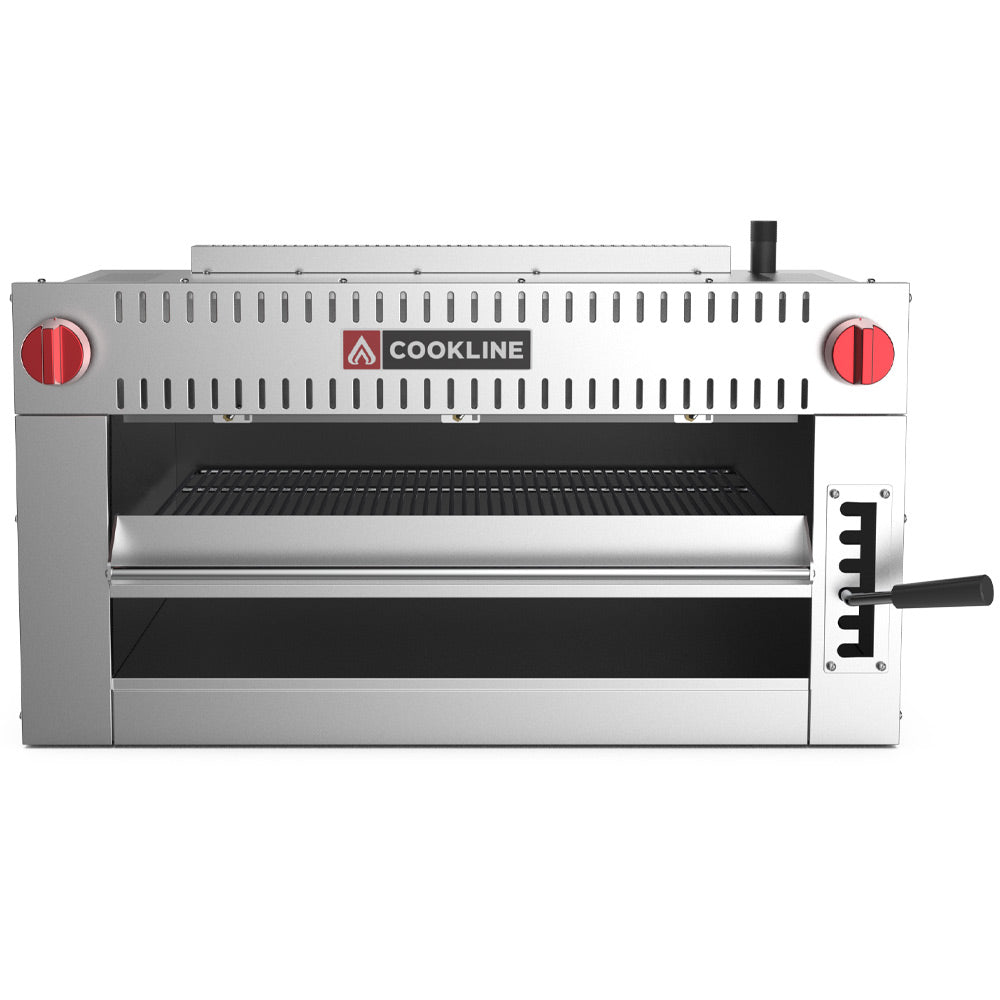

Cookline CSM-36-WM 36" Dual Control Infrared Salamander Broiler / Cheese Melter with Wall Mounting Kit, 30,000 BTU, Natural Gas
A 36" infrared salamander for melting, browning and finishing plates on the wall above the line.
The Cookline CSM-36-WM is a gas infrared salamander broiler and cheese melter for restaurants, steakhouses and diners that finish dishes to order. Its 30,000 BTU infrared burner heats instantly, a standby pilot keeps it ready, and the rack sets in 3 positions. It comes with a wall mounting kit. It runs on natural gas through a 3/4" rear connection.
Check the wall or range backsplash can carry its weight before mounting.
30,000 BTU gas infrared burner, no preheat needed.
3 rack positions for melting or browning.
Lights quickly for service; manual controls.
Oil collector at the bottom and a stainless front and sides.
The kit has a wall bracket, 2 top hanging brackets and 2 bottom supports. The manual says to prepare 5 anchor bolts sized for your wall (not provided) and to mount the salamander level.
Natural gas through a 3/4" NPT rear connection, 30,000 BTU/H. The manual lists a 4.0" W.C. manifold pressure and rates it at 36,000 BTU/H total, so ask us to confirm before you size the gas line. Fit a shut-off valve upstream and use metal gas pipe.
The spec sheet lists easy conversion from natural gas to propane, but no conversion kit is listed as included. Have a qualified technician do it and call us for the parts.
No. The infrared burner heats up instantly, and the standby pilot makes it quick to light. Raise or lower the rack to brown, melt or finish food.
The manual asks for 10 cm (about 4") from side walls and 6" at the rear for servicing, non-combustible surroundings, and a well-ventilated area, ideally under a hood.
Pull out the oil tray and rack daily and wipe them with a damp cloth and mild soap. The manual warns against water hoses, steam cleaners, wire brushes and acid or alkaline cleaners, and asks for heat-resistant grease on the lift.
USR Brands covers Cookline gas and electric cooking equipment for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, residential use is not covered; gas connections must be made by a qualified installer.
The Cookline warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Cookline (USR Brands) |
|---|---|
| Model Number | CSM-36-WM |
| Quantity | 1/Each |
| Shipping Weight | 196 lb. |
| Net Weight | 139 lb. |
| Width | 36 Inches |
| Depth | 18.98 Inches |
| Height | 19.33 Inches |
| Packaging Dimensions | 39" L x 26" D x 28" H |
| Gas Type | Natural Gas |
| Total BTU | 30,000 BTU/H |
| Gas Inlet | 3/4" NPT Rear |
| Burner | Gas InfraredDual Control |
| Capacity | 1 Rack36" Wide |
| Rack | 1 Chrome-Coated Wire Grid3 Rack Positions |
| Controls | ManualStandby Pilot |
| Oil Collector | Yes, at the Bottom |
| Installation Type | Wall Mounted |
| Mounting Kit | Wall Mounting KitWall Anchor Bolts Not Included |
| Construction | Stainless Steel Front and SidesWelded Frame |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
