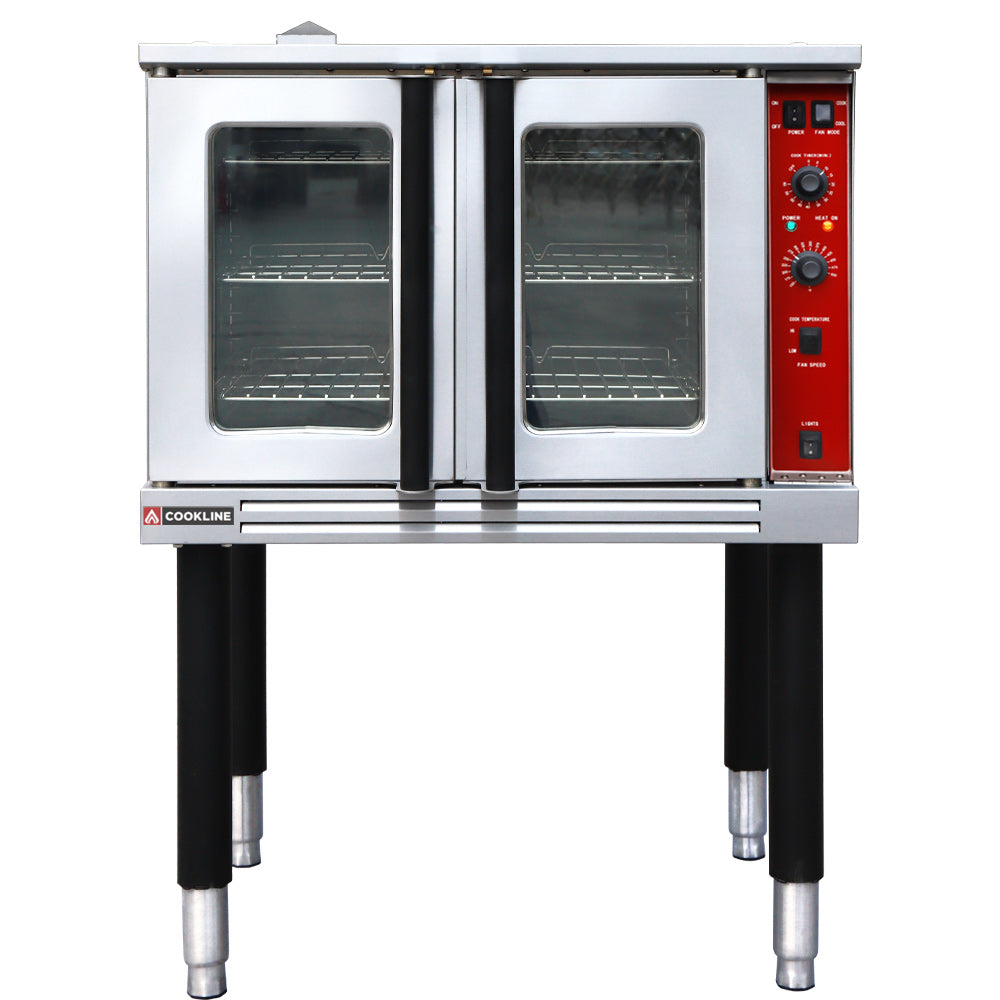

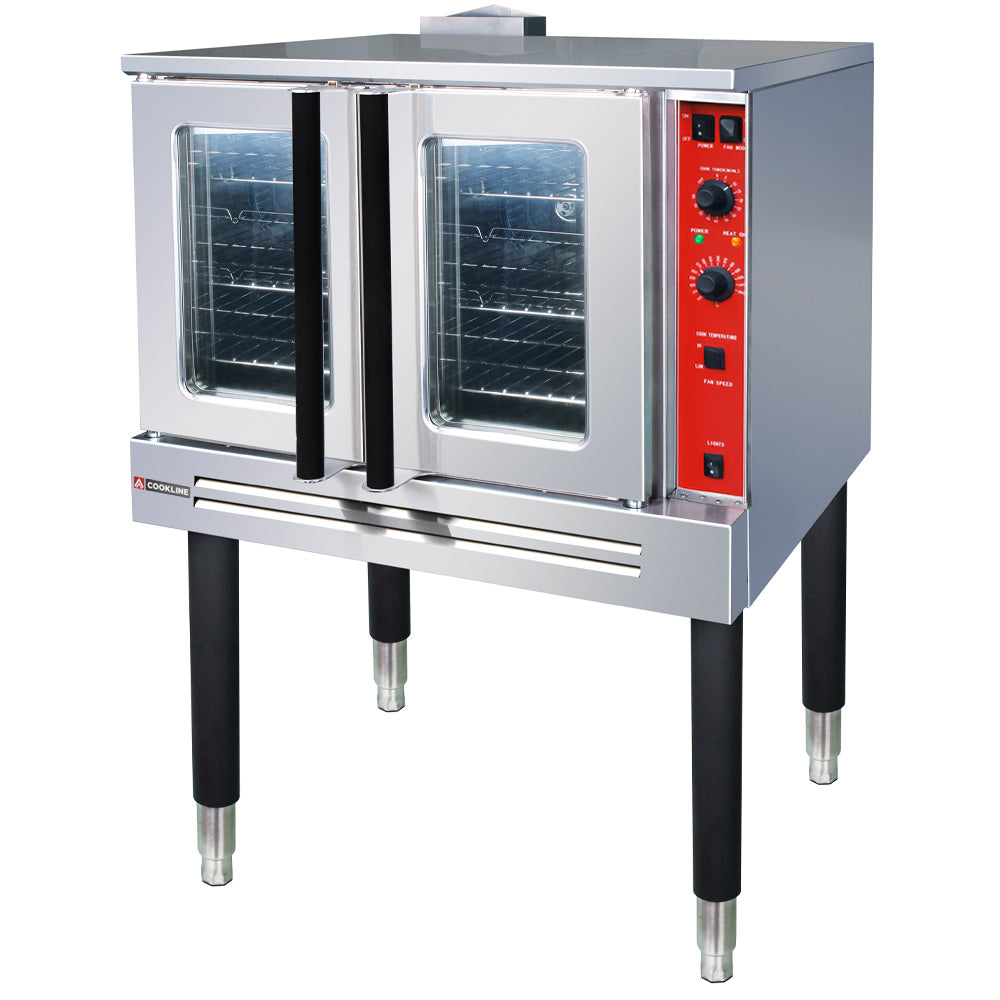

Cookline CV100-SGL-208-3 Single Deck Full Size Electric Convection Oven, 3 Racks, 150-550°F, 9 kW, 208V 3 Phase, Hardwired

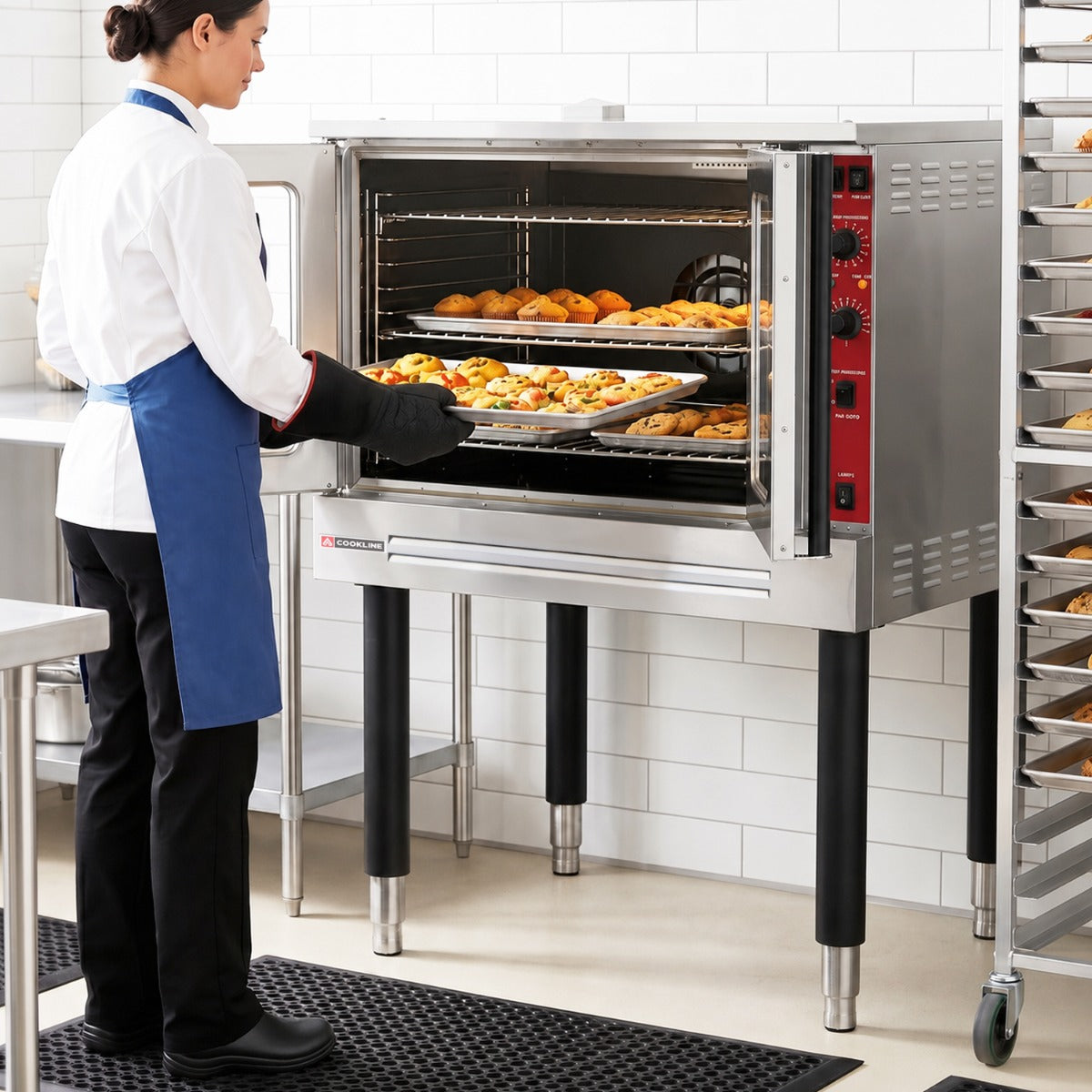

A full size electric convection oven for even baking and roasting in busy kitchens.
The Cookline CV100-SGL-208-3 suits restaurants, bakeries, schools and caterers that bake on full size sheet pans. The oven runs from 150°F to 550°F with a 1/2 HP fan and 3 racks on 11-position guides. It uses 9 kW at 208V 3 phase (convertible to 1 phase) and is hardwired to a dedicated circuit.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 38.11" width.

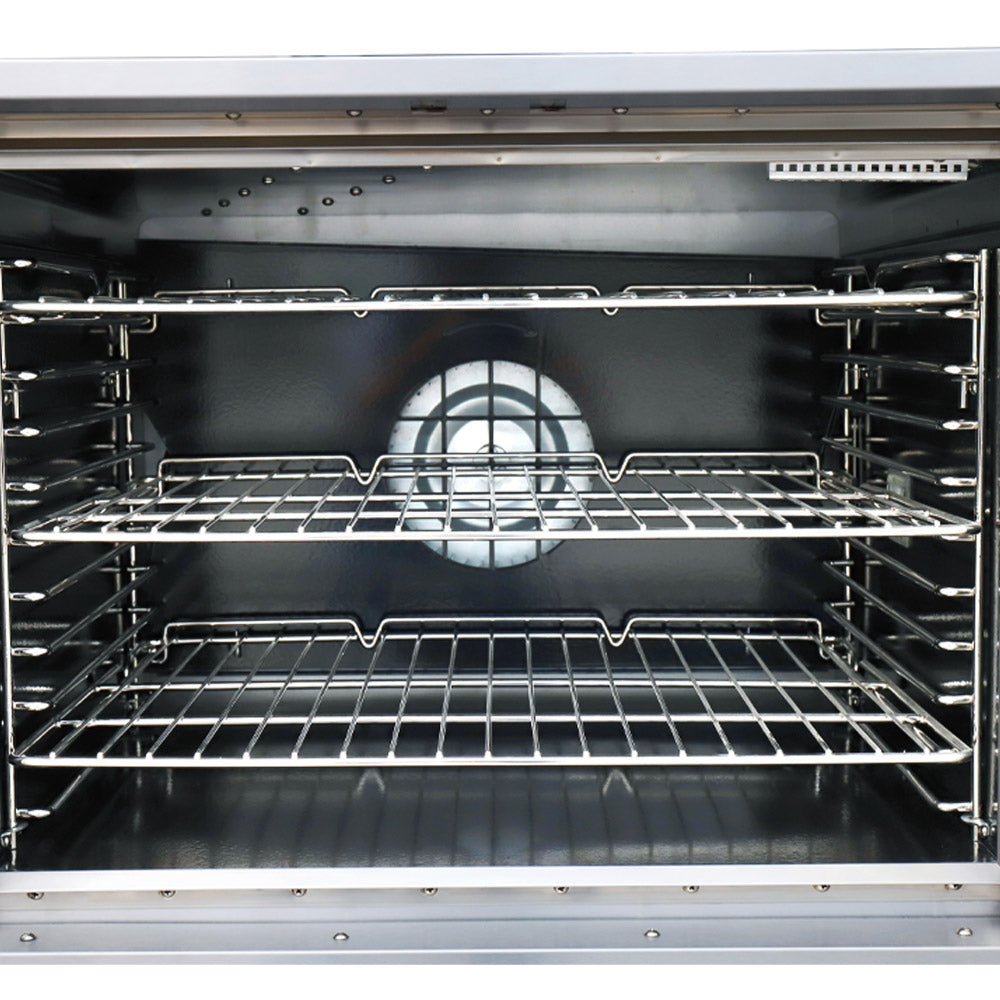

29" × 21.5" × 20" cavity, 3 racks, 11 rack positions.

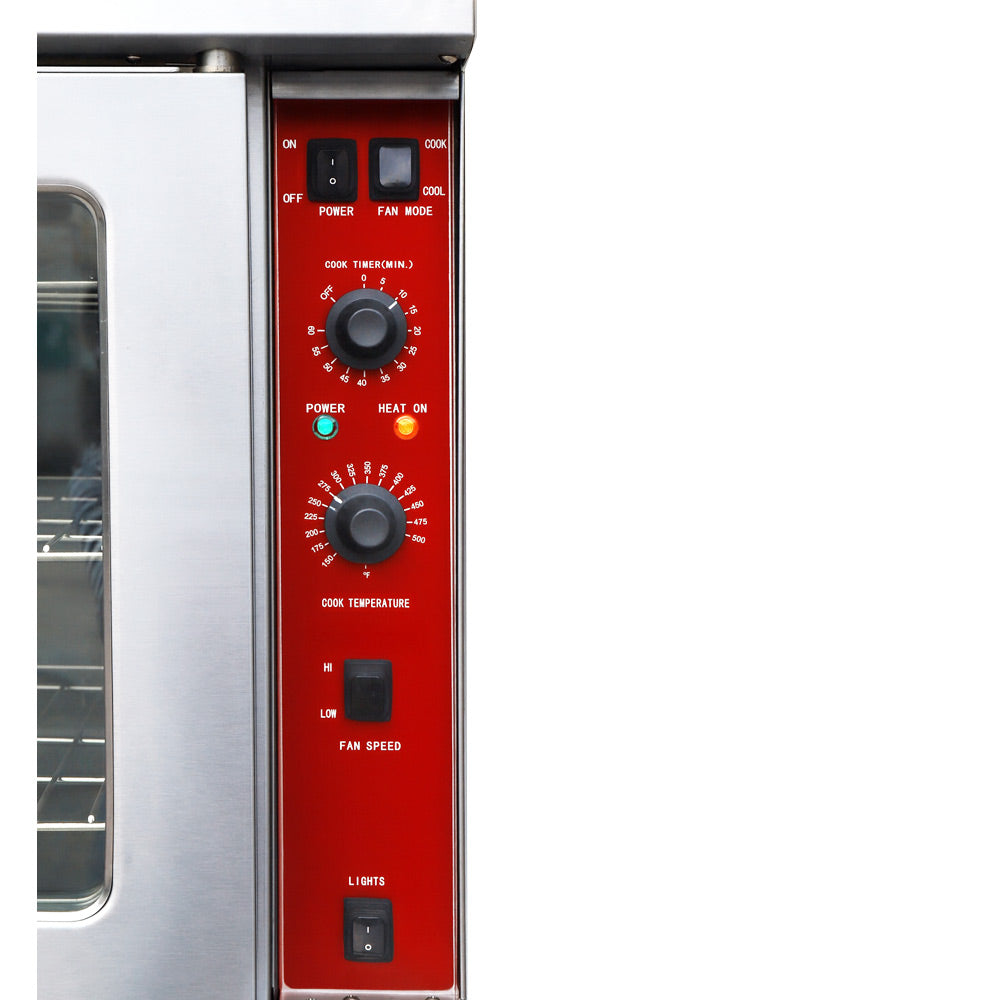

Electronic thermostat with cook and cool-down modes.
Moves heat evenly.
Stainless steel front, porcelain enamel interior and an interior light.
It is hardwired; no cord set is included. A licensed electrician connects it directly to a dedicated circuit. USR Brands warns that adding a plug or cord cap voids the warranty.
208V, 60 Hz, 3 phase, 24.98 A, 9 kW. It can be converted to 1 phase, which draws 43.27 A; have your electrician size the circuit.
Each oven is full size, 29" W x 21.5" D x 20" H inside, with 3 racks on 11-position guides.
It is 38.11" wide, 40.59" deep and 54.05" high. The manual asks for at least 2" from the wall and 6" from other heat-producing equipment.
Yes. Stacking needs 2 ovens and a stacking kit; the manual recommends an authorized service agent or installer. This single oven ships with a leg kit.
USR Brands covers Cookline gas and electric cooking equipment for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, residential use is not covered; hardwired connections must be made by a qualified installer.
The Cookline warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Cookline (USR Brands) |
|---|---|
| Model Number | CV100-208-3 |
| Manufacturer Model | HECO-9KW |
| Quantity | 1/Each |
| Shipping Weight | 491 lb. |
| Net Weight | 395 lb. |
| Width | 38.11 Inches |
| Depth | 40.59 Inches |
| Height | 54.05 Inches |
| Oven Interior | 29" W x 21.5" D x 20" H |
| Packaging Dimensions | 43.3" L x 46.45" D x 38.6" H |
| Voltage | 208 Volts |
| Amps | 24.98 Amps |
| Hertz | 60 |
| Phase | 3 (Convertible to 1 Phase) |
| Converted to 1 Phase | 208V, 43.27 Amps |
| Wattage | 9 kW |
| Plug Type | Hardwired |
| Power Cord | Not Included |
| Electrical Connection | Hardwired by a Licensed Electrician to a Dedicated Circuit |
| Capacity | 1 Full Size Oven3 Racks |
| Temperature Range | 150 - 550 Degrees F |
| Decks | 1 |
| Doors | 2 (2 per Oven, Full View Windows) |
| Racks | 3 Chrome Plated11-Position Rack Guides |
| Fan Motor | 1/2 HP |
| Controls | Electronic ThermostatManual TimerCook and Cool-Down ModesPower and Heat LightsPanel on Right Side |
| Interior | Porcelain EnamelInterior Light |
| Exterior | Stainless Steel Front |
| Legs | 4 |
| Included | Leg Kit |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
