Cookline CV100-SGL Single Deck Full Size Natural Gas Convection Oven, 3 Racks, 150-550°F, 60,000 BTU, 120V Fan
A full size natural gas convection oven for even baking and roasting in busy kitchens.
The Cookline CV100-SGL suits restaurants, bakeries, schools and caterers that bake on full size sheet pans. The oven runs from 150°F to 550°F with a 1/2 HP fan and 3 racks on 11-position guides. Four 15,000 BTU burners per oven (60,000 BTU total) run on natural gas, and the fan plugs into a standard 120V outlet.
Measure every doorway and turn on the delivery path; the smallest outside dimension is the 38.11" width.
29" × 21.5" × 20" cavity, 3 racks, 11 rack positions.
60-minute timer with bell and a cool-down function.
Moves heat evenly, with dual-speed control.
Stainless steel front, porcelain enamel interior and an interior light.
Natural gas through a 3/4" NPT rear connection (60,000 BTU/H total) and a 120V outlet for the fan and controls: 5.9 A, NEMA 5-15P plug, 59" cord.
This listing is the natural gas model. The manual also lists a propane version and propane orifices as parts, but no conversion kit is listed as included; call us before ordering for LP.

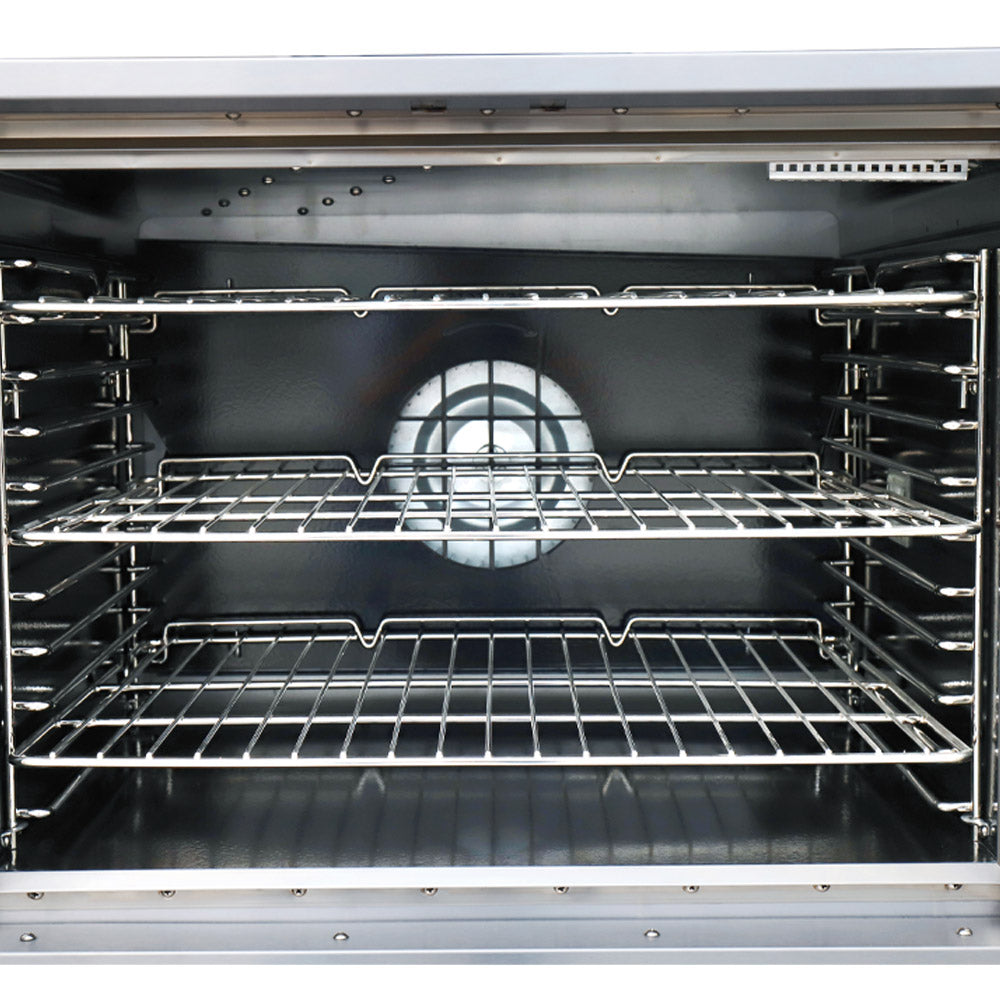

Each oven is full size, 29" W x 21.5" D x 20" H inside, with 3 chrome plated racks on 11-position guides.
It is 38.11" wide, 41.65" deep and 56.46" high. The manual calls for non-combustible surroundings with at least 6" on all sides and 6" from other equipment, with the legs installed.
Yes. A micro switch shuts the oven off completely once a door is opened, and automatic ignition lights the burners.
USR Brands covers Cookline gas and electric cooking equipment for 1 year parts and labor from delivery, in the contiguous US. Food truck and farm installs are parts only, residential use is not covered; gas connections must be made by a qualified installer.
The Cookline warranty states that USR Brands cannot ship to or guarantee its products in CA, OR, WA, MT, WY or UT. Call us before ordering for one of those states.
Specs
| Manufacturer | Cookline (USR Brands) |
|---|---|
| Model Number | CV100 |
| Manufacturer Model | HRCO-60K |
| Quantity | 1/Each |
| Shipping Weight | 569 lb. |
| Net Weight | 507 lb. |
| Width | 38.11 Inches |
| Depth | 41.65 Inches |
| Height | 56.46 Inches |
| Oven Interior | 29" W x 21.5" D x 20" H |
| Packaging Dimensions | 42.13" x 45.7" x 37.8" |
| Voltage | 120 Volts |
| Amps | 5.9 Amps |
| Hertz | 60 |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Power Cord Length | 59 Inches |
| Gas Type | Natural Gas |
| Total BTU | 60,000 BTU/H |
| Burners | 4 per Oven15,000 BTU/H Each |
| Gas Inlet | 3/4" NPT Rear |
| Ignition | Automatic |
| Capacity | 1 Full Size Oven3 Racks |
| Temperature Range | 150 - 550 Degrees F |
| Decks | 1 |
| Doors | 2 (2 per Oven, Full View Windows) |
| Racks | 3 Chrome Plated11-Position Rack Guides |
| Fan Motor | 1/2 HP, Dual Speed |

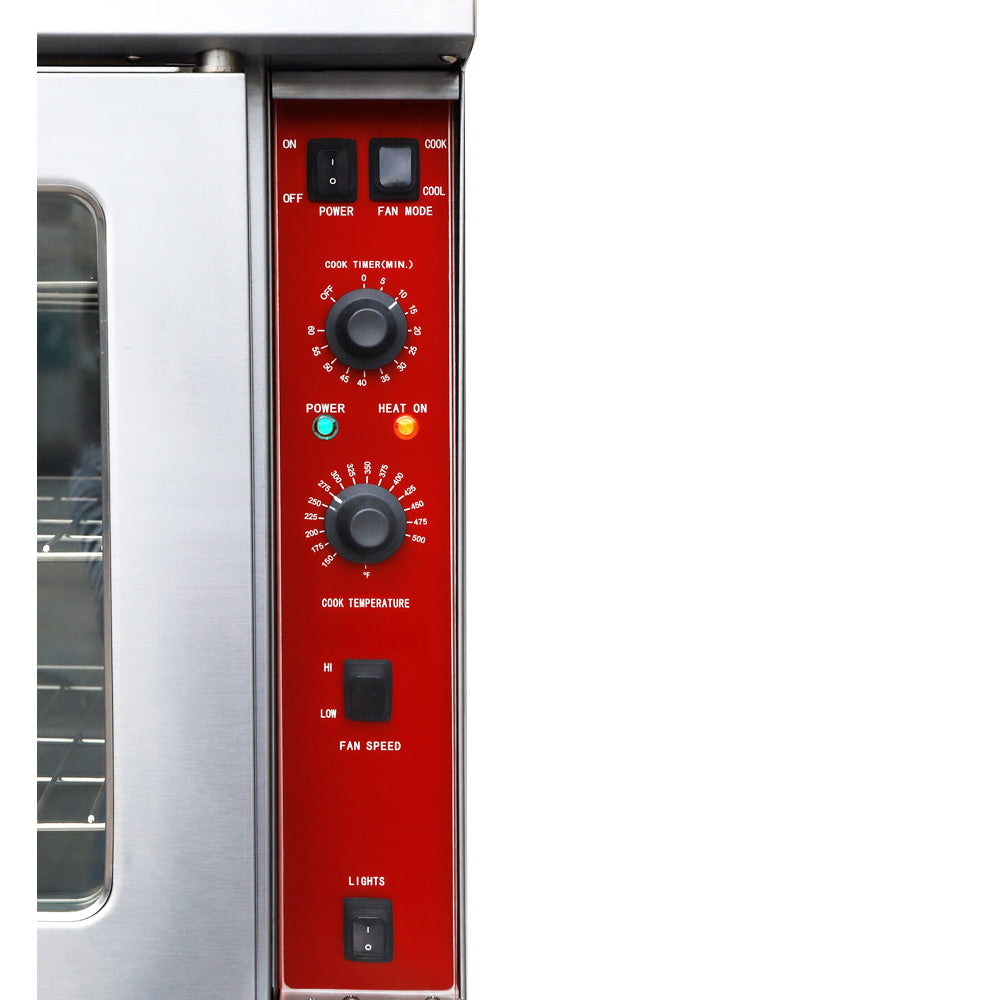

| Controls | Manual60-Minute Timer with BellCool-Down FunctionDoor Micro Switch |
| Interior | Porcelain EnamelInterior Light |
| Exterior | Stainless Steel Front |
| Legs | 4 |
| Certifications | cETLusETL Sanitation |
| Warranty | 1 Year Parts & Labor |
Certifications
