Description

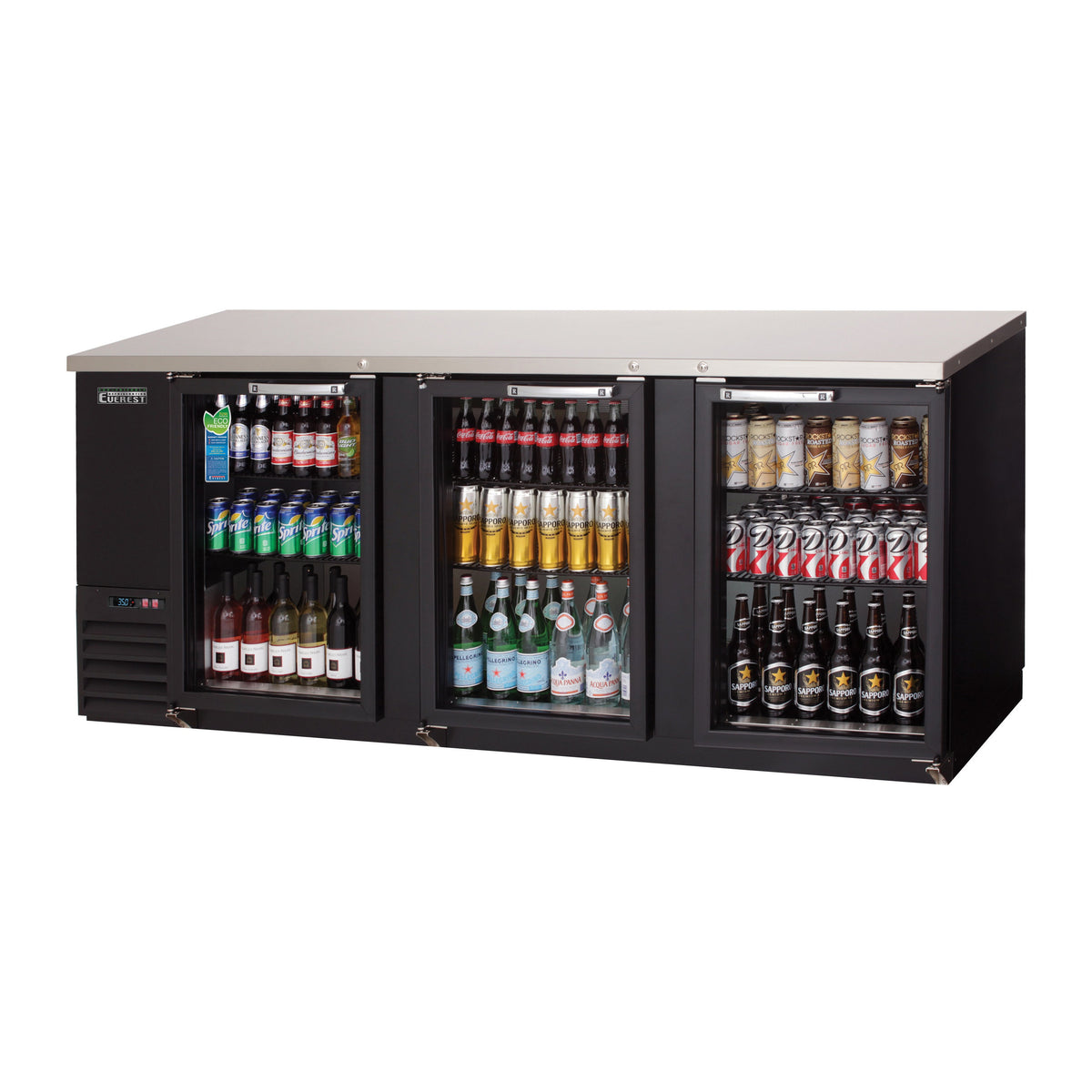

Everest EBB90G-24 Three Section Commercial Back Bar Cooler, Three Glass Swing Doors, Black
The Everest EBB90G-24 is a three-section commercial back bar cooler with 28 cu. ft. of storage, three glass swing doors and a stainless steel countertop over a black vinyl exterior. It measures 89 1/4 in. wide, 24 1/2 in. deep and 37 1/4 in. high, and holds up to 980 12 oz. cans or 609 12 oz. bottles. The 24 1/2 in. depth helps where bar space is tight. This back bar refrigerator suits bars and pubs, restaurants, brewery taprooms and hotel lounges.
Blizzard R290 Refrigeration System
The side-mounted Blizzard R290 condensing unit is self-contained and fully detachable, so it can be replaced without on-site brazing. It runs on natural R290 hydrocarbon refrigerant with zero ozone depletion potential and a global warming potential of 3. ECM fan motors and a full-length air duct circulate cold air evenly, defrost runs automatically, and a self-maintaining condensate pan needs no external drain or heater.
Digital Temperature Control and LED Lighting
A multi-function digital controller with an LED display is factory set to 35°F and adjusts from 33°F to 54°F. An audible alarm warns of compressor or condenser coil overheating. Shielded LED bar lighting with an on/off switch lights the interior with little added heat.
Doors, Shelving and Construction
The swing doors use low-emissivity double-pane glass in black PVC frames, with die-cast handles, snap-in magnetic gaskets and pre-installed locks. The cabinet has a textured black vinyl exterior, galvanized steel interior walls and a stainless steel floor, and is insulated with 1 3/4 in. of high-density polyurethane, with an open interior and no walls between sections. Two epoxy-coated wire shelves per section sit on height-adjustable stainless steel clips, 6 in total. Built-in caster thread receptacles accept optional 3 in. or 5 in. swivel casters or height-adjustable legs.
Key Specs
- Capacity: 28 cu. ft.; 980 12 oz. cans or 609 12 oz. bottles
- Cabinet dimensions: 89 1/4 in. W x 24 1/2 in. D x 37 1/4 in. H
- Temperature range: 33°F to 54°F (factory set at 35°F)
- Electrical: 115V/60Hz/1-phase, 2.5 amps, 1/3 HP, NEMA 5-15P plug
- Certifications: NSF, ETL Sanitation and cETLus
- Warranty: 3 years parts and labor, 5 years electrical, 10 years compressor

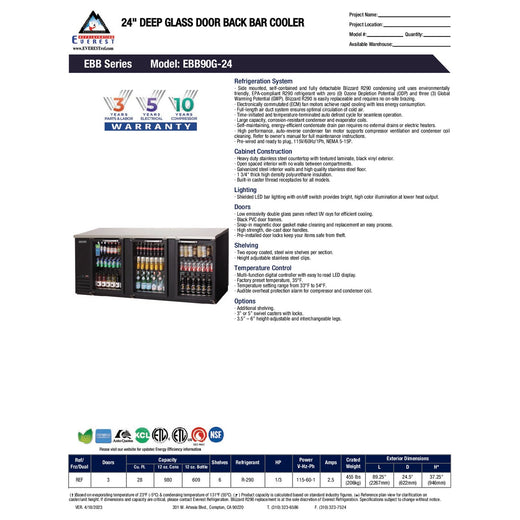

See the attached spec sheet for plan and airflow views and optional accessory part numbers.
| Manufacturer | Everest Refrigeration |
| Model | EBB90G-24 |
| Series | EBB Series |
| Type | Back bar cooler (refrigerator) |
| Sections | 3 |
| Doors | 3 glass swing, locking |
| Capacity | 28 cu. ft.; 980 12 oz. cans or 609 12 oz. bottles |
| Shelves | 6 epoxy-coated wire, height adjustable |
| Temperature range | 33°F to 54°F (factory preset 35°F) |
| Refrigeration | Self-contained, side-mounted Blizzard R290 condensing unit |
| Compressor | 1/3 HP; 2311 BTU/hr |
| Refrigerant | R-290 |
| Electrical | 115V/60Hz/1-phase, 2.5 amps |
| Plug and cord | NEMA 5-15P, 9 ft. cord |
| Cabinet dimensions | 89 1/4 in. W x 24 1/2 in. D x 37 1/4 in. H |
| Exterior | Stainless steel countertop, textured black vinyl laminate |
| Interior | Galvanized steel walls, stainless steel floor |
| Insulation | 1 3/4 in. high-density polyurethane |
| Casters or legs | Caster thread receptacles; optional 3 in. or 5 in. casters or 3.5-6 in. legs |
| Crated weight | 455 lbs. |
| Certifications | NSF, ETL Sanitation, cETLus |
| Warranty | 3 years parts and labor, 5 years electrical, 10 years compressor |
