Description
Sold as: Each.

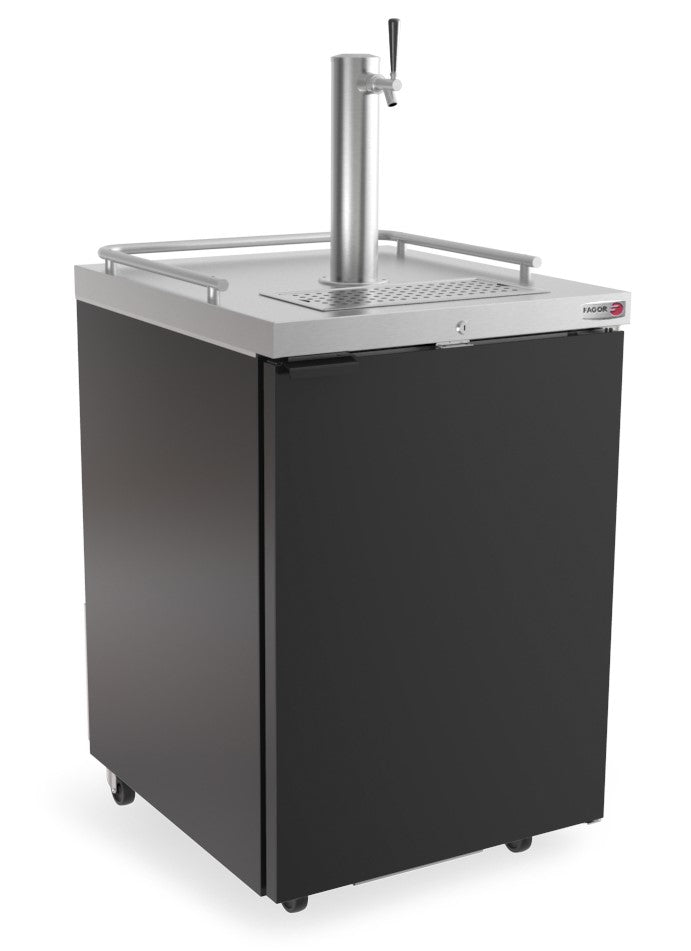

The Fagor Refrigeration FDD-24-N Kegerators
The Fagor Refrigeration FDD-24-N Standart Features
- Single door units are designed with durability and strength to handle the abuse of a portable unit.
- Refrigeration system is a free flowing air system throughout the box to ensure “ICE COLD” products at all times.
- With innovative and eco-friendly technology, Fagor utilizes R-290 Hydrocarbon designed to meet DOE’s Energy Conservation standards with very low contribution to global warming (ODP-0) (GWP-3).
- Heavy duty 18 gauge stainless steel top, durable stainless steel inside walls and coved corner floor. Reinforced bottom door frame to protect your long term investment.
- NSF approved for bottle and pre-packed goods.
- FDD - 24(S) single keg units are rear breathing with internal drain.
- 3 year parts and labor warranty plus 2 additional year compressor warranty. (Continental U.S.A. & Canada only).
The Fagor Refrigeration FDD-24-N Specifications
Construction
Heavy duty stainless steel top, 18 gauge. Black vinyl front, sides and back. (S) models have stainless steel front, sides and back. Interior constructed of heavy duty galvanized steel walls with coved corner NSF approved stainless steel floor. Door is comprised of heavy duty black vinyl steel. (S) Models are stainless steel. (G) Models are a dual pane glass with black frame, (SG) models are a dual pane glass with aluminum frame. Provided with door locks, magnetic door gaskets, removable without tools. Door openings have a plastic breaker strips to retard condensate formation. Units come complete with a 2” Ecomate CFC.Free polyurethane insulation, foamed in place.
Refrigeration System
Self-contained capillary tube system using environmentally friendly (CFC Free) R-290 refrigerant. Rear breathing compressor. Evaporator coil is mounted to interior top of the unit. Large fan motor and fan blades for greater air flow. Automatic condensate evaporator, no drain connection required. Evaporator condensate has been plumbed to a condensate pan located in the compressor housing. Access for the condensing unit behind the back grill, slides out for easy cleaning and maintenance. Cabinets are designed to maintain temperatures between 33 ˚F to 38 ˚F in the interior cabinet.
Technical specifications
Specifications
| Manufacturer | Fagor |
|---|---|
| Model Number | FDD-24-N |
| Weight | 175 lbs |
| Width | 24.5 |
| Depth | 29 |
| Height | 36.87 |
| Usage | Beer Dispenser |
| Barrel Style | 1/2 barrel (full keg) |
| Column Qty | 1 column / tower |
| Number of Taps | 1 |
| Compressor Location | rear mounted |
| Special Features | locking, portable |
| Exterior Finish | black |
| Voltage | 115, 220 |
| Certifications | cETLus, NSF, UL, ETL |
| Selling unit | Each |
| Source units per case | 1 |
| Units per order | 1 |
| Source price unit | each |
