Description
Sold as: Each.

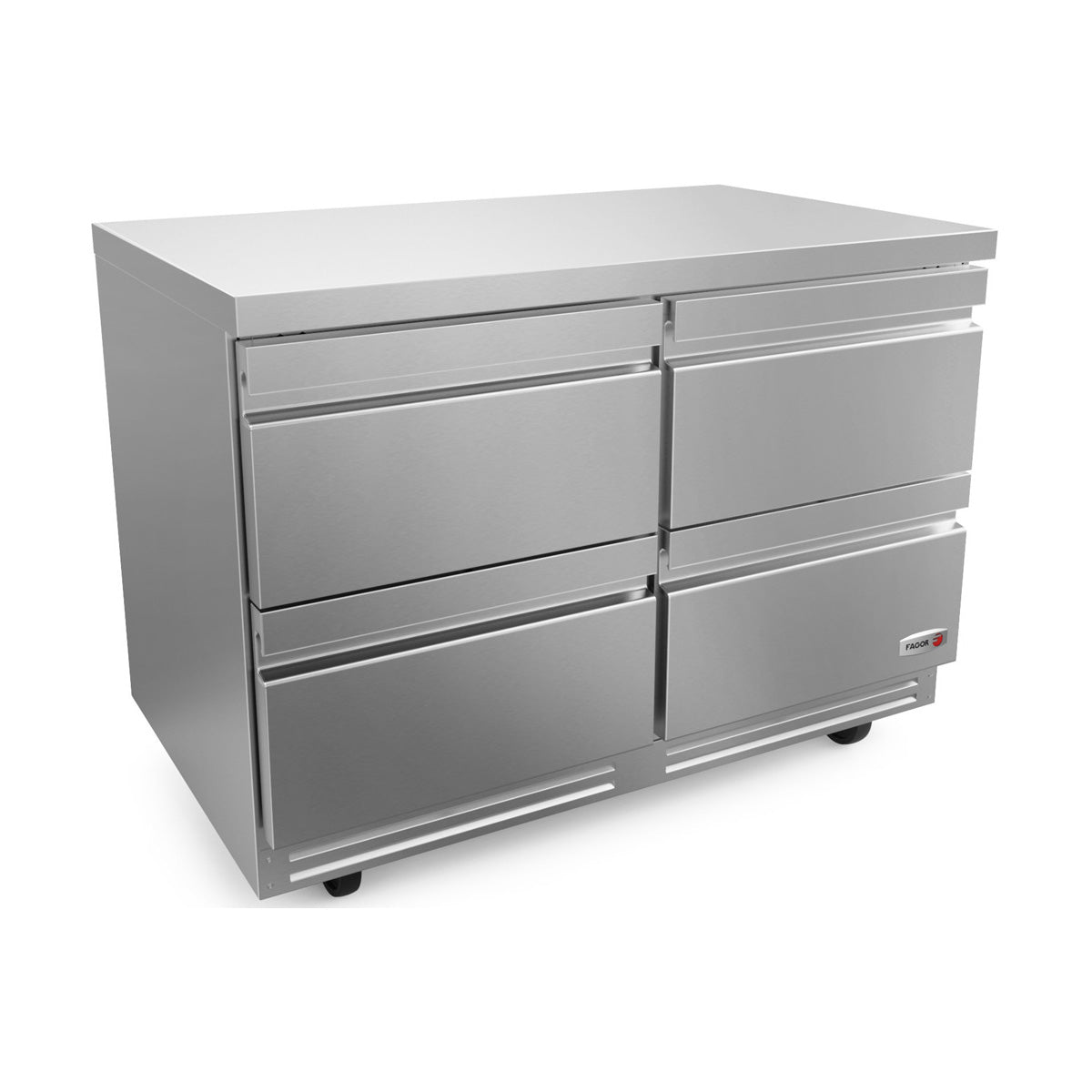

The Fagor Refrigeration FUR-48-D4-N Undercounter Refrigerators with Drawers
The Fagor Refrigeration FUR-48-D4-N Standart Features
- “Next Generation” prep tables have been completely re-designed to ensure proper temperature even in 100 °F environments.
- Exclusive base design for over 30% greater interior capacity than most in it’s class
- All stainless steel interior and exterior construction for a clean & safe food environment. Coved corner floor to meet NSF requirements.
- Drawers: Heavy duty drawer slides, full length recessed drawer handles; accomodates: 27” & 60” models (1) 12” x 20” x 4” deep pan per drawer / 48” x 72” models (1) 12” x 18” x 4” deep box or (1)-1/2 & (1)-1/3 pan (pans and box sold separately).
- Doors: Heavy duty stainless steel door with self closing mechanism and full length recessed door handles; interior step design for added insulation and protection of door gasket.
- With innovative and eco-friendly technology, Fagor utilizes R-290 Hydrocarbon designed to meet DOE’s Energy Conservation standards with very low contribution to global warming (ODP-0) (GWP-3).
- Front breathing refrigeration system for built-in applications
- 36” high working height / 3” casters (opt.) for 34” high applications
- (2) Epoxy coated shelving per door with clips. Adjustable in-1/2” increments per shelf.
- (2) Epoxy coated shelving per door with channel slides for supports. Adjustable in1/2” increments per shelf.
- 3 year parts and labor warranty plus 2 additional year compressor warranty. (Continental U.S.A. & Canada only)
The Fagor Refrigeration FUR-48-D4-N Specifications
Construction
Heavy duty stainless steel exterior top, front and sides. Galvanized back panel. Interior completely constructed of heavy duty stainless steel with coved corner floor. Doors: heavy duty stainless steel exterior and interior, in-step design with hinged solid doors and positive seal. Self closing mechanism and 120˚ stay open feature. Drawers: heavy duty stainless steel with heavy duty drawer slides. Full extension drawers accommodate: 27” & 60” models (1) 12” x 20” x 4” deep pan per drawer / 48” x 72” models (1) 12” x 18” x 4” deep box or (1)-1/2 & (1)-1/3rd pan (pans and box sold separately). Doors and Drawers: openings have a plastic breaker strips to retard condensate formation. Provided with magnetic door/drawer gaskets, removable without tools. Recessed full length handles. Units come complete with a 2” Ecomate CFC.Free polyurethane insulation, foamed in place.
Refrigeration System
Self-contained capillary tube system using environmentally friendly (CFC Free) R-290 refrigerant. Front breathing for built-in applications. Evaporator coil is mounted to interior top panel encased in stainless steel. Large fan motor and fan blades for better air flow. Refrigerators are designed to maintain temperatures between 33 ˚F to 38 ˚F during normal operations.Analog thermostate. Drawers come standard with (2) pan dividers.
Technical specifications
Specifications
| Manufacturer | Fagor |
|---|---|
| Model Number | FUR-48-D4-N |
| Weight | 329 lbs |
| Width | 48.38 |
| Depth | 30.13 |
| Height | 35.75 |
| Size | 2 section |
| Access Type | drawers |
| Drawer Quantity | 4 |
| Refrigeration | self-contained, rear mounted |
| Compressor HP | 1/4 HP |
| Compressor Style | front breathing |
| Exterior Finish | stainless steel exterior |
| Handle Type | full length recessed |
| Certifications | cETLus, ETL-Sanitation |
| Capacity (Cu. Ft.) | 16.7 |
| Selling unit | Each |
| Source units per case | 1 |
| Units per order | 1 |
| Source price unit | each |
