Description
4 open burners over a full-size oven in a 24" footprint.

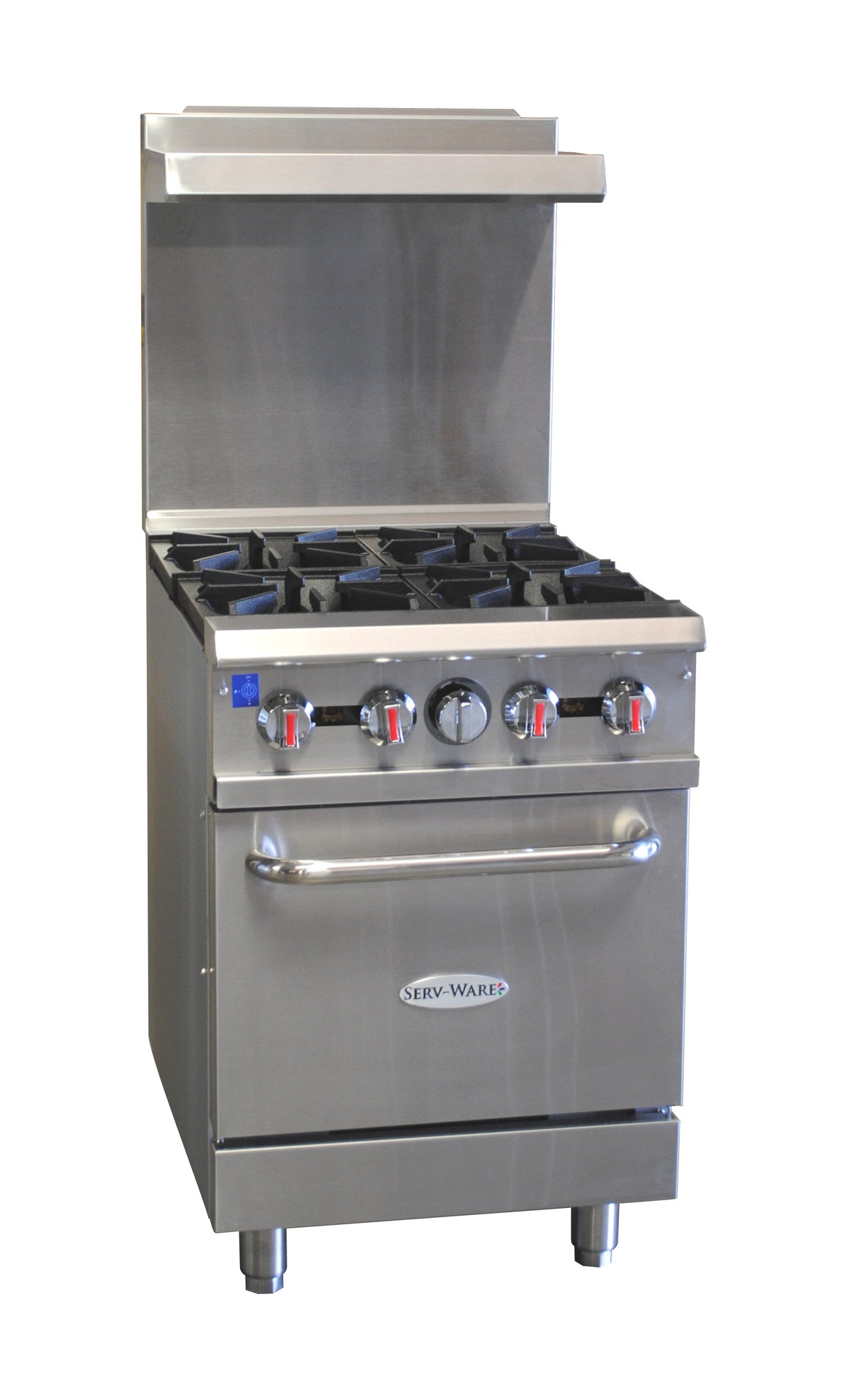

The Serv-Ware SGR-4B-LP is a 24" gas restaurant range for restaurants, diners and institutional kitchens. It has 4 open burners at 30,000 BTU each under removable 12" x 12" heavy duty cast grates, and a standard oven that runs from 250°F to 550°F. It is the liquid propane version of the SGR-4B, with a stainless steel front, back riser, high shelf, oven handle and bullnose, a porcelain door liner and oven bottom, and high-temperature knobs with set screws.
Will it fit · Will it hook up
- Outside size
- 24" W × 32.6" D × 60" H (to the top of the high shelf) (servware.com)
- Gas
- Liquid propane, 3/4" gas line, 10" W.C. (Serv-Ware lists 4" W.C. for natural gas)
- Input
- 4 open burners × 30,000 BTU = 120,000 BTU/hr; Serv-Ware does not list the oven burner rating for the LP model (31,000 BTU on the natural gas SGR-4B)
- Oven
- Standard, 250°F to 550°F
- Shipping weight
- 395 lbs (servware.com)
Measure doorways and turns on the delivery path; its smallest outside dimension is the 32.6" depth. Plan a 3/4" gas connection and a ventilation hood as your local code requires. Serv-Ware does not publish clearances to combustible walls. Serv-Ware publishes no separate spec sheet for the LP model; call (201) 467-8222 to confirm before ordering for anything not listed here.
4 × 30,000 BTU burners
Open burners with removable 12" x 12" heavy duty cast grates.
Standard oven, 250°F to 550°F
Porcelain door liner and oven bottom for easy cleaning.
Stainless where it counts
Stainless steel front, back riser, high shelf, oven handle and bullnose; nickel plated bullet feet.
High-heat knobs
High-temperature burner knobs with set screws.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee.
- Ships by freight.
- Gas hookup should be done by a qualified gas installer; the warranty excludes improper conversion and incorrect gas pressure.
- Serv-Ware asks you to inspect all components on arrival and notify the carrier of any damage before signing.
Questions buyers ask
Can it run on natural gas?
This is the liquid propane model. For natural gas, order the SGR-4B, which ships for natural gas with an LP conversion kit.
What gas connection does it need?
A 3/4" gas line. The 4 open burners total 120,000 BTU/hr before the oven.
Will it fit through my door?
The range is 24" wide, 32.6" deep and 60" high to the top of the high shelf, and ships at 395 lbs. Measure every doorway and turn; its smallest outside dimension is the 32.6" depth.
Do I need a hood?
Commercial gas ranges are installed under a ventilation hood in most jurisdictions. Check with your local code official and installer.
What does the warranty cover?

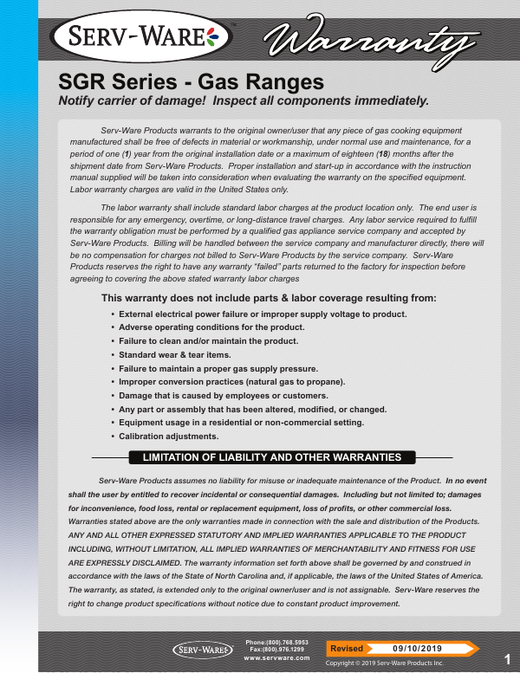

Serv-Ware covers parts and labor on the entire unit for 1 year from installation (up to 18 months from shipment), in the United States and for commercial use only. Labor must be done by a qualified gas appliance service company accepted by Serv-Ware.
When will it ship, and do you match lower prices?
It usually ships in 1 business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.
Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | SGR-4B-LP |
| Quantity | 1/Each |
| Shipping Weight | 395 lb. |
| Width | 24 Inches |
| Depth | 32.6 Inches |
| Height | 60 Inches |
| Legs | Nickel Plated Bullet Feet |
| Gas Type | Liquid Propane |
| Gas Line | 3/4 Inch |
| Gas Pressure | 4 in. W.C. (Natural Gas)10 in. W.C. (LP) |
| Burner BTU | 30,000 BTU/H Each |
| Number of Burners | 4 Open Burners |
| Grates | Removable Heavy Duty Cast12" x 12" |
| Oven | 1 Standard Oven |
| Oven Temperature Range | 250 - 550 Degrees F |
| Exterior | Stainless Steel Front, Back Riser, High Shelf, Oven Handle and Bullnose |
| Oven Interior | Porcelain Door Liner and Oven Bottom |
| Knobs | High Temperature with Set Screw |
| Warranty | 1 Year Parts & Labor (Entire Unit) |
| Usage | Commercial Use Only |
