Description
Hold 5 pans of hot food on a buffet or serving line without needing an electrical outlet.

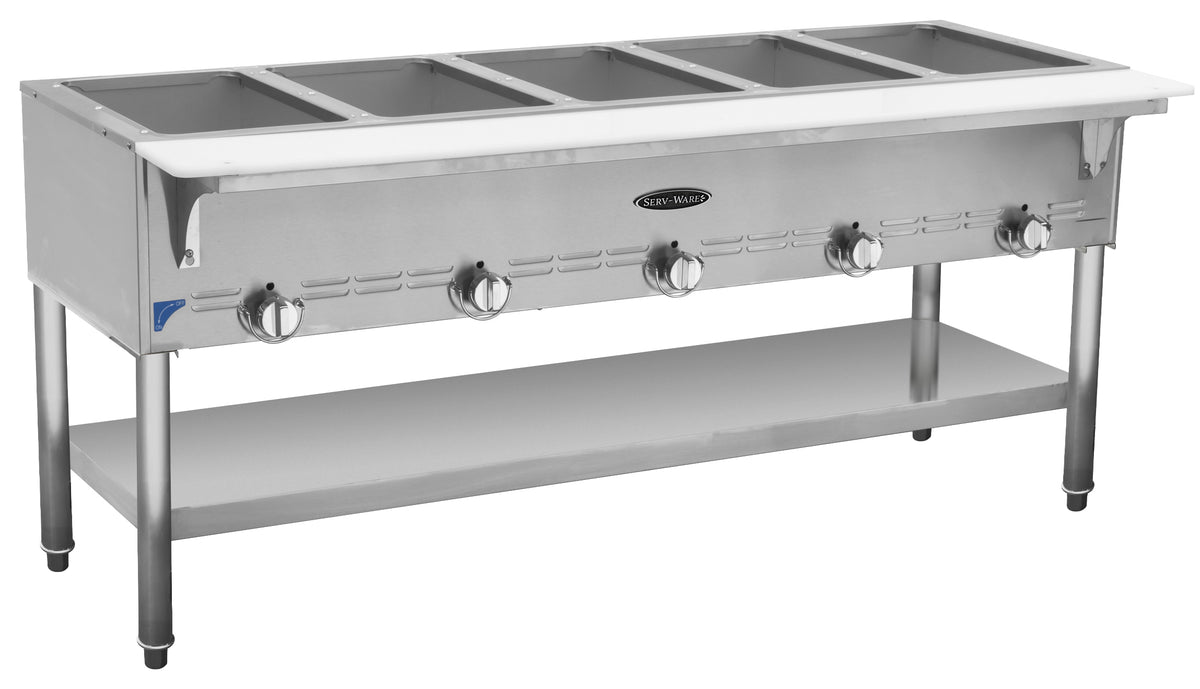

The Serv-Ware SWGST-5-LP is a 5-well gas steam table for restaurants, caterers, cafeterias and buffet lines. Each open well has its own 3,100 BTU jet burner (15,500 BTU total) and is 8" deep to take 6" deep food pans. It has a stainless steel housing with outside insulation, a 7" wide full-length polyethylene cutting board, stainless legs and an undershelf, and it is cETLus and ETL Sanitation listed. It is built for liquid propane, and Serv-Ware includes a natural gas conversion kit.
Will it fit · Will it hook up
- Outside size
- 72.32" W × 29.6" D × 32.92" H (spec sheet drawing; the technical table lists 72.3" × 29.5" × 33.5")
- Depth detail
- 22.5" body plus the 7" cutting board on the front
- Wells
- 5 open wells, 8" deep, for food pans up to 6" deep
- Gas

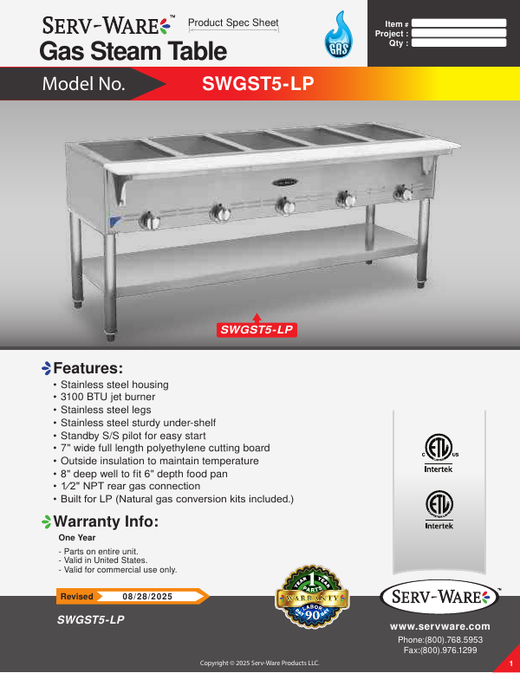

- Built for liquid propane; natural gas conversion kit included (Serv-Ware spec sheet), 4" W.C. natural gas / 10" W.C. LP; rear gas connection
- Total input
- 15,500 BTU/hr (5 burners × 3,100)
- Shipping weight
- 290 lbs
Measure doorways on the delivery path; its smallest outside dimension is the 29.6" depth. Serv-Ware lists the gas connection as both 1/2" NPT (features) and 3/4" (technical table), so confirm the fitting with your installer or call (201) 467-8222 before ordering. Serv-Ware does not publish clearances to combustible walls on the spec sheet.
5 burners, one per well
Each well is heated by its own 3,100 BTU jet burner with a standby stainless steel pilot for easy lighting.
8" deep open wells
The wells are 8" deep and take food pans up to 6" deep.
Cutting board up front
A 7" wide full-length polyethylene cutting board gives a plating and serving ledge.
Insulated stainless body
Stainless steel housing, front, sides and legs, with outside insulation to help hold temperature.
Storage below
A sturdy stainless steel undershelf holds pans, lids and supplies.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Usually ships in 1 business day.
- Covered by our Best Price Guarantee.
- Ships by freight.
- Gas hookup and any natural gas conversion should be done by a qualified gas installer; the warranty excludes improper gas conversion and incorrect gas pressure.
- Serv-Ware asks you to inspect all components on arrival and notify the carrier of any damage before signing.
Questions buyers ask
Does it need electricity?
The spec sheet lists only a gas supply: liquid propane at 10" W.C. and a rear gas connection. No electrical rating is listed.
Can it run on natural gas?
Yes. It is built for liquid propane and Serv-Ware includes a natural gas conversion kit. Have a qualified gas technician do the conversion.
What pans fit?
Each of the 5 open wells is 8" deep and takes a food pan up to 6" deep. Pans are not listed as included.
What gas line size does it need?
Serv-Ware lists both a 1/2" NPT rear gas connection and a 3/4" gas line on the same spec sheet. Confirm with your installer or call us before ordering.
Will it fit through my door?
It is 72.32" wide, 29.6" deep (with the cutting board) and 32.92" high, and ships at 290 lbs. Measure each doorway and turn; the smallest outside dimension is the 29.6" depth.
What does the warranty cover?
Serv-Ware covers parts on the entire unit for 1 year (the warranty badge adds 90 days labor), from installation up to 18 months from shipment, in the US and for commercial use only. Labor must be done by a qualified gas appliance service company.
When will it ship, and do you match lower prices?
It usually ships in 1 business day, shipping is free on this item, and it is covered by our Best Price Guarantee. Call (201) 467-8222 if you find a lower price.
Specs
| Manufacturer | Serv-Ware |
|---|---|
| Model Number | SWGST-5-LP |
| Quantity | 1/Each |
| Shipping Weight | 290 lb. |
| Width | 72.32 Inches |
| Depth | 29.6 Inches (Including 7" Cutting Board) |
| Height | 32.92 Inches |
| Body Depth Without Cutting Board | 22.5 Inches |
| Well Depth | 8 Inches (Fits 6" Deep Pans) |
| Gas Type | Liquid PropaneNatural Gas Conversion Kit Included |
| Gas Pressure | 4 in. W.C. (Natural Gas)10 in. W.C. (LP) |
| Total BTU | 15,500 BTU/H |
| Burner BTU | 3,100 BTU/H Each (Jet Burner) |
| Gas Connection | Rear1/2" NPT (Features) / 3/4" (Technical Table) |
| Pilot | Standby Stainless Steel Pilot |
| Number of Wells | 5 Open Wells |
| Cutting Board | 7" Wide Full-Length Polyethylene |
| Exterior | Stainless Steel Housing, Front, Sides and Legs |
| Insulation | Outside Insulation |
| Undershelf | Stainless Steel |
| Certifications | cETLus, ETL Sanitation |
| Warranty | 1 Year Parts90 Days Labor |
| Usage | Commercial Use Only |
