Description

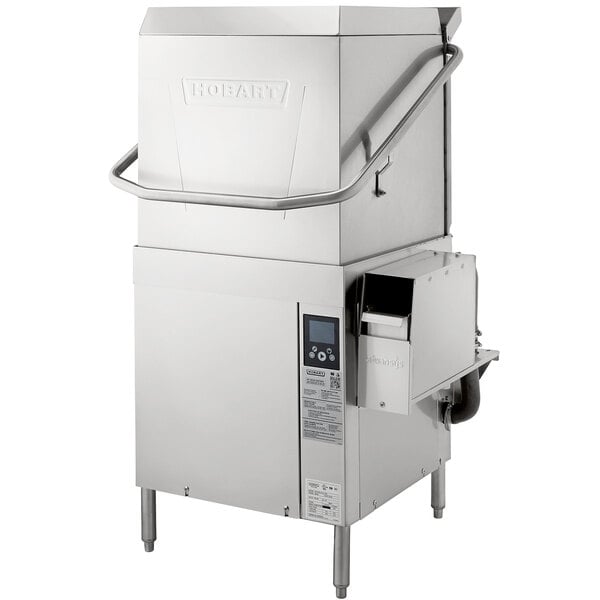

Hobart AM16-ASR ELECTRIC High Temperature Door-Style Dishwashing Machine
Short Description
Specified unit will be Hobart AM16 ASR electric high temperature dishwashing machine. Features include automatic soil removal, Complete Delime™ with Delime Notification, Auto Dispensing and Booster Guard™, 5-sided insulated hood, touchscreen controls with WiFi connectivity, NSF pot and pan rating for 2-, 4- and 6-minute cycles, 17" door opening, pumped drain, auto door start with auto fill, interchangeable stainless steel rinse arms and X-shaped wash arms, advanced diagnostics and service connection, up to 52 racks per hour, .67 U.S. gallons per rack pumped final rinse. 1 year parts and labor warranty.
Standard Features
- .67 gallons per rack pumped final rinse
- 52 racks per hour – hot water sanitizing
- Automatic soil removal (ASR)
- Complete Delime™ with Delime Notification, Auto Dispensing and Booster Guard™
- Pillarless opening
- 5-sided insulated hood
- User-friendly smart touchscreen controls
- Single point electrical connection standard, field convertible to dual point connection
- 3 phase standard, field convertible to single phase
- WiFi connectivity
- SmartConnect app and cloud with machine status, temperature logs, error code reporting, and cost, consumption and usage analysis
- Temperature and chemical lock outs (with Hobart equipped chemical pumps)
- Pumped drain
- Timed wash cycles for 1, 2, 4 or 6 minutes
- NSF pot and pan rating for 2-, 4- and 6- minute cycles
- Sense-A-Temp™ 70°F rise electric booster heater
- Self-draining, high efficiency wash pump with stainless steel impeller
- 17" door opening
- Stainless steel drawn tank, tank shelf, chamber, trim panels, frame and feet
- Spring counterbalanced chamber with reinforced, thermo-plastic rollers
- X-shaped revolving, interchangeable upper and lower anticlogging wash arms
- Revolving, interchangeable upper and lower rinse arms
- Slanted, self-locating, one-piece scrap screen and basket system
- Automatic fill
- Door actuated start
- AutoClean
- Drain water tempering kit
- Factory startup
- Vent fan control
- Service diagnostics
- Straight-through or corner installation
Technical specifications
Specifications
| Manufacturer | Hobart |
|---|---|
| Model Number | AM16-ASR-2 |
| Weight | 340 lbs |
| Design | universal (straight-thru/corner) |
| Racks | single |
| Temperature | high temp with booster |
| Dishwasher Type | Standard |
| Energy Efficiency | ENERGY STAR® |
| Rack capacity | approximately (52) racks/hour |
| Construction | stainless steel |
| Tank Heat | electric |
| Voltage | 208, 240 |
| Drain Type | pump drain system |
| Door Clearance | 17" |
| Number Of Wash Cycle | 4 |
| Certifications | NSF, cULus, ENERGY STAR |
| Phase | 3 |
| Water Consumption(Approx) | 34.84 Gallons Per Hour |
