Description

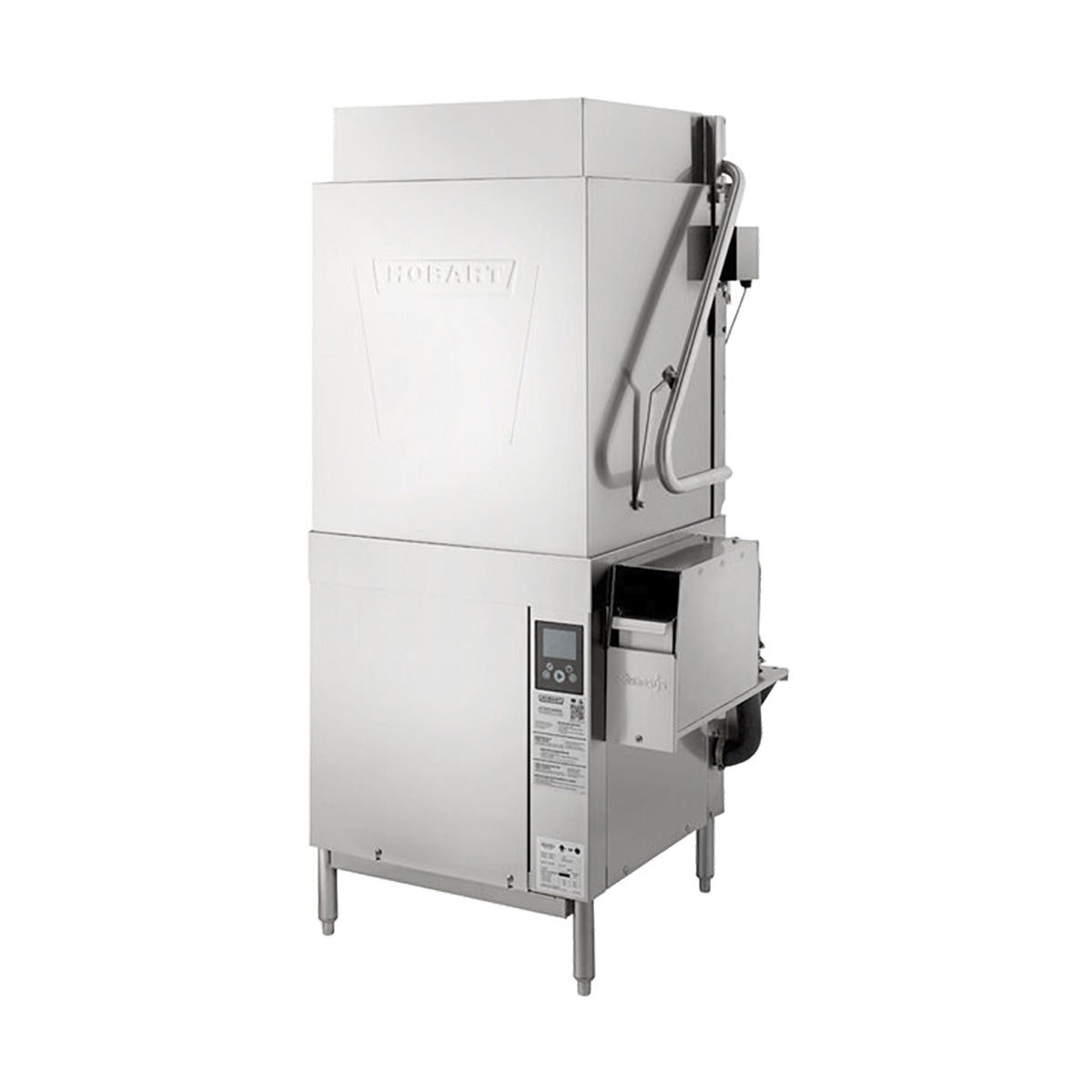

Hobart AM16VLT-ADV-4 Door Type Ventless Dishwashing Machine
Standard Features
- .67 gallons per rack pumped final rinse
- 36 racks per hour - hot water sanitizing
- Drain water energy recovery (DWER)
- Automatic soil removal (ASR)
- Complete Delime™ with Delime Notification, Auto Dispensing and Booster Guard™
- Ventless energy recovery
- Pillarless opening
- 3-sided hood
- User-friendly smart touchscreen controls
- Single point electrical connection standard, field convertible to dual point connection
- 3 phase standard, field convertible to single phase + WiFi connectivity
- SmartConnect app and cloud with machine status, temperature logs, error code reporting, and cost, consumption and usage analysis
- Temperature and chemical lock outs (with Hobart equipped chemical pumps)
- Pumped drain
- Door lock
- Timed wash cycles for 1, 2, 4 or 6 minutes + NSF pot and pan rating for 2-, 4- & 6- minute cycles
- Sense-A-Temp™ 70° F rise electric booster heater + Self-draining, high efficiency wash pump with stainless steel impeller
- 27" door opening for 18" x 26" sheet pans or 60-quart mixing bowl
- Stainless steel drawn tank, tank shelf, chamber, trim panels, frame and feet
- Spring counterbalanced chamber with UHMW guides
- X- shaped revolving, interchangeable upper and lower anticlogging wash arms
- Revolving, interchangeable upper and lower rinse arms
- Slanted, self-locating, one-piece scrap screen and basket system
- Automatic fill
- Door actuated start
- AutoClean
- Drain water tempering kit
- Factory startup
- Service diagnostics
- Straight-through or corner installation
- Sheet pan rack
Technical specifications
Specifications
| Manufacturer | Hobart |
|---|---|
| Model Number | AM16VLT-ADV-4 |
| Weight | 340 lbs |
| Width | 0 |
| Depth | 0 |
| Height | 0 |
| Design | universal (straight-thru/corner) |
| Racks | single |
| Temperature | high temp with booster |
| Dishwasher Type | Ventless |
| Energy Efficiency | ENERGY STAR® |
| Rack capacity | approximately (40) racks/hour |
| Construction | stainless steel |
| Tank Heat | electric |
| Certifications | NSF, cULus, ENERGY STAR |
