Description

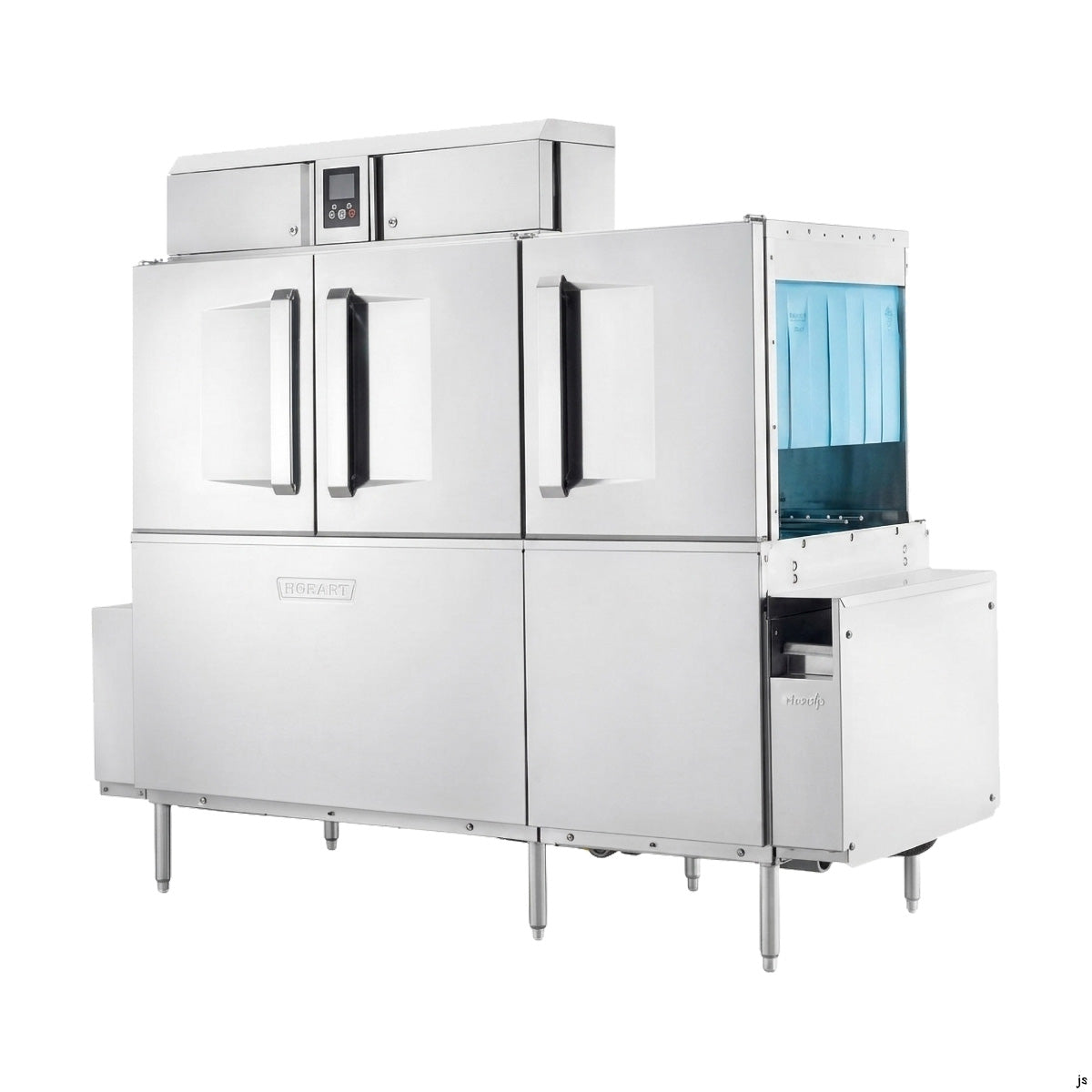

Hobart CLPS66eN-ADV ELECTRIC High Temperature Rack Conveyor Dishwashing Machine
Standard Features:
- 202 racks per hour
- 22" power scrapper
- Drain water energy recovery (DWER)
- Automatic soil removal (ASR)
- Opti-Rinse™ system
- Drain water tempering kit
- Rapid return conveyor drive mechanism
- Internal stainless steel pressure-less 30 KW booster heater
- Dual point electrical connection standard on 208/60/3 and 240/60/3 voltage machines; single point kits available (see page 3)
- Single point connection standard on 480/60/3 and 600/60/3 voltage machines
- Large double door opening for ease of cleaning
- Doors are insulated & hinged with door interlock switches
- 19.5" chamber height opening (accepts sheet pans)
- Top mounted micro-processor control module
- Energy saver mode (programmable auto-shut down)
- Dirty water indicator
- Manager activated low temperature alert
- NSF rated configurable pot and pan dwell mode
- Configurable “intelligent” delime notification
- Service diagnostics
- Self-aligning wash manifolds
- Stainless steel anti-clogging wash arms
- Removable pump intake screen
- Stainless steel self-draining pump and impeller
- Single, sloping scrap screen and deep scrap basket
- Stainless panels enclose perimeter and bottom
- Door actuated drain closure
- Vent fan control
- Booster heater control
- Power scrapper vent cowl curtain kit
- ENERGY STAR® Certified
Specifier Statement
Specified dishwasher will be Hobart CLPS66eN Advansys electric tank heat model with drain water energy recovery (DWER), automatic soil removal (ASR) and Opti-Rinse™. Includes 22" power scrapper, insulated ergonomic cabinet style doors, dirty water indicator, configurable “intelligent” de-lime notification, top mounted computer controls, and NSF approved pot and pan cycle mode. The wash tank utilizes durable precision pressure sensor monitors in lieu of conventional mechanical floats. The 19.5" standard chamber height will accommodate up to (6) standard sheet pans at a time on an open-end sheet pan rack.
Technical specifications
Specifications
| Manufacturer | Hobart |
|---|---|
| Model Number | CL66-ADV+BUILDUP |
| Weight | 624 lbs |
| Width | 66.75 |
| Depth | 30.25 |
| Height | 68.5 |
| Temperature | high temp with booster |
| Energy Efficiency | ENERGY STAR® |
| Rack capacity | approximately (200) racks/hour |
| Construction | stainless steel |
| Tank design | (1) tank without pre-wash |
| Tank Heat | specify |
| Voltage | 208, 240, 480, 600 |
| Certifications | NSF, ENERGY STAR |
| Phase | 3 |
| Water Consumption(Approx) | 126 Gallons Per Hour |
| Energy Recovery System | Drain Water Energy Recovery (DWER) |
| Special Features | advance model, power scrapper |
Configuration and Ordering
Choose the required options above. Your configured price includes the selected fixed-price options. Selections requiring service confirmation are handled through a quote request.
