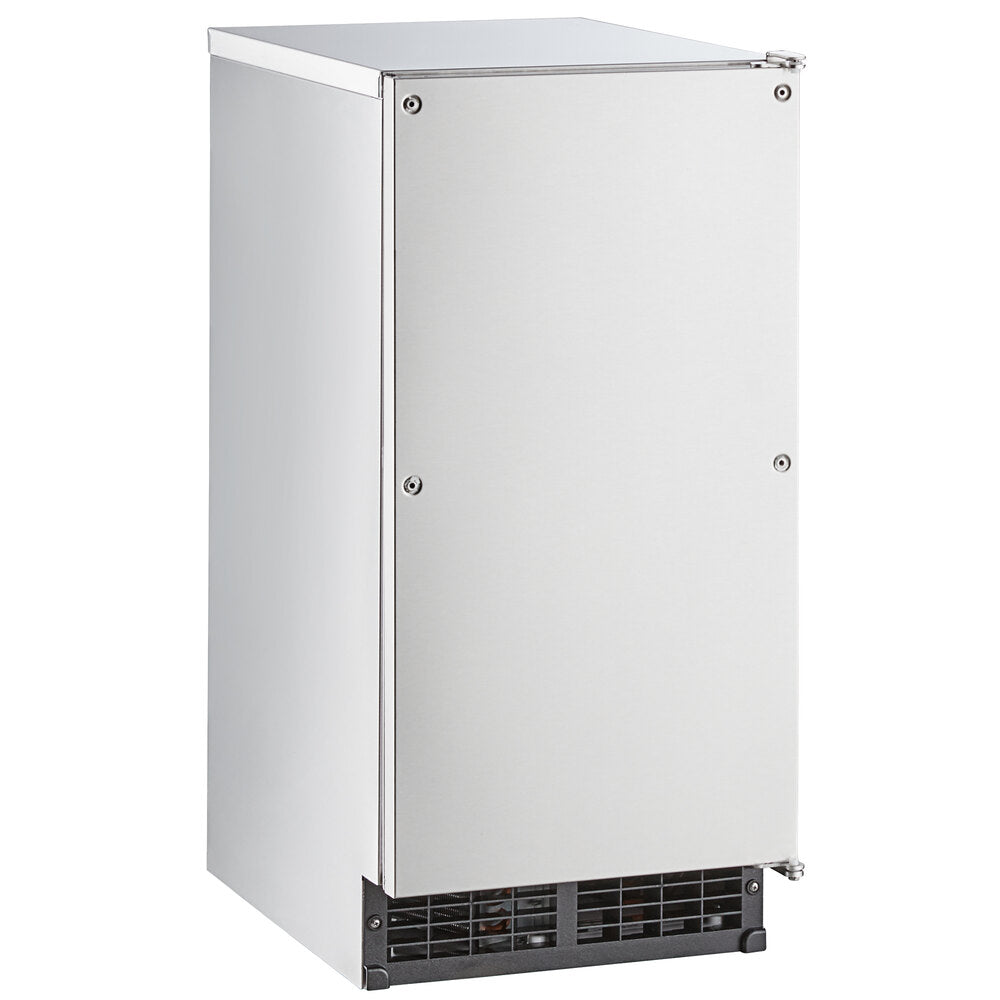

Hoshizaki C-80BAK-ADDS Cubelet Undercounter Ice Machine with 27 lb. Bin, ADA Height, Custom Panel Ready, 92 lb./24 hr, Air-Cooled, 115V
A 15-inch-wide undercounter ice machine that makes up to 92 lb. of mini Cubelet nugget-style ice a day and stores 27 lb. in its own bin.

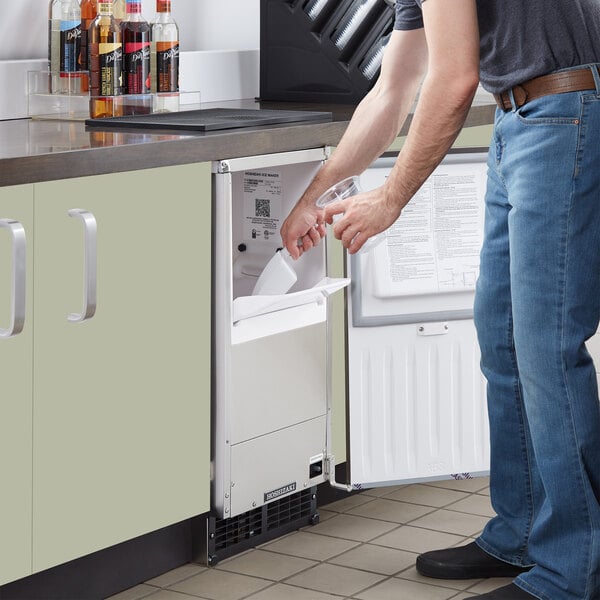

The Hoshizaki C-80BAK-ADDS is a self-contained, air-cooled mini Cubelet nugget-style ice machine with a built-in storage bin, sized for hotel suites, office break rooms, small bars and kitchens. This version has an ADA-compliant height, under 32 inches and is ready for a custom cabinet door panel. It makes up to 92 lb. of ice per 24 hours at 70°F air and 50°F water, and 65 lb. at 90°F air and 70°F water. Air enters and leaves at the front, so it needs no side or rear air gap, and it plugs into a standard 115V outlet with its 6 ft. cord. Hoshizaki lists it as UL approved for outdoor use.
Hoshizaki says to use a GFCI breaker rather than a GFCI receptacle if your code requires GFCI protection.

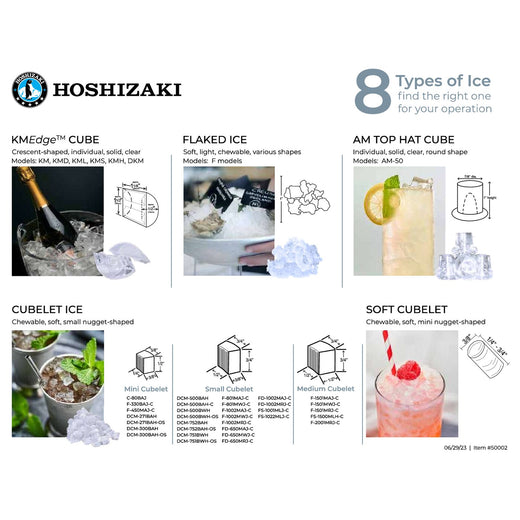

Makes mini Cubelet nugget-style ice for drinks in hotel suites, office break rooms and kitchens.
Front breathing means no side or rear air clearance, so it fits tight spots under a counter. Allow 15" at the front for service.
At 31-1/2" tall it is under 32 inches, which Hoshizaki marks ADA compliant.
Uses 1.9 oz. of R290 hydrocarbon refrigerant. Heat rejection is 1,400 BTU/hr.
The water circuit comes apart easily for cleaning, and the power switch is reachable without removing a panel.
The -DS door system takes a custom cabinet door panel so the machine blends into millwork. The panel is not included; Hoshizaki lists a DS door reversal kit, HS-0229.
It gravity drains through a 1/2" FPT outlet to a 1/2" or larger hard pipe. Where no drain sits below the outlet, add the optional HS-5061 drain pump assembly. No pump is included.
A 115V, 60 Hz, single-phase outlet with a NEMA 5-15 receptacle on a 15 A circuit. It draws 2.8 A and comes with a 6 ft. cord.
Up to 92 lb. per 24 hours at 70°F air and 50°F water, and about 65 lb. at 90°F air and 70°F water. The bin holds up to 27 lb. at a time.
Yes. The -AD models are 31-1/2" tall, under 32 inches, and Hoshizaki marks them ADA compliant.
No. The -DS version is built to take a custom cabinet door panel, and the customer supplies the cabinetry. Product photos show a sample wood panel.
Yes. It is 31-1/2" tall and breathes from the front, so it needs no side or rear air gap. Leave 15" at the front and room behind it for the water and drain lines.

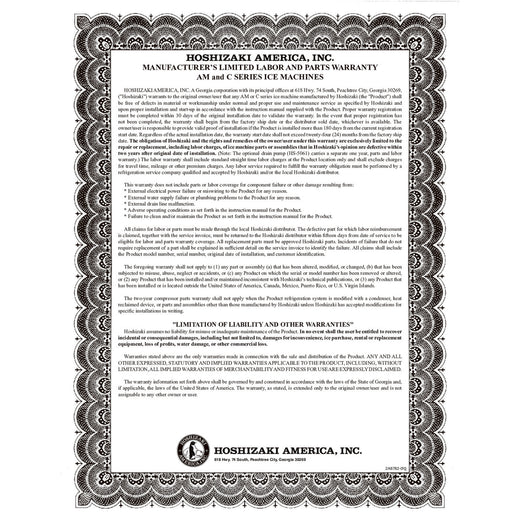

Hoshizaki lists 2 years parts and labor on the entire machine, and 1 year parts and labor on the optional HS-5061 drain pump assembly. Coverage applies in the United States, Canada, Puerto Rico and U.S. territories.
Yes. Hoshizaki equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Hoshizaki |
|---|---|
| Model Number | C-80BAK-ADDS |
| Type | Self-Contained Undercounter Ice Machine with Built-In Storage Bin |
| ADA | ADA Compliant Height, Under 32 Inches |
| Ice Type | Mini Cubelet, Nugget Style |
| Condenser | Air-Cooled |
| Net Weight | 125 lb. |
| Shipping Weight | 134 lb. |
| Width | 14-7/8 Inches |
| Depth | 22-5/8 Inches |
| Height | 31-1/2 Inches |
| Depth Note | Depth does not include the door handle |
| Shipping Dimensions | 20-3/4" x 30-1/2" x 38" |
| Clearance | 15" at FrontRoom at Rear for Water and Drain LinesFront-In, Front-Out Airflow |
| Capacity | 92 lb. per 24 Hours |
| Ice Production at 90°F Air / 70°F Water | 65 lb. per 24 Hours |
| Storage Capacity | 27 lb. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 2.8 Amps |
| Max Fuse Size | 15 Amps |
| Plug Type | NEMA 5-15P |
| Cord | 6 ft., Included |
| Voltage Range | 104 to 127 Volts |
| GFCI | If GFCI is required, use a GFCI breaker, not a GFCI receptacle |
| Refrigerant | R2901.9 oz. |
| Heat Rejection | 1,400 BTU/hr |
| Energy Use | 8.5 kWh per 100 lb. at 90°F/70°F |
| Potable Water Use | 12.0 gal. per 100 lb. at 90°F/70°F |
| Water Inlet | 1/2" FPTMinimum 1/4" Nominal ID Copper Water Tubing |
| Drain | 1/2" FPTMinimum 1/2" Nominal ID Hard Pipe |
| Ambient Temperature | 45°F to 100°F |
| Water Temperature | 45°F to 90°F |
| Water Pressure | 10 to 113 PSIG |
| Exterior | Stainless SteelAccepts Custom Cabinet Door Panel, Not Included |
| Door Handle | Full-Length Stainless Steel |
| Optional Accessories | HS-5061 Drain Pump AssemblyHS-0182 Side Trim KitHS-2133 2" Top Spacer KitH9320-51 Water FilterHS-0229 DS Door Reversal Kit |
| Certifications | NSF, UL, ENERGY STAR |
| Outdoor Use | UL Approved for Outdoor Use |
| Warranty | 2 Years Parts and Labor, Entire Machine |
| Drain Pump Warranty | 1 Year Parts and Labor on Optional HS-5061 Drain Pump |
