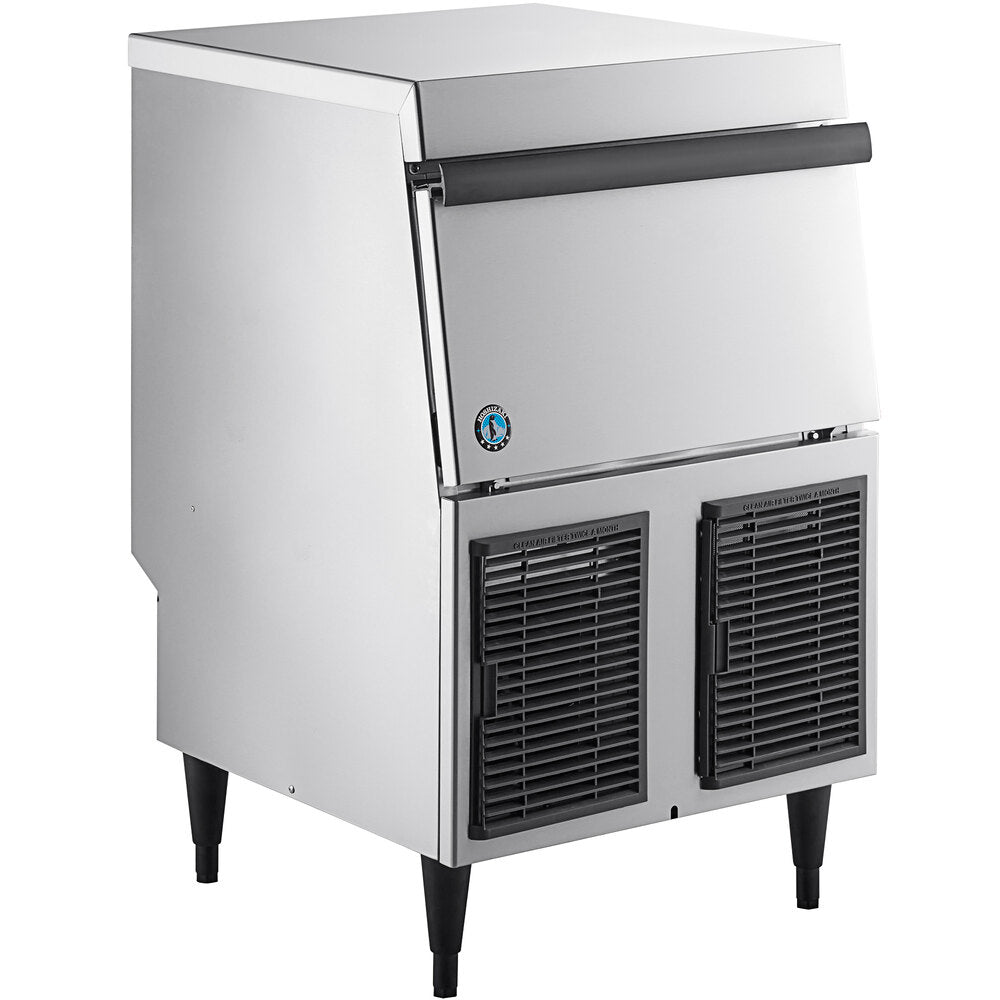

Hoshizaki F-330BAK-C Cubelet Ice Machine with 80 lb. Bin, 300 lb./24 hr, Air-Cooled, 115V, 24" W
A 24-inch-wide self-contained machine that makes up to 300 lb. of mini Cubelet nugget-style ice a day and holds 80 lb. in its built-in bin.
The Hoshizaki F-330BAK-C is an air-cooled, self-contained Cubelet ice machine with a built-in 80 lb. storage bin, made for operations that serve Cubelet nugget-style ice. It produces up to 300 lb. per 24 hours at 70°F air and 50°F water, and 250 lb. at 90°F air and 70°F water. Advanced CleanCycle24 flushes the water system for 2 seconds every hour, and the stainless steel auger runs on a greaseless bearing. It breathes from the front and plugs into a 115V outlet with its 8 ft. cord.
The 39" height includes the 6" legs; plan 24" of open space above for auger service.
Makes mini Cubelet nugget-style ice in the built-in 80 lb. bin.
Advanced CleanCycle24 runs a 2-second flush every hour to remove sediment and keep the water system clean.
The stainless steel auger turns on a greaseless bearing for easier maintenance.
Air moves in and out at the front, so it fits tight spaces. The air filters lift out for cleaning.

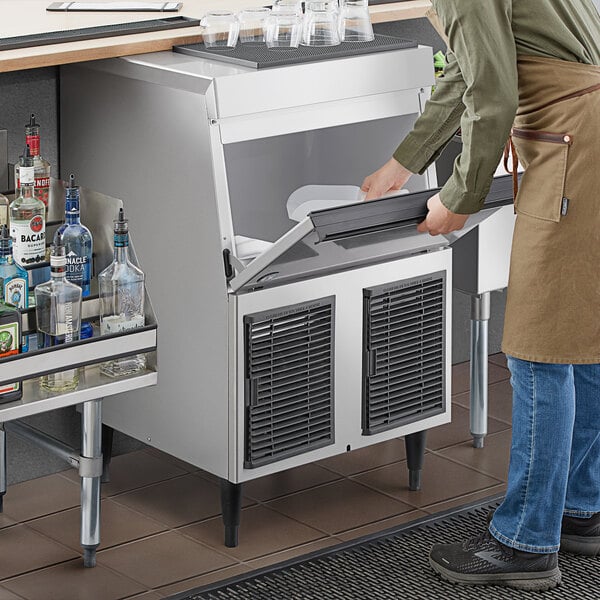

A drop-down bin door and front access to components make service easier.
ENERGY STAR qualified with R290 hydrocarbon refrigerant, 2.8 oz. It uses 5.0 kWh per 100 lb. of ice at 90°F/70°F.
Up to 300 lb. per 24 hours at 70°F air and 50°F water, and 250 lb. at 90°F air and 70°F water. The bin holds 80 lb., rated to AHRI Standard 820.
A 115V, 60 Hz, single-phase NEMA 5-15 outlet on a 15 A circuit. It draws 6.3 A and comes with an 8 ft. cord and plug.
It is 24" W x 26" D x 39" H with 6" legs. It breathes from the front, but leave 24" above it so the auger can be removed for service.
The listing offers a leg package choice: four 6" painted grey legs as standard, or four 6" stainless steel legs. Pick the one you want when you order.
Yes. Hoshizaki marks the F-330BAK-C ENERGY STAR qualified. It uses 5.0 kWh and 12 gal. of water per 100 lb. of ice at 90°F/70°F.

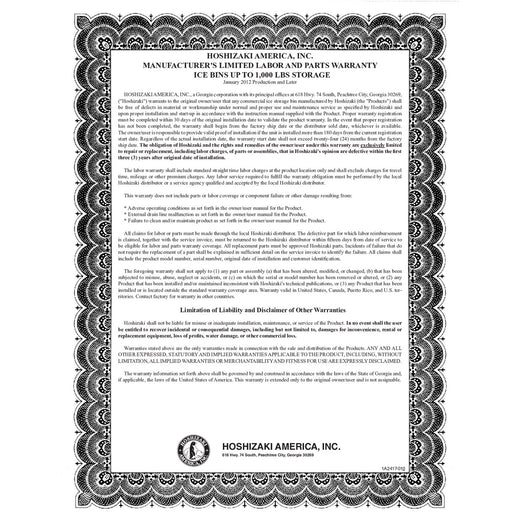

Hoshizaki lists 3 years parts and labor on the entire machine, and 5 years parts on the compressor and air-cooled condenser coil, valid in the United States, Canada, Puerto Rico and U.S. territories.
Yes. Hoshizaki equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Hoshizaki |
|---|---|
| Model Number | F-330BAK-C |
| Type | Self-Contained Ice Machine with Built-In Storage Bin |
| Ice Type | Mini Cubelet, Nugget Style |
| Condenser | Air-Cooled |
| Net Weight | 147 lb. |
| Shipping Weight | 178 lb. |
| Width | 24 Inches |
| Depth | 26 Inches |
| Height | 39 Inches |
| Legs | 6" Legs, Included in Height |
| Shipping Dimensions | 33" x 25-1/4" x 38-1/2" |
| Clearance | 24" at Top for Auger RemovalFront Breathing |
| Capacity | 300 lb. per 24 Hours |
| Ice Production at 90°F Air / 70°F Water | 250 lb. per 24 Hours |
| Storage Capacity | 80 lb.2.7 cu. ft. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 6.3 Amps |
| Max Fuse Size | 15 Amps |
| Plug Type | NEMA 5-15P |
| Cord | 8 ft., Included |
| Voltage Range | 108 to 127 Volts |
| Refrigerant | R2902.8 oz. |
| Heat Rejection | 3,400 BTU/hr |
| Energy Use | 5.0 kWh per 100 lb. at 90°F/70°F |
| Potable Water Use | 12.0 gal. per 100 lb. at 90°F/70°F |
| Water Inlet | 1/2" FPTMinimum 1/4" Nominal ID Copper Water Tubing |
| Drain | 3/4" FPTMinimum 3/4" Nominal ID Hard Pipe |
| Ambient Temperature | 45°F to 100°F |
| Water Temperature | 45°F to 90°F |
| Water Pressure | 10 to 113 PSIG |
| Exterior | Stainless SteelDrop-Down DoorRemovable Air Filters |
| Auger | Stainless Steel with Greaseless Bearing |
| Cleaning | Advanced CleanCycle242-Second Flush Every Hour |
| Leg Package | Four 6" Painted Grey Legs StandardFour 6" Stainless Steel Legs Optional |
| Certifications | ENERGY STAR, NSF, UL, AHRI Certified |
| Warranty | 3 Years Parts and Labor, Entire Machine |
| Extended Coverage | 5 Years Parts on Compressor and Air-Cooled Condenser Coil |
