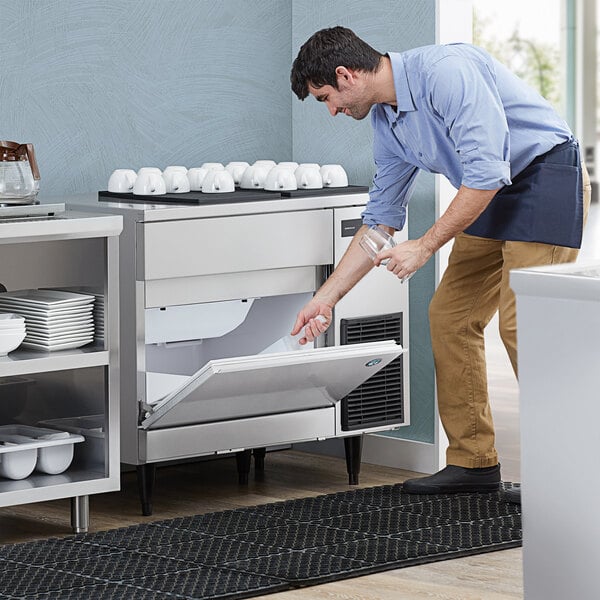

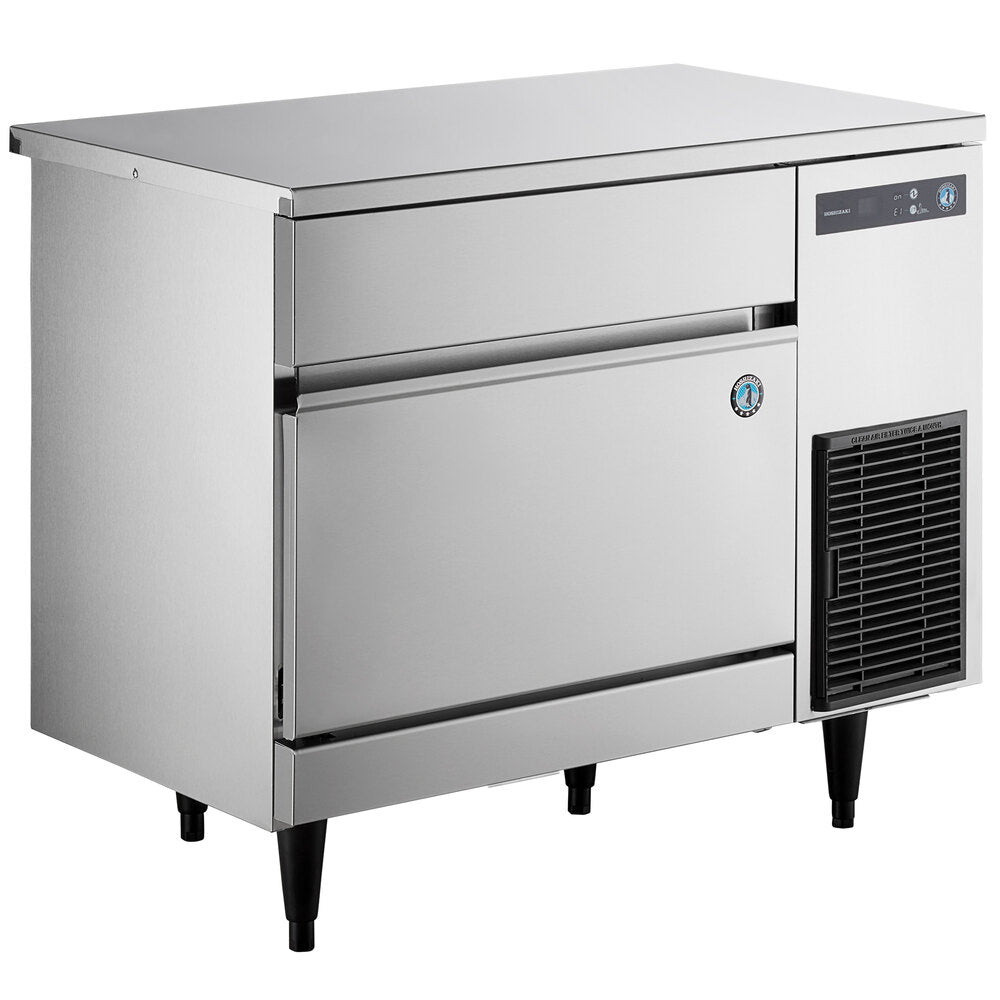

Hoshizaki IM-200BAK 1by1 Square Cube Undercounter Ice Machine with 75 lb. Bin, 186 lb./24 hr, Air-Cooled, 115V, 39-1/2" W
An undercounter square cuber that makes up to 186 lb. of large, clear 1by1 cubes a day for bars and beverage service.
The Hoshizaki IM-200BAK is a self-contained, air-cooled square cuber with a built-in 75 lb. storage bin. Each cube is made individually by a dedicated jet spray, giving large, clear, slow-melting cubes for cocktails, spirits, soft drinks and iced coffee. It makes up to 186 lb. per 24 hours at 70°F air and 50°F water, and 150 lb. at 90°F air and 70°F water. It stands 33-1/2" tall on five 6" legs and plugs into a 115V outlet with a 6 ft. cord.
Do not place more than 33 lb. on the top panel, so it should not carry heavy equipment.
Large, individual, clear square cubes, about 1" x 1" x 1-1/4", melt slowly for a premium drink.
Each cube is made individually by a dedicated jet spray.
The built-in bin holds 75 lb., 2.5 cu. ft., rated to AHRI Standard 820. An ice scoop is included.
The EverCheck alert system flags service and maintenance needs.
Durable stainless steel exterior with a removable air filter and panels that come off for service.
ENERGY STAR qualified with 4.4 oz. of R290 refrigerant. It uses 6.5 kWh per 100 lb. of ice at 90°F/70°F.
Up to 186 lb. per 24 hours at 70°F air and 50°F water, and 150 lb. at 90°F air and 70°F water. The bin holds 75 lb.
Hoshizaki shows the IM cube at about 1" x 1" x 1-1/4". Each cube is clear and made individually.
A 115V, 60 Hz, single-phase NEMA 5-15 outlet on a 15 A circuit. It draws 5 A and comes with a 6 ft. cord and plug.
It is 39-1/2" W x 23-5/8" D x 33-1/2" H on its legs. Leave 6" on the right and 2" at the rear, plus 2" on the left with 0" on top, or 5/8" on the left with 2" on top.
Yes. Hoshizaki marks the IM-200BAK ENERGY STAR qualified. It uses 6.5 kWh and 23 gal. of water per 100 lb. of ice at 90°F/70°F.

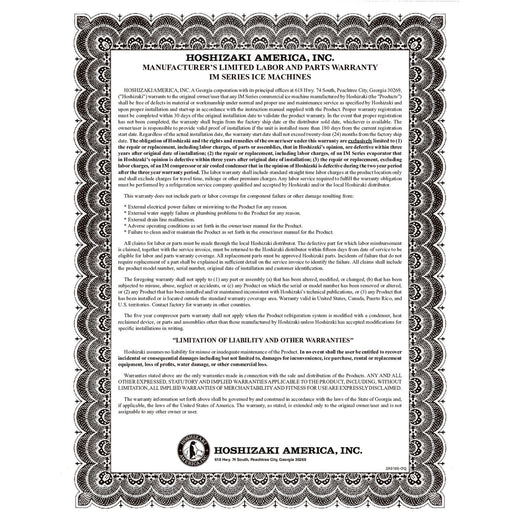

Hoshizaki lists 3 years parts and labor on the entire machine, and 5 years parts on the compressor and air-cooled condenser coil, valid in the United States, Canada, Puerto Rico and U.S. territories.
Yes. Hoshizaki equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.

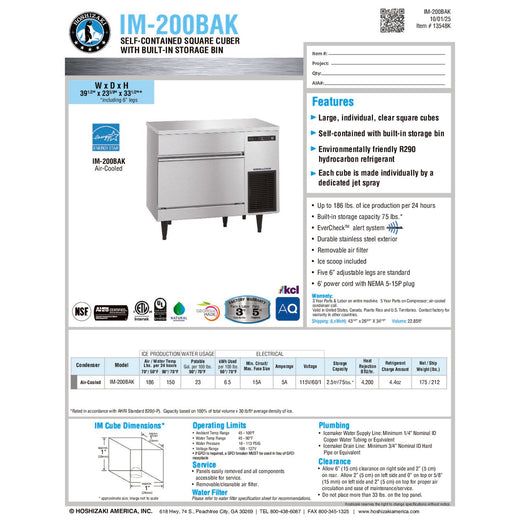

Specs
| Manufacturer | Hoshizaki |
|---|---|
| Model Number | IM-200BAK |
| Type | Self-Contained Square Cuber with Built-In Storage Bin |
| Ice Type | 1by1 Square Cube |
| Cube Size | About 1" x 1" x 1-1/4" |
| Condenser | Air-Cooled |
| Net Weight | 175 lb. |
| Shipping Weight | 212 lb. |
| Width | 39-1/2 Inches |
| Depth | 23-5/8 Inches |
| Height | 33-1/2 Inches |
| Legs | Five 6" Adjustable Legs, Included in Height |
| Shipping Dimensions | 43-1/4" x 26-3/4" x 34-1/8" |
| Clearance | 6" Right Side2" Rear2" Left and 0" Top, or 5/8" Left and 2" Top |
| Capacity | 186 lb. per 24 Hours |
| Ice Production at 90°F Air / 70°F Water | 150 lb. per 24 Hours |
| Storage Capacity | 75 lb.2.5 cu. ft. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 5 Amps |
| Max Fuse Size | 15 Amps |
| Plug Type | NEMA 5-15P |
| Cord | 6 ft., Included |
| Voltage Range | 108 to 127 Volts |
| Refrigerant | R2904.4 oz. |
| Heat Rejection | 4,200 BTU/hr |
| Energy Use | 6.5 kWh per 100 lb. at 90°F/70°F |
| Potable Water Use | 23 gal. per 100 lb. at 90°F/70°F |
| Water Inlet | 1/2" FPTMinimum 1/4" Nominal ID Copper Water Tubing |
| Drain | 3/4" FPTMinimum 3/4" Nominal ID Hard Pipe |
| Ambient Temperature | 45°F to 100°F |
| Water Temperature | 45°F to 90°F |
| Water Pressure | 10 to 113 PSIG |
| Top Panel Load | No More than 33 lb. |
| Exterior | Stainless SteelRemovable Air Filter |
| Controls | EverCheck Alert System |
| Included | Ice ScoopFive 6" Adjustable Legs |
| Certifications | ENERGY STAR, NSF, UL, ETL, AHRI Certified |
| Warranty | 3 Years Parts and Labor, Entire Machine |
| Extended Coverage | 5 Years Parts on Compressor and Air-Cooled Condenser Coil |
