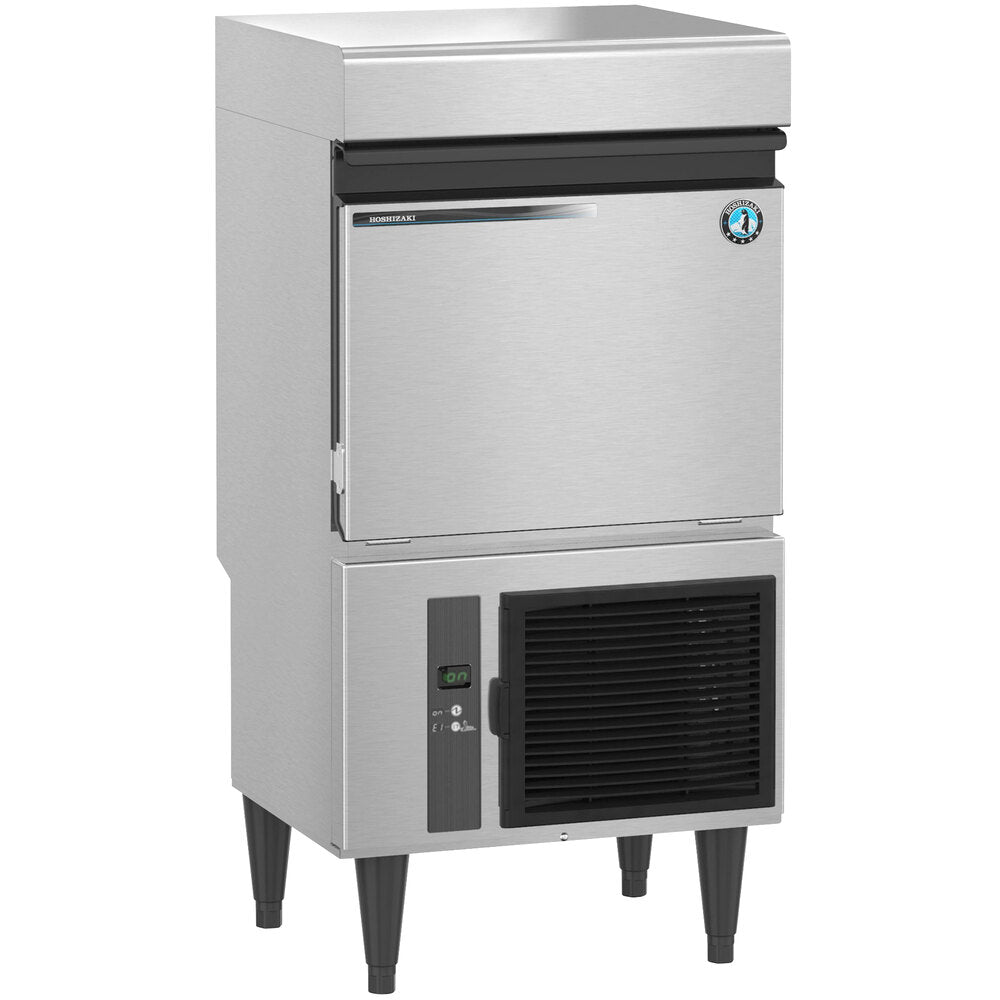

Hoshizaki IM-50BAA-LM 2by2 Large Square Cube Ice Machine with 22 lb. Bin, 50 lb./24 hr, Air-Cooled, 115V, 19-3/4" W
A compact bar machine that makes large, clear 2-inch square cubes for spirits and cocktails, with a 22 lb. bin.
The Hoshizaki IM-50BAA-LM is a self-contained, air-cooled ice machine with a built-in 22 lb. bin that makes clear, solid 1.9" x 1.9" x 2.3" cubes, about 4.2 oz. each. It produces up to 50 lb. per 24 hours, about 172 cubes, at 70°F air and 50°F water, and 45 lb. at 90°F air and 70°F water. The square cube melts very slowly, chilling a drink with little dilution. Its small footprint fits under a bar counter, and it plugs into a 115V outlet with a 6.5 ft. cord.
Air enters at the front and exits at the back, so keep the 6" rear clearance open.
Makes clear, solid 1.9" x 1.9" x 2.3" cubes, about 4.2 oz. each that melt slowly and look good in the glass.
Hoshizaki says the closed water circuit offers the ultimate contamination protection.
At 19-3/4" wide and 17-3/4" deep it fits under a bar counter.
Durable stainless steel exterior, HFC-free foamed polyurethane insulation and an easy-to-clean air filter.
An ice scoop comes with the machine.
Up to 50 lb. per 24 hours, about 172 cubes, at 70°F air and 50°F water, and 45 lb. at 90°F air and 70°F water. The bin holds 22 lb.
Each cube is a clear, solid 1.9" x 1.9" x 2.3" cube, about 4.2 oz. each.
A 115V, 60 Hz, single-phase NEMA 5-15 outlet on a 15 A circuit. It draws 5 A and comes with a 6.5 ft. cord and plug.
It is 19-3/4" W x 17-3/4" D x 39-1/2" H with legs. Leave 6" at the top and rear, and 6" on either the left or right side.
Hoshizaki lists 3 years parts and labor on the entire machine, and 5 years parts on the compressor and air-cooled condenser coil, valid in the United States, Canada, Puerto Rico and U.S. territories.
Yes. Hoshizaki equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Hoshizaki |
|---|---|
| Model Number | IM-50BAA-LM |
| Type | Large 2-Inch Square Cube Ice Machine with Built-In Storage Bin |
| Ice Type | 2by2 Large Square Cube |
| Cube Size | 1.9" x 1.9" x 2.3"About 4.2 oz. per Cube |
| Condenser | Air-Cooled |
| Net Weight | 115 lb. |
| Shipping Weight | 137 lb. |
| Width | 19-3/4 Inches |
| Depth | 17-3/4 Inches |
| Height | 39-1/2 Inches |
| Legs | 6" Legs, Included in Height |
| Shipping Dimensions | 24" x 22" x 38" |
| Clearance | 6" Top and Rear6" Left and 0" Right, or 0" Left and 6" Right |
| Capacity | 50 lb. per 24 Hours |
| Ice Production at 90°F Air / 70°F Water | 45 lb. per 24 Hours |
| Pieces per Day | About 172 Cubes |
| Storage Capacity | 22 lb. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 5 Amps |
| Max Fuse Size | 15 Amps |
| Plug Type | NEMA 5-15P |
| Cord | 6.5 ft., Included |
| Voltage Range | 104 to 127 Volts |
| Refrigerant | R-134a6.0 oz. |
| Heat Rejection | 1,500 BTU/hr |
| Energy Use | 15.7 kWh per 100 lb. at 90°F/70°F |
| Water Inlet | 1/2" FPTMinimum 1/2" Nominal ID Copper Water Tubing |
| Drain | 3/4" FPTMinimum 3/4" Nominal ID Hard Pipe |
| Ambient Temperature | 45°F to 100°F |
| Water Temperature | 45°F to 90°F |
| Water Pressure | 10 to 113 PSIG |
| Exterior | Stainless SteelRemovable Air Filter |
| Insulation | Foamed Polyurethane, HFC Free |
| Included | Ice Scoop |
| Certifications | NSF, UL, ETL, NSF/ANSI 372 |
| Warranty | 3 Years Parts and Labor, Entire Machine |
| Extended Coverage | 5 Years Parts on Compressor and Air-Cooled Condenser Coil |
