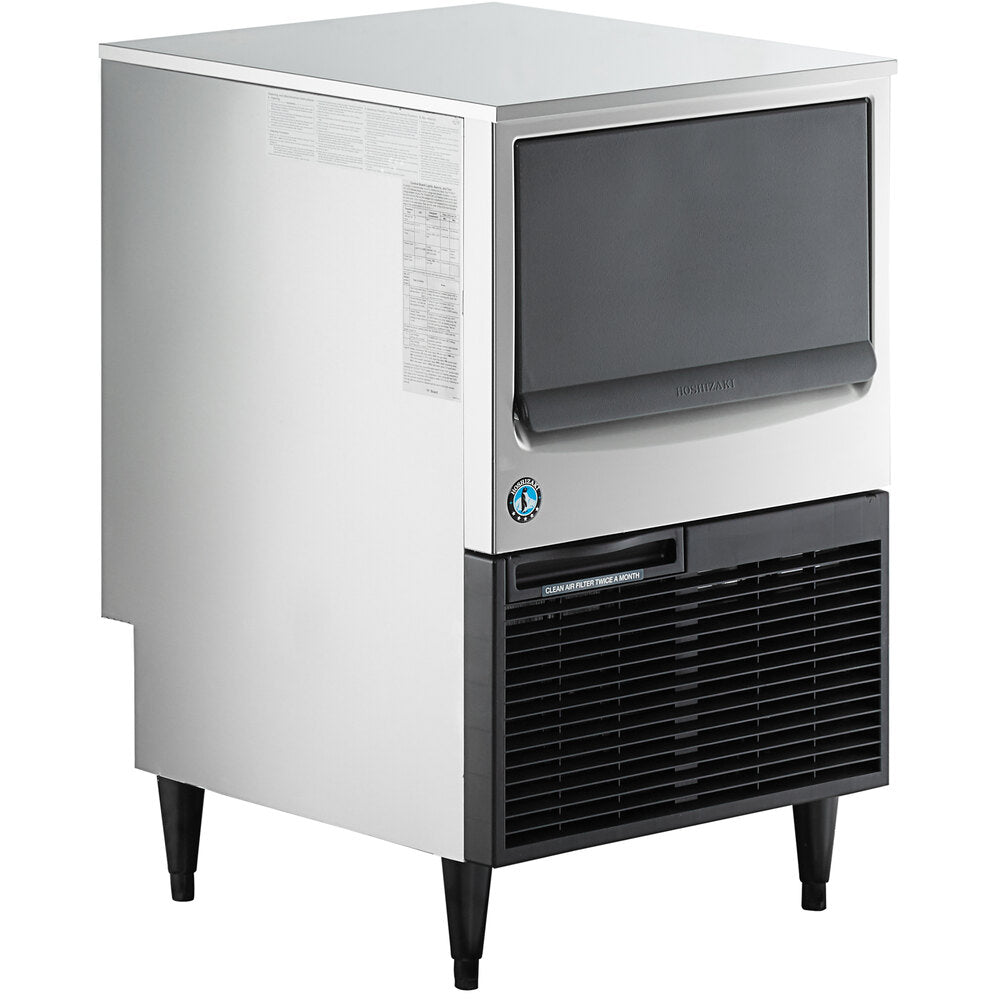

Hoshizaki KM-161BWJ Crescent Cube Undercounter Ice Machine with 78 lb. Bin, 153 lb./24 hr, Water-Cooled, 115V
A 23-3/4-inch-wide undercounter cuber that makes up to 153 lb. of crescent ice a day and stores 78 lb. in its own bin.
The Hoshizaki KM-161BWJ is a self-contained, water-cooled crescent cube ice machine with a built-in storage bin, part of the KM Edge line. It makes up to 153 lb. of ice per 24 hours at 70°F air and 50°F water, and 135 lb. at 90°F air and 70°F water, and its bin holds up to 78 lb. Hoshizaki fits it for small bars, hotel lobbies and office break rooms. It runs on a standard 115V outlet with a 6.5 ft. cord and NEMA 5-15P plug, and the water-cooled condenser needs its own water supply and drain line.
Water-cooled: plan for condenser water use of 161 gal. per 100 lb. of ice at 90°F air and 70°F water.

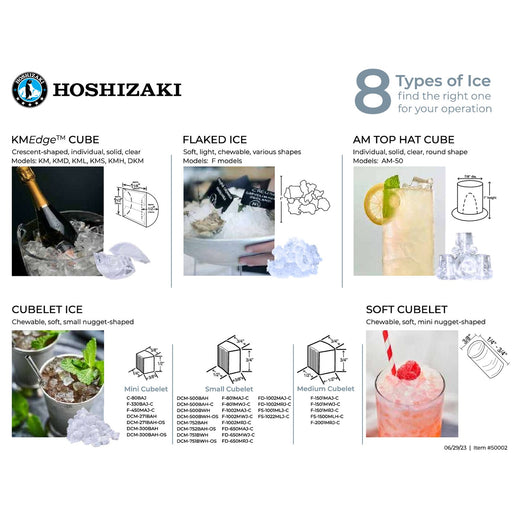

Makes individual crescent cubes, about 1-1/8" x 1-1/2" x 1/2", on a stainless steel evaporator.
Hoshizaki CycleSaver design is part of the KM Edge build and keeps the machine simple to maintain.
The EverCheck alert system flags service and maintenance needs.
The water-cooled condenser uses 161 gal. of condenser water per 100 lb. of ice at 90°F air and 70°F water.
Durable stainless steel exterior with a slide-in door; Hoshizaki marks the ice bin opening ADA compliant.
Uses 10.6 oz. of R-134a refrigerant. Heat rejection is 2,900 BTU/hr.
Up to 153 lb. per 24 hours at 70°F air and 50°F water, and about 135 lb. at 90°F air and 70°F water. The bin holds up to 78 lb.
A 115V, 60 Hz, single-phase NEMA 5-15 outlet on a 15 A circuit. It draws 6.4 A and comes with a 6.5 ft. cord and plug.
It is 23-3/4" W x 28" D x 39" H including 6" legs. Leave at least 12" in front and 0.6" above it for maintenance, plus room behind it for the water, condenser water and drain lines.
A potable water line of at least 1/4" nominal ID copper to the 1/2" FPT inlet, a drain from the 1/2" FPT outlet, water for the water-cooled condenser, and a 115V NEMA 5-15 outlet. Water pressure must be 10 to 113 PSIG.

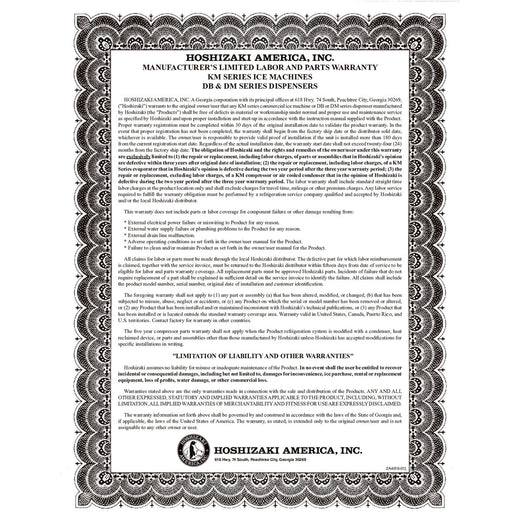

Hoshizaki lists 3 years parts and labor on the entire machine, 5 years parts and labor on the evaporator, and 5 years parts on the compressor and air-cooled condenser coil. Coverage applies in the United States, Canada, Puerto Rico and U.S. territories.
Yes. Hoshizaki equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.

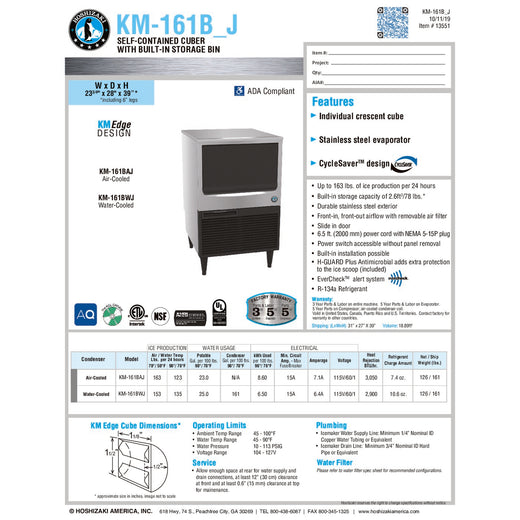

Specs
| Manufacturer | Hoshizaki |
|---|---|
| Model Number | KM-161BWJ |
| Series | KM Edge Crescent Cuber |
| Type | Self-Contained Undercounter Ice Machine with Built-In Storage Bin |
| Ice Type | Crescent Cube |
| Cube Size | About 1-1/8" x 1-1/2" x 1/2" |
| Condenser | Water-Cooled |
| Net Weight | 126 lb. |
| Shipping Weight | 161 lb. |
| Width | 23-3/4 Inches |
| Depth | 28 Inches |
| Height | 39 Inches |
| Legs | 6" Legs, Included in Height |
| Shipping Dimensions | 31" x 27" x 39" |
| Clearance | Allow at least 12" at the front, 0.6" at the top and room at the rear for the water and drain lines |
| Capacity | 153 lb. per 24 Hours |
| Ice Production at 90°F Air / 70°F Water | 135 lb. per 24 Hours |
| Storage Capacity | 78 lb.2.6 cu. ft. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 6.4 Amps |
| Max Fuse Size | 15 Amps |
| Plug Type | NEMA 5-15P |
| Cord | 6.5 ft., Included |
| Voltage Range | 104 to 127 Volts |
| Refrigerant | R-134a10.6 oz. |
| Heat Rejection | 2,900 BTU/hr |
| Energy Use | 6.50 kWh per 100 lb. at 90°F/70°F |
| Potable Water Use | 25.0 gal. per 100 lb. at 90°F/70°F |
| Condenser Water Use | 161 gal. per 100 lb. at 90°F/70°F |
| Water Inlet | 1/2" FPTMinimum 1/4" Nominal ID Copper Water Tubing |
| Drain | 1/2" FPTMinimum 1/4" Nominal ID Hard Pipe or Copper Water Tubing |
| Ambient Temperature | 45°F to 100°F |
| Water Temperature | 45°F to 90°F |
| Water Pressure | 10 to 113 PSIG |
| Exterior | Stainless SteelSlide-In Door |
| Controls | CycleSaver DesignEverCheck Alert System |
| Evaporator | Stainless Steel |
| ADA | ADA Compliant Ice Bin Opening |
| Certifications | NSF, AHRI Certified, UL, ETL |
| Warranty | 3 Years Parts and Labor, Entire Machine |
| Extended Coverage | 5 Years Parts and Labor on Evaporator5 Years Parts on Compressor and Air-Cooled Condenser Coil |
