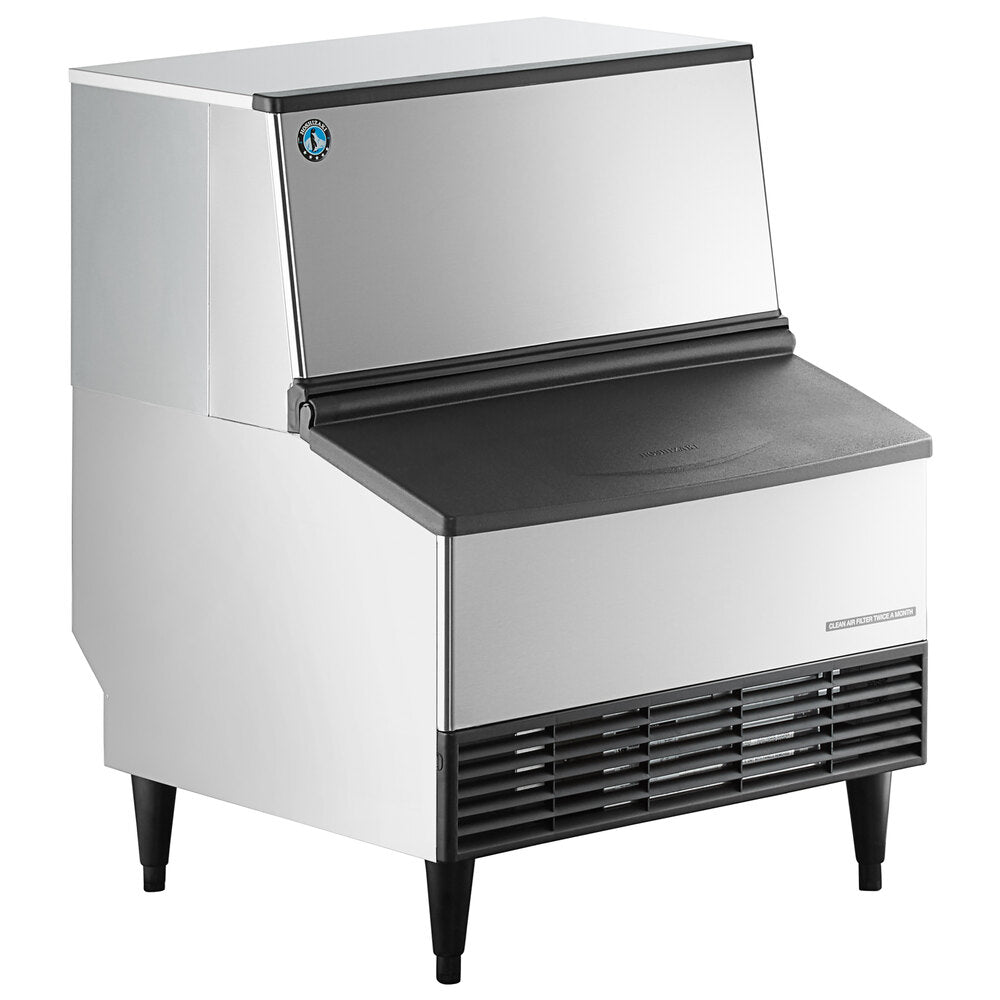

Hoshizaki KM-301BAK Crescent Cube Undercounter Ice Machine with 100 lb. Bin, 285 lb./24 hr, Air-Cooled, 115V
A 30-inch-wide undercounter cuber that makes up to 285 lb. of crescent ice a day and stores 100 lb. in its own bin.

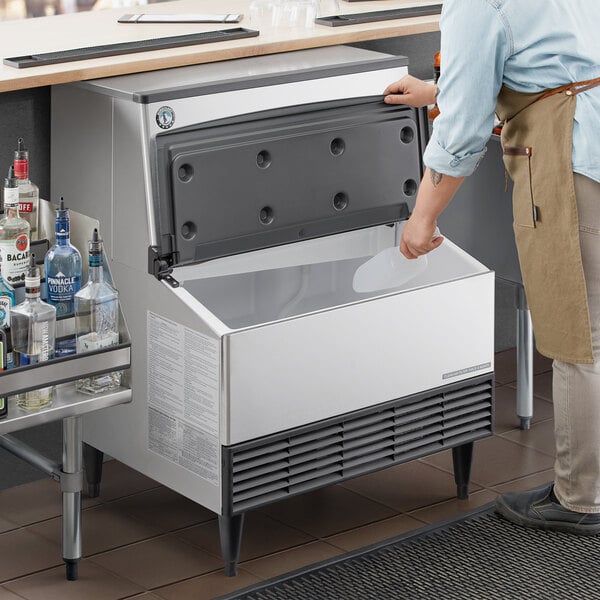

The Hoshizaki KM-301BAK is a self-contained, air-cooled crescent cube ice machine with a built-in storage bin, part of the KM Edge line. It makes up to 285 lb. of ice per 24 hours at 70°F air and 50°F water, and 210 lb. at 90°F air and 70°F water, and its bin holds up to 100 lb. Hoshizaki fits it for small bars, hotel lobbies and office break rooms. It runs on a standard 115V outlet with a 6.5 ft. cord and NEMA 5-15P plug, and air moves in and out at the front.
The ice bin opening is ADA compliant, and the power cord is included.

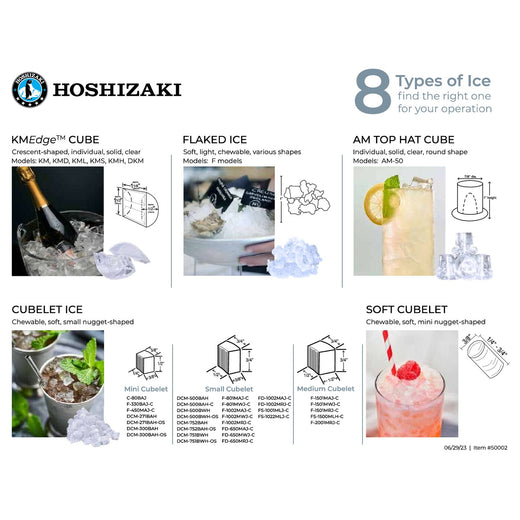

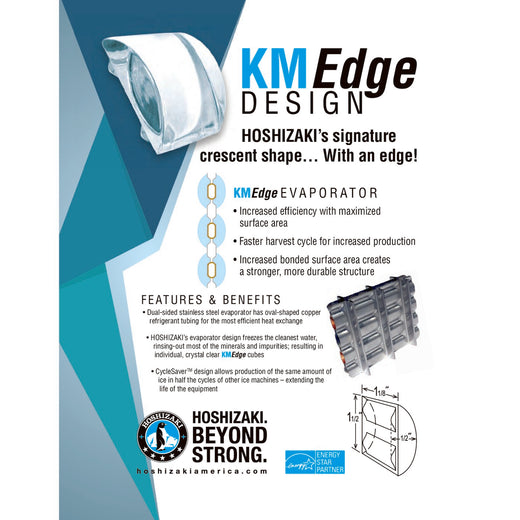

Makes individual crescent cubes, about 1-1/8" x 1-1/2" x 1/2", on a stainless steel evaporator.
Hoshizaki CycleSaver design is part of the KM Edge build and keeps the machine simple to maintain.
The EverCheck alert system flags service and maintenance needs.
Front breathing with a removable air filter helps it fit under a counter.
Durable stainless steel exterior with a slide-in door; Hoshizaki marks the ice bin opening ADA compliant.
Uses 4.8 oz. of R290 hydrocarbon refrigerant. Heat rejection is 5,200 BTU/hr.
Up to 285 lb. per 24 hours at 70°F air and 50°F water, and about 210 lb. at 90°F air and 70°F water. The bin holds up to 100 lb.
A 115V, 60 Hz, single-phase NEMA 5-15 outlet on a 15 A circuit. It draws 5.7 A and comes with a 6.5 ft. cord and plug.
It is 30" W x 28" D x 39" H including 6" legs. Air moves in and out at the front; leave at least 2" on the right side and 0.6" at the top for service, plus room behind it for the water and drain lines.
A potable water line of at least 1/4" nominal ID copper to the 1/2" FPT inlet, a 3/4" or larger hard drain from the 3/4" FPT outlet, and a 115V NEMA 5-15 outlet. Water pressure must be 10 to 113 PSIG.

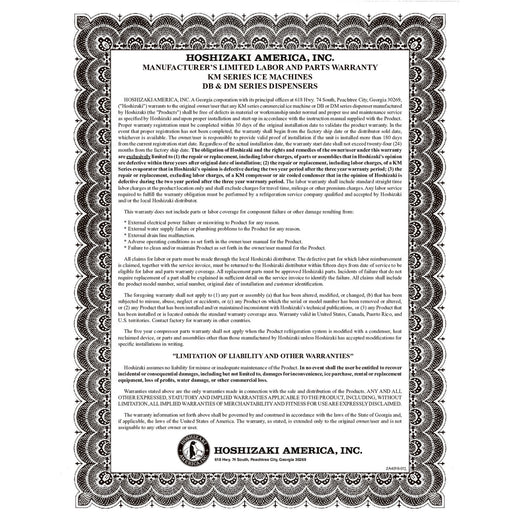

Hoshizaki lists 3 years parts and labor on the entire machine, 5 years parts and labor on the evaporator, and 5 years parts on the compressor and air-cooled condenser coil. Coverage applies in the United States, Canada, Puerto Rico and U.S. territories.
Yes. Hoshizaki equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.

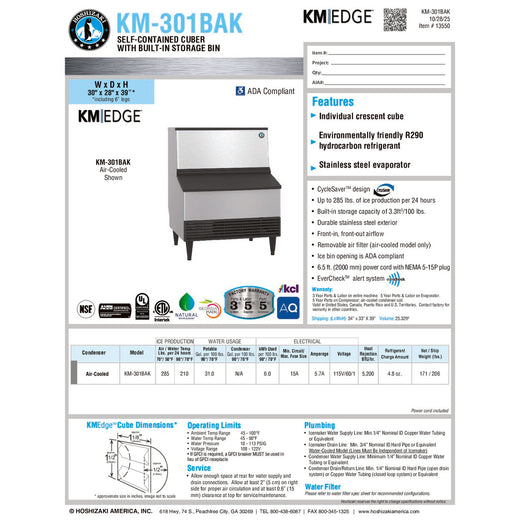

Specs
| Manufacturer | Hoshizaki |
|---|---|
| Model Number | KM-301BAK |
| Series | KM Edge Crescent Cuber |
| Type | Self-Contained Undercounter Ice Machine with Built-In Storage Bin |
| Ice Type | Crescent Cube |
| Cube Size | About 1-1/8" x 1-1/2" x 1/2" |
| Condenser | Air-Cooled |
| Net Weight | 171 lb. |
| Shipping Weight | 206 lb. |
| Width | 30 Inches |
| Depth | 28 Inches |
| Height | 39 Inches |
| Legs | 6" Legs, Included in Height |
| Shipping Dimensions | 34" x 33" x 39" |
| Clearance | Allow at least 2" on the right side for air circulation, 0.6" at the top, and room at the rear for the water and drain lines |
| Capacity | 285 lb. per 24 Hours |
| Ice Production at 90°F Air / 70°F Water | 210 lb. per 24 Hours |
| Storage Capacity | 100 lb.3.3 cu. ft. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 5.7 Amps |
| Max Fuse Size | 15 Amps |
| Plug Type | NEMA 5-15P |
| Cord | 6.5 ft., Included |
| Voltage Range | 108 to 122 Volts |
| Refrigerant | R2904.8 oz. |
| Heat Rejection | 5,200 BTU/hr |
| Energy Use | 6.0 kWh per 100 lb. at 90°F/70°F |
| Potable Water Use | 31.0 gal. per 100 lb. at 90°F/70°F |
| Water Inlet | 1/2" FPTMinimum 1/4" Nominal ID Copper Water Tubing |
| Drain | 3/4" FPTMinimum 3/4" Nominal ID Hard Pipe |
| Ambient Temperature | 45°F to 100°F |
| Water Temperature | 45°F to 90°F |
| Water Pressure | 10 to 113 PSIG |
| Exterior | Stainless SteelSlide-In Door |
| Controls | CycleSaver DesignEverCheck Alert System |
| Evaporator | Stainless Steel |
| ADA | ADA Compliant Ice Bin Opening |
| Certifications | NSF, AHRI Certified, UL, ETL |
| Warranty | 3 Years Parts and Labor, Entire Machine |
| Extended Coverage | 5 Years Parts and Labor on Evaporator5 Years Parts on Compressor and Air-Cooled Condenser Coil |
