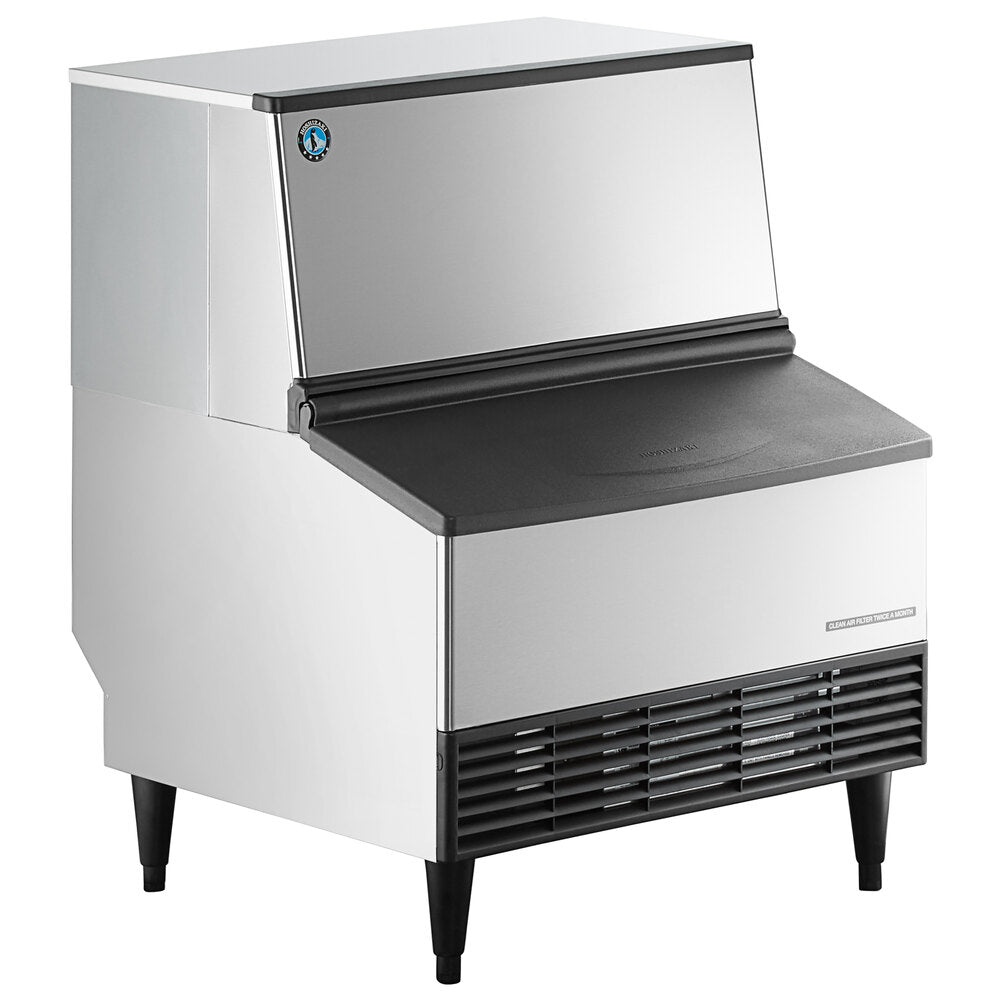

Hoshizaki KM-301BWJ 30" Water-Cooled Crescent Cube Undercounter Ice Machine with Bin, 285 lb/24 hr, 100 lb Storage, 115V
A 30-inch undercounter ice maker that makes up to 285 lb. of crescent cubes a day and stores 100 lb. in its own bin.
The Hoshizaki KM-301BWJ is a self-contained, water-cooled crescent cuber with a built-in storage bin. It makes up to 285 lb. of ice per 24 hours at 70°F air and 50°F water, and 237 lb. at 90°F air and 70°F water, and holds 100 lb. (3.3 cu. ft.) in the bin. A stainless steel exterior, front-in, front-out airflow and an ADA compliant bin opening suit bars, hotel lobbies and break rooms. It plugs into a standard 115V outlet with the included 6.5 ft. cord.
As a water-cooled unit it uses about 92 gal. of condenser water per 100 lb. of ice at 90°F/70°F; plan the condenser supply and drain.
Up to 285 lb. of crescent cubes per 24 hours at 70°F/50°F and 237 lb. at 90°F/70°F, with 100 lb. of built-in storage.
The condenser rejects heat to water instead of room air, so the unit adds little heat to a tight back bar. Heat rejection is 4,050 BTU/hr.

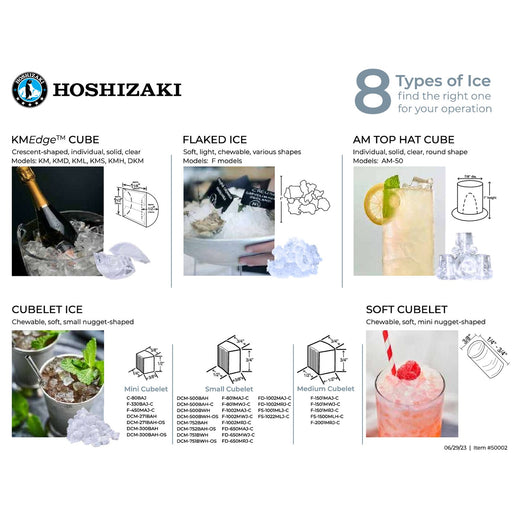

Individual crescent cubes from a stainless steel evaporator. The KMEdge cube is about 1-1/8" x 1-1/2" x 1/2".
Uses 4.9 kWh and 20 gal. of potable water per 100 lb. of ice at 90°F/70°F.
The EverCheck alert system flags service needs early, and the stainless steel exterior wipes clean.
The ice bin opening is ADA compliant, and front-in, front-out airflow lets it sit under a counter.
Up to 285 lb. per 24 hours at 70°F air and 50°F water, and 237 lb. at 90°F air and 70°F water. The bin stores 100 lb.
At 90°F/70°F it uses 20 gal. of potable water and 92 gal. of condenser water per 100 lb. of ice.
A 115V, 60 Hz, single-phase outlet on a 15 A circuit. It draws 5.7 amps and comes with a 6.5 ft. cord and NEMA 5-15P plug.
Yes. The KM-301BAJ is the air-cooled model in the same cabinet, rated up to 290 lb. per 24 hours.
Hoshizaki lists the ice bin opening as ADA compliant. The unit is 39" tall including 6" legs.

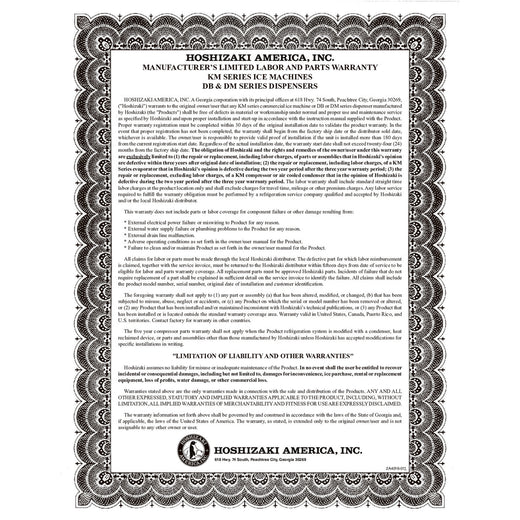

Hoshizaki lists 3 years parts and labor on the entire machine, 5 years parts and labor on the evaporator, and 5 years parts on the compressor and air-cooled condenser coil. Valid in the United States, Canada, Puerto Rico and U.S. territories.
Yes. Hoshizaki equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.

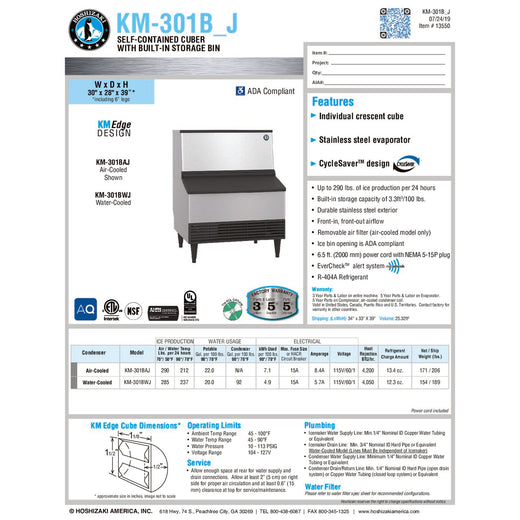

Specs
| Manufacturer | Hoshizaki |
|---|---|
| Model Number | KM-301BWJ |
| Type | Self-Contained Crescent Cuber with Built-In Storage Bin |
| Condenser | Water-Cooled |
| Unit Weight | 154 lb. |
| Shipping Weight | 189 lb. |
| Width | 30 Inches |
| Depth | 28 Inches |
| Height | 39 Inches |
| Legs | 6" Legs Included in Height |
| Shipping Dimensions | 34" x 33" x 39" |
| Capacity | 285 lb. per 24 hr |
| Ice Production 90°F Air / 70°F Water | 237 lb. per 24 hr |
| Storage Capacity | 100 lb.3.3 cu. ft. |
| Ice Type | Crescent Cube, approx. 1-1/8" x 1-1/2" x 1/2" |
| Potable Water | 20 gal. per 100 lb. at 90°F/70°F |
| Condenser Water | 92 gal. per 100 lb. at 90°F/70°F |
| Energy Use | 4.9 kWh per 100 lb. at 90°F/70°F |
| Water Inlet | 1/2" FPTMin. 1/4" Nominal ID Copper Tubing |
| Drain | 3/4" FPTMin. 3/4" Nominal ID Hard Pipe |
| Condenser Lines | Supply Min. 1/4" ID Copper TubingDrain/Return Min. 1/4" IDIndependent of Icemaker |
| Water Pressure | 10 to 113 PSIG |
| Refrigerant | R-404A, 12.3 oz. |
| Heat Rejection | 4,050 BTU/hr |
| Operating Limits | Ambient 45°F to 100°FWater 45°F to 90°F |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 5.7 Amps |
| Min. Circuit / Max. Fuse | 15 A |
| Plug Type | NEMA 5-15P |
| Cord | 6.5 ft., Included |
| Voltage Range | 104 to 127 V |
| Exterior | Stainless Steel |
| Evaporator | Stainless Steel |
| Airflow | Front-In, Front-Out |
| Control Type | EverCheck Alert SystemCycleSaver Design |
| Certifications | NSF/ANSI 372, ADA Compliant Bin Opening |
| Warranty | 3 Years Parts and Labor, 5 Years Evaporator |
| Extended Coverage | 5 Years Parts on Compressor and Air-Cooled Condenser Coil |
