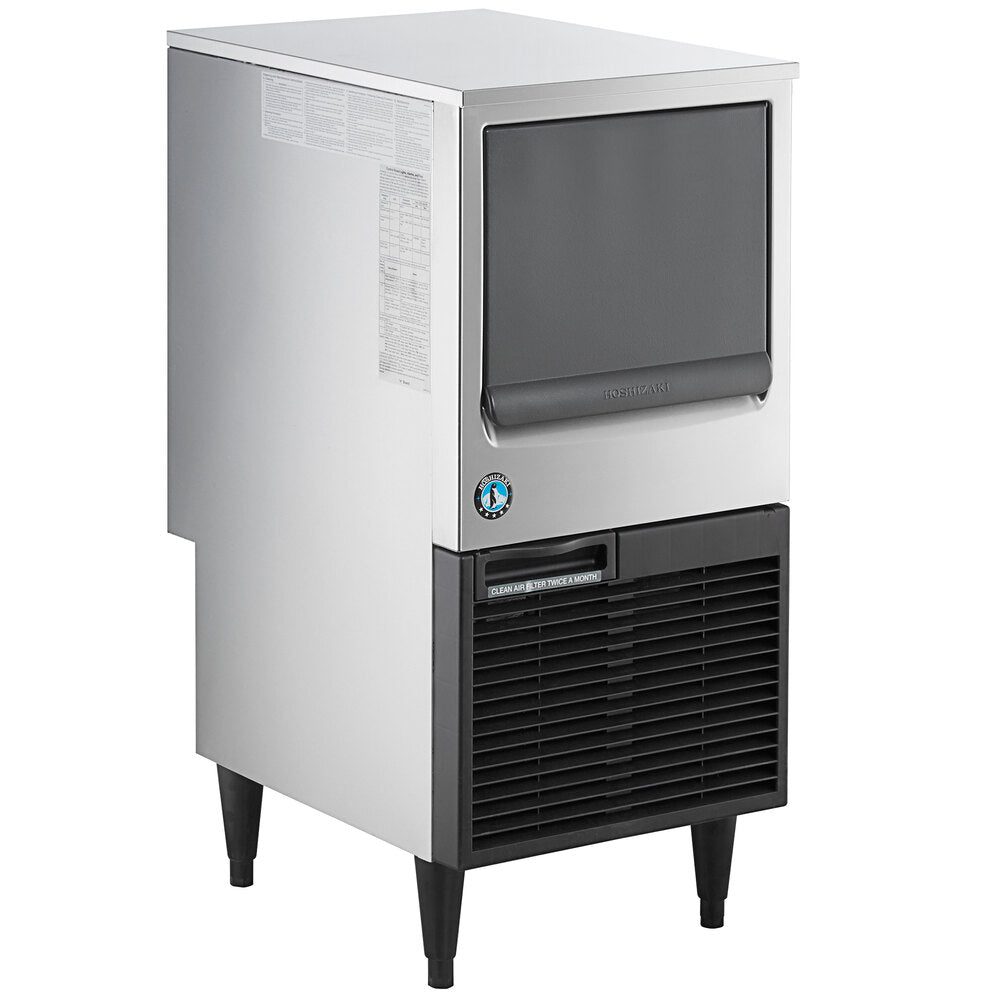

Hoshizaki KM-81BAK 17-3/4" Air-Cooled Crescent Cube Undercounter Ice Machine with Bin, 98 lb/24 hr, 38 lb Storage, 115V
A 17-3/4-inch undercounter ice maker that makes up to 98 lb. of crescent cubes a day for small bars and break rooms.
The Hoshizaki KM-81BAK is a self-contained, air-cooled crescent cuber with a built-in 38 lb. storage bin. It makes up to 98 lb. of ice per 24 hours at 70°F air and 50°F water, and 76 lb. at 90°F air and 70°F water. At 17-3/4" wide with front-in, front-out airflow and a slide-in door, it fits under a counter, and built-in installation is possible. It runs on R290 refrigerant, is ENERGY STAR qualified and plugs into a standard 115V outlet.
No floor drain nearby? Hoshizaki offers the HS-5061 drain pump assembly as an option.
Up to 98 lb. of crescent cubes per 24 hours at 70°F/50°F and 76 lb. at 90°F/70°F, with 38 lb. (1.3 cu. ft.) of built-in storage.

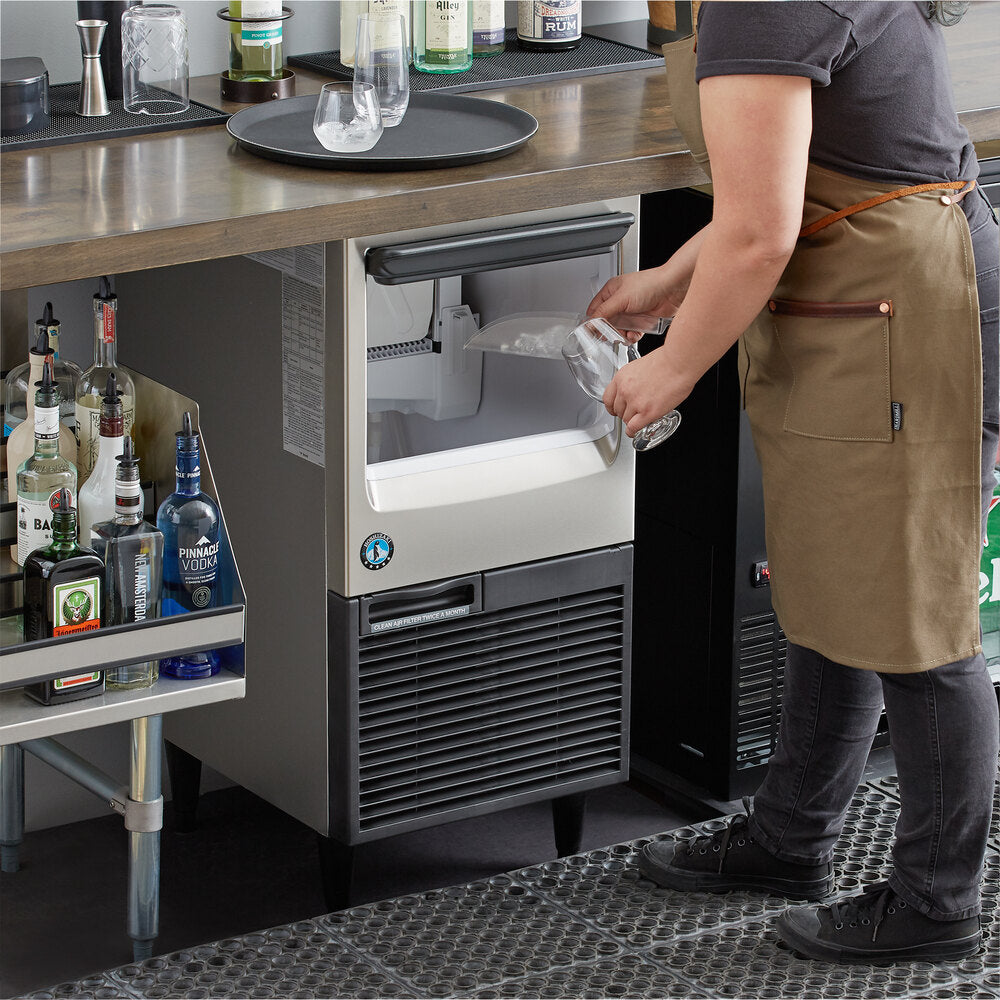

At 17-3/4" wide with front-in, front-out airflow, it fits under a bar or counter. Built-in installation is possible.
ENERGY STAR qualified, using 5.6 kWh and 22 gal. of water per 100 lb. of ice at 90°F/70°F. It runs on R290 hydrocarbon refrigerant.
The power switch is reachable without removing a panel, the air filter is removable, and the EverCheck alert system flags service needs.

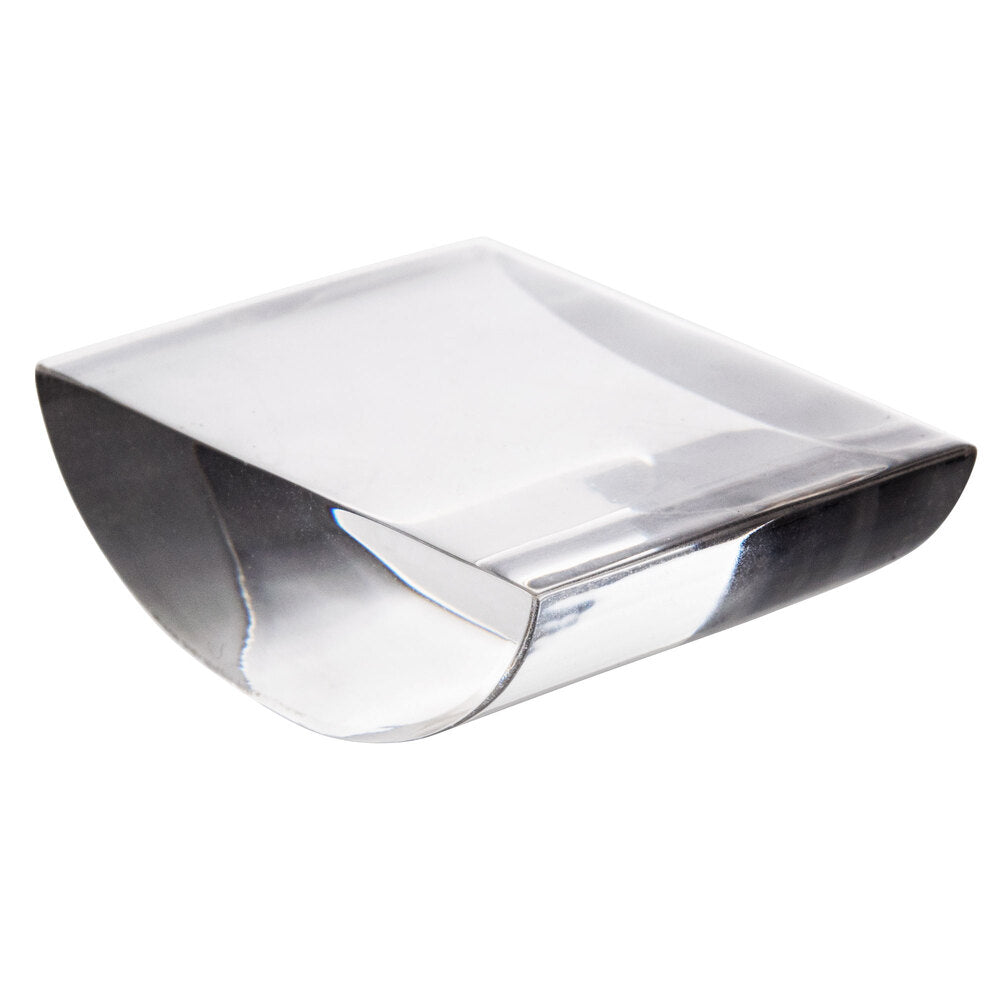

Individual crescent cubes from a stainless steel evaporator with CycleSaver design. The KMEdge cube is about 1-1/8" x 1-1/2" x 1/2".

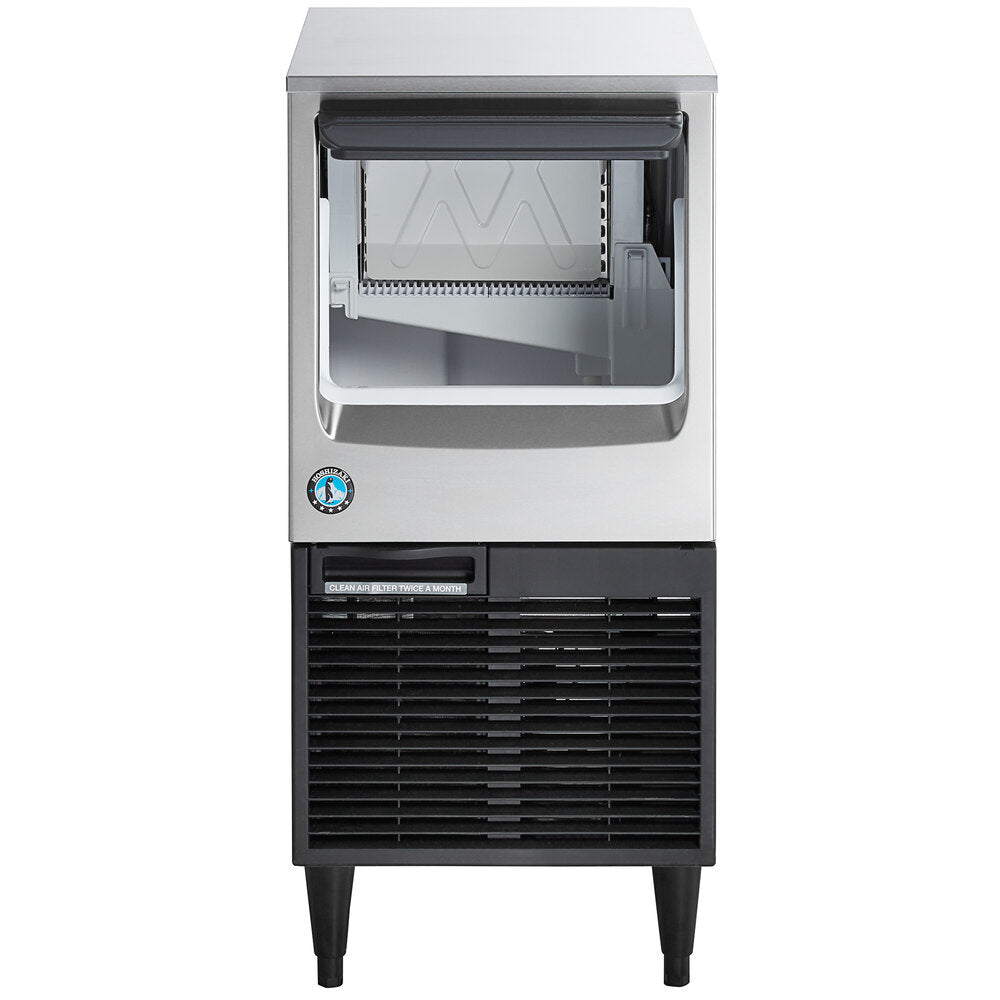

A slide-in bin door and an ADA compliant design keep the unit easy to reach, inside a durable stainless steel exterior.
Up to 98 lb. per 24 hours at 70°F air and 50°F water, and 76 lb. at 90°F air and 70°F water. The bin stores 38 lb.
Yes. Hoshizaki says built-in installation is possible, with front-in, front-out airflow. Leave at least 12" in front and 0.6" on top for maintenance.
Hoshizaki offers the HS-5061 drain pump assembly as an option, with its own 1-year parts and labor warranty.
A 115V, 60 Hz, single-phase outlet on a 15 A circuit. It draws 2.4 amps and comes with a 6.5 ft. cord and NEMA 5-15P plug.
Yes. Hoshizaki lists the KM-81BAK as ENERGY STAR qualified. It uses 5.6 kWh per 100 lb. of ice at 90°F/70°F.
Hoshizaki lists 3 years parts and labor on the entire machine, 5 years parts and labor on the evaporator, and 5 years parts on the compressor and air-cooled condenser coil. Valid in the United States, Canada, Puerto Rico and U.S. territories.
Yes. Hoshizaki equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Hoshizaki |
|---|---|
| Model Number | KM-81BAK |
| Type | Self-Contained Crescent Cuber with Built-In Storage Bin |
| Condenser | Air-Cooled |
| Unit Weight | 92 lb. |
| Shipping Weight | 125 lb. |
| Width | 17.75 Inches |
| Depth | 24 Inches |
| Height | 38.63 Inches |
| Legs | 6" Legs Included in Height |
| Shipping Dimensions | 27" x 21" x 39" |
| Capacity | 98 lb. per 24 hr |
| Ice Production 90°F Air / 70°F Water | 76 lb. per 24 hr |
| Storage Capacity | 38 lb.1.3 cu. ft. |
| Ice Type | Crescent Cube, approx. 1-1/8" x 1-1/2" x 1/2" |
| Potable Water | 22 gal. per 100 lb. at 90°F/70°F |
| Energy Use | 5.6 kWh per 100 lb. at 90°F/70°F |
| Water Inlet | 1/2" FPTMin. 1/4" Nominal ID Copper Tubing |
| Drain | 3/4" FPTMin. 3/4" Nominal ID Hard Pipe |
| Water Pressure | 10 to 113 PSIG |
| Refrigerant | R290, 3.0 oz. |
| Heat Rejection | 1,800 BTU/hr |
| Operating Limits | Ambient 45°F to 100°FWater 45°F to 90°F |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 2.4 Amps |
| Min. Circuit / Max. Fuse | 15 A |
| Plug Type | NEMA 5-15P |
| Cord | 6.5 ft., Included |
| Voltage Range | 108 to 122 V |
| Exterior | Stainless Steel |
| Evaporator | Stainless Steel |
| Airflow | Front-In, Front-OutRemovable Air Filter |
| Door | Slide-In Bin Door |
| Drain Pump | HS-5061 Drain Pump Assembly |
| Control Type | EverCheck Alert SystemCycleSaver DesignPower Switch Accessible without Panel Removal |
| Certifications | NSF/ANSI 372, ENERGY STAR, ADA Compliant |
| Warranty | 3 Years Parts and Labor, 5 Years Evaporator |
| Extended Coverage | 5 Years Parts on Compressor and Air-Cooled Condenser CoilHS-5061 Pump 1 Year Parts and Labor |
