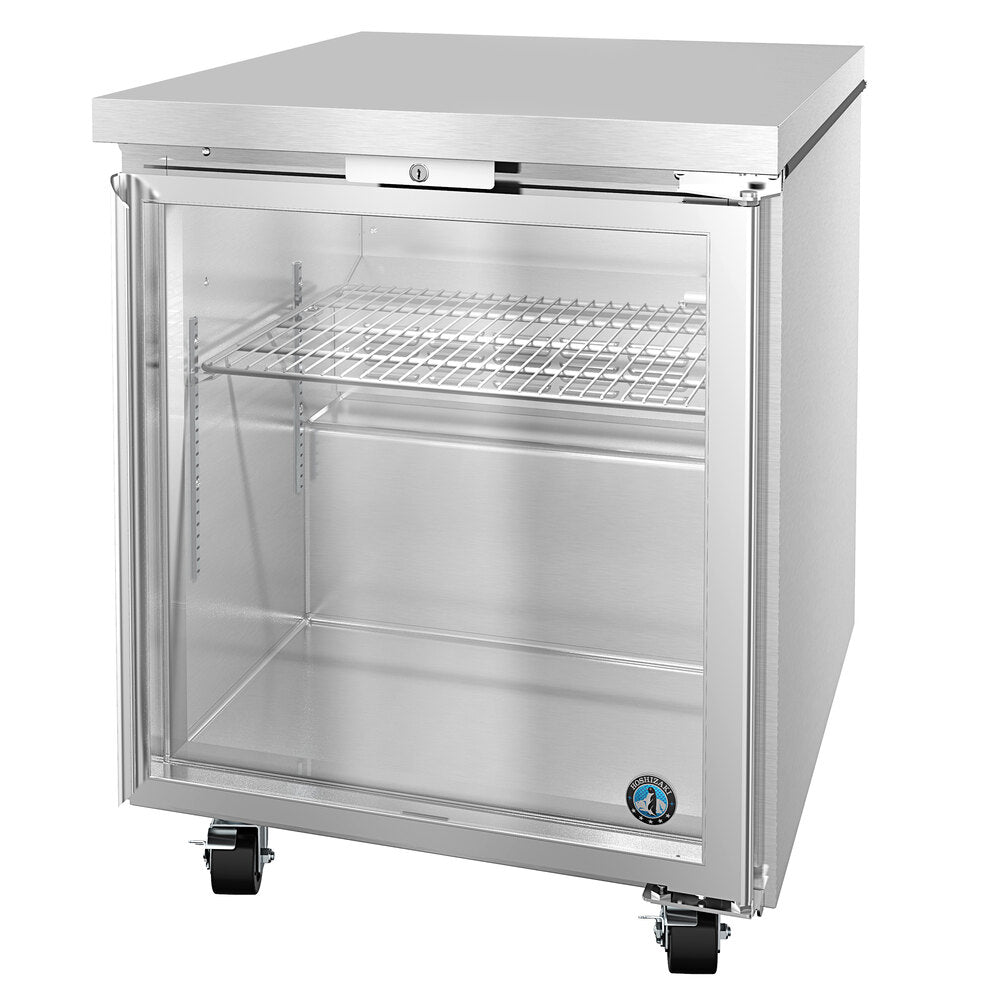

Hoshizaki UR27B-GLP01 Steelheart 27" Low Profile 1-Glass Door Undercounter Refrigerator, 6.21 cu. ft., 115V
Description
A 27" glass door refrigerator low enough to fit under an ADA-height 34" counter.
The Hoshizaki UR27B-GLP01 is a Steelheart Series low profile undercounter refrigerator with one locking glass door. At 31.9" tall on its 2.25" casters, Hoshizaki designed it to fit under an ADA-compliant 34" work surface. LED interior lights with an on/off switch show the product through the argon-filled, multi-pane glass. It holds 6.21 cu. ft. (AHAM) at a 32°F to 52°F setpoint and plugs into a standard 115V outlet.
Will it fit · Will it hook up
- Outside size
- 27" W x 31" D x 31.9" H with 2.25" casters; 32.5" deep with the 1" rear bumper
- Door opening
- 22.75" W x 23" H
- Door clearance
- 54.5" deep with the door open at 90°
- Power
- 115V/60/1, 3 A, 15 A HACR breaker; 10 ft. cord with NEMA 5-15P plug
- Air and clearance
- Keep the rear bumpers on and at least 1.5" of overhead clearance
The cabinet is 27" wide; measure doorways and aisles against the crate size of 36" L x 31.5" W x 35.5" H.
Holds in hot kitchens
Engineered to keep NSF-7 temperatures in 100°F ambient, with a 32°F to 52°F control setpoint range.
Low profile glass door
Argon-filled multi-pane glass door with lock and a full-length chrome handle; stays open at 90° and self-closes at 75°.
LED lighting
Energy efficient LED interior lights with an on/off switch.
Stainless inside and out
Stainless steel exterior front, sides and top (glass door front), with a stainless steel interior and 2" foamed-in-place insulation.
R290 refrigeration
Self-contained system with an E-coated evaporator coil, 988 BTU/hr at 1/6 HP, and non-electric condensate evaporation.
Delivery and setup
- Free shipping on this item. See our shipping policy for delivery details.
- Inspect the crate for damage before you sign, and note any damage on the delivery receipt; report concealed damage to the carrier right away.
- The unit is crated on a pallet (36" L x 31.5" W x 35.5" H, 183 lb.). Lift with two people and do not tilt it more than 45°.
- Hoshizaki has you attach the casters after the unit comes off the pallet, with the locking casters at the front.
- Plug into a grounded 3-prong 115V outlet on its own circuit. Do not use an extension cord. If GFCI is required, use a GFCI breaker, not a GFCI receptacle.
- Keep it away from ovens, grills and other high-heat equipment, on a firm, level floor.
Questions buyers ask
What outlet does it need?
A 115V, 60 Hz, single-phase outlet for the NEMA 5-15P plug on the 10 ft. cord. Hoshizaki lists 3 amps and a 15 A HACR breaker. If GFCI protection is required, use a GFCI breaker instead of a GFCI receptacle.
Will it fit under a 34" counter?
Yes. Hoshizaki designed the UR27B-GLP01 to fit under an ADA-compliant 34" work surface. It is 31.9" tall on the standard 2.25" casters; the 4" and 6" caster kits make it taller.
How many shelves come with it?
1 epoxy coated wire shelf (22" x 16"), adjustable in 1/2" steps on anodized aluminum supports. Additional epoxy or stainless steel shelves are optional.
What does the warranty cover?
Hoshizaki gives 7 years on labor, parts and compressor, valid in the United States, Canada, Puerto Rico and U.S. territories. Eligibility details are on the Hoshizaki warranty statement.
Does the door lock?
Yes. Hoshizaki builds the glass door with a lock.
Which options are available?
4" casters HS-5035, set of 4; 6" casters HS-5036, set of 4; Foot pedal kit HS-5555 left hinge or HS-5556 right hinge; Overshelves HS-5172 single or HS-5163 double; Lower epoxy shelf HS-5161; Lower stainless shelf HS-5169; Stainless steel back panel, factory request.
Do you match lower prices?
Yes. Hoshizaki equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Hoshizaki |
|---|---|
| Model Number | UR27B-GLP01 |
| Series | Steelheart |
| Type | Single Section Low Profile Undercounter Refrigerator |
| Access | 1 glass door with lock |
| Shipping Weight | 183 lb. |
| Width | 27 Inches |
| Depth | 31 Inches |
| Height | 31.9 Inches |
| Depth with Rear Bumper | 32.5" |
| Height Note | Height includes the standard 2.25" casters |
| Door Opening | 22.75" W x 23" H |
| Depth with Door Open at 90° | 54.5" |
| Crate Size | 36" L x 31.5" W x 35.5" H |
| Capacity | 6.21 cu. ft. |
| Shelves | 1 epoxy coated wire shelf22" x 16" W x DAdjustable in 1/2" increments |
| Temperature Range | 32°F to 52°F |
| Ambient Range | 45°F to 100°F |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 3 Amps |
| HACR Breaker | 15 Amps |
| Voltage Range | 104-126V |
| Plug Type | NEMA 5-15P |
| Cord | 10 ft. cord and plug |
| Energy Consumption | 1.15 kWh/day per ASHRAE |
| Refrigerant | R290, 2.3 oz. |
| Compressor | 988 BTU/hr, 1/6 HP |
| Heat Rejection | 263 BTU/hr per NSF |
| Refrigeration System | Self-containedE-coated evaporator coilCapillary tubeNon-electric condensate evaporationOff-cycle defrost |
| Exterior | Stainless steel top, front frame and sidesCoated steel back and bottom |
| Door | Silver anodized aluminum glass doorArgon-filled multi-pane glassLockFull-length chrome handleStays open at 90°, self-closes at 75° |
| Lighting | LED interior lights with on/off switch |
| Interior | Stainless steel |
| Insulation | 2" CFC-free foamed-in-place polyurethane |
| Casters | 2.25" stem casters, 2 with brakes |
| Optional Accessories | 4" casters HS-5035, set of 46" casters HS-5036, set of 4Foot pedal kit HS-5555 left hinge or HS-5556 right hingeOvershelves HS-5172 single or HS-5163 double |
| More Options | Lower epoxy shelf HS-5161Lower stainless shelf HS-5169Stainless steel back panel, factory request |
| Certifications | ETL Listed US and Canada, ETL Sanitation |
| Other Marks | Georgia MadeNatural refrigerant |
| Warranty | 7 Years Parts, Labor and Compressor |
| Warranty Coverage | Valid in the United States, Canada, Puerto Rico and U.S. territories |
