Description
Sold as: Each.

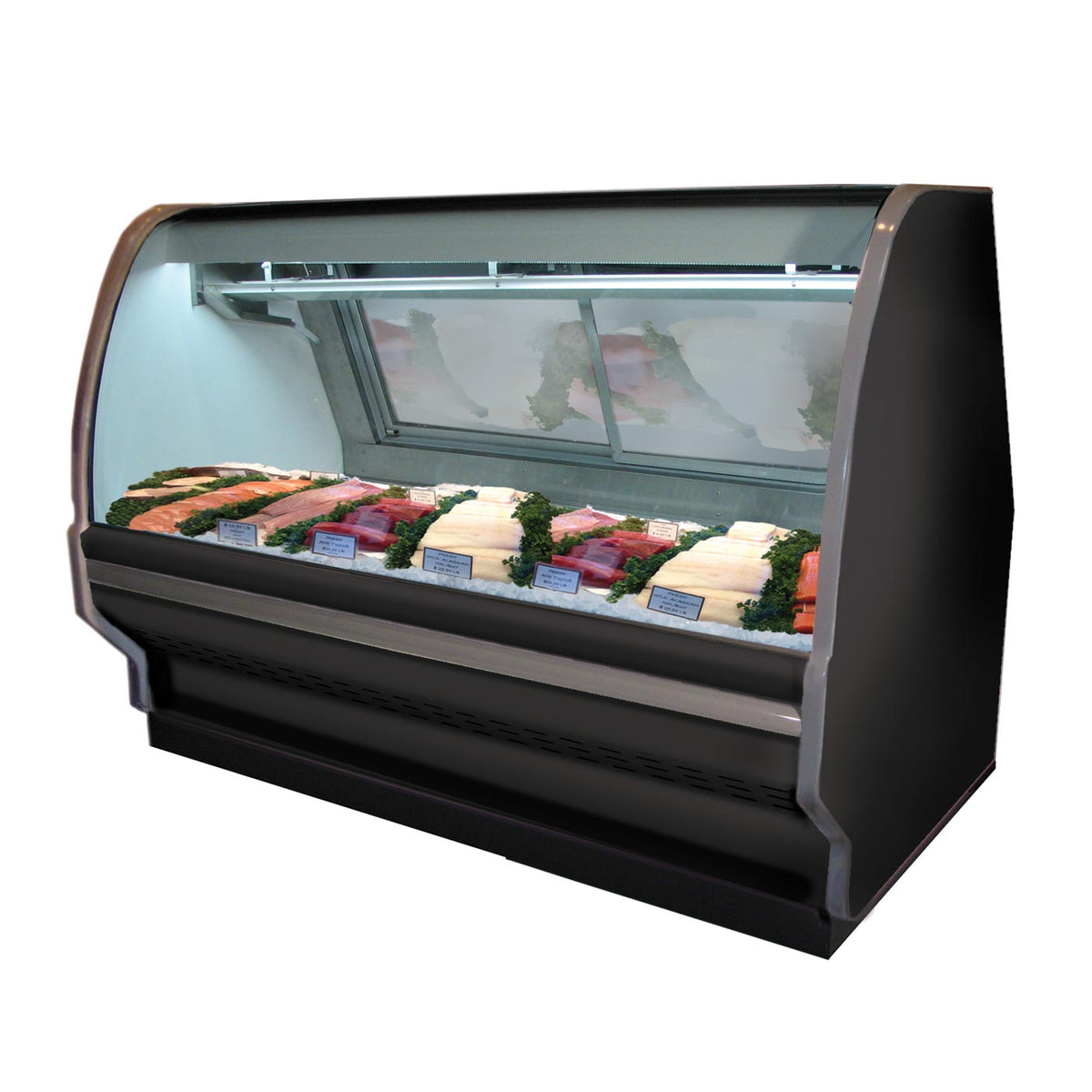

The Howard-McCray R-CFS40E-6C-BE-LED 40E Series 75" Remote Endless Design Curved Glass - Deli
Howard-McCray R-CFS40E-6C-BE-LED Standart Features
Construction and Electrical Requirements
- UL Classified to ANSI/NSF 7
- Foamed in place CFC free foam
- Heavy gauge steel super structure
- Single duty display
- Endless design allows for continuous line up
- Drain is included for cleaning
- Extra wide double bend curved glass (enhances product display)
- 1 row of LED lighting at top of unit
- 115V with power cord
- Remote models must be hard wired
- UL/CUL listed
- 115V-5AMP general purpose receptacle (wired separately) - Remote models only
Interior and Exterior
- White, black or stainless steel interior ends
- White black or stainless steel interior
- White or stainless steel aluminum floor (main deck area)
- Stainless steel mezzanine shelf
- Epoxy coated main deck shelves
- Air insulated baffle (prevents moisture from dripping into display area)
- Double pane rear removable doors
- Rear door uses the McGlide door system** (for easy access)
- Removable front grille allows for cleaning
- Removable rear grille for easy servicing
- 1 - 1/2" removable end panels
- 2" Gray front bumper
** McGlide door system is built with an extra tight door jamb, which helps seal the door tight when closed and prevents cold air from leaving the unit saving energy costs.
Finishes and Refrigeration
- Grey finish extrusion on doors and door tracks
- White, black, and stainless steel front and ends
- Stainless steel mirror trim
- Stainless steel heavy gauge top - 13-3/4" W
- Rear of unit is stainless steel brush finish at top
- Bottom rear is white, black or stainless steel aluminum
- Copevapsystem (eliminates need for condensate pan)
- Self-contained - R513A expansion valve system
- Remote - R448A expansion valve system
- Gravity coil located at inside top of unit
- Self-contained unit
- Automatic defrost electronically controlled (Self-contained units only)
- Electronically control maintains constant temperatures
- Remotes available
Howard-McCray R-CFS40E-6C-BE-LED Options
- Scale stand
- Paper cutter
- Stainless steel, laminate, or paint
- Mirrored doors
- Lights for mezzanine shelf
- Drop work shelf
- Door locks
- Digital thermometer
- Front bumper - optional color and marketing location
- Salad pan settings
- Special color front bumper: 2"
Technical specifications
Specifications
| Manufacturer | Howard-McCray |
|---|---|
| Model Number | R-CFS40E-6C-BE-LED |
| Weight | 693 lbs |
| Width | 75.5 |
| Depth | 40 |
| Height | 53 |
| Display Case Type | single duty |
| Compressor Location | remote (refrigeration not included) |
| Compressor HP | 1/4 HP |
| Glass Style | curved |
| Refrigeration Type | gravity coil |
| Exterior Finish | black |
| Interior Finish | white |
| Pan Qty | 3-pan |
| Voltage | 115 |
| Phase | 1 |
| Capacity (cu. ft.) | 36.8 |
| Selling unit | Each |
| Source units per case | 1 |
| Units per order | 1 |
| Source price unit | each |
