Description
Sold as: Each.

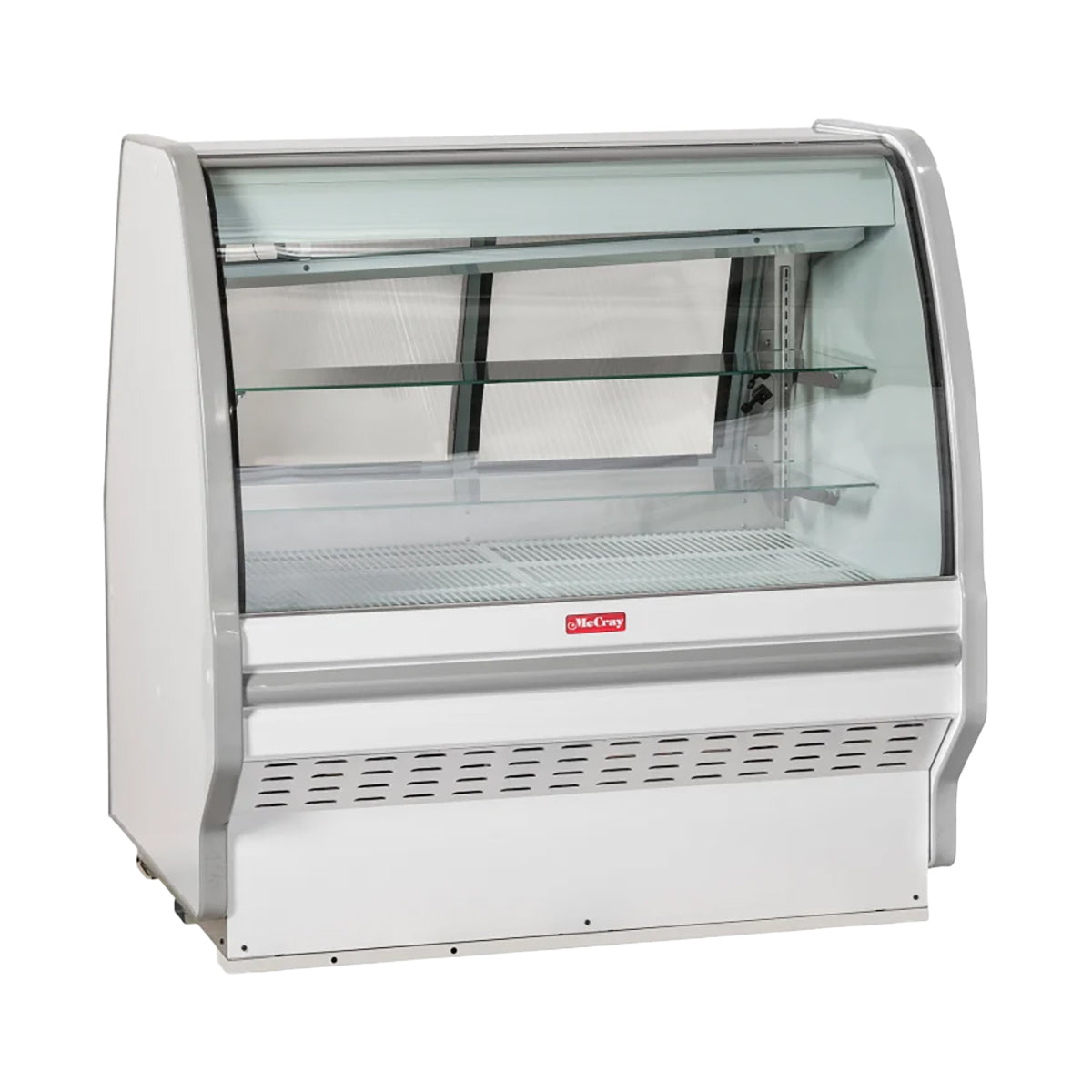

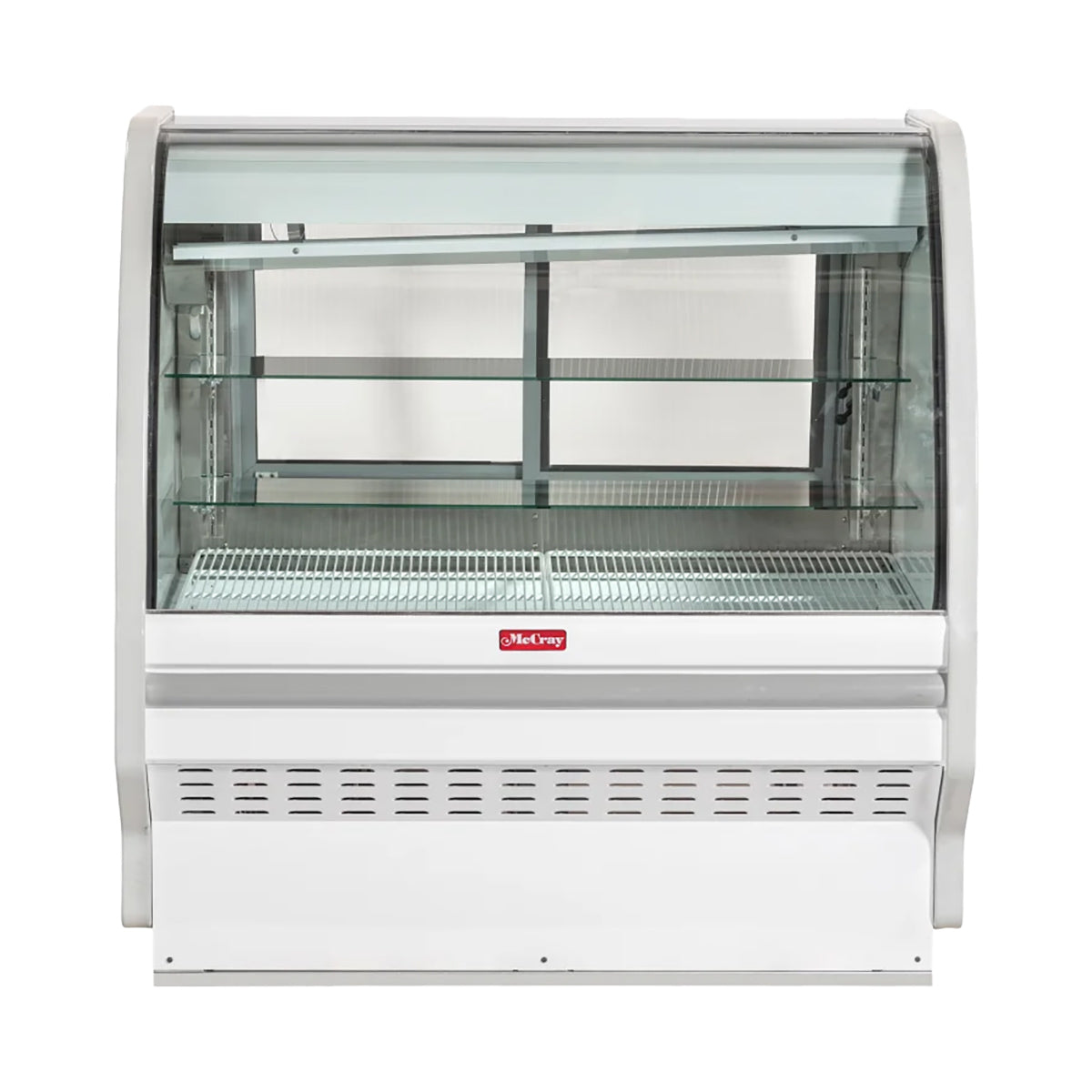

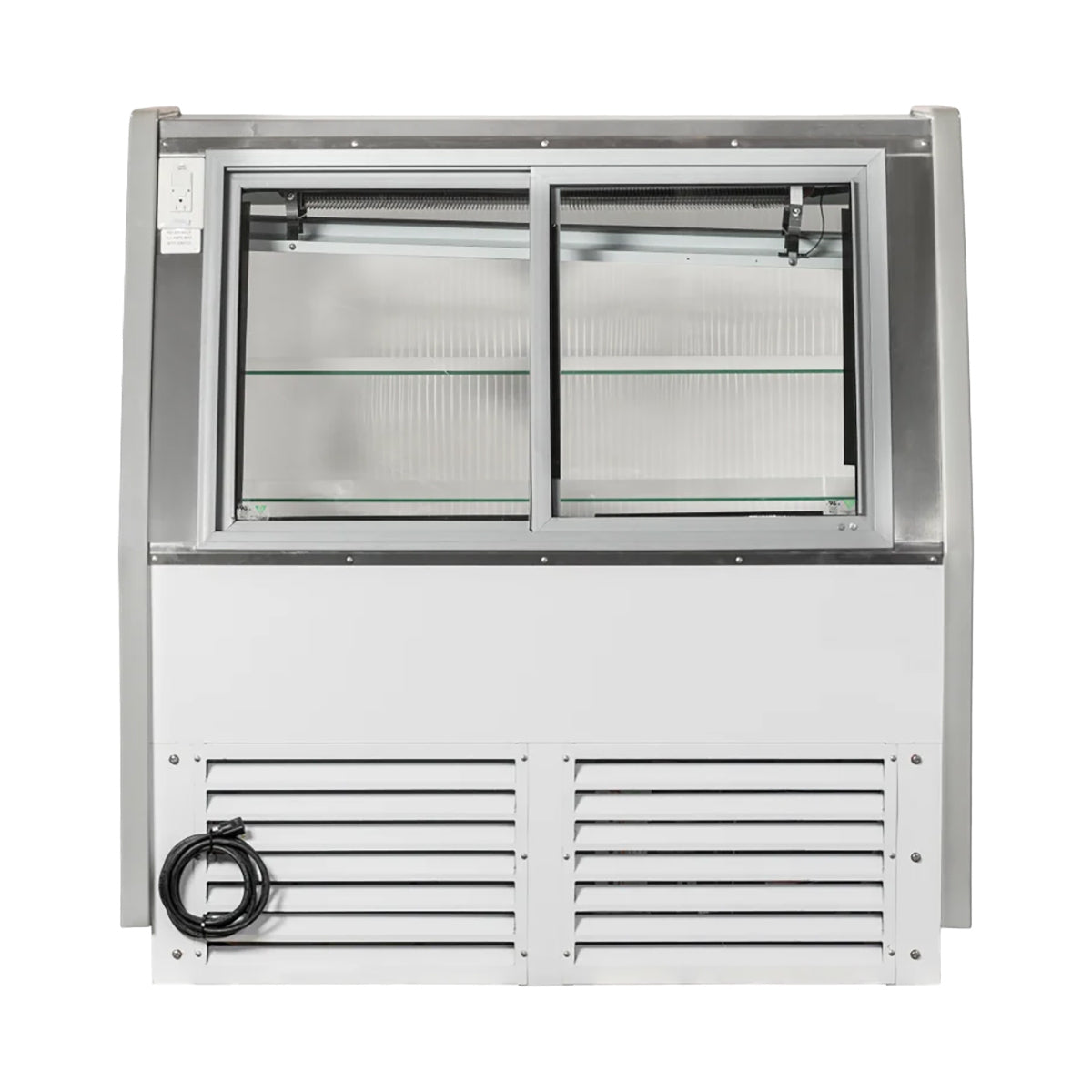

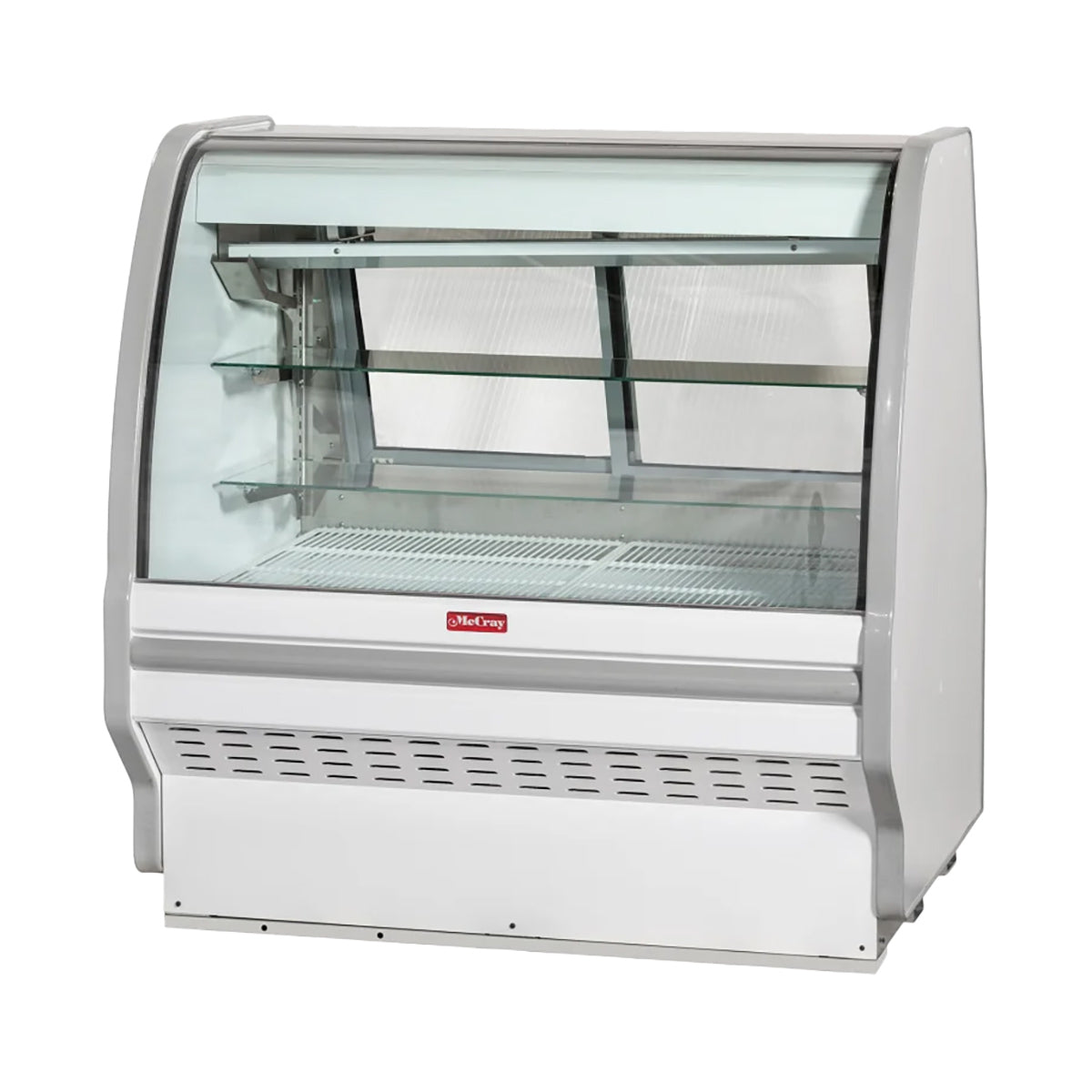

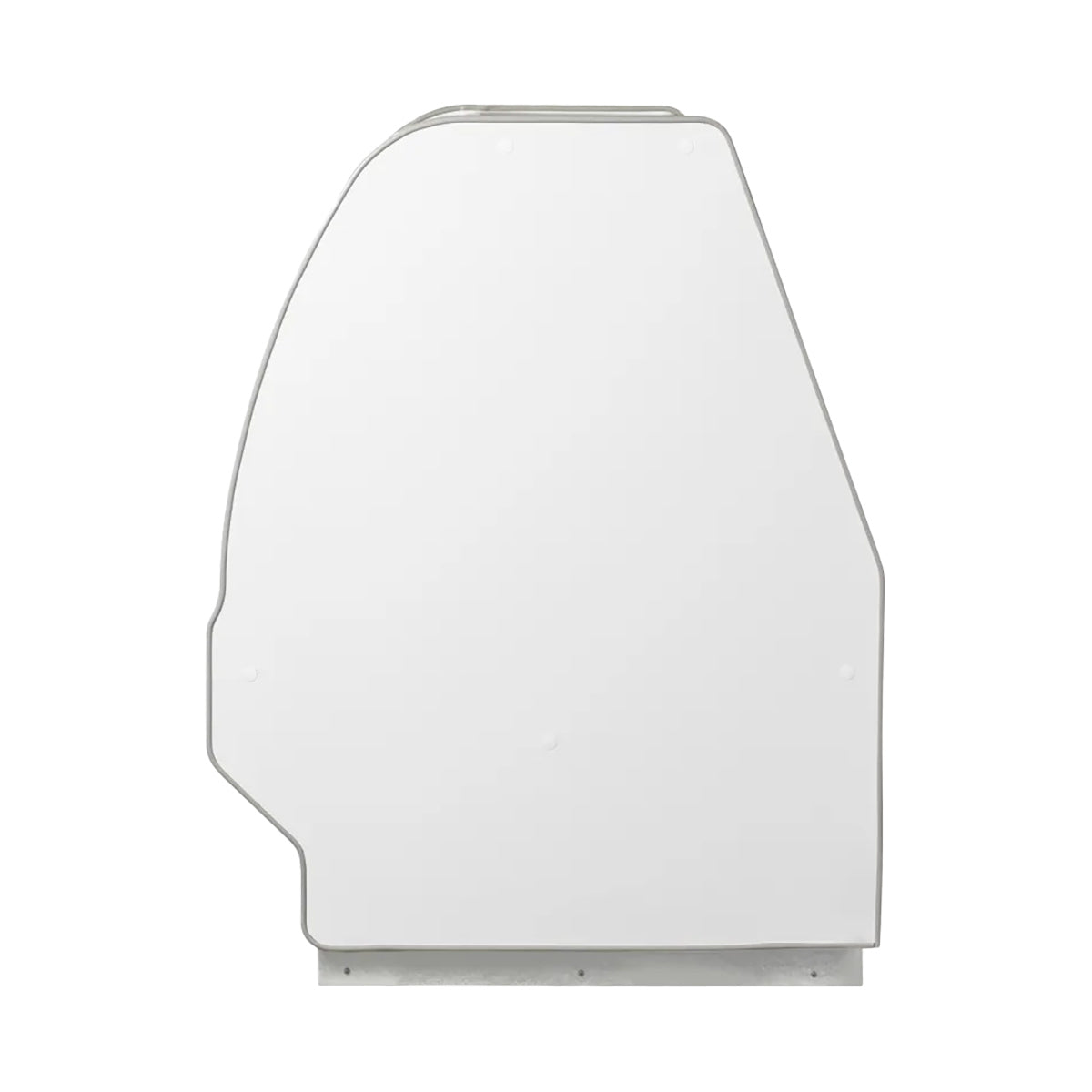

The Howard-McCray SC-CBS40E-6C-S-LED Self-contained 75" 40E Series - Endless Design Curved Glass - Bakery - Stainless Steel
Howard-McCray SC-CBS40E-6C-S-LED Standart Features
Construction and Electrical Requirements
- UL Classified to ANSI/NSF 7
- Foamed in place CFC free foam
- Heavy gauge steel super structure
- Multi deck
- Endless design allows for continuous line up
- 1 row at inside top of unit
- 115V with powercord
- Remote models must be hard wired
- UL/CUL listed
- 115V-5AMP general purpose receptacle (wired separately) - Remote models only
Interior and Exterior
- White, black or stainless steel interior ends
- 2 rows of glass shelving
- Epoxy coated main deck shelves
- Air insulated baffle (prevents moisture from dripping into display area)
- Double pane rear removable doors
- Rear door uses the McGlide door system** (for easy access)
- Removable front grille allows for cleaning
- Removable rear grille for easy servicing
- 1 - 1/2" removable end panels
- 2" Gray front bumper
** McGlide door system is built with an extra tight door jamb, which helps seal the door tight when closed and prevents cold air from leaving the unit saving energy costs.
Finishes and Refrigeration
- Grey finish extrusion on doors and door tracks
- White, black, and stainless steel front and ends
- Stainless steel mirror trim
- Stainless steel heavy gauge top - 13-3/4" W
- Rear of unit is stainless steel brush finish at top
- Bottom rear is white, black or stainless steel aluminum
- Copevapsystem (eliminates need for condensate pan)
- Self-contained - R513A expansion valve system
- Remote - R448A expansion valve system
- Gravity coil located at inside top of unit
- Self-contained unit
- Automatic defrost electronically controlled (Self-contained units only)
- Electronically control maintains constant temperatures
- Remotes available
Howard-McCray SC-CBS40E-6C-S-LED Options
- Scale stand
- Paper cutter
- Stainless steel, laminate, or paint
- Mirrored doors
- Stainless steel mezzanine shelf
- Lights for mezzanine shelf
- Drop work shelf
- Front bumper - optional color and marketing location
- Solid shelves
- Door locks
- Digital thermometer
- Special color front bumper: 2"
Technical specifications
Specifications
| Manufacturer | Howard-McCray |
|---|---|
| Model Number | SC-CBS40E-6C-S-LED |
| Weight | 175 lbs |
| Width | 75.5 |
| Height | 53 |
| Service Type | full service |
| Installation Type | free standing |
| Shelf Type | fixed |
| Compressor Location | bottom mounted |
| Number of Shelves | 2 shelves |
| Compressor HP | 1/3 HP |
| Glass Style | curved |
| Interior Finish | stainless steel |
| Shelf Construction | glass |
| Voltage | 115 |
| Color | silver |
| Phase | 1 |
| Selling unit | Each |
| Source units per case | 1 |
| Units per order | 1 |
| Source price unit | each |
